Nefit (Bosch) BaseLine HRC24 CW3 spare parts
In brief
Instalpunt supplies 136 original parts for the Nefit (Bosch) BaseLine HRC24 CW3, including fans, sensors, temperature sensors and NTC sensors. Order online.
- 136Spare parts
- 16In stock
- €3.27From
- 21Types

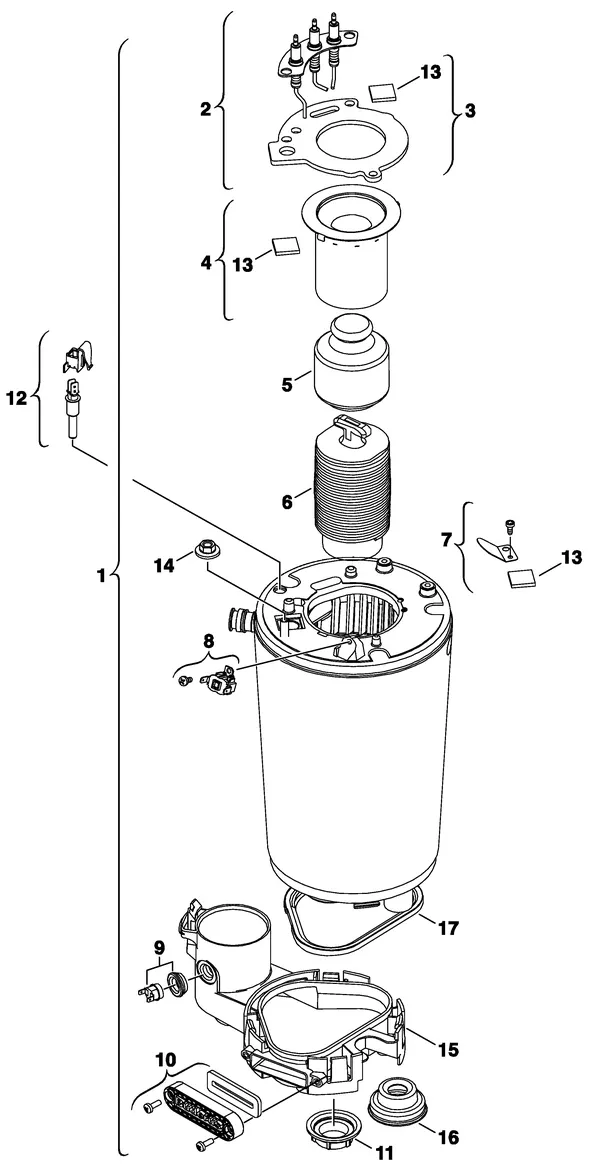

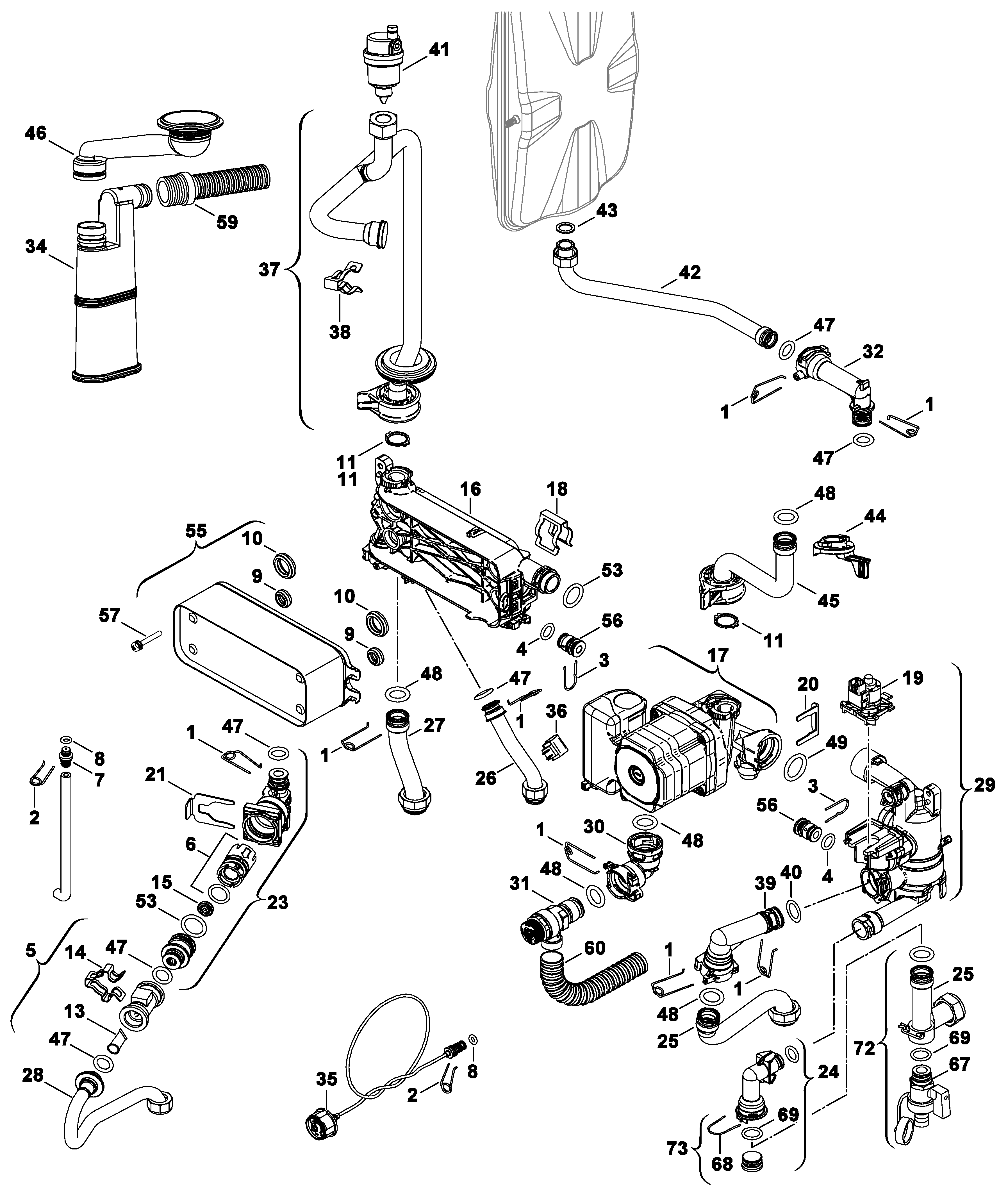

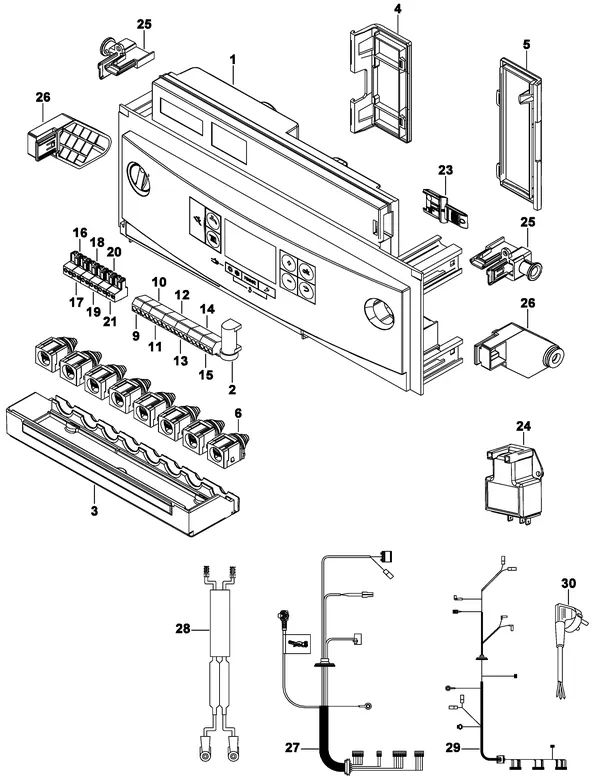

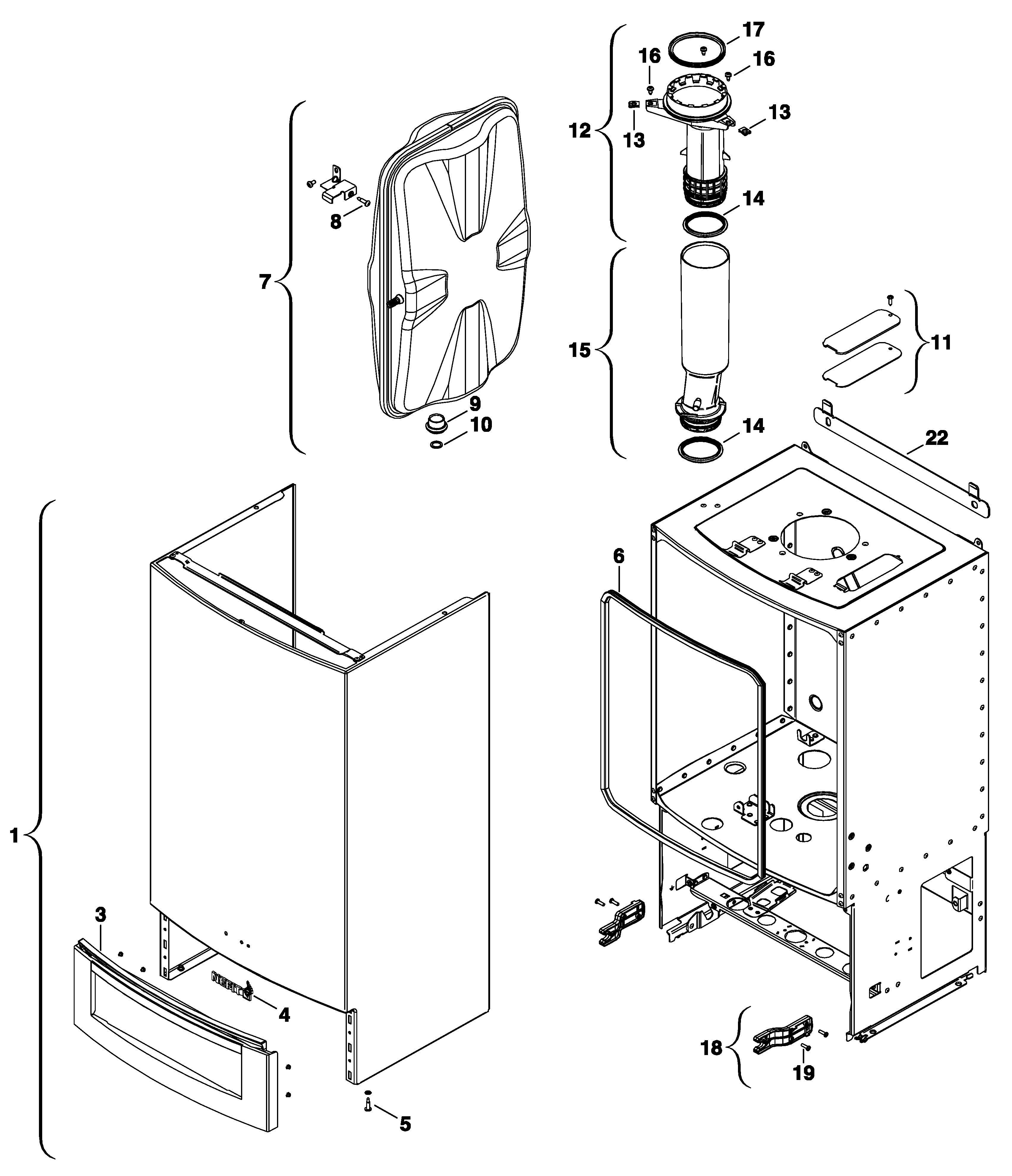

- availableExploded view
Looking for parts for the Nefit (Bosch) BaseLine HRC24 CW3 (boiler)? Below are all 136 original parts, grouped by part type, with the matching exploded view. Choose a type to jump straight to the right table.
View the interactive exploded view →Quick left to the right part for the Nefit (Bosch) BaseLine HRC24 CW3
| Part | From | Delivery |
|---|---|---|
| Fan Nefit fan for e.g. Condens 6000W (30HRCII HRVS75) 87182242070 | €299.95 | In stock |
| Ignition part Bosch electrode set for e.g. Condens 6000W (30HRCII HRVS75) 87181070870 | €55.95 | In stock |
| Temperature sensor Nefit temperature sensor | €46.95 | In stock |
| Pump Bosch pump UPMO 15-60 HU1 9H | €336.95 | In stock |
Prices incl. VAT, taken directly from our checkout. Below is the complete parts list for this model.
Installer or self-employed engineer? Create a business account: prices excl. VAT and invoices in your company name.
- Fans 1
- Sensors 2
- Temperature sensors and NTC sensors 1
- Pumps 1
- Gas valves and gas control 1
- Ignition and ionisation 1
- Expansion vessels 1
- Siphons and condensate drains 2
- Thermostats and controls 1
- Burners 1
- Filters 1
- Valves 5
- Pressure gauges 1
- Motors 1
- Electrical parts 4
- Conversion kits 1
- Cables and wiring harnesses 3
- Gaskets and seals 23
- Pipes, tubes and hoses 15
- Casing and panels 9
- Fixing material 38
- Other parts 23
Fans for the Nefit (Bosch) BaseLine HRC24 CW3 (1) all Nefit (Bosch) fans →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Nefit fan for e.g. Condens 6000W (30HRCII HRVS75) 87182242070 | 8189530 Mfr. no. 87182242070 | €299.95 | In stock | View & order |
Sensors for the Nefit (Bosch) BaseLine HRC24 CW3 (2) all Nefit (Bosch) sensors →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Nefit sensor HR/HRC | 8185020 Mfr. no. 87145000870 | €33.95 | In stock | View & order |
| Nefit temperature limiter for e.g. HRC II 35 (ZWBR35) 87105062670 | 8189355 Mfr. no. 87105062670 | €36.95 | In stock | View & order |
Temperature sensors and NTC sensors for the Nefit (Bosch) BaseLine HRC24 CW3 (1) all Nefit (Bosch) temperature sensors and NTC sensors →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Nefit temperature sensor | 8020274 Mfr. no. 87160108090 | €46.95 | In stock | View & order |
Pumps for the Nefit (Bosch) BaseLine HRC24 CW3 (1) all Nefit (Bosch) pumps →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Bosch pump UPMO 15-60 HU1 9H | 80200426 Mfr. no. 8737604216 | €336.95 | In stock | View & order |
Gas valves and gas control for the Nefit (Bosch) BaseLine HRC24 CW3 (1) all Nefit (Bosch) gas valves and gas control →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Nefit gas control block for HRC24 | 8029245 Mfr. no. 87182243450 | €223.95 | Made-to-order item | View & order |
Ignition and ionisation for the Nefit (Bosch) BaseLine HRC24 CW3 (1) all Nefit (Bosch) ignition and ionisation →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Bosch electrode set for e.g. Condens 6000W (30HRCII HRVS75) 87181070870 | 8189507 Mfr. no. 87181070870 | €55.95 | In stock | View & order |
Expansion vessels for the Nefit (Bosch) BaseLine HRC24 CW3 (1) all Nefit (Bosch) expansion vessels →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Nefit expansion vessel | 8189329 Mfr. no. 87154073280 | €215.95 | Made-to-order item | View & order |
Siphons and condensate drains for the Nefit (Bosch) BaseLine HRC24 CW3 (2) all Nefit (Bosch) siphons and condensate drains →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Nefit flexible drain siphon | 8029274 Mfr. no. 87160120700 | €31.95 | Made-to-order item | View & order |
| Nefit siphon for e.g. BaseLine HRC24 CW4 87160122730 | 8029273 Mfr. no. 87160122730 | €8.95 | Made-to-order item | View & order |
Thermostats and controls for the Nefit (Bosch) BaseLine HRC24 CW3 (1) all Nefit (Bosch) thermostats and controls →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Nefit control thermostat | 8020475 Mfr. no. 87072061960 | €22.95 | In stock | View & order |
Burners for the Nefit (Bosch) BaseLine HRC24 CW3 (1) all Nefit (Bosch) burners →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Nefit burner for e.g. Condens 6000W (30HRCII HRVS75) 87181206090 | 8021223 Mfr. no. 87181206090 | €155.95 | Made-to-order item | View & order |
Filters for the Nefit (Bosch) BaseLine HRC24 CW3 (1) all Nefit (Bosch) filters →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Nefit filter for e.g. HRC II 35 (ZWBR35) 87161064860 | 8021031 Mfr. no. 87161064860 | €31.95 | Made-to-order item | View & order |
Valves for the Nefit (Bosch) BaseLine HRC24 CW3 (5) all Nefit (Bosch) valves →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Nefit air vent valve | 8029280 Mfr. no. 87186427800 | €36.95 | In stock | View & order |
| Nefit safety valve for e.g. Compress 5800i AW (CS5800iAW 12 E) 87186439890 | 8029286 Mfr. no. 87186439890 | €43.95 | In stock | View & order |
| Nefit control valve | 8020474 Mfr. no. 87186602270 | €29.95 | Made-to-order item | View & order |
| Nefit safety valve for e.g. HRC II 35 (ZWBR35) 87174010290 | 8020241 Mfr. no. 87174010290 | €58.95 | Made-to-order item | View & order |
| Nefit fill/drain cock for e.g. BaseLine HRC24 CW4 7101556 | 8029288 Mfr. no. 7101556 | €62.95 | Made-to-order item | View & order |
Pressure gauges for the Nefit (Bosch) BaseLine HRC24 CW3 (1) all Nefit (Bosch) pressure gauges →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Nefit pressure gauge | 8029287 Mfr. no. 87186413500 | €53.95 | Made-to-order item | View & order |
Motors for the Nefit (Bosch) BaseLine HRC24 CW3 (1)
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Nefit motor three-way valve | 8029255 Mfr. no. 87186828390 | €149.95 | Not available | View & order |
Electrical parts for the Nefit (Bosch) BaseLine HRC24 CW3 (4) all Nefit (Bosch) electrical parts →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Nefit coding plug KIM-56 1320 (NG) | 8021193 Mfr. no. 87376016680 | €47.95 | Made-to-order item | View & order |
| Nefit transformer for e.g. BaseLine HRC24 CW4 87186413340 | 8029295 Mfr. no. 87186413340 | €95.95 | Made-to-order item | View & order |
| Nefit strain relief for e.g. 9700i HR50 87122010070 | 8029264 Mfr. no. 87122010070 | €23.95 | Made-to-order item | View & order |
| Nefit fuse | 8029291 Mfr. no. 87445030400 | €95.95 | Made-to-order item | View & order |
Conversion kits for the Nefit (Bosch) BaseLine HRC24 CW3 (1) all Nefit (Bosch) conversion kits →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Nefit propane conversion kit for BaseLine HRC24 CW3/4 | 8029312 Mfr. no. 87376006070 | €47.95 | Made-to-order item | View & order |
Cables and wiring harnesses for the Nefit (Bosch) BaseLine HRC24 CW3 (3) all Nefit (Bosch) cables and wiring harnesses →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Nefit wiring harness for e.g. BaseLine HRC24 CW4 87186407980 | 8029301 Mfr. no. 87186407980 | €90.95 | Made-to-order item | View & order |
| Nefit wiring harness for e.g. BaseLine HRC24 CW4 87186407990 | 8029299 Mfr. no. 87186407990 | €95.95 | Made-to-order item | View & order |
| Nefit power cable | 8029302 Mfr. no. 87044010330 | €43.95 | Made-to-order item | View & order |
Gaskets and seals for the Nefit (Bosch) BaseLine HRC24 CW3 (23) all Nefit (Bosch) gaskets and seals →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Nefit seal for e.g. Condens 6000W (30HRCII HRVS75) 87110043250 | 8189508 Mfr. no. 87110043250 | €23.95 | In stock | View & order |
| Nefit gasket DHW + CW 10 pcs | 8184184 Mfr. no. 87101030450 | €11.95 | In stock | View & order |
| Nefit gasket ring 80 | 8184234 Mfr. no. 87110042320 | €40.95 | In stock | View & order |
| Nefit O-ring 17x4 10 pcs | 8189387 Mfr. no. 87167711540 | €8.95 | In stock | View & order |
| Nefit sealing rubber | 8029242 Mfr. no. 87110043240 | €24.95 | In stock | View & order |
| Nefit O-ring Top 22/175-3 ZBS 10 pcs | 8029340 Mfr. no. 87167711560 | €7.95 | Made-to-order item | View & order |
| Nefit seal 18.5 x 24.3 (10 pcs) | 8021331 Mfr. no. 87167712590 | €20.95 | In stock | View & order |
| Nefit gasket ring 1" 10 pcs | 8185058 Mfr. no. 87101030140 | €23.95 | Made-to-order item | View & order |
| Nefit seal 18,3 x 24,3 (10 x) | 8021332 Mfr. no. 87101031610 | €47.95 | Made-to-order item | View & order |
| Nefit seal for e.g. BaseLine HRC24 CW4 87101032090 | 8029314 Mfr. no. 87101032090 | €10.95 | Made-to-order item | View & order |
| Nefit seal for e.g. BaseLine HRC24 CW4 87160138570 | 8029227 Mfr. no. 87160138570 | €31.95 | Made-to-order item | View & order |
| Nefit seal 18mm 10 pcs | 8029250 Mfr. no. 87167710030 | €8.95 | Made-to-order item | View & order |
| Nefit seal 2,62 x 6,02 mm EPDM 10 pcs | 8029249 Mfr. no. 87167713250 | €8.95 | Made-to-order item | View & order |
| Nefit seal for fan | 8021328 Mfr. no. 87186602080 | €21.95 | Made-to-order item | View & order |
| Nefit sealing rubber condensate tray | 8029241 Mfr. no. 87161068400 | €30.95 | Made-to-order item | View & order |
| Nefit diaphragm for e.g. Condens 6000W (30HRCII HRVS75) 87182228450 | 8020729 Mfr. no. 87182228450 | €53.95 | Made-to-order item | View & order |
| Nefit O-ring 12 x 3 (10 pcs) | 8020632 Mfr. no. 87102050890 | €21.95 | Made-to-order item | View & order |
| Nefit O-ring 12,5x3 WRAS / KTW (1 x) | 8020631 Mfr. no. 87161067480 | €25.95 | Made-to-order item | View & order |
| Nefit O-ring 13.87 x 3.53 mm 10 pcs | 8029268 Mfr. no. 87161074390 | €7.95 | Made-to-order item | View & order |
| Nefit O-ring 18.7 x 2.7 mm 10 pcs | 8029267 Mfr. no. 87186404140 | €25.95 | Made-to-order item | View & order |
| Nefit O-ring 2,62 x 6,02 ED EPDM (10 pcs) | 8020626 Mfr. no. 87161408100 | €25.95 | Made-to-order item | View & order |
| Nefit O-ring 20.22 x 3.53 mm 10 pcs | 8029272 Mfr. no. 87186854900 | €8.95 | Made-to-order item | View & order |
| Nefit O-ring 23 x 4 (10 pcs) | 8020625 Mfr. no. 87167713530 | €7.95 | Made-to-order item | View & order |
Pipes, tubes and hoses for the Nefit (Bosch) BaseLine HRC24 CW3 (15) all Nefit (Bosch) pipes, tubes and hoses →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Nefit connection pipe | 8021476 Mfr. no. 87186602260 | €42.95 | Made-to-order item | View & order |
| Nefit bend | 8029259 Mfr. no. 87186413290 | €25.95 | Made-to-order item | View & order |
| Nefit gas pipe for e.g. Condens 6000W (30HRCII HRVS75) 87186602030 | 8020993 Mfr. no. 87186602030 | €27.95 | Made-to-order item | View & order |
| Nefit gas pipe vertical | 8029326 Mfr. no. 87186407520 | €68.95 | Made-to-order item | View & order |
| Nefit pipe for condensate drain | 8029284 Mfr. no. 87160115100 | €51.95 | Made-to-order item | View & order |
| Nefit pipe for cold water | 8029282 Mfr. no. 87186407510 | €48.95 | Made-to-order item | View & order |
| Nefit pipe for hot water | 8029261 Mfr. no. 87186407530 | €42.95 | Made-to-order item | View & order |
| Nefit pipe for heating | 8029279 Mfr. no. 87186407540 | €46.95 | Made-to-order item | View & order |
| Nefit pipe for expansion vessel | 8029278 Mfr. no. 87186407620 | €44.95 | Made-to-order item | View & order |
| Nefit pipe for heat exchanger flow | 8029290 Mfr. no. 87186407630 | €89.95 | Made-to-order item | View & order |
| Nefit pipe for pump/heat exchanger | 8029283 Mfr. no. 87186407870 | €48.95 | Made-to-order item | View & order |
| Nefit return bend | 8029266 Mfr. no. 87186410050 | €25.95 | Made-to-order item | View & order |
| Nefit return pipe for e.g. BaseLine HRC24 CW4 87186407500 | 8029260 Mfr. no. 87186407500 | €46.95 | Made-to-order item | View & order |
| Nefit hose for e.g. BaseLine HRC24 CW4 87167713490 | 8029276 Mfr. no. 87167713490 | €42.95 | Made-to-order item | View & order |
| Nefit union nut | 8020143 Mfr. no. 87133011170 | €8.95 | Made-to-order item | View & order |
Casing and panels for the Nefit (Bosch) BaseLine HRC24 CW3 (9) all Nefit (Bosch) casing and panels →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Nefit connection plate for e.g. BaseLine HRC24 CW4 87186601760 | 8029243 Mfr. no. 87186601760 | €68.95 | Made-to-order item | View & order |
| Nefit cover plate for HRC24 | 8029228 Mfr. no. 87186423250 | €42.95 | Made-to-order item | View & order |
| Nefit housing, enclosure | 8021279 Mfr. no. 87182257300 | €43.95 | Made-to-order item | View & order |
| Nefit protection | 8021278 Mfr. no. 87182228440 | €33.95 | Made-to-order item | View & order |
| Nefit cover for e.g. BaseLine HRC24 CW4 871860142A0 | 8029281 Mfr. no. 871860142A0 | €46.95 | Made-to-order item | View & order |
| Nefit cover for e.g. BaseLine HRC24 CW4 871860144A0 | 8029277 Mfr. no. 871860144A0 | €42.95 | Made-to-order item | View & order |
| Nefit cover for e.g. BaseLine HRC24 CW4 871860145A0 | 8029275 Mfr. no. 871860145A0 | €33.95 | Made-to-order item | View & order |
| Nefit frame for BaseLine | 8029225 Mfr. no. 87186425870 | €68.95 | Made-to-order item | View & order |
| Nefit casing for HRC24 | 8029224 Mfr. no. 87186436120 | €205.95 | Made-to-order item | View & order |
Fixing material for the Nefit (Bosch) BaseLine HRC24 CW3 (38) all Nefit (Bosch) fixing material →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Nefit screw 60 x 14 mm 2 pcs | 8029244 Mfr. no. 87186602000 | €21.95 | Made-to-order item | View & order |
| Nefit screw M5 x 35 mm 10 pcs | 8029269 Mfr. no. 87186849540 | €25.95 | Made-to-order item | View & order |
| Nefit screw M5x12 mm 10 pcs | 8029313 Mfr. no. 29123011540 | €10.95 | Made-to-order item | View & order |
| Nefit screws M4x14 mm | 8020413 Mfr. no. 29142013040 | €21.95 | Made-to-order item | View & order |
| Nefit screw M5 x 22 mm (10 pcs) | 8020426 Mfr. no. 87134030260 | €21.95 | Made-to-order item | View & order |
| Nefit screw 4.8x9.5 mm (10 pcs) | 8020431 Mfr. no. 29106144310 | €21.95 | Made-to-order item | View & order |
| Nefit terminal connector 2-pin FR/FS blue | 8029324 Mfr. no. 87144044050 | €68.95 | Made-to-order item | View & order |
| Nefit terminal block 2-pole blue | 8029334 Mfr. no. 87444040890 | €84.95 | Made-to-order item | View & order |
| Nefit terminal connector 2-pin brown | 8029338 Mfr. no. 87444040930 | €84.95 | Made-to-order item | View & order |
| Nefit terminal connector 2-pin HW/CH yellow | 8029325 Mfr. no. 87144044060 | €68.95 | Made-to-order item | View & order |
| Nefit terminal connector 2-pin grey | 8029336 Mfr. no. 87444040910 | €84.95 | Made-to-order item | View & order |
| Nefit terminal block 2-pole green | 8029335 Mfr. no. 87444040900 | €84.95 | Made-to-order item | View & order |
| Nefit terminal connector 2-pin orange | 8029333 Mfr. no. 87444040880 | €84.95 | Made-to-order item | View & order |
| Nefit terminal connector 2-pin red | 8029337 Mfr. no. 87444040920 | €84.95 | Made-to-order item | View & order |
| Nefit terminal connector 3-pin N/L grey 87144044070 | 8029331 Mfr. no. 87144044070 | €84.95 | Made-to-order item | View & order |
| Nefit terminal connector 3-pin N/L green 87144044080 | 8029332 Mfr. no. 87144044080 | €84.95 | Made-to-order item | View & order |
| Nefit terminal connector 3-pin N/L orange 87144044040 | 8029330 Mfr. no. 87144044040 | €84.95 | Made-to-order item | View & order |
| Nefit terminal connector 3-pin N/L violet 87144044030 | 8029329 Mfr. no. 87144044030 | €84.95 | Made-to-order item | View & order |
| Nefit terminal connector 3-pin N/L white 87144044020 | 8029328 Mfr. no. 87144044020 | €84.95 | Made-to-order item | View & order |
| Nefit mounting plate for e.g. BaseLine HRC24 CW4 87376002980 | 8029233 Mfr. no. 87376002980 | €51.95 | Made-to-order item | View & order |
| Nefit retaining spring 18 mm | 8029247 Mfr. no. 87186846990 | €46.95 | Made-to-order item | View & order |
| Nefit locking spring 10 pcs | 8029327 Mfr. no. 87161034870 | €66.95 | Made-to-order item | View & order |
| Nefit holder for HRC24 | 8029231 Mfr. no. 87186412110 | €21.95 | Made-to-order item | View & order |
| Nefit clamp (10 pcs) for e.g. HRC II 35 (ZWBR35) 87112000240 | 8020826 Mfr. no. 87112000240 | €43.95 | Made-to-order item | View & order |
| Nefit clamp (10 pcs) for e.g. BaseLine HRC24 CW4 87113046950 | 8020827 Mfr. no. 87113046950 | €43.95 | Made-to-order item | View & order |
| Nefit clamp 13 mm (1 pc) | 8020817 Mfr. no. 87161065490 | €8.95 | Made-to-order item | View & order |
| Nefit clamp for regulator 10 pcs | 8029257 Mfr. no. 87161139170 | €68.95 | Made-to-order item | View & order |
| Nefit clamp for collector 10 pcs | 8029254 Mfr. no. 87161139180 | €56.95 | Made-to-order item | View & order |
| Nefit clamp for pump 10 pcs | 8029256 Mfr. no. 87186819200 | €53.95 | Made-to-order item | View & order |
| Nefit clamping spring 10 mm (10 pcs) | 8020808 Mfr. no. 87167711670 | €7.95 | Made-to-order item | View & order |
| Nefit nut 10 pcs for e.g. BaseLine HRC24 CW4 87106090150 | 8029315 Mfr. no. 87106090150 | €7.95 | Made-to-order item | View & order |
| Nefit nut for e.g. HRC II 35 (ZWBR35) 87133011960 | 8020711 Mfr. no. 87133011960 | €10.95 | Made-to-order item | View & order |
| Nefit nut M8 for boiler block | 8029239 Mfr. no. 87133011800 | €23.95 | Made-to-order item | View & order |
| Nefit plastic plug | 8029318 Mfr. no. 87160126250 | €27.95 | Made-to-order item | View & order |
| Nefit support for e.g. BaseLine HRC24 CW4 87186414790 | 8029246 Mfr. no. 87186414790 | €22.95 | Made-to-order item | View & order |
| Nefit support bracket for e.g. BaseLine HRC24 CW4 87186408870 | 8029298 Mfr. no. 87186408870 | €27.95 | Made-to-order item | View & order |
| Nefit support bracket for e.g. BaseLine HRC24 CW4 87186408950 | 8029296 Mfr. no. 87186408950 | €27.95 | Made-to-order item | View & order |
| Nefit plug 5 pcs | 8029317 Mfr. no. 87182224780 | €25.95 | Made-to-order item | View & order |
Other parts for the Nefit (Bosch) BaseLine HRC24 CW3 (23)
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Nefit cover lid | 8021409 Mfr. no. 87155035280 | €17.95 | In stock | View & order |
| Nefit control box CUS Trim Low G-Low BC20 8737602755 | 8037018 Mfr. no. 8737602755 | €408.95 | Made-to-order item | View & order |
| Bosch sight glass for e.g. HRC II 35 (ZWBR35) 87156000180 | 8189352 Mfr. no. 87156000180 | €21.95 | Made-to-order item | View & order |
| Nefit connection group Solar HU1 | 8029258 Mfr. no. 87376004830 | €107.95 | Made-to-order item | View & order |
| Nefit connection piece for e.g. BaseLine HRC24 CW4 87161139050 | 8029270 Mfr. no. 87161139050 | €27.95 | Made-to-order item | View & order |
| Nefit connection piece safety valve | 8029265 Mfr. no. 87161139110 | €25.95 | Made-to-order item | View & order |
| Nefit condensate drain pipe top | 8029229 Mfr. no. 87161069390 | €69.95 | Made-to-order item | View & order |
| Nefit condensate drain pipe bottom | 8029230 Mfr. no. 87160122660 | €56.95 | Made-to-order item | View & order |
| Nefit bayonet pump/heat exchanger for Top22/28-3c | 8029271 Mfr. no. 87161065070 | €27.95 | Made-to-order item | View & order |
| Nefit condensate collector for e.g. BaseLine HRC24 CW4 87154160020 | 8021174 Mfr. no. 87154160020 | €136.95 | Made-to-order item | View & order |
| Nefit rotary knob | 8021076 Mfr. no. 87182257290 | €45.95 | Made-to-order item | View & order |
| Nefit brand badge Nefit for e.g. BaseLine HRC24 CW4 871861919A0 | 8029226 Mfr. no. 871861919A0 | €48.95 | Made-to-order item | View & order |
| Nefit flow regulator type E-W 9 litres per minute | 8029251 Mfr. no. 87376002840 | €29.95 | Made-to-order item | View & order |
| Nefit silencer | 8029248 Mfr. no. 87160138560 | €25.95 | Made-to-order item | View & order |
| Nefit corner bracket for e.g. Condens 6000W (30HRCII HRVS75) 87182250840 | 8020980 Mfr. no. 87182250840 | €48.95 | Made-to-order item | View & order |
| Nefit corner bracket for e.g. Condens 6000W (30HRCII HRVS75) 87186603010 | 8020979 Mfr. no. 87186603010 | €25.95 | Made-to-order item | View & order |
| Nefit boiler block for HRC24 | 8029236 Mfr. no. 87160138600 | €634.95 | Made-to-order item | View & order |
| Nefit air limiter | 8020754 Mfr. no. 87186601170 | €33.95 | Made-to-order item | View & order |
| Nefit collector piece | 8029252 Mfr. no. 87186844710 | €95.95 | Made-to-order item | View & order |
| Nefit return assembly | 8029293 Mfr. no. 87186853800 | €154.95 | Made-to-order item | View & order |
| Nefit service case BaseLine NL | 8020404 Mfr. no. 7736995114 | €1,706.95 | Made-to-order item | View & order |
| Nefit mirror set | 8020373 Mfr. no. 87156000240 | €25.95 | Made-to-order item | View & order |
| Nefit heat spreader bottom | 8029238 Mfr. no. 87154052050 | €110.95 | Made-to-order item | View & order |
Exploded views of the Nefit (Bosch) BaseLine HRC24 CW3
Click an exploded view to enlarge it. The position numbers are shown next to each part.
Fault code on your Nefit (Bosch) BaseLine HRC24 CW3? This is the part type involved
Common Nefit (Bosch) fault codes and the part type that is usually the cause; the parts for this model are listed above. All codes explained: Nefit (Bosch) fault codes.
| Code | What is going on | Part type |
|---|---|---|
| 0C 283 | The boiler is preparing for a burner start. The fan and pump are activated. | Fans |
| 0L 284 | The gas valve is activated. | Ignition and ionisation |
| 0L 284 | The gas control valve is activated. | Gas valves and gas control |
| 0Y 276 | The flow temperature sensor has measured a temperature higher than 95°C. | Sensors |
| 0Y 277 | The safety temperature sensor has measured a temperature higher than 95°C. | Sensors |
| 0Y 285 | The return temperature sensor has measured a temperature higher than 95°C. | Sensors |
For guidance only: the same code can have a different cause depending on the situation.
Other Nefit (Bosch) boilers
- Nefit (Bosch) 1200 HRC20/3 116
- Nefit (Bosch) 2300i HRC25/3 98
- Nefit (Bosch) 2300i HRC25/4 97
- Nefit (Bosch) 9000i AquaPower Plus HRC30 CW6 169
- Nefit (Bosch) 9000i AquaPower Plus HRC45 CW6 168
- Nefit (Bosch) 9000i HR25 Solo White 134
- Nefit (Bosch) 9000i HR25 Solo Black 134
- Nefit (Bosch) 9000i HR35 Solo White 133
- Nefit (Bosch) 9000i HR35 Solo Black 132
- Nefit (Bosch) 9000i HR50 Solo White 121
- Nefit (Bosch) 9000i HR50 Solo Black 121
- Nefit (Bosch) 9700i AquaPower Plus HRC30 CW6 151
Frequently asked questions
Which parts are available for the Nefit (Bosch) BaseLine HRC24 CW3?
The catalogue lists 136 original parts for the Nefit (Bosch) BaseLine HRC24 CW3, including fans, sensors, temperature sensors and NTC sensors, pumps. All parts are listed above, grouped by type, with part number and price.
How much does a fan for the Nefit (Bosch) BaseLine HRC24 CW3 cost?
The fans for this model cost €415.56 incl. VAT. Check the table "Fans" above for the right part number.
Are the parts for the Nefit (Bosch) BaseLine HRC24 CW3 in stock?
16 of the 136 parts are in stock; shipping to EU countries from €12.95 (€16.95 for more distant countries), usually 3–5 working days. Parts marked "Made-to-order item" are ordered specially for you; the delivery time is shown on the product page.
How do I know which part I need for the Nefit (Bosch) BaseLine HRC24 CW3?
Search for the part by part number or use the exploded view of the Nefit (Bosch) BaseLine HRC24 CW3.
Are these original Nefit (Bosch) parts?
Yes. All 136 parts in this list are original manufacturer parts for the Nefit (Bosch) BaseLine HRC24 CW3, supplied through the official technical wholesale channel and with the correct part number.
How much do parts for the Nefit (Bosch) BaseLine HRC24 CW3 cost?
Parts for the Nefit (Bosch) BaseLine HRC24 CW3 range from €3.27 to €2,377.07 incl. VAT. The exact price of each part is shown in the tables above.
Can I return a part?
As a consumer you have a 14-day right of withdrawal. You may unpack and inspect the part; do not install or connect it. For a part that has been installed, connected or damaged we deduct the diminished value, up to the full price for circuit boards.
