Nefit (Bosch) Monoblock ODU 9 S spare parts
In brief
Instalpunt supplies 41 original parts for the Nefit (Bosch) Monoblock ODU 9 S, including sensors, pressure sensors, heat exchangers. Order online.
- 41Spare parts
- 2In stock
- €9.15From
- 14Types
- availableExploded view
Looking for parts for the Nefit (Bosch) Monoblock ODU 9 S (heat pump)? Below are all 41 original parts, grouped by part type, with the matching exploded view. Choose a type to jump straight to the right table.
View the interactive exploded view →- Sensors 4
- Pressure sensors 2
- Heat exchangers 2
- PCBs and controls 1
- Expansion valves 2
- Compressors 1
- Filters 1
- Valves 1
- Electrical parts 4
- Toilet and cistern parts 1
- Cables and wiring harnesses 2
- Casing and panels 8
- Insulation 2
- Fixing material 2
- Other parts 8
Sensors for the Nefit (Bosch) Monoblock ODU 9 S (4) all Nefit (Bosch) sensors →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Nefit temperature sensor 200mm 10 kohm | 8020309 Mfr. no. 8733703181 | €48.95 | In stock | View & order |
| Nefit discharge sensor | 80200057 Mfr. no. 8738207622 | €58.95 | Made-to-order item | View & order |
| Nefit temperature sensor 200mm 4,7 kohm | 8020307 Mfr. no. 8733703183 | €58.95 | Made-to-order item | View & order |
| Nefit temperature sensor NTC 900mm | 8020294 Mfr. no. 8738203398 | €43.95 | Made-to-order item | View & order |
Pressure sensors for the Nefit (Bosch) Monoblock ODU 9 S (2) all Nefit (Bosch) pressure sensors →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Nefit pressure sensor ph1 46 bar | 8021071 Mfr. no. 8733703200 | €288.95 | Made-to-order item | View & order |
| Nefit pressure sensor pl1 15 bar | 8021069 Mfr. no. 8733703201 | €288.95 | Made-to-order item | View & order |
Heat exchangers for the Nefit (Bosch) Monoblock ODU 9 S (2) all Nefit (Bosch) heat exchangers →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Nefit condenser b26-32 | 8021170 Mfr. no. 8733703172 | €976.95 | Made-to-order item | View & order |
| Nefit evaporator 9kW | 8020195 Mfr. no. 8733703167 | €1,528.95 | Made-to-order item | View & order |
PCBs and controls for the Nefit (Bosch) Monoblock ODU 9 S (1) all Nefit (Bosch) PCBs and controls →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Bosch control CUHP I/O board AW V4.19 | 80200313 Mfr. no. 8738212828 | €302.95 | Not available | View & order |
Expansion valves for the Nefit (Bosch) Monoblock ODU 9 S (2)
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Nefit expansion valve UKV 18d259 | 8021043 Mfr. no. 8733703212 | €134.95 | Made-to-order item | View & order |
| Nefit expansion valve UKV 25d260 | 8021042 Mfr. no. 8733703213 | €228.95 | Made-to-order item | View & order |
Compressors for the Nefit (Bosch) Monoblock ODU 9 S (1) all Nefit (Bosch) compressors →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Nefit compressor snb172fekmt | 8021179 Mfr. no. 8733703188 | €1,461.95 | Made-to-order item | View & order |
Filters for the Nefit (Bosch) Monoblock ODU 9 S (1) all Nefit (Bosch) filters →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Nefit filter drier ODU | 8021074 Mfr. no. 8733702983 | €112.95 | Made-to-order item | View & order |
Valves for the Nefit (Bosch) Monoblock ODU 9 S (1) all Nefit (Bosch) valves →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Nefit 4-way valve STF-0316G1 9kW | 8021480 Mfr. no. 8733703875 | €267.95 | Made-to-order item | View & order |
Electrical parts for the Nefit (Bosch) Monoblock ODU 9 S (4) all Nefit (Bosch) electrical parts →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Nefit inverter single-phase | 8020665 Mfr. no. 8733703202 | €531.95 | Made-to-order item | View & order |
| Nefit switch 43,8bar | 8020453 Mfr. no. 8733703199 | €100.95 | Made-to-order item | View & order |
| Nefit coil 4-way valve for e.g. Compress 7400i AW (CS7400iAW 7 OR) 8733703163 | 8020357 Mfr. no. 8733703163 | €136.95 | Made-to-order item | View & order |
| Nefit coil expansion valve ukv-a300 mm | 8020351 Mfr. no. 8733703216 | €68.95 | Made-to-order item | View & order |
Toilet and cistern parts for the Nefit (Bosch) Monoblock ODU 9 S (1)
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Nefit cistern 1,8l | 8020467 Mfr. no. 8733703210 | €344.95 | Made-to-order item | View & order |
Cables and wiring harnesses for the Nefit (Bosch) Monoblock ODU 9 S (2) all Nefit (Bosch) cables and wiring harnesses →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Nefit wiring harness aw 5-10kw | 8020875 Mfr. no. 8733703186 | €420.95 | Made-to-order item | View & order |
| Nefit heating cable for e.g. Compress 7400i AW (CS7400iAW 7 OR) 8738206093 | 8020192 Mfr. no. 8738206093 | €84.95 | Made-to-order item | View & order |
Casing and panels for the Nefit (Bosch) Monoblock ODU 9 S (8) all Nefit (Bosch) casing and panels →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Nefit foot m10x40 87183119850 - | 80200176 Mfr. no. 87183119850 | €29.95 | Made-to-order item | View & order |
| Nefit front panel epp <10 kW 8738206981 | 80200177 Mfr. no. 8738206981 | €374.95 | Made-to-order item | View & order |
| Nefit cover (s) 8738209186 - | 8027691 Mfr. no. 8738209186 | €239.95 | Made-to-order item | View & order |
| Nefit fan cover 8738207587 | 8027701 Mfr. no. 8738207587 | €240.95 | Made-to-order item | View & order |
| Nefit side panel IV/BU V2 right 8738210329 | 81901160 Mfr. no. 8738210329 | €331.95 | Made-to-order item | View & order |
| Nefit top cover plate iv/bu sp for e.g. Monoblock ODU 7 S 8738206051 | 8021388 Mfr. no. 8738206051 | €369.95 | Made-to-order item | View & order |
| Nefit cover plate for iv/bu sp for e.g. Monoblock ODU 7 S 8738206052 | 8021352 Mfr. no. 8738206052 | €347.95 | Made-to-order item | View & order |
| Nefit side panel EPP > 10kW for e.g. Compress 7400i AW (CS7400iAW 7 OR) 8738206080 | 8020101 Mfr. no. 8738206080 | €154.95 | Made-to-order item | View & order |
Insulation for the Nefit (Bosch) Monoblock ODU 9 S (2) all Nefit (Bosch) insulation →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Nefit insulation (s) 8738210161 - | 8027700 Mfr. no. 8738210161 | €330.95 | Made-to-order item | View & order |
| Nefit compressor insulation SNB 130-172 | 8020938 Mfr. no. 8733703206 | €404.95 | Made-to-order item | View & order |
Fixing material for the Nefit (Bosch) Monoblock ODU 9 S (2) all Nefit (Bosch) fixing material →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Bosch grommet (10x) | 80200409 Mfr. no. 8738212765 | €11.95 | Made-to-order item | View & order |
| Bosch mounting set appliance casing outdoor unit V2 | 80200722 Mfr. no. 8738212816 | €58.95 | Made-to-order item | View & order |
Other parts for the Nefit (Bosch) Monoblock ODU 9 S (8)
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Nefit drip tray S 8738208502 - | 80200126 Mfr. no. 8738208502 | €312.95 | Made-to-order item | View & order |
| Nefit quick-release fan cover (4 pcs) | 8027662 Mfr. no. 8738210307 | €51.95 | Made-to-order item | View & order |
| Nefit strap (s) 8738209184 - | 8027680 Mfr. no. 8738209184 | €153.95 | Made-to-order item | View & order |
| Nefit air-swept compartment (s) 8738209182 | 8027713 Mfr. no. 8738209182 | €823.95 | Made-to-order item | View & order |
| Bosch mounting material | 80200408 Mfr. no. 8738212742 | €33.95 | Made-to-order item | View & order |
| Buderus/Bosch fan 500mm | 81901197 Mfr. no. 8738212277 | €917.95 | In stock | View & order |
| Nefit protective grille for Monoblock 5 and 9 | 1090165 Mfr. no. 8738206294 | €269.95 | Made-to-order item | View & order |
| Nefit wall part IV/BU SP (e.g. Monoblock ODU 7 S) 8738206054 | 8020158 Mfr. no. 8738206054 | €581.95 | Made-to-order item | View & order |

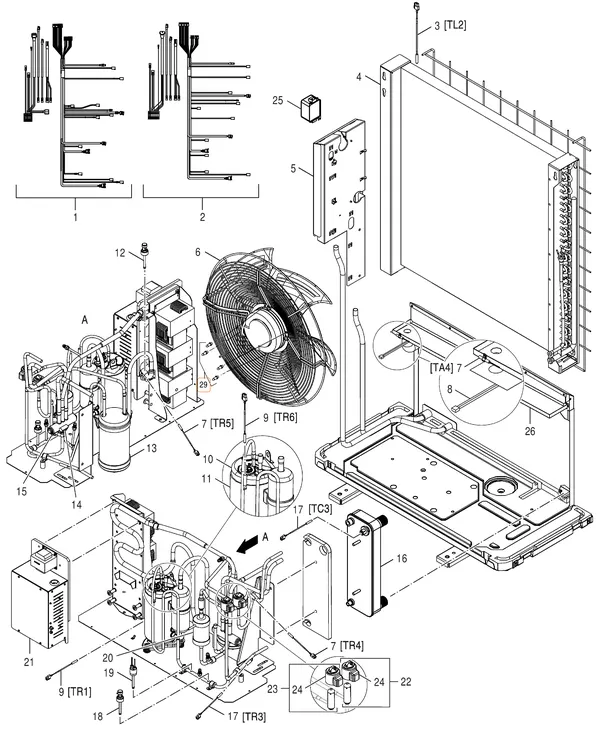

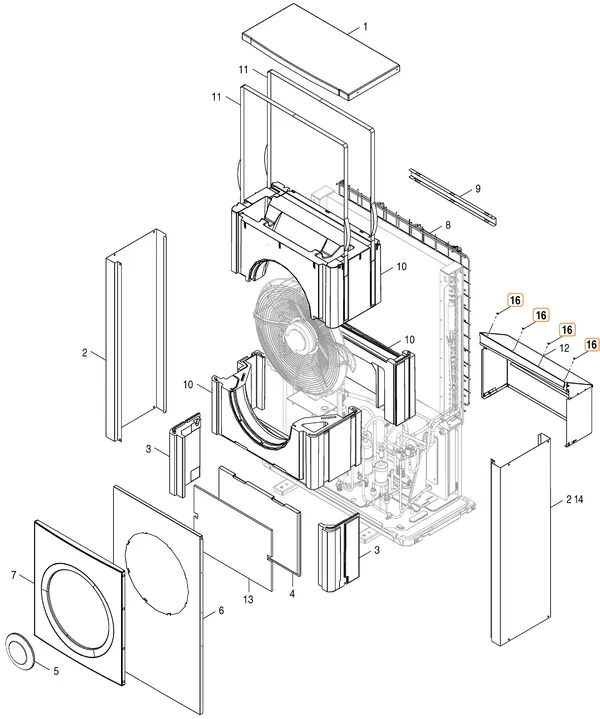

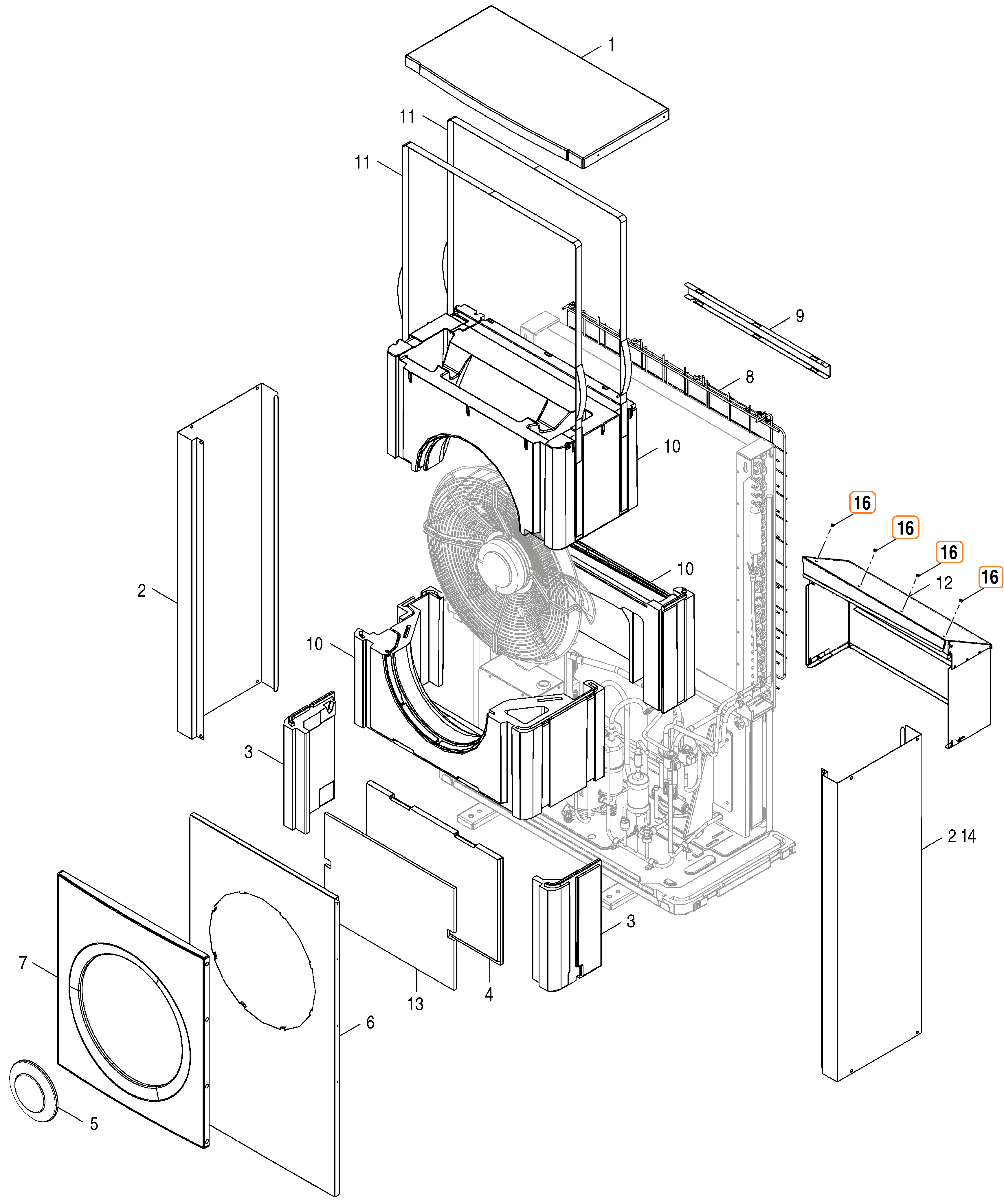

Exploded views of the Nefit (Bosch) Monoblock ODU 9 S
Click an exploded view to enlarge it. The position numbers are shown next to each part.
Fault code on your Nefit (Bosch) Monoblock ODU 9 S? This is the part type involved
Common Nefit (Bosch) fault codes and the part type that is usually the cause; the parts for this model are listed above.
| Code | What is going on | Part type |
|---|---|---|
| 0Y 276 | The flow temperature sensor has measured a temperature higher than 95°C. | Sensors |
| 0Y 277 | The safety temperature sensor has measured a temperature higher than 95°C. | Sensors |
| 0Y 285 | The return temperature sensor has measured a temperature higher than 95°C. | Sensors |
| 1A 316 | The flue gas temperature sensor has measured an excessive temperature. | Sensors |
| 1P 346 | The temperature of the flue gas temperature sensor is rising too fast. | Sensors |
| 1U 317 | The contacts of the flue gas temperature sensor are short-circuited. | Sensors |
For guidance only: the same code can have a different cause depending on the situation.
Other Nefit (Bosch) heat pumps
- Nefit (Bosch) Auris E C4 OS 41
- Nefit (Bosch) Auris E C5 OS 34
- Nefit (Bosch) Auris E C7 OS 41
- Nefit (Bosch) A/W indoor unit 16.0 B 54
- Nefit (Bosch) A/W indoor unit 16.0 E 55
- Nefit (Bosch) A/W indoor unit 8.0 B 56
- Nefit (Bosch) A/W indoor unit 8.0 E 56
- Nefit (Bosch) IDU Split 2-6 B 64
- Nefit (Bosch) IDU Split 2-6 E 62
- Nefit (Bosch) IDU Split 2-6 T 49
- Nefit (Bosch) IDU Split 2-6 TS 51
- Nefit (Bosch) IDU Split 8-15 B 58
Frequently asked questions
Which parts are available for the Nefit (Bosch) Monoblock ODU 9 S?
The catalogue lists 41 original parts for the Nefit (Bosch) Monoblock ODU 9 S, including sensors, pressure sensors, heat exchangers, PCBs and controls. All parts are listed above, grouped by type, with part number and price.
How much does a sensor for the Nefit (Bosch) Monoblock ODU 9 S cost?
The sensors for this model cost between €33.98 and €56.19 incl. VAT. Check the table "Sensors" above for the right part number.
Are the parts for the Nefit (Bosch) Monoblock ODU 9 S in stock?
2 of the 41 parts are in stock; shipping to EU countries from €12.95 (€16.95 for more distant countries), usually 3–5 working days. Parts marked "Made-to-order item" are ordered specially for you; the delivery time is shown on the product page.
How do I know which part I need for the Nefit (Bosch) Monoblock ODU 9 S?
Search for the part by part number or use the exploded view of the Nefit (Bosch) Monoblock ODU 9 S. Is your appliance showing a fault code? The fault code table shows the matching part type.
Are these original Nefit (Bosch) parts?
Yes. All 41 parts in this list are original manufacturer parts for the Nefit (Bosch) Monoblock ODU 9 S, supplied through the official technical wholesale channel and with the correct part number.
How much do parts for the Nefit (Bosch) Monoblock ODU 9 S cost?
Parts for the Nefit (Bosch) Monoblock ODU 9 S range from €9.15 to €2,067.36 incl. VAT. The exact price of each part is shown in the tables above.
Can I return a part?
As a consumer you have a 14-day right of withdrawal. You may unpack and inspect the part; do not install or connect it. For a part that has been installed, connected or damaged we deduct the diminished value, up to the full price for circuit boards.
