Nefit (Bosch) VR 2520V Boiler spare parts
In brief
Instalpunt supplies 23 original parts for the Nefit (Bosch) VR 2520V Boiler, including sensors, ignition and ionisation, electrical parts. Order online.
- 23Spare parts
- 5In stock
- €1.31From
- 7Types
- availableExploded view
Looking for parts for the Nefit (Bosch) VR 2520V Boiler (boiler)? Below are all 23 original parts, grouped by part type, with the matching exploded view. Choose a type to jump straight to the right table.
View the interactive exploded view →- Sensors 2
- Ignition and ionisation 1
- Electrical parts 1
- Cables and wiring harnesses 1
- Gaskets and seals 6
- Pipes, tubes and hoses 1
- Casing and panels 3
- Other parts 8
Sensors for the Nefit (Bosch) VR 2520V Boiler (2) all Nefit (Bosch) sensors →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Nefit maximum protection 108°C | 8043730 Mfr. no. 7098880 | €38.95 | In stock | View & order |
| Nefit sensor for e.g. VR 2520V Boiler 38304 | 8044470 Mfr. no. 38304 | €56.95 | Made-to-order item | View & order |
Ignition and ionisation for the Nefit (Bosch) VR 2520V Boiler (1) all Nefit (Bosch) ignition and ionisation →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Nefit spark plug set Fas/Fant right | 8043620 Mfr. no. 36304 | €56.95 | Made-to-order item | View & order |
Electrical parts for the Nefit (Bosch) VR 2520V Boiler (1) all Nefit (Bosch) electrical parts →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Nefit modulation coil Fas/Fantrechts | 8043660 Mfr. no. 36309 | €54.95 | Made-to-order item | View & order |
Cables and wiring harnesses for the Nefit (Bosch) VR 2520V Boiler (1) all Nefit (Bosch) cables and wiring harnesses →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Nefit wiring harness for IQ 20-30 | 8044490 Mfr. no. 38307 | €149.95 | Made-to-order item | View & order |
Gaskets and seals for the Nefit (Bosch) VR 2520V Boiler (6) all Nefit (Bosch) gaskets and seals →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Nefit sealing ring 1/2" set 10 pcs old number: 15033S | 8021180 Mfr. no. 7100192 | €14.95 | In stock | View & order |
| Nefit lip ring 80 mm | 8022660 Mfr. no. 7096475 | €11.95 | In stock | View & order |
| Nefit sealing ring set 5/4" (10 pcs) | 8021160 Mfr. no. 7098266 | €17.95 | In stock | View & order |
| Nefit sealing ring 3/4" heating side 10 pcs old number: 15002S | 8030921 Mfr. no. 7100196 | €17.95 | In stock | View & order |
| Nefit sealing ring 20 pcs | 8021271 Mfr. no. 7100116 | €28.95 | Made-to-order item | View & order |
| Nefit gasket for e.g. VR 2520V Boiler 38409 | 8044590 Mfr. no. 38409 | €25.95 | Made-to-order item | View & order |
Pipes, tubes and hoses for the Nefit (Bosch) VR 2520V Boiler (1) all Nefit (Bosch) pipes, tubes and hoses →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Nefit silicone hose | 8043760 Mfr. no. 36403 | €10.95 | Made-to-order item | View & order |
Casing and panels for the Nefit (Bosch) VR 2520V Boiler (3) all Nefit (Bosch) casing and panels →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Nefit top plate/slide plate | 8044110 Mfr. no. 38039 | €24.95 | Made-to-order item | View & order |
| Nefit instrument panel 2520V | 8021820 Mfr. no. 38033 | €62.95 | Made-to-order item | View & order |
| Nefit instrument panel | 8021830 Mfr. no. 38034 | €89.95 | Made-to-order item | View & order |
Other parts for the Nefit (Bosch) VR 2520V Boiler (8)
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Nefit self-tapping screw set of 10 pcs | 8022640 Mfr. no. 7100734 | €22.95 | Made-to-order item | View & order |
| Nefit sealing cap for e.g. VR 2520V Boiler 38417 | 8044670 Mfr. no. 38417 | €6.95 | Made-to-order item | View & order |
| Nefit centring pin 2 pcs old number: 36407S | 8043791 Mfr. no. 7100356 | €23.95 | Made-to-order item | View & order |
| Nefit pressure compensation Tronic | 8043800 Mfr. no. 36408 | €26.95 | Made-to-order item | View & order |
| Nefit pressure test nipple 8 mm 1/8" 2 pcs | 8020471 Mfr. no. 7100344 | €99.95 | Not available | View & order |
| Nefit air collection pot | 8044190 Mfr. no. 38110 | €129.95 | Made-to-order item | View & order |
| Nefit lower casing combustion chamber for e.g. VR 2520V water heater 38006 | 8043860 Mfr. no. 38006 | €65.95 | Made-to-order item | View & order |
| Nefit combined pipe clamp Twin FK9 | 8040190 Mfr. no. 05616 | €23.95 | Made-to-order item | View & order |

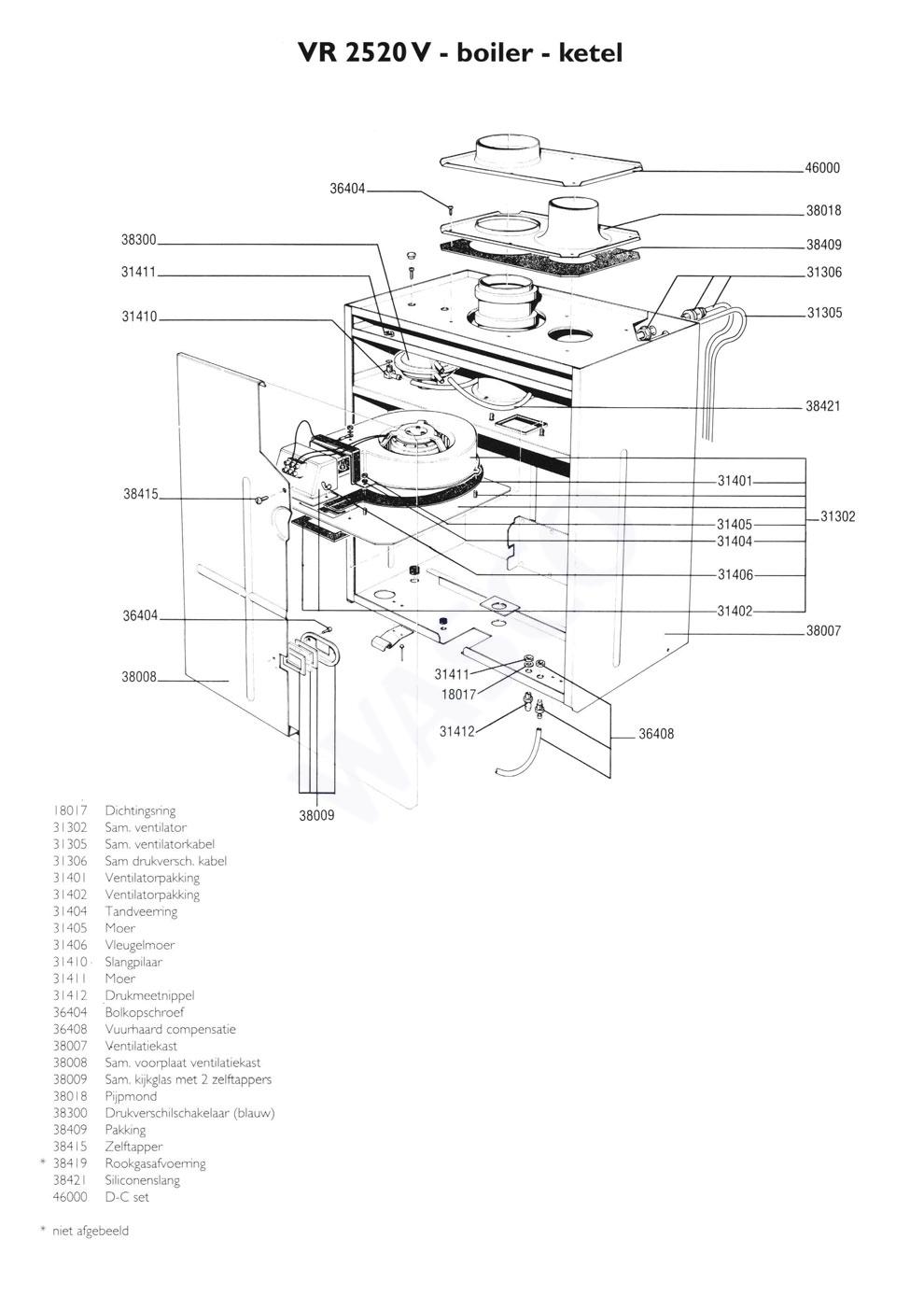

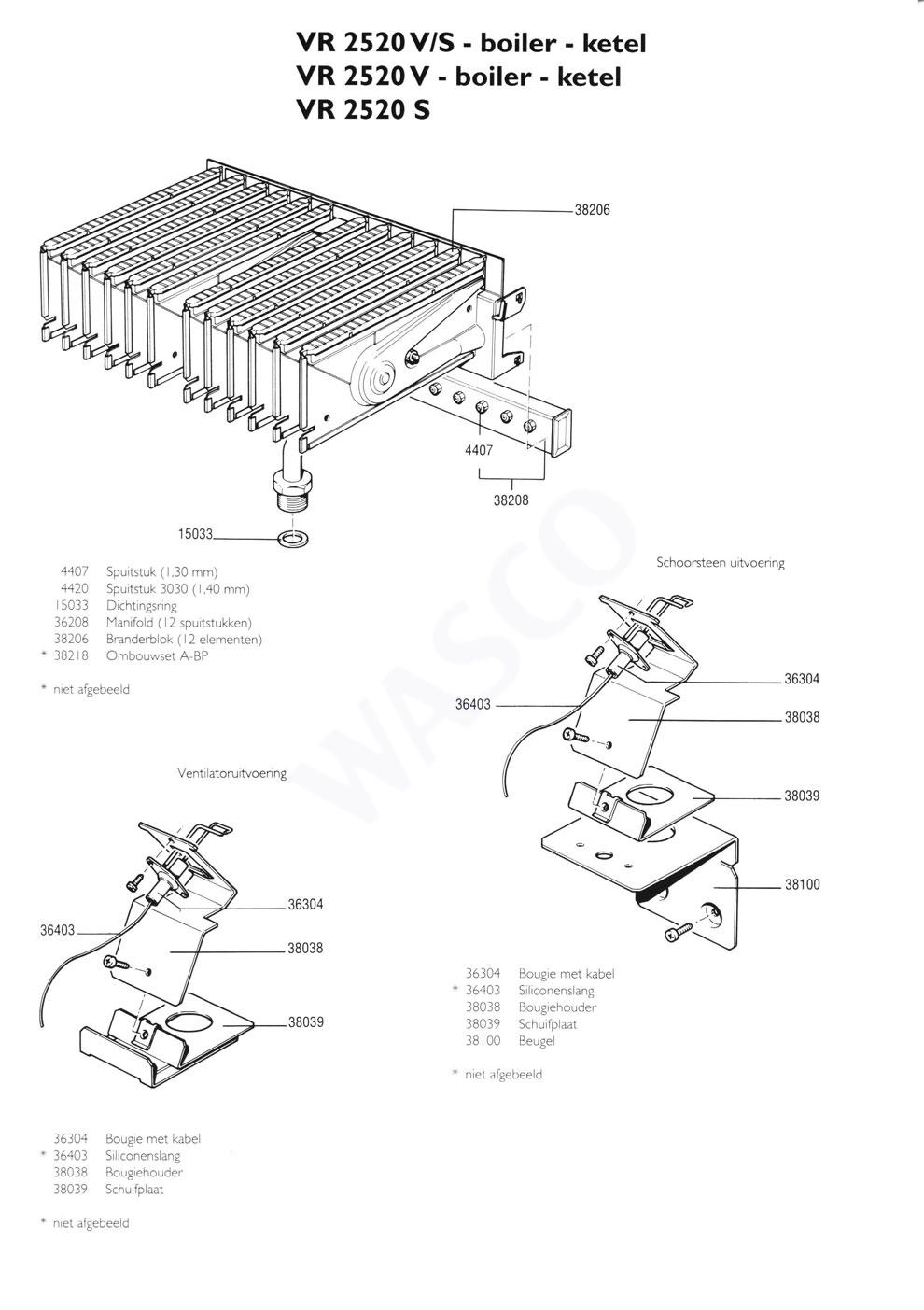

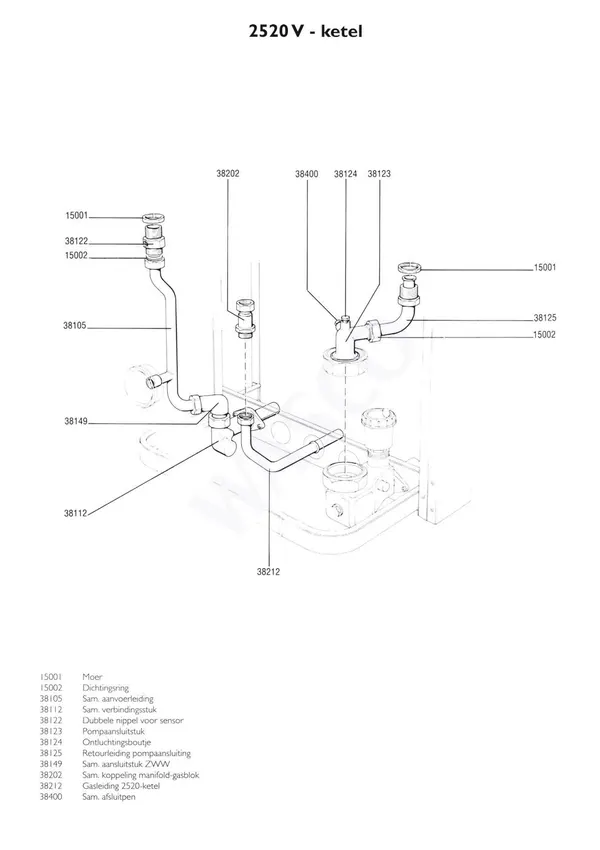

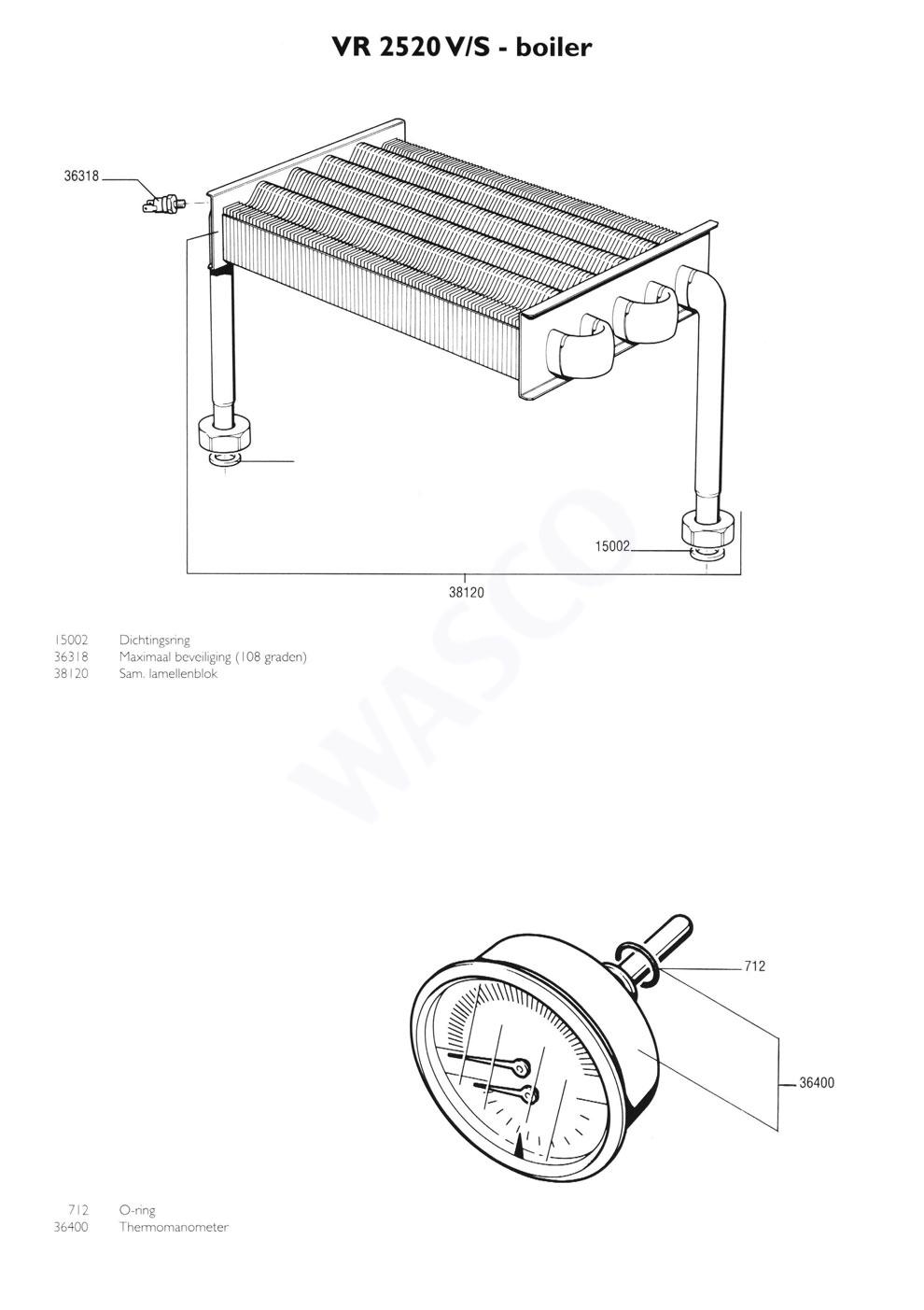

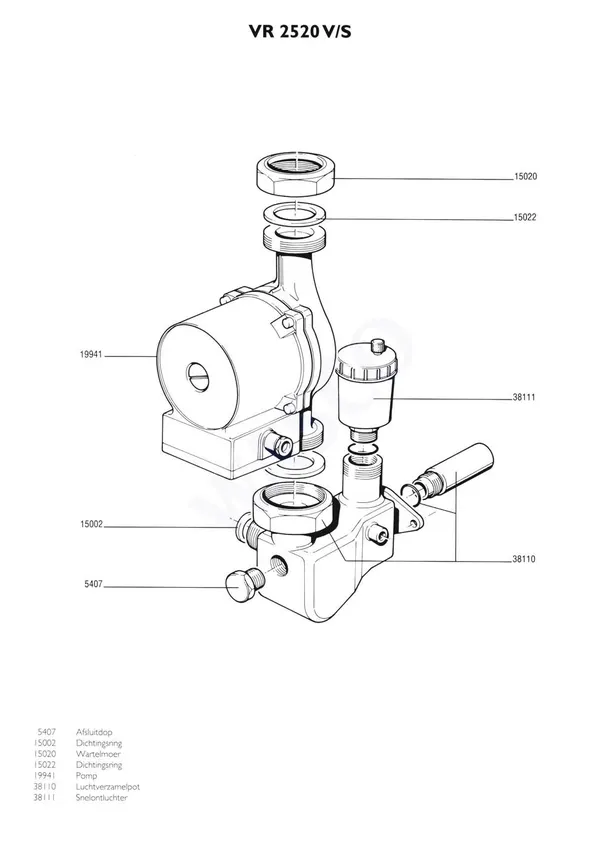

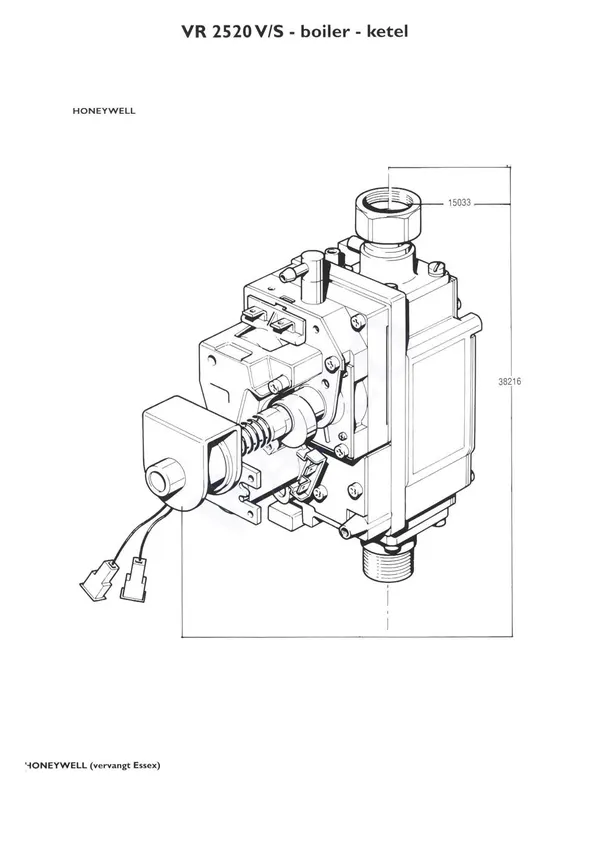

Exploded views of the Nefit (Bosch) VR 2520V Boiler
Click an exploded view to enlarge it. The position numbers are shown next to each part.
Fault code on your Nefit (Bosch) VR 2520V Boiler? This is the part type involved
Common Nefit (Bosch) fault codes and the part type that is usually the cause; the parts for this model are listed above. All codes explained: Nefit (Bosch) fault codes.
| Code | What is going on | Part type |
|---|---|---|
| 0L 284 | The gas valve is activated. | Ignition and ionisation |
| 0Y 276 | The flow temperature sensor has measured a temperature higher than 95°C. | Sensors |
| 0Y 277 | The safety temperature sensor has measured a temperature higher than 95°C. | Sensors |
| 0Y 285 | The return temperature sensor has measured a temperature higher than 95°C. | Sensors |
| 1A 316 | The flue gas temperature sensor has measured an excessive temperature. | Sensors |
| 1P 346 | The temperature of the flue gas temperature sensor is rising too fast. | Sensors |
For guidance only: the same code can have a different cause depending on the situation.
Other Nefit (Bosch) boilers
- Nefit (Bosch) 1200 HRC20/3 116
- Nefit (Bosch) 2300i HRC25/3 98
- Nefit (Bosch) 2300i HRC25/4 97
- Nefit (Bosch) 9000i AquaPower Plus HRC30 CW6 169
- Nefit (Bosch) 9000i AquaPower Plus HRC45 CW6 168
- Nefit (Bosch) 9000i HR25 Solo White 134
- Nefit (Bosch) 9000i HR25 Solo Black 134
- Nefit (Bosch) 9000i HR35 Solo White 133
- Nefit (Bosch) 9000i HR35 Solo Black 132
- Nefit (Bosch) 9000i HR50 Solo White 121
- Nefit (Bosch) 9000i HR50 Solo Black 121
- Nefit (Bosch) 9700i AquaPower Plus HRC30 CW6 151
Frequently asked questions
Which parts are available for the Nefit (Bosch) VR 2520V Boiler?
The catalogue lists 23 original parts for the Nefit (Bosch) VR 2520V Boiler, including sensors, ignition and ionisation, electrical parts, cables and wiring harnesses. All parts are listed above, grouped by type, with part number and price.
How much does a sensor for the Nefit (Bosch) VR 2520V Boiler cost?
The sensors for this model cost between €36.59 and €40.51 incl. VAT. Check the table "Sensors" above for the right part number.
Are the parts for the Nefit (Bosch) VR 2520V Boiler in stock?
5 of the 23 parts are in stock; shipping to EU countries from €12.95 (€16.95 for more distant countries), usually 3–5 working days. Parts marked "Made-to-order item" are ordered specially for you; the delivery time is shown on the product page.
How do I know which part I need for the Nefit (Bosch) VR 2520V Boiler?
Search for the part by part number or use the exploded view of the Nefit (Bosch) VR 2520V Boiler.
Are these original Nefit (Bosch) parts?
Yes. All 23 parts in this list are original manufacturer parts for the Nefit (Bosch) VR 2520V Boiler, supplied through the official technical wholesale channel and with the correct part number.
How much do parts for the Nefit (Bosch) VR 2520V Boiler cost?
Parts for the Nefit (Bosch) VR 2520V Boiler range from €1.31 to €122.84 incl. VAT. The exact price of each part is shown in the tables above.
Can I return a part?
As a consumer you have a 14-day right of withdrawal. You may unpack and inspect the part; do not install or connect it. For a part that has been installed, connected or damaged we deduct the diminished value, up to the full price for circuit boards.
