Remeha HybridPlus C390 690 spare parts

In brief

Instalpunt supplies 89 original parts for the Remeha HybridPlus C390 690, including sensors, temperature sensors and NTC sensors, flow sensors and flow switches. Order online.

89Spare parts
4In stock
€2.94From
16Types

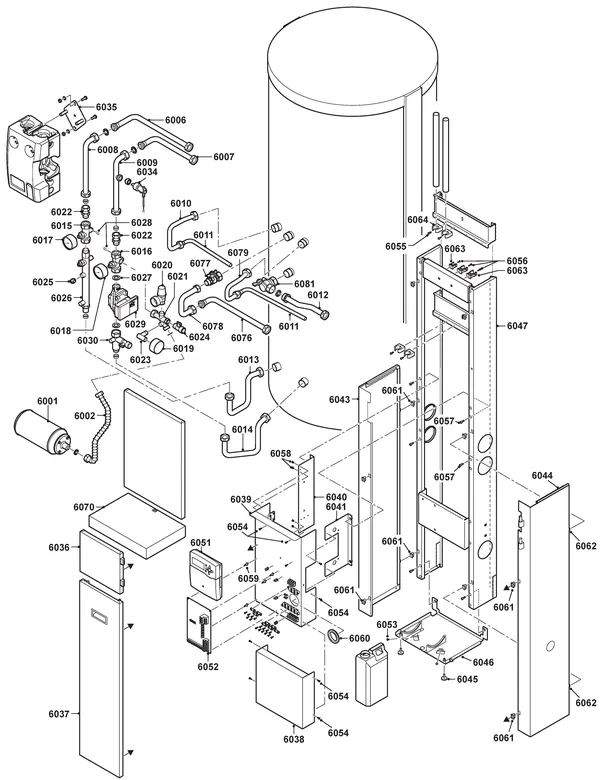

availableExploded view

Looking for parts for the Remeha HybridPlus C390 690 (heat pump)? Below are all 89 original parts, grouped by part type, with the matching exploded view. Choose a type to jump straight to the right table.

View the interactive exploded view →

Sensors 7
Temperature sensors and NTC sensors 2
Flow sensors and flow switches 1
PCBs and controls 3
Expansion vessels 1
Siphons and condensate drains 1
Displays and controls 1
Valves 8
Heating elements 1
Pressure gauges 3
Electrical parts 1
Gaskets and seals 2
Pipes, tubes and hoses 15
Casing and panels 11
Insulation 3
Fixing material 14
Other parts 15

Sensors for the Remeha HybridPlus C390 690 (7) all Remeha sensors →

Part	Item no. / mfr. no.	Price	Stock
Remeha collector sensor for solar water heater 2.5 metres (Tzerra)	8019654 Mfr. no. 97930801	€77.95	In stock	View & order
Remeha outdoor sensor behind the heat pump for Tzerra	8740428 Mfr. no. 7620371	€84.95	Made-to-order item	View & order
Remeha outdoor sensor for heat pump (Tzerra)	8740429 Mfr. no. 7619502	€119.95	Made-to-order item	View & order
Remeha collector sensor FKP6 LG.1.5M for Tzerra	8740449 Mfr. no. 300027667	€59.95	Made-to-order item	View & order
Remeha sensor FRP150 + immersion sleeve for Tzerra	8740810 Mfr. no. 300027668	€102.95	Made-to-order item	View & order
Remeha sensor FRP60 + immersion sleeve for Tzerra	8740811 Mfr. no. 300027669	€99.95	Made-to-order item	View & order
Remeha return sensor FRP21 L 2.5 m for Tzerra	8740854 Mfr. no. 300014690	€119.95	Made-to-order item	View & order

Temperature sensors and NTC sensors for the Remeha HybridPlus C390 690 (2) all Remeha temperature sensors and NTC sensors →

Part	Item no. / mfr. no.	Price	Stock
Remeha cylinder temperature sensor with 5 metre cable for Tzerra	0350023 Mfr. no. 100000030	€56.95	Made-to-order item	View & order
Remeha temperature sensor 5M for Tzerra	8018768 Mfr. no. 100005661	€31.95	Made-to-order item	View & order

Flow sensors and flow switches for the Remeha HybridPlus C390 690 (1) all Remeha flow sensors and flow switches →

Part	Item no. / mfr. no.	Price	Stock
Remeha flow meter 3/4 3-22L/min incl. fill and drain valve	8012401 Mfr. no. 7631032	€233.95	Made-to-order item	View & order

PCBs and controls for the Remeha HybridPlus C390 690 (3) all Remeha PCBs and controls →

Part	Item no. / mfr. no.	Price	Stock
Remeha RemaCal heat pump controller for Tzerra	8740786 Mfr. no. 7619503	€570.95	Made-to-order item	View & order
Remeha PCB Tzerra HP	8013682 Mfr. no. 7636795	€1,565.95	Made-to-order item	View & order
Remeha Remacal controller	8013680 Mfr. no. 7636794	€1,565.95	Made-to-order item	View & order

Expansion vessels for the Remeha HybridPlus C390 690 (1) all Remeha expansion vessels →

Part	Item no. / mfr. no.	Price	Stock
Remeha expansion vessel 3 litre for Tzerra	8012396 Mfr. no. 7669152	€250.95	Made-to-order item	View & order

Siphons and condensate drains for the Remeha HybridPlus C390 690 (1) all Remeha siphons and condensate drains →

Part	Item no. / mfr. no.	Price	Stock
Remeha condensate tray for Tzerra and Calenta Ace	8014127 Mfr. no. S100238	€41.95	Made-to-order item	View & order

Displays and controls for the Remeha HybridPlus C390 690 (1) all Remeha displays and controls →

Part	Item no. / mfr. no.	Price	Stock
Remeha front casing top	8013707 Mfr. no. 7636814	€237.95	Made-to-order item	View & order

Valves for the Remeha HybridPlus C390 690 (8) all Remeha valves →

Part	Item no. / mfr. no.	Price	Stock
Remeha ball valve 1x1	8012438 Mfr. no. 7669176	€130.95	Made-to-order item	View & order
Remeha ball valve 3/4x1	8012452 Mfr. no. 7669424	€90.95	Made-to-order item	View & order
Remeha ball valve 1/2	8012459 Mfr. no. 7669431	€66.95	Made-to-order item	View & order
Remeha air vent 1/2	8012464 Mfr. no. 7669430	€69.95	Made-to-order item	View & order
Remeha drain valve 1/2	8012875 Mfr. no. 300026343	€47.95	Made-to-order item	View & order
Remeha ball valve dn15 thermo return	8013657 Mfr. no. 7631849	€115.95	Made-to-order item	View & order
Remeha air vent 3/4" 226 M	8013182 Mfr. no. 300028537	€69.95	Made-to-order item	View & order
Remeha safety relief valve 6bar	8012829 Mfr. no. 300020290	€182.95	Made-to-order item	View & order

Heating elements for the Remeha HybridPlus C390 690 (1) all Remeha heating elements →

Part	Item no. / mfr. no.	Price	Stock
Remeha resistor 10 kohm	8013684 Mfr. no. 7636796	€50.95	Made-to-order item	View & order

Pressure gauges for the Remeha HybridPlus C390 690 (3) all Remeha pressure gauges →

Part	Item no. / mfr. no.	Price	Stock
Remeha pressure gauge 0-6 bar Ø50mm for Tzerra	8013142 Mfr. no. 300028532	€66.95	Made-to-order item	View & order
Remeha thermometer 50 mm 0-120°C blue	8013528 Mfr. no. 7604915	€46.95	Made-to-order item	View & order
Remeha thermometer 50 mm 0-120°C red	8013530 Mfr. no. 7604916	€46.95	Made-to-order item	View & order

Electrical parts for the Remeha HybridPlus C390 690 (1) all Remeha electrical parts →

Part	Item no. / mfr. no.	Price	Stock
Remeha spare fuses 20 pcs for Tzerra	8740788 Mfr. no. 300027671	€104.95	Made-to-order item	View & order

Gaskets and seals for the Remeha HybridPlus C390 690 (2) all Remeha gaskets and seals →

Part	Item no. / mfr. no.	Price	Stock
Remeha gasket 24x15x2 for Tzerra	8740951 Mfr. no. 284274	€10.95	Made-to-order item	View & order
Remeha gasket 30 x 21 x 2 mm	8012227 Mfr. no. 300010041	€8.95	Not available	View & order

Pipes, tubes and hoses for the Remeha HybridPlus C390 690 (15) all Remeha pipes, tubes and hoses →

Part	Item no. / mfr. no.	Price	Stock
Remeha pipe return D=22 mm	8012410 Mfr. no. 7669162	€186.95	Made-to-order item	View & order
Remeha pipe D=22 mm flow HP station	8012411 Mfr. no. 7669191	€182.95	Made-to-order item	View & order
Remeha pipe D=22 mm return HP station	8012412 Mfr. no. 7669193	€182.95	Made-to-order item	View & order
Remeha pipe D=18mm cylinder-HP	8012416 Mfr. no. 7669169	€150.95	Made-to-order item	View & order
Remeha pipe D=22 mm flow HP SOL	8012418 Mfr. no. 7669422	€148.95	Made-to-order item	View & order
Remeha pipe D=22 mm 133 x 250	8012419 Mfr. no. 7669168	€145.95	Made-to-order item	View & order
Remeha pipe D=15 mm cold water	8012420 Mfr. no. 7669423	€144.95	Made-to-order item	View & order
Remeha pipe D=22 mm 73 x 250	8012421 Mfr. no. 7669173	€140.95	Made-to-order item	View & order
Remeha pipe D=22 mm 93 x 250	8012422 Mfr. no. 7669167	€139.95	Made-to-order item	View & order
Remeha pipe D=15 mm 64 x 350	8012423 Mfr. no. 7669170	€134.95	Made-to-order item	View & order
Remeha pipe flow D=22 mm	8012428 Mfr. no. 7669164	€130.95	Made-to-order item	View & order
Remeha pipe return D=22 mm boiler-HP	8012430 Mfr. no. 7669175	€127.95	Made-to-order item	View & order
Remeha corrugated drain hose 3/4 L=1100 mm	8012455 Mfr. no. 7669157	€93.95	Made-to-order item	View & order
Remeha flexible pipe stainless steel braided DN16x450 mm	8012463 Mfr. no. 7669426	€63.95	Made-to-order item	View & order
Remeha bend 3/8	8013137 Mfr. no. 300028531	€29.95	Made-to-order item	View & order

Casing and panels for the Remeha HybridPlus C390 690 (11) all Remeha casing and panels →

Part	Item no. / mfr. no.	Price	Stock
Remeha casing insulation C690	8012328 Mfr. no. 7669429	€1,461.95	Made-to-order item	View & order
Remeha casing insulation C390	8012332 Mfr. no. 7669428	€1,267.95	Made-to-order item	View & order
Remeha base plate	8012408 Mfr. no. 7669159	€189.95	Made-to-order item	View & order
Remeha cover for e.g. HybridPlus C390 690 7669186	8012415 Mfr. no. 7669186	€204.95	Made-to-order item	View & order
Remeha trim strip	8012479 Mfr. no. 40104	€25.95	Made-to-order item	View & order
Remeha insulation cover 390L	8740619 Mfr. no. 7737174	€244.95	Made-to-order item	View & order
Remeha insulation cover 690L 952 x 70 mm	8740620 Mfr. no. 7730211	€289.95	Made-to-order item	View & order
Remeha casing left for e.g. Tzerra HP 40-5c 7717837	8740674 Mfr. no. 7717837	€279.95	Made-to-order item	View & order
Remeha casing right module 390-690	8740675 Mfr. no. 7717836	€246.95	Made-to-order item	View & order
Remeha bracket	8013174 Mfr. no. 300028535	€31.95	Made-to-order item	View & order
Remeha PCB cover for Tzerra	8013686 Mfr. no. 7636797	€126.95	Made-to-order item	View & order

Insulation for the Remeha HybridPlus C390 690 (3) all Remeha insulation →

Part	Item no. / mfr. no.	Price	Stock
Remeha insulation shell	8012433 Mfr. no. 7669156	€120.95	Made-to-order item	View & order
Remeha insulation 390L vessel	8740616 Mfr. no. 7737287	€1,099.95	Made-to-order item	View & order
Remeha insulation 690L vessel	8740617 Mfr. no. 7737139	€1,364.95	Made-to-order item	View & order

Fixing material for the Remeha HybridPlus C390 690 (14) all Remeha fixing material →

Part	Item no. / mfr. no.	Price	Stock
Remeha sheet metal screw 4.2 x 9.5 mm 20 pcs	8012155 Mfr. no. S14254	€17.95	In stock	View & order
Remeha adjusting screw with foot m6 x 25	8013711 Mfr. no. 7636819	€51.95	Made-to-order item	View & order
Remeha screw M4x6	8013772 Mfr. no. 95740611	€10.95	Made-to-order item	View & order
Remeha sheet metal screw 3,9x13 for e.g. Tzerra HP 40-5c 95770148	8013774 Mfr. no. 95770148	€10.95	Made-to-order item	View & order
Remeha sheet metal screw 3,9x13 for e.g. Tzerra HP 40-5c 95770149	8013776 Mfr. no. 95770149	€10.95	Made-to-order item	View & order
Remeha screw cbl 3,9-19 c zn	8013778 Mfr. no. 95770695	€10.95	Made-to-order item	View & order
Remeha spacer for e.g. Tzerra HP 390 690 7636820	8013713 Mfr. no. 7636820	€29.95	Made-to-order item	View & order
Remeha fixing clip for e.g. Tzerra HP 390 690 300019551	8012245 Mfr. no. 300019551	€8.95	Made-to-order item	View & order
Remeha mounting plate left	8013669 Mfr. no. 7636788	€189.95	Made-to-order item	View & order
Remeha mounting plate right	8013671 Mfr. no. 7636789	€189.95	Made-to-order item	View & order
Remeha bolt M8 x 20 mm for e.g. Gas 610 Eco Pro S103260	8013196 Mfr. no. S103260	€24.95	Made-to-order item	View & order
Remeha clamp M25	8013664 Mfr. no. 7636785	€50.95	Made-to-order item	View & order
Remeha pipe clamp D15	8013665 Mfr. no. 7636786	€50.95	Made-to-order item	View & order
Remeha grommet for e.g. Tzerra HP 390 690 7636793	8013679 Mfr. no. 7636793	€29.95	Made-to-order item	View & order

Other parts for the Remeha HybridPlus C390 690 (15)

Part	Item no. / mfr. no.	Price	Stock
Remeha glycol collection bottle 2.5 litre	8019597 Mfr. no. 300019281	€17.95	In stock	View & order
Remeha snap fastener 10 pcs	8016198 Mfr. no. S43799	€44.95	Not available	View & order
Remeha snap spring 10 pcs for e.g. Gas 3000 (Eco) S43798	8016197 Mfr. no. S43798	€35.95	In stock	View & order
Remeha three-piece coupling 3/4 - d18	8017793 Mfr. no. 97930827	€45.95	Made-to-order item	View & order
Remeha mounting frame	8012360 Mfr. no. 7669161	€556.95	Made-to-order item	View & order
Remeha accessory set TZ HP C390/690	8012389 Mfr. no. 7669425	€641.95	Made-to-order item	View & order
Remeha earth cable 2.5 mm	8012497 Mfr. no. 7669155	€26.95	Made-to-order item	View & order
Remeha cable bundle strap	8012509 Mfr. no. 35156	€7.95	Made-to-order item	View & order
Remeha front casing bottom	8740533 Mfr. no. 7717834	€252.95	Made-to-order item	View & order
Remeha SP10 surge protection	8740838 Mfr. no. 300027670	€111.95	Made-to-order item	View & order
Remeha rear casing	80102164 Mfr. no. 7669187	€209.95	Made-to-order item	View & order
Remeha casing handle	8013276 Mfr. no. S100419	€50.95	Made-to-order item	View & order
Remeha air vent cap 3/8	8012221 Mfr. no. 300004141	€27.95	Made-to-order item	View & order
Remeha gasket tape 10 mm 20 metre for Avanta and Tzerra	8019823 Mfr. no. S62709	€62.95	Made-to-order item	View & order
Remeha rack wall assembly module TZ HP 40-3	8013677 Mfr. no. 7636792	€225.95	Made-to-order item	View & order

Fault code on your Remeha HybridPlus C390 690? This is the part type involved

Common Remeha fault codes and the part type that is usually the cause; the parts for this model are listed above. All codes explained: Remeha fault codes.

Code	What is going on	Part type
24	Temperature sensor	Sensors
31	Temperature sensor	Sensors
32	Return temperature sensor short circuit	Sensors
33	Outdoor temperature sensor fault	Sensors
34	Outdoor temperature sensor fault	Sensors
35	Flue gas temperature sensor fault	Sensors

For guidance only: the same code can have a different cause depending on the situation.

Other Remeha heat pumps

← All Remeha parts

Frequently asked questions

Which parts are available for the Remeha HybridPlus C390 690?

The catalogue lists 89 original parts for the Remeha HybridPlus C390 690, including sensors, temperature sensors and NTC sensors, flow sensors and flow switches, PCBs and controls. All parts are listed above, grouped by type, with part number and price.

How much does a sensor for the Remeha HybridPlus C390 690 cost?

The sensors for this model cost between €53.58 and €133.29 incl. VAT. Check the table "Sensors" above for the right part number.

Are the parts for the Remeha HybridPlus C390 690 in stock?

4 of the 89 parts are in stock; shipping to EU countries from €12.95 (€16.95 for more distant countries), usually 3–5 working days. Parts marked "Made-to-order item" are ordered specially for you; the delivery time is shown on the product page.

How do I know which part I need for the Remeha HybridPlus C390 690?

Search for the part by part number or use the exploded view of the Remeha HybridPlus C390 690.

Are these original Remeha parts?

Yes. All 89 parts in this list are original manufacturer parts for the Remeha HybridPlus C390 690, supplied through the official technical wholesale channel and with the correct part number.

How much do parts for the Remeha HybridPlus C390 690 cost?

Parts for the Remeha HybridPlus C390 690 range from €2.94 to €2,005.94 incl. VAT. The exact price of each part is shown in the tables above.

Can I return a part?

As a consumer you have a 14-day right of withdrawal. You may unpack and inspect the part; do not install or connect it. For a part that has been installed, connected or damaged we deduct the diminished value, up to the full price for circuit boards.
