Vaillant geoTHERM VWS 220/3 spare parts
In brief
Instalpunt supplies 56 original parts for the Vaillant geoTHERM VWS 220/3, including sensors, pressure sensors, heat exchangers. Order online.
- 56Spare parts
- 5In stock
- €7.84From
- 16Types
- availableExploded view
Looking for parts for the Vaillant geoTHERM VWS 220/3 (heat pump)? Below are all 56 original parts, grouped by part type, with the matching exploded view. Choose a type to jump straight to the right table.
View the interactive exploded view →- Sensors 3
- Pressure sensors 1
- Heat exchangers 3
- PCBs and controls 3
- Expansion vessels 1
- Expansion valves 1
- Compressors 1
- Filters 1
- Valves 3
- Electrical parts 3
- Cables and wiring harnesses 7
- Gaskets and seals 3
- Pipes, tubes and hoses 4
- Casing and panels 9
- Insulation 3
- Fixing material 7
- Other parts 3
Sensors for the Vaillant geoTHERM VWS 220/3 (3) all Vaillant sensors →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Vaillant temperature sensor cylinder heat pump | 8050051 Mfr. no. 0020038756 | €38.95 | In stock | View & order |
| Vaillant high pressure sensor for e.g. geoTHERM VWS 103/3 0020031981 | 8053616 Mfr. no. 0020031981 | €225.95 | Made-to-order item | View & order |
| Vaillant low-pressure sensor for e.g. geoTHERM VWS 103/3 560661 | 8053555 Mfr. no. 560661 | €202.95 | Made-to-order item | View & order |
Pressure sensors for the Vaillant geoTHERM VWS 220/3 (1)
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Vaillant pressure sensor VHR18-22/3C24-28/3C VHR CW3 4/3 for ecoTEC plus and ecoTEC pro etc. | 8058957 Mfr. no. 0020059717 | €20.95 | Made-to-order item | View & order |
Heat exchangers for the Vaillant geoTHERM VWS 220/3 (3) all Vaillant heat exchangers →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Vaillant condenser 22kw | 8054408 Mfr. no. 0020058764 | €1,557.95 | Made-to-order item | View & order |
| Vaillant evaporator 22kw | 8054407 Mfr. no. 0020058768 | €1,447.95 | Made-to-order item | View & order |
| Vaillant heat exchanger 38-46kW for e.g. geoTHERM VWS 220/3 0020058778 | 8053688 Mfr. no. 0020058778 | €261.95 | Made-to-order item | View & order |
PCBs and controls for the Vaillant geoTHERM VWS 220/3 (3) all Vaillant PCBs and controls →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Vaillant PCB geotherm | 8053886 Mfr. no. 0020093196 | €391.95 | In stock | View & order |
| Vaillant controller Geotherm | 8050171 Mfr. no. 0020093224 | €285.95 | In stock | View & order |
| Vaillant inrush current limiter PCB for e.g. geoTHERM VWS 380/2 0020066208 | 8053918 Mfr. no. 0020066208 | €749.95 | Made-to-order item | View & order |
Expansion vessels for the Vaillant geoTHERM VWS 220/3 (1) all Vaillant expansion vessels →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Vaillant expansion vessel for e.g. geoTHERM VWS 103/3 0020031984 | 8053189 Mfr. no. 0020031984 | €94.95 | In stock | View & order |
Expansion valves for the Vaillant geoTHERM VWS 220/3 (1) all Vaillant expansion valves →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Vaillant expansion valve for e.g. geoTHERM VWS 220/3 0020058774 | 8053686 Mfr. no. 0020058774 | €210.95 | Made-to-order item | View & order |
Compressors for the Vaillant geoTHERM VWS 220/3 (1) all Vaillant compressors →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Vaillant compressor 22kw | 8054413 Mfr. no. 0020058760 | €3,095.95 | Made-to-order item | View & order |
Filters for the Vaillant geoTHERM VWS 220/3 (1) all Vaillant filters →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Vaillant filter drier 22-38kw | 8053324 Mfr. no. 0020058772 | €111.95 | Made-to-order item | View & order |
Valves for the Vaillant geoTHERM VWS 220/3 (3) all Vaillant valves →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Vaillant safety valve for e.g. ecoTEC plus VHR 45/4 S A 190721 | 8059251 Mfr. no. 190721 | €49.95 | In stock | View & order |
| Vaillant drain valve VHR4565 | 8058081 Mfr. no. 106350 | €44.95 | Made-to-order item | View & order |
| Vaillant Schrader valve for e.g. geoTHERM VWS 103/3 560666 | 8059594 Mfr. no. 560666 | €27.95 | Made-to-order item | View & order |
Electrical parts for the Vaillant geoTHERM VWS 220/3 (3) all Vaillant electrical parts →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Vaillant high-pressure switch | 8053669 Mfr. no. 0020031980 | €234.95 | Made-to-order item | View & order |
| Vaillant low-pressure switch | 8053671 Mfr. no. 0020031982 | €239.95 | Made-to-order item | View & order |
| Vaillant fuse 40at 10 pcs VHR10 to 45 for ecoTEC plus | 8058553 Mfr. no. 251957 | €28.95 | Made-to-order item | View & order |
Cables and wiring harnesses for the Vaillant geoTHERM VWS 220/3 (7) all Vaillant cables and wiring harnesses →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Vaillant compressor wiring harness 22..30kw | 8053496 Mfr. no. 0020057813 | €149.95 | Made-to-order item | View & order |
| Vaillant controller wiring harness | 8059550 Mfr. no. 0020032004 | €27.95 | Made-to-order item | View & order |
| Vaillant sensor wiring harness for e.g. geoTHERM VWS 380/2 0020060851 | 8053512 Mfr. no. 0020060851 | €200.95 | Made-to-order item | View & order |
| Vaillant wiring harness control interface | 8059672 Mfr. no. 0020032002 | €46.95 | Made-to-order item | View & order |
| Vaillant wiring harness VR adapter | 8059653 Mfr. no. 0020032003 | €33.95 | Made-to-order item | View & order |
| Vaillant wiring harness amu/3-geotherm/2 | 8050675 Mfr. no. 0020117288 | €43.95 | Made-to-order item | View & order |
| Vaillant plug for e.g. flexoTHERM VWF 87/4 0020066202 | 8059728 Mfr. no. 0020066202 | €53.95 | Made-to-order item | View & order |
Gaskets and seals for the Vaillant geoTHERM VWS 220/3 (3) all Vaillant gaskets and seals →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Vaillant O-ring R 23 x 3 mm | 8050062 Mfr. no. 0020107696 | €23.95 | Made-to-order item | View & order |
| Vaillant sealing ring 1.1/2" | 8059563 Mfr. no. 0020038759 | €25.95 | Made-to-order item | View & order |
| Vaillant sealing ring 44x38x2 | 8059725 Mfr. no. 0020074124 | €46.95 | Made-to-order item | View & order |
Pipes, tubes and hoses for the Vaillant geoTHERM VWS 220/3 (4) all Vaillant pipes, tubes and hoses →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Vaillant flexible hose 1.1/2 | 8053562 Mfr. no. 0020057817 | €142.95 | Made-to-order item | View & order |
| Vaillant pipe for e.g. geoTHERM VWS 380/2 0020072018 | 8053718 Mfr. no. 0020072018 | €274.95 | Made-to-order item | View & order |
| Vaillant pipe for e.g. geoTHERM VWS 380/2 0020072019 | 8053621 Mfr. no. 0020072019 | €281.95 | Made-to-order item | View & order |
| Vaillant pipe for e.g. geoTHERM VWS 380/2 0020072020 | 8053622 Mfr. no. 0020072020 | €284.95 | Made-to-order item | View & order |
Casing and panels for the Vaillant geoTHERM VWS 220/3 (9) all Vaillant casing and panels →
Insulation for the Vaillant geoTHERM VWS 220/3 (3) all Vaillant insulation →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Vaillant insulation for e.g. flexoTHERM VWF 87/4 0020066201 | 8053326 Mfr. no. 0020066201 | €110.95 | Made-to-order item | View & order |
| Vaillant insulation for e.g. geoTHERM VWS 380/2 0020066203 | 8059624 Mfr. no. 0020066203 | €42.95 | Made-to-order item | View & order |
| Vaillant insulation pipe feed-through | 8059695 Mfr. no. 0020046106 | €29.95 | Made-to-order item | View & order |
Fixing material for the Vaillant geoTHERM VWS 220/3 (7) all Vaillant fixing material →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Vaillant screw m6x16 iso 14583 10 pcs | 90170014 Mfr. no. 0020150157 | €24.95 | Made-to-order item | View & order |
| Vaillant mounting set | 8059909 Mfr. no. 091629 | €59.95 | Made-to-order item | View & order |
| Vaillant mounting set PCB | 8059765 Mfr. no. 0020032005 | €56.95 | Made-to-order item | View & order |
| Vaillant retaining spring 10 pcs for e.g. aroTHERM Pro VWL 75/7.1 A 230V 219660 | 8059631 Mfr. no. 219660 | €31.95 | Made-to-order item | View & order |
| Vaillant holder for e.g. geoTHERM VWS 103/3 0020117276 | 8050676 Mfr. no. 0020117276 | €44.95 | Made-to-order item | View & order |
| Vaillant clamping band for e.g. geoTHERM VWS 103/3 0020066199 | 8059747 Mfr. no. 0020066199 | €51.95 | Made-to-order item | View & order |
| Vaillant ring handle | 8059535 Mfr. no. 0020038755 | €25.95 | Made-to-order item | View & order |
Other parts for the Vaillant geoTHERM VWS 220/3 (3)
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Vaillant terminal strip for e.g. geoTHERM VWS 380/2 0020055714 | 8051079 Mfr. no. 0020055714 | €127.95 | Made-to-order item | View & order |
| Vaillant condensate tray for e.g. geoTHERM VWS 380/2 0020066206 | 8053234 Mfr. no. 0020066206 | €86.95 | Made-to-order item | View & order |
| Vaillant adjustable foot | 8054027 Mfr. no. 0020198221 | €21.95 | Made-to-order item | View & order |

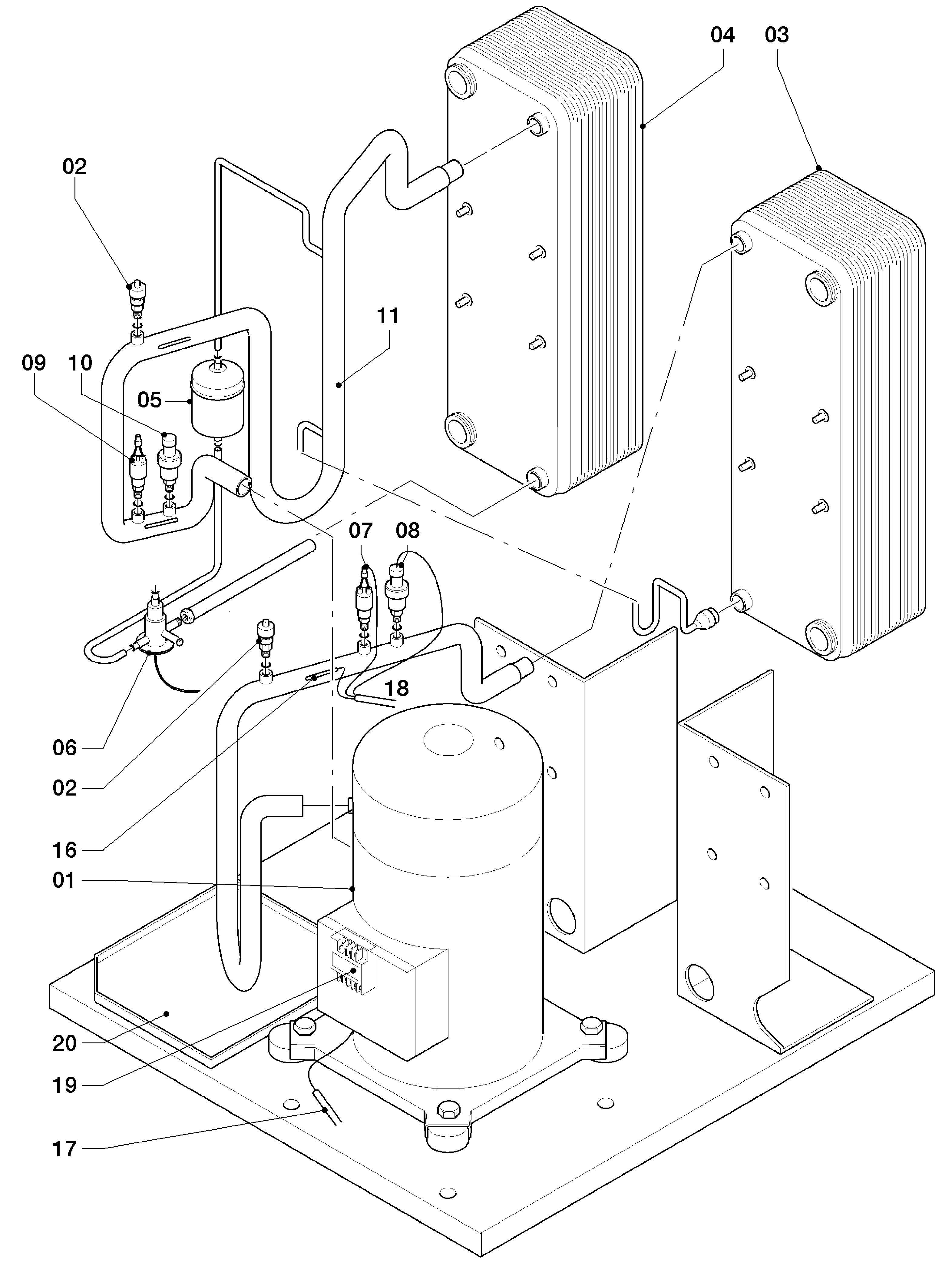

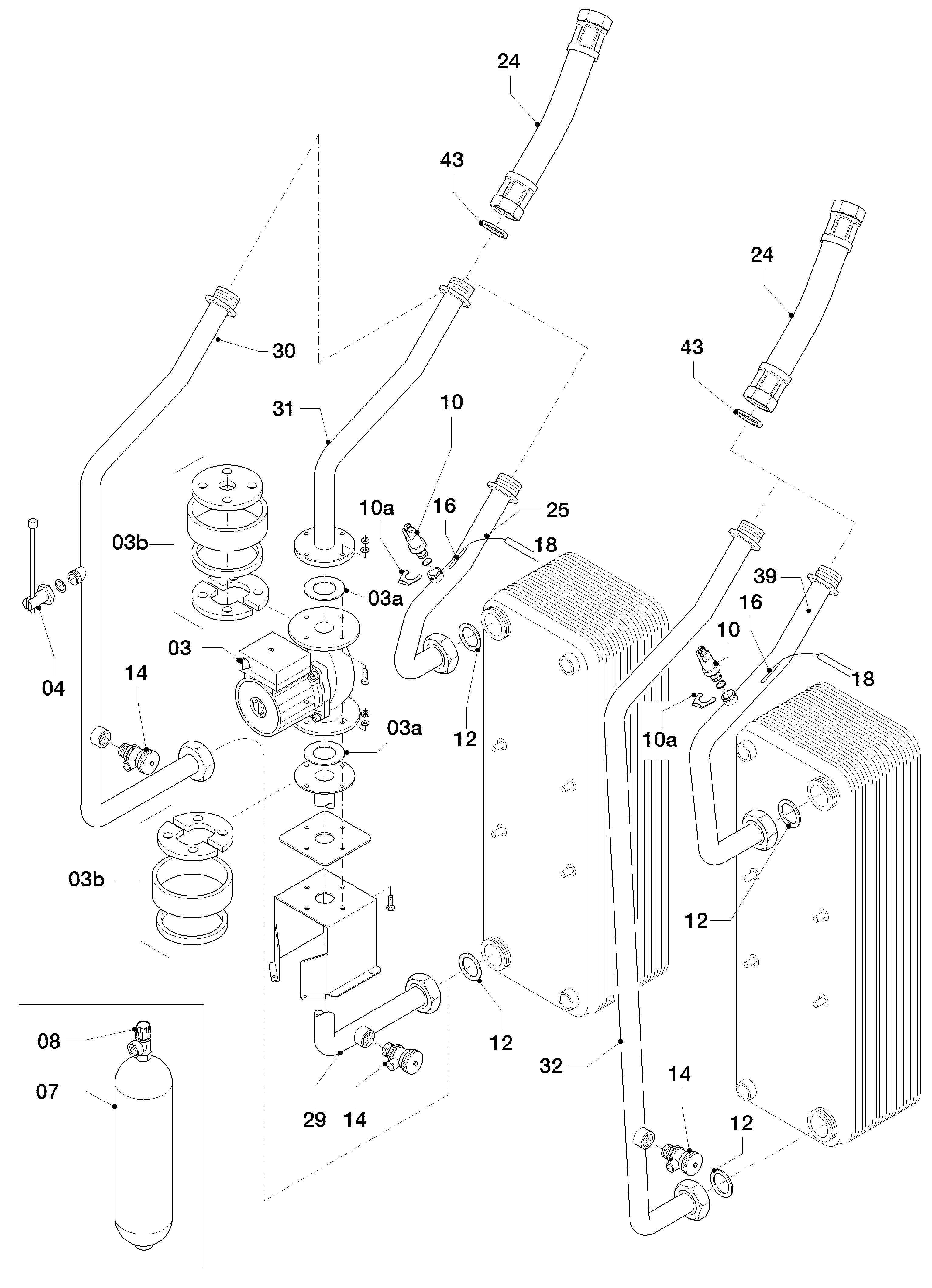

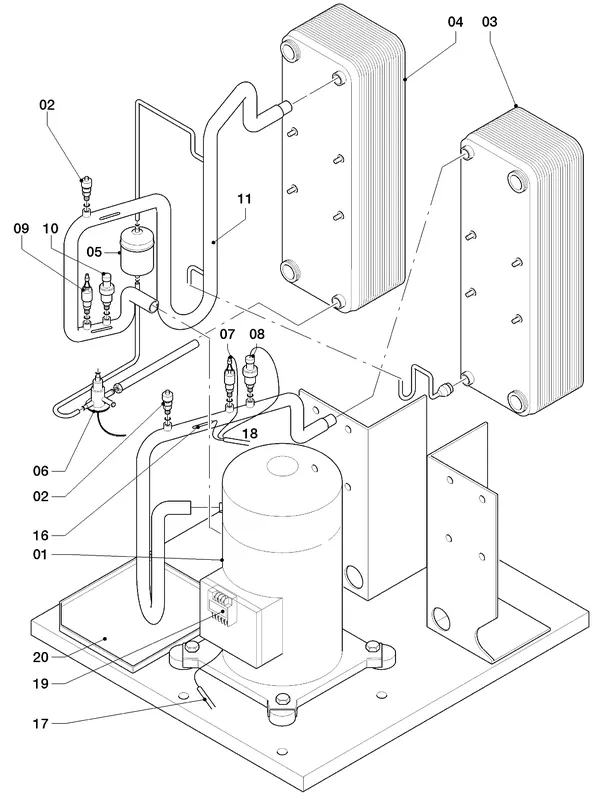

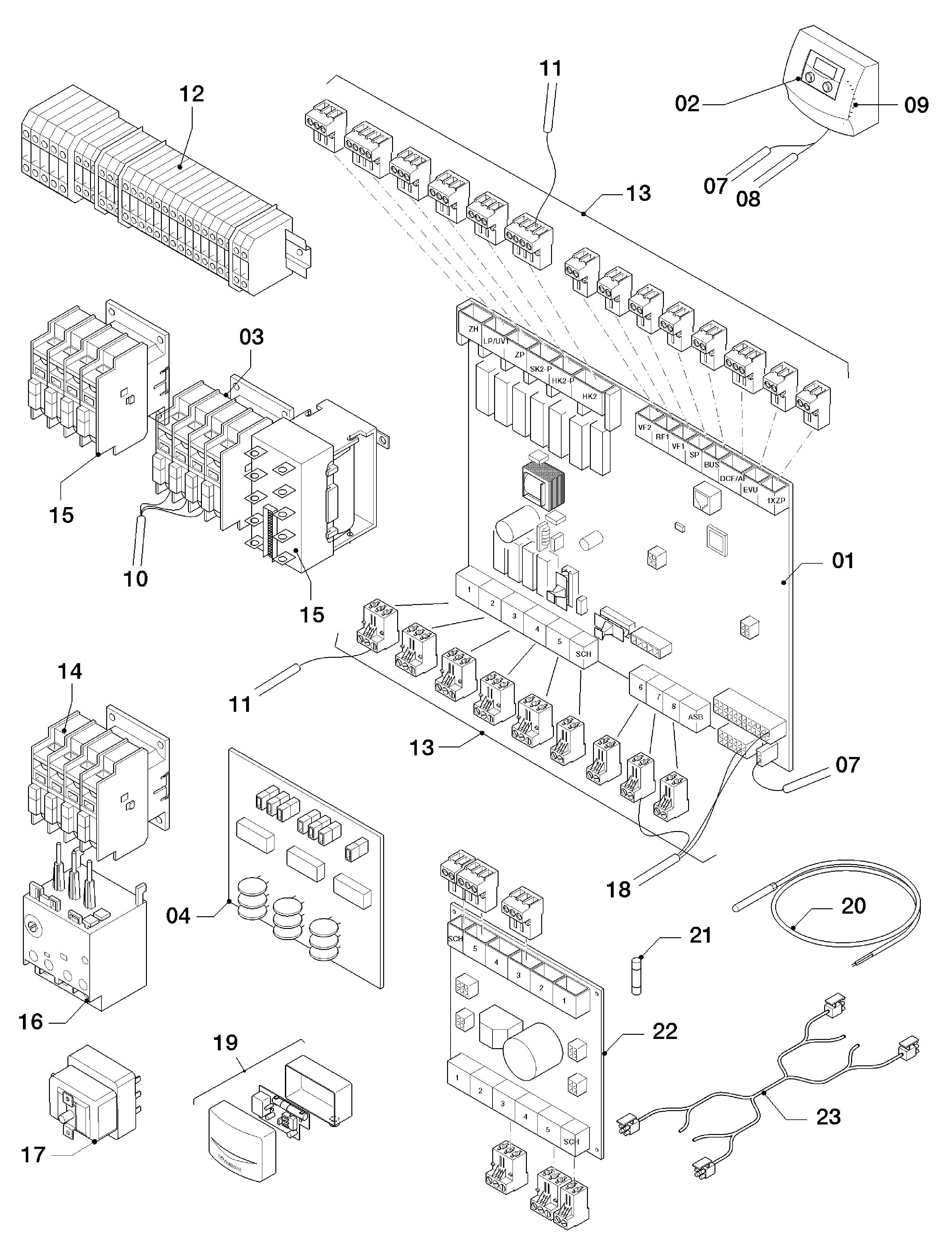

Exploded views of the Vaillant geoTHERM VWS 220/3
Click an exploded view to enlarge it. The position numbers are shown next to each part.
Fault code on your Vaillant geoTHERM VWS 220/3? This is the part type involved
Common Vaillant fault codes and the part type that is usually the cause; the parts for this model are listed above. All codes explained: Vaillant fault codes.
| Code | What is going on | Part type |
|---|---|---|
| F.00 | The flow temperature sensor signal is interrupted. | Sensors |
| F.01 | The return temperature sensor signal is interrupted. | Sensors |
| F.02 | The hot water connection temperature sensor signal is interrupted. | Sensors |
| F.022 | Pressure loss in the heating circuit due to a leak or air lock, heating circuit pressure sensor defective | Sensors |
| F.03 | The cylinder temperature sensor signal is interrupted. | Sensors |
| F.042 | Break in the heat exchanger wiring harness | Heat exchangers |
For guidance only: the same code can have a different cause depending on the situation.
Other Vaillant heat pumps
- Vaillant aroCOLLECT VWL 11/4 SA (ODU) 33
- Vaillant aroTHERM VWL 105/5 AS 75
- Vaillant aroTHERM VWL 105/5 AS 400V 8
- Vaillant aroTHERM VWL 105/7.2 AS 230V S3 41
- Vaillant aroTHERM VWL 115/2 A 400V 80
- Vaillant aroTHERM VWL 125/5 AS 75
- Vaillant aroTHERM VWL 125/6 A 400V 111
- Vaillant aroTHERM VWL 125/6 A R1 400V 126
- Vaillant aroTHERM VWL 127/5 IS 76
- Vaillant aroTHERM VWL 155/2 A 400V 84
- Vaillant aroTHERM VWL 35/5 AS 72
- Vaillant aroTHERM VWL 35/6 A 95
Frequently asked questions
Which parts are available for the Vaillant geoTHERM VWS 220/3?
The catalogue lists 56 original parts for the Vaillant geoTHERM VWS 220/3, including sensors, pressure sensors, heat exchangers, PCBs and controls. All parts are listed above, grouped by type, with part number and price.
How much does a sensor for the Vaillant geoTHERM VWS 220/3 cost?
The sensors for this model cost between €41.82 and €252.21 incl. VAT. Check the table "Sensors" above for the right part number.
Are the parts for the Vaillant geoTHERM VWS 220/3 in stock?
5 of the 56 parts are in stock; shipping to EU countries from €12.95 (€16.95 for more distant countries), usually 3–5 working days. Parts marked "Made-to-order item" are ordered specially for you; the delivery time is shown on the product page.
How do I know which part I need for the Vaillant geoTHERM VWS 220/3?
Search for the part by part number or use the exploded view of the Vaillant geoTHERM VWS 220/3.
Are these original Vaillant parts?
Yes. All 56 parts in this list are original manufacturer parts for the Vaillant geoTHERM VWS 220/3, supplied through the official technical wholesale channel and with the correct part number.
How much do parts for the Vaillant geoTHERM VWS 220/3 cost?
Parts for the Vaillant geoTHERM VWS 220/3 range from €7.84 to €4,074.60 incl. VAT. The exact price of each part is shown in the tables above.
Can I return a part?
As a consumer you have a 14-day right of withdrawal. You may unpack and inspect the part; do not install or connect it. For a part that has been installed, connected or damaged we deduct the diminished value, up to the full price for circuit boards.
