Wolf BWS-1-06/08/10/12/16 spare parts
In brief
Instalpunt supplies 20 original parts for the Wolf BWS-1-06/08/10/12/16, including temperature sensors and NTC sensors, pressure sensors, flow sensors and flow switches. Order online.
- 20Spare parts
- 3In stock
- €15.68From
- 11Types
- availableExploded view
Looking for parts for the Wolf BWS-1-06/08/10/12/16 (heat pump)? Below are all 20 original parts, grouped by part type, with the matching exploded view. Choose a type to jump straight to the right table.
View the interactive exploded view →- Temperature sensors and NTC sensors 2
- Pressure sensors 2
- Flow sensors and flow switches 1
- Pressure switches and differential pressure switches 1
- Pumps 1
- Heat exchangers 1
- PCBs and controls 1
- Expansion valves 2
- Electrical parts 1
- Gaskets and seals 1
- Fixing material 2
- Other parts 5
Temperature sensors and NTC sensors for the Wolf BWS-1-06/08/10/12/16 (2) all Wolf temperature sensors and NTC sensors →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Wolf hot gas temperature sensor | 8624940 Mfr. no. 274432499 | €96.95 | Made-to-order item | View & order |
| Wolf flow sensor | 8622044 Mfr. no. 274105499 | €91.95 | In stock | View & order |
Pressure sensors for the Wolf BWS-1-06/08/10/12/16 (2)
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Wolf low pressure sensor for BWS-1 | 8624385 Mfr. no. 2744798 | €113.95 | Made-to-order item | View & order |
| Wolf pressure sensor analogue 4,5 bar incl. O-ring | 8622287 Mfr. no. 274478399 | €67.95 | Made-to-order item | View & order |
Flow sensors and flow switches for the Wolf BWS-1-06/08/10/12/16 (1)
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Wolf flow sensor DN25 | 8622300 Mfr. no. 274478299 | €135.95 | Made-to-order item | View & order |
Pressure switches and differential pressure switches for the Wolf BWS-1-06/08/10/12/16 (1)
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Wolf high pressure switch 29/22bar D6 | 8624425 Mfr. no. 2744797 | €113.95 | Made-to-order item | View & order |
Pumps for the Wolf BWS-1-06/08/10/12/16 (1) all Wolf pumps →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Wolf high-efficiency pump 25/1-8/180 | 8624418 Mfr. no. 207132599 | €1,028.95 | Made-to-order item | View & order |
Heat exchangers for the Wolf BWS-1-06/08/10/12/16 (1)
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Wolf plate heat exchanger 80 plates without insulation for heating c | 8622192 Mfr. no. 2980875 | €2,379.95 | Made-to-order item | View & order |
PCBs and controls for the Wolf BWS-1-06/08/10/12/16 (1) all Wolf PCBs and controls →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Wolf PCB hpm heat pump BWL and BWS | 8622261 Mfr. no. 2744777 | €609.95 | Made-to-order item | View & order |
Expansion valves for the Wolf BWS-1-06/08/10/12/16 (2)
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Wolf thermostatic expansion valve TLEX-E0855 12x16mm | 8624421 Mfr. no. 2071199 | €253.95 | Made-to-order item | View & order |
| Wolf thermostatic expansion valve BWS-1 16 | 8624422 Mfr. no. 2071337 | €295.95 | Made-to-order item | View & order |
Electrical parts for the Wolf BWS-1-06/08/10/12/16 (1)
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Wolf relay 8-pole 24V BWS | 8621430 Mfr. no. 2744842 | €59.95 | In stock | View & order |
Gaskets and seals for the Wolf BWS-1-06/08/10/12/16 (1) all Wolf gaskets and seals →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Wolf gasket 24x17x2,3/4 10 pcs | 8622072 Mfr. no. 8601930 | €30.95 | Made-to-order item | View & order |
Fixing material for the Wolf BWS-1-06/08/10/12/16 (2) all Wolf fixing material →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Wolf key for sealing valve for 3-way valve 2071385 | 8624357 Mfr. no. 2071385 | €92.95 | Not available | View & order |
| Wolf retaining spring | 8622147 Mfr. no. 8602166 | €51.95 | Made-to-order item | View & order |
Other parts for the Wolf BWS-1-06/08/10/12/16 (5)
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Wolf suction gas/source sensor NTC 5k | 8622299 Mfr. no. 274468699 | €81.95 | In stock | View & order |
| Wolf soft starter 11kW BWS | 8621428 Mfr. no. 2744830 | €542.95 | Made-to-order item | View & order |
| Wolf push-in clip 8mm | 8621469 Mfr. no. 340004699 | €29.95 | Made-to-order item | View & order |
| Wolf fault module soft starter BWS | 8621431 Mfr. no. 2744989 | €120.95 | Made-to-order item | View & order |
| Wolf silicone grease 10 g tube | 8622088 Mfr. no. 8602264 | €47.95 | Made-to-order item | View & order |

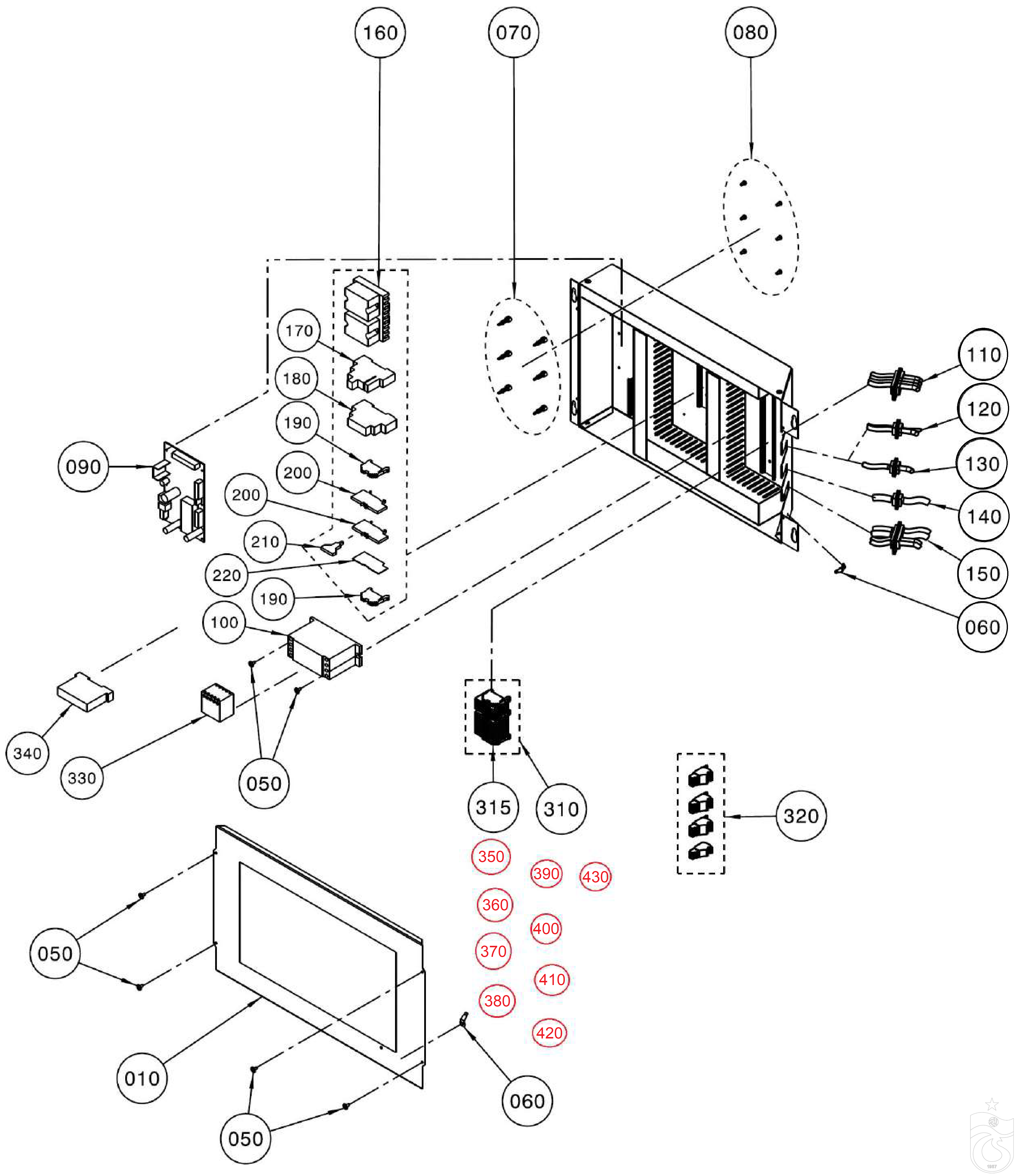

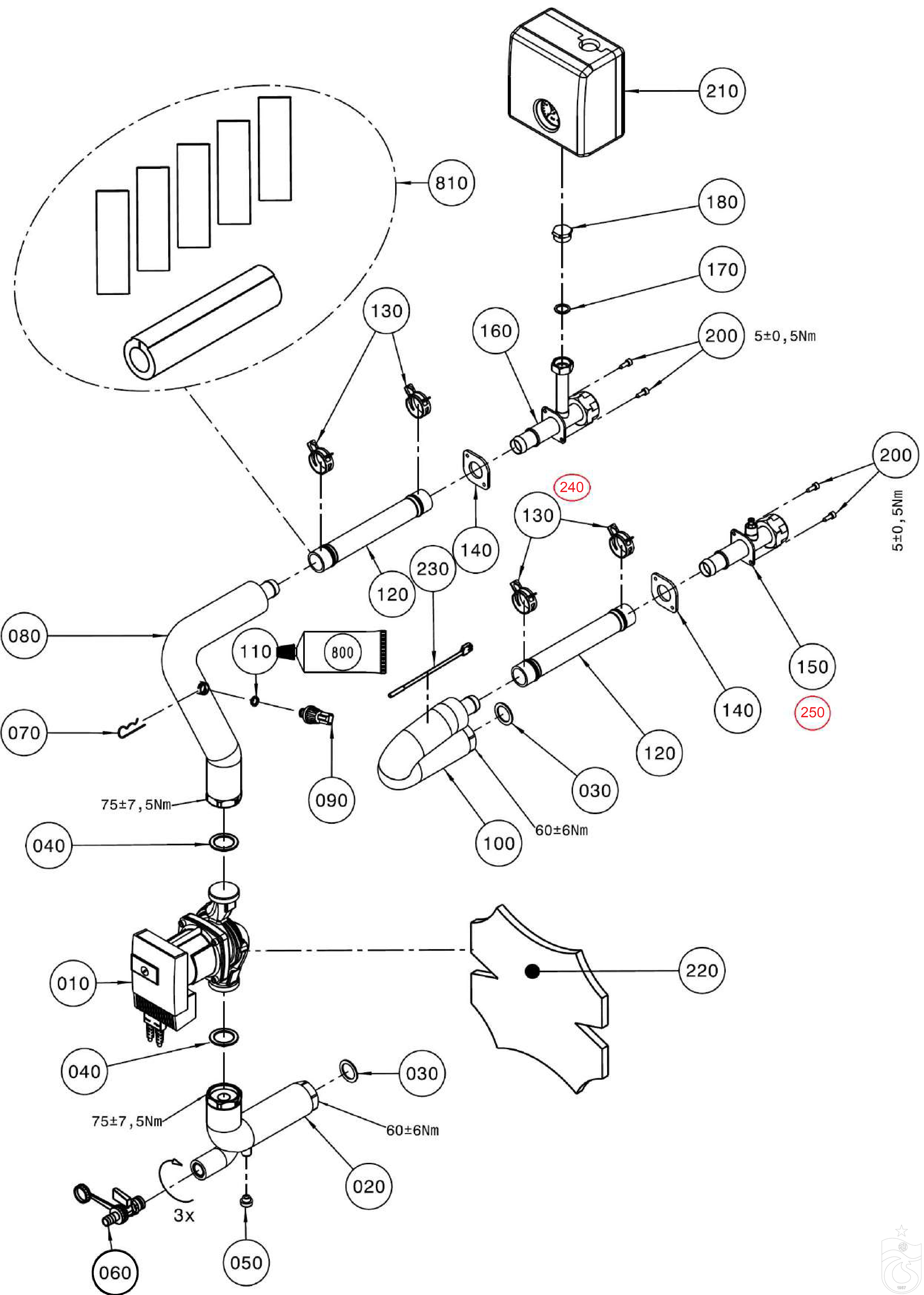

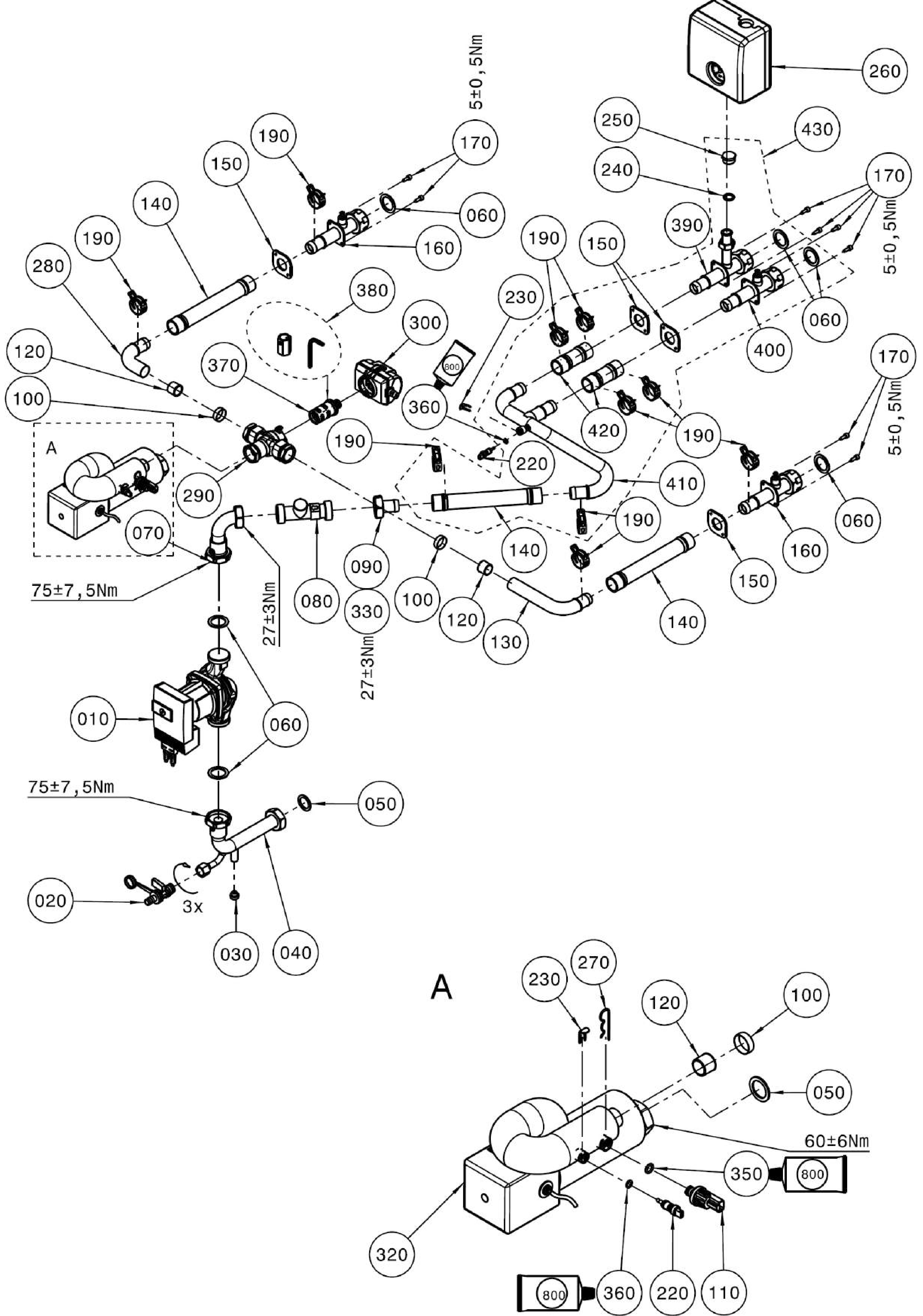

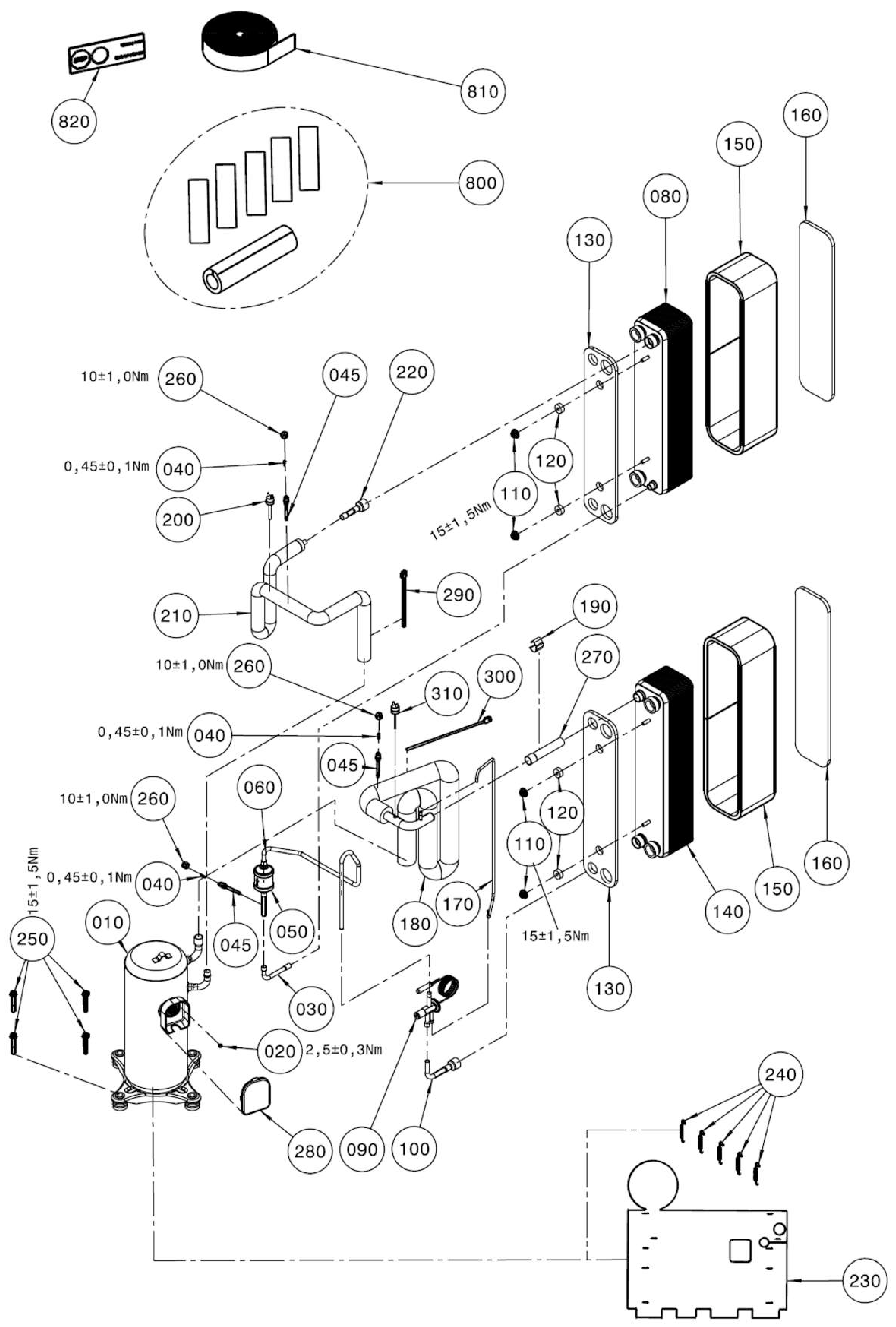

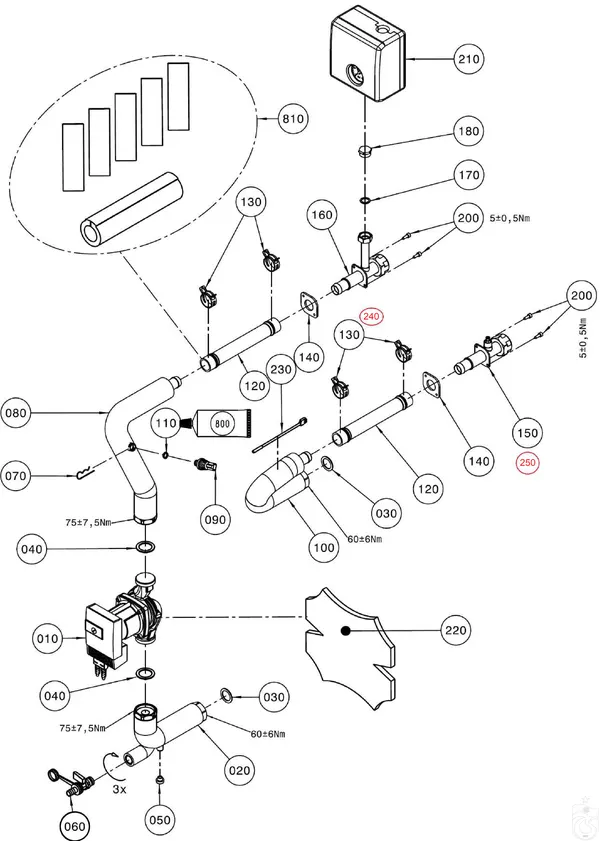

Exploded views of the Wolf BWS-1-06/08/10/12/16
Click an exploded view to enlarge it. The position numbers are shown next to each part.
Other Wolf heat pumps
- Wolf Outdoor unit 10/14/16kW, 230V/400V 3
- Wolf Outdoor unit 5kW 230V from 2017 9
- Wolf Outdoor unit 7kW 230V up to 2017 4
- Wolf Outdoor unit 7kW 230V from 2017 9
- Wolf Controls ODU 10/14/16 kW 400V 10
- Wolf CHC split 200 5
- Wolf CHC split 200-35 7
- Wolf CHC split 300 6
- Wolf CHC split 300-50 7
- Wolf CHC split 300-50S 7
- Wolf BSP-FW-2-60 6
- Wolf BSP-FWL-2-60L 6
Frequently asked questions
Which parts are available for the Wolf BWS-1-06/08/10/12/16?
The catalogue lists 20 original parts for the Wolf BWS-1-06/08/10/12/16, including temperature sensors and NTC sensors, pressure sensors, flow sensors and flow switches, pressure switches and differential pressure switches. All parts are listed above, grouped by type, with part number and price.
How much does a temperature sensor for the Wolf BWS-1-06/08/10/12/16 cost?
The temperature sensors and NTC sensors for this model cost between €81.02 and €95.40 incl. VAT. Check the table "Temperature sensors and NTC sensors" above for the right part number.
Are the parts for the Wolf BWS-1-06/08/10/12/16 in stock?
3 of the 20 parts are in stock; shipping to EU countries from €12.95 (€16.95 for more distant countries), usually 3–5 working days. Parts marked "Made-to-order item" are ordered specially for you; the delivery time is shown on the product page.
How do I know which part I need for the Wolf BWS-1-06/08/10/12/16?
Search for the part by part number or use the exploded view of the Wolf BWS-1-06/08/10/12/16. Is your appliance showing a fault code? The fault code table shows the matching part type.
Are these original Wolf parts?
Yes. All 20 parts in this list are original manufacturer parts for the Wolf BWS-1-06/08/10/12/16, supplied through the official technical wholesale channel and with the correct part number.
How much do parts for the Wolf BWS-1-06/08/10/12/16 cost?
Parts for the Wolf BWS-1-06/08/10/12/16 range from €15.68 to €2,220.25 incl. VAT. The exact price of each part is shown in the tables above.
Can I return a part?
As a consumer you have a 14-day right of withdrawal. You may unpack and inspect the part; do not install or connect it. For a part that has been installed, connected or damaged we deduct the diminished value, up to the full price for circuit boards.
