Nibe F1145-12 EXP | 065097 spare parts
In brief
Instalpunt supplies 47 original parts for the Nibe F1145-12 EXP | 065097, including temperature sensors and NTC sensors, pressure switches and differential pressure switches, pumps. Order online.
- 47Spare parts
- 5In stock
- €20.26From
- 17Types
- availableExploded view

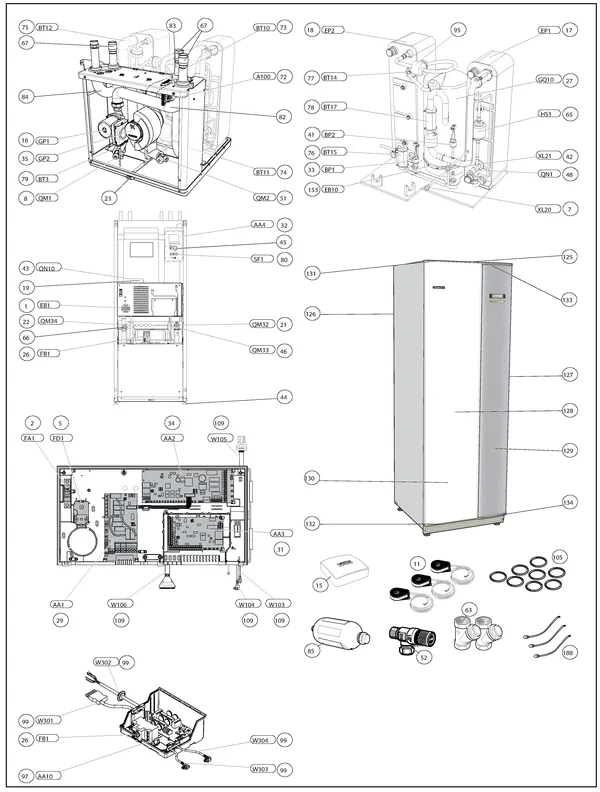

Looking for parts for the Nibe F1145-12 EXP | 065097 (heat pump)? Below are all 47 original parts, grouped by part type, with the matching exploded view. Choose a type to jump straight to the right table.
View the interactive exploded view →- Temperature sensors and NTC sensors 1
- Pressure switches and differential pressure switches 2
- Pumps 2
- Heat exchangers 1
- PCBs and controls 1
- Expansion valves 1
- Compressors 1
- Thermostats and controls 1
- Displays and controls 1
- Filters 2
- Maintenance and service kits 1
- Valves 3
- Motors 1
- Electrical parts 1
- Gaskets and seals 1
- Pipes, tubes and hoses 6
- Casing and panels 8
- Other parts 13
Temperature sensors and NTC sensors for the Nibe F1145-12 EXP | 065097 (1) all Nibe temperature sensors and NTC sensors →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Nibe temperature sensor for F11/12/1345 BT11 | 8744077 Mfr. no. 518729 | €96.95 | Made-to-order item | View & order |
Pressure switches and differential pressure switches for the Nibe F1145-12 EXP | 065097 (2) all Nibe pressure switches and differential pressure switches →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Nibe high-pressure switch F1145/1245 | 8744021 Mfr. no. 518220 | €209.95 | Made-to-order item | View & order |
| Nibe low-pressure switch F1145/1245 | 8744020 Mfr. no. 518219 | €90.95 | Made-to-order item | View & order |
Pumps for the Nibe F1145-12 EXP | 065097 (2) all Nibe pumps →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Nibe circulation pump brine side UPMXL GEO 25-125 180mm | 8743399 Mfr. no. 624905 | €1,829.95 | Made-to-order item | View & order |
| Nibe circulation pump for F1145/1245 (25-75-180) | 8744134 Mfr. no. 524413 | €966.95 | Made-to-order item | View & order |
Heat exchangers for the Nibe F1145-12 EXP | 065097 (1) all Nibe heat exchangers →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Nibe evaporator for F1145-17 | 8743762 Mfr. no. 224282 | €2,361.95 | Made-to-order item | View & order |
PCBs and controls for the Nibe F1145-12 EXP | 065097 (1) all Nibe PCBs and controls →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Nibe input PCB | 8743409 Mfr. no. 518848 | €473.95 | In stock | View & order |
Expansion valves for the Nibe F1145-12 EXP | 065097 (1) all Nibe expansion valves →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Nibe expansion valve F1145/1245-10 to 12kW | 8743431 Mfr. no. 035019 | €510.95 | Made-to-order item | View & order |
Compressors for the Nibe F1145-12 EXP | 065097 (1) all Nibe compressors →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Nibe compressor for F11/12/ 1345 12kw | 8743687 Mfr. no. 089722 | €7,086.95 | Made-to-order item | View & order |
Thermostats and controls for the Nibe F1145-12 EXP | 065097 (1) all Nibe thermostats and controls →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Nibe control thermostat for heating element F1145 | 8744068 Mfr. no. 518640 | €268.95 | Made-to-order item | View & order |
Displays and controls for the Nibe F1145-12 EXP | 065097 (1)
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Nibe display for F1145/1245/ F1155/F1255 with uplink 718337 | 8744233 Mfr. no. 718337 | €979.95 | Made-to-order item | View & order |
Filters for the Nibe F1145-12 EXP | 065097 (2) all Nibe filters →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Nibe filter drier for Fighter 11xx/12xx/13xx | 8743418 Mfr. no. 624952 | €122.95 | In stock | View & order |
| Nibe line filter R25 ( 1 ) | 8744116 Mfr. no. 524260 | €128.95 | Made-to-order item | View & order |
Maintenance and service kits for the Nibe F1145-12 EXP | 065097 (1) all Nibe maintenance and service kits →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Nibe replacement set electric element F1145 3x 400V | 8743736 Mfr. no. 218604 | €1,049.95 | Made-to-order item | View & order |
Valves for the Nibe F1145-12 EXP | 065097 (3) all Nibe valves →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Nibe shut-off valve 9kw electric element | 8743760 Mfr. no. 224162 | €111.95 | Made-to-order item | View & order |
| Nibe safety relief valve 3 bar brine | 8744177 Mfr. no. 624891 | €129.95 | Made-to-order item | View & order |
| Nibe Schrader valve 1/4 | 8743944 Mfr. no. 424728 | €55.95 | Made-to-order item | View & order |
Motors for the Nibe F1145-12 EXP | 065097 (1) all Nibe motors →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Nibe motor for three-way valve for F1145/1245 DHW/heating | 8743451 Mfr. no. 518633 | €313.95 | In stock | View & order |
Electrical parts for the Nibe F1145-12 EXP | 065097 (1) all Nibe electrical parts →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Nibe thermal motor protection switch 0-10A (PKZM0-10-C) | 8744011 Mfr. no. 518124 | €273.95 | Made-to-order item | View & order |
Gaskets and seals for the Nibe F1145-12 EXP | 065097 (1)
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Nibe O-ring set 8 pcs for F1145/1245 | 8743649 Mfr. no. 059392 | €29.95 | Made-to-order item | View & order |
Pipes, tubes and hoses for the Nibe F1145-12 EXP | 065097 (6) all Nibe pipes, tubes and hoses →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Nibe flexible hose F1145/1245 for e.g. F1145-6 EM 3x230V 028002 | 8743557 Mfr. no. 028002 | €256.95 | Made-to-order item | View & order |
| Nibe flexible hose F1145/1245 for e.g. F1145-6 EM 3x230V 028003 | 8743558 Mfr. no. 028003 | €399.95 | Made-to-order item | View & order |
| Nibe flexible hose F1145-12 to 17, (xl1 / xl2) 28 mm | 8743563 Mfr. no. 028027 | €284.95 | Made-to-order item | View & order |
| Nibe flexible hose + pipe F1145 xl7 / xl6 (28 mm) | 8743594 Mfr. no. 028226 | €283.95 | Made-to-order item | View & order |
| Nibe flexible hose F1145/1245 (long) | 8743574 Mfr. no. 028091 | €314.95 | Made-to-order item | View & order |
| Nibe flexible hose F1155/1255 for e.g. F1255-12 R 028275 | 8743597 Mfr. no. 028275 | €341.95 | Made-to-order item | View & order |
Casing and panels for the Nibe F1145-12 EXP | 065097 (8) all Nibe casing and panels →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Nibe aluminium front door for F1145 | 8743850 Mfr. no. 407301 | €408.95 | Made-to-order item | View & order |
| Nibe top panel for F1145/1245/1345/VPB | 8743846 Mfr. no. 407297 | €208.95 | Made-to-order item | View & order |
| Nibe left side panel F1145 & F1155 | 8743849 Mfr. no. 407300 | €284.95 | Made-to-order item | View & order |
| Nibe right side panel F1145 & F1155 | 8743848 Mfr. no. 407299 | €284.95 | Made-to-order item | View & order |
| Nibe front panel complete F1145 | 8743851 Mfr. no. 407302 | €678.95 | Made-to-order item | View & order |
| Nibe front panel without aluminium door for F1145 | 8743853 Mfr. no. 407305 | €320.95 | Made-to-order item | View & order |
| Nibe foot with screw thread m10 for F1145/1245/1345/ VPB200-300 | 8743975 Mfr. no. 434719 | €42.95 | Made-to-order item | View & order |
| Nibe top + bottom panel | 8743170 Mfr. no. 407205 | €137.95 | Made-to-order item | View & order |
Other parts for the Nibe F1145-12 EXP | 065097 (13)
Fault code on your Nibe F1145-12 EXP | 065097? This is the part type involved
Common Nibe fault codes and the part type that is usually the cause; the parts for this model are listed above. All codes explained: Nibe fault codes.
| Code | What is going on | Part type |
|---|---|---|
| 3 | Sensor fault BT3 (heat pump return): sensor not connected or defective (condenser IN) | Heat exchangers |
| 29 | Sensor fault BT29: sensor not connected or defective (compressor oil temperature) | Compressors |
| 40 | Compressor phase 1 missing: compressor phase missing or <160V for more than 30 min. | Compressors |
| 42 | Compressor phase 3 missing: compressor phase missing or <160V for more than 30 min. | Compressors |
| 50 | High pressure alarm (compressor): high pressure switch tripped repeatedly | Compressors |
| 52 | High-limit thermostat tripped (element): auxiliary heating element high-limit thermostat tripped | Thermostats and controls |
For guidance only: the same code can have a different cause depending on the situation.
Other Nibe heat pumps
- Nibe ACVM 10A-270 | 069159 40
- Nibe AMS 10-12 L | 064110 25
- Nibe AMS 10-16 | 064035 19
- Nibe AMS 10-8 A | 064033 8
- Nibe F1145-10 EM 3x230V | 065138 46
- Nibe F1145-10 EXP | 065096 47
- Nibe F1145-12 EM 3x230V | 065139 47
- Nibe F1145-15 EXP | 065098 47
- Nibe F1145-17 EM 3x230V | 065141 48
- Nibe F1145-5 1x230V | 065155 47
- Nibe F1145-6 EM 3x230V | 065136 41
- Nibe F1145-6 EXP | 065094 46
Frequently asked questions
Which parts are available for the Nibe F1145-12 EXP | 065097?
The catalogue lists 47 original parts for the Nibe F1145-12 EXP | 065097, including temperature sensors and NTC sensors, pressure switches and differential pressure switches, pumps, heat exchangers. All parts are listed above, grouped by type, with part number and price.
How much does a temperature sensor for the Nibe F1145-12 EXP | 065097 cost?
The temperature sensors and NTC sensors for this model cost €83.64 incl. VAT. Check the table "Temperature sensors and NTC sensors" above for the right part number.
Are the parts for the Nibe F1145-12 EXP | 065097 in stock?
5 of the 47 parts are in stock; shipping to EU countries from €12.95 (€16.95 for more distant countries), usually 3–5 working days. Parts marked "Made-to-order item" are ordered specially for you; the delivery time is shown on the product page.
How do I know which part I need for the Nibe F1145-12 EXP | 065097?
Search for the part by part number or use the exploded view of the Nibe F1145-12 EXP | 065097.
Are these original Nibe parts?
Yes. All 47 parts in this list are original manufacturer parts for the Nibe F1145-12 EXP | 065097, supplied through the official technical wholesale channel and with the correct part number.
How much do parts for the Nibe F1145-12 EXP | 065097 cost?
Parts for the Nibe F1145-12 EXP | 065097 range from €20.26 to €8,455.00 incl. VAT. The exact price of each part is shown in the tables above.
Can I return a part?
As a consumer you have a 14-day right of withdrawal. You may unpack and inspect the part; do not install or connect it. For a part that has been installed, connected or damaged we deduct the diminished value, up to the full price for circuit boards.
