Panasonic WH-ADF0309J3E5CM spare parts

In brief

Instalpunt supplies 16 original parts for the Panasonic WH-ADF0309J3E5CM, including sensors, diverter valves and hydroblocks, thermostats and controls. Order online.

16Spare parts
6In stock
€1.31From
7Types
availableExploded view

Looking for parts for the Panasonic WH-ADF0309J3E5CM (heat pump)? Below are all 16 original parts, grouped by part type, with the matching exploded view. Choose a type to jump straight to the right table.

View the interactive exploded view →

Sensors 1
Diverter valves and hydroblocks 1
Thermostats and controls 1
Filters 1
Valves 4
Cables and wiring harnesses 2
Gaskets and seals 1
Other parts 5

Sensors for the Panasonic WH-ADF0309J3E5CM (1) all Panasonic sensors →

Part	Item no. / mfr. no.	Price	Stock
Panasonic sensor for e.g. WH-ADC1216H6E5C ACXA50C16520	9950005 Mfr. no. ACXA50C16520	€74.95	In stock	View & order

Diverter valves and hydroblocks for the Panasonic WH-ADF0309J3E5CM (1)

Part	Item no. / mfr. no.	Price	Stock
Panasonic 3-way valve CN1 ACXB	9950073 Mfr. no. ACXB62-00092	€281.95	In stock	View & order

Thermostats and controls for the Panasonic WH-ADF0309J3E5CM (1)

Part	Item no. / mfr. no.	Price	Stock
Panasonic thermostat	9950057 Mfr. no. A151074	€49.95	Made-to-order item	View & order

Filters for the Panasonic WH-ADF0309J3E5CM (1)

Part	Item no. / mfr. no.	Price	Stock
Panasonic filter complete for e.g. WH-SDC0509L3E5 ACXB51C00110	9950000 Mfr. no. ACXB51C00110	€327.95	Made-to-order item	View & order

Valves for the Panasonic WH-ADF0309J3E5CM (4) all Panasonic valves →

Part	Item no. / mfr. no.	Price	Stock
Panasonic pressure relief valve	9950016 Mfr. no. ACXB62-00740	€118.95	In stock	View & order
Panasonic automatic air vent	9950028 Mfr. no. ACXB62-00130	€99.95	In stock	View & order
Panasonic valve for e.g. WH-ADC1216H6E5C ACXB65C00111	9950006 Mfr. no. ACXB65C00111	€117.95	Made-to-order item	View & order
Panasonic valve for e.g. WH-ADC1216H6E5C B65C1026	9950054 Mfr. no. B65C1026	€86.95	Made-to-order item	View & order

Cables and wiring harnesses for the Panasonic WH-ADF0309J3E5CM (2)

Part	Item no. / mfr. no.	Price	Stock
Panasonic cable for remote control	9950021 Mfr. no. ACXA60C04350	€23.95	In stock	View & order
Panasonic cable for water pump	9950017 Mfr. no. ACXA60C73630	€103.95	Made-to-order item	View & order

Gaskets and seals for the Panasonic WH-ADF0309J3E5CM (1)

Part	Item no. / mfr. no.	Price	Stock
Panasonic O-ring	9950055 Mfr. no. CWB811224	€11.95	Made-to-order item	View & order

Other parts for the Panasonic WH-ADF0309J3E5CM (5)

Part	Item no. / mfr. no.	Price	Stock
Panasonic packing cwb81012	9954720 Mfr. no. CWB81012	€7.95	Made-to-order item	View & order
Panasonic setting ring	9950003 Mfr. no. ACXH58-00370	€16.95	In stock	View & order
Panasonic flexible pipe cwh5850080	9957047 Mfr. no. CWH5850080	€6.95	Made-to-order item	View & order
Panasonic accessory complete A CXH82C21740	9957974 Mfr. no. ACXH82C21740		Made-to-order item	View & order
Panasonic electric liquid pump	9950093 Mfr. no. ACXB53-00391CZ	€522.95	Made-to-order item	View & order

Exploded views of the Panasonic WH-ADF0309J3E5CM

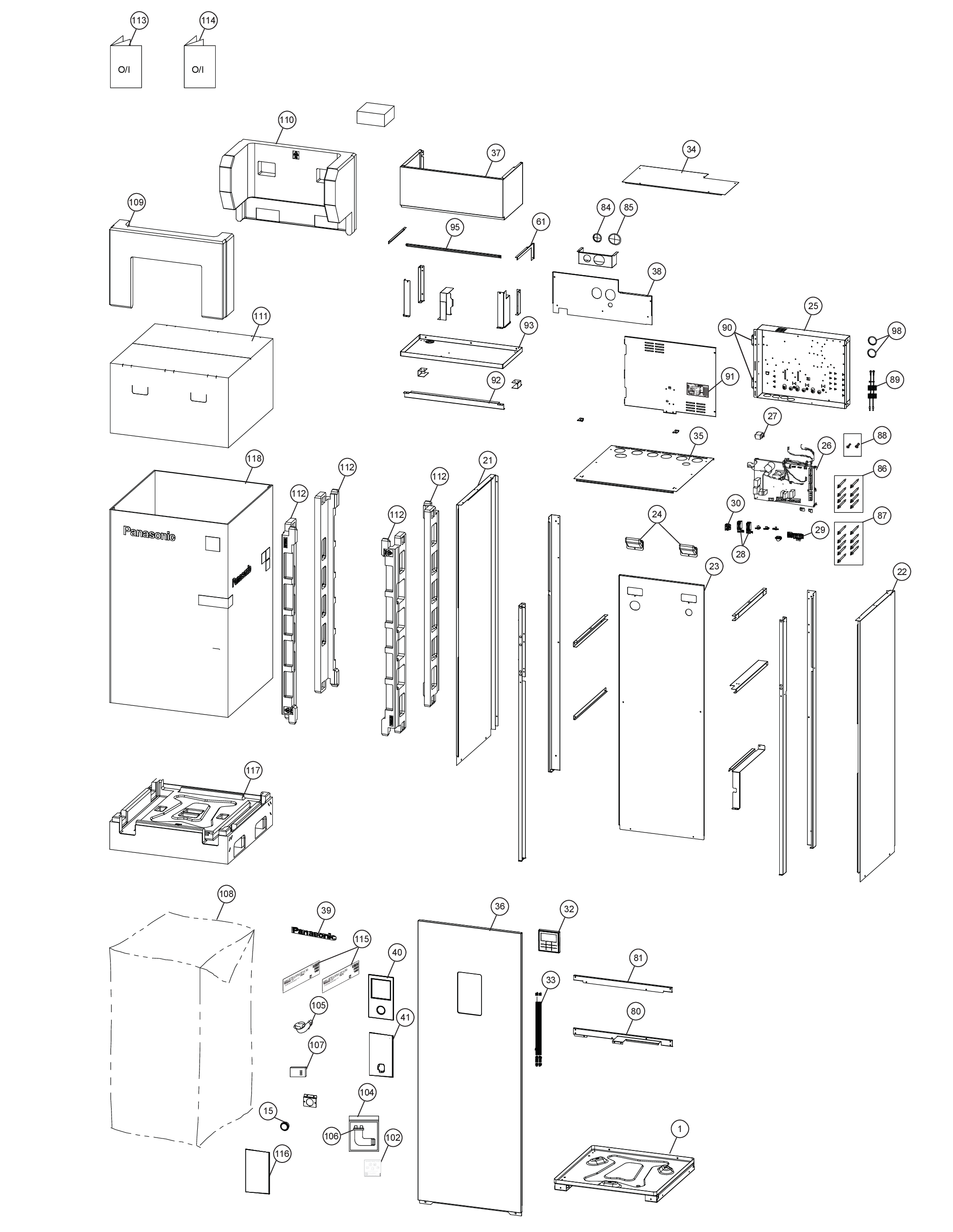

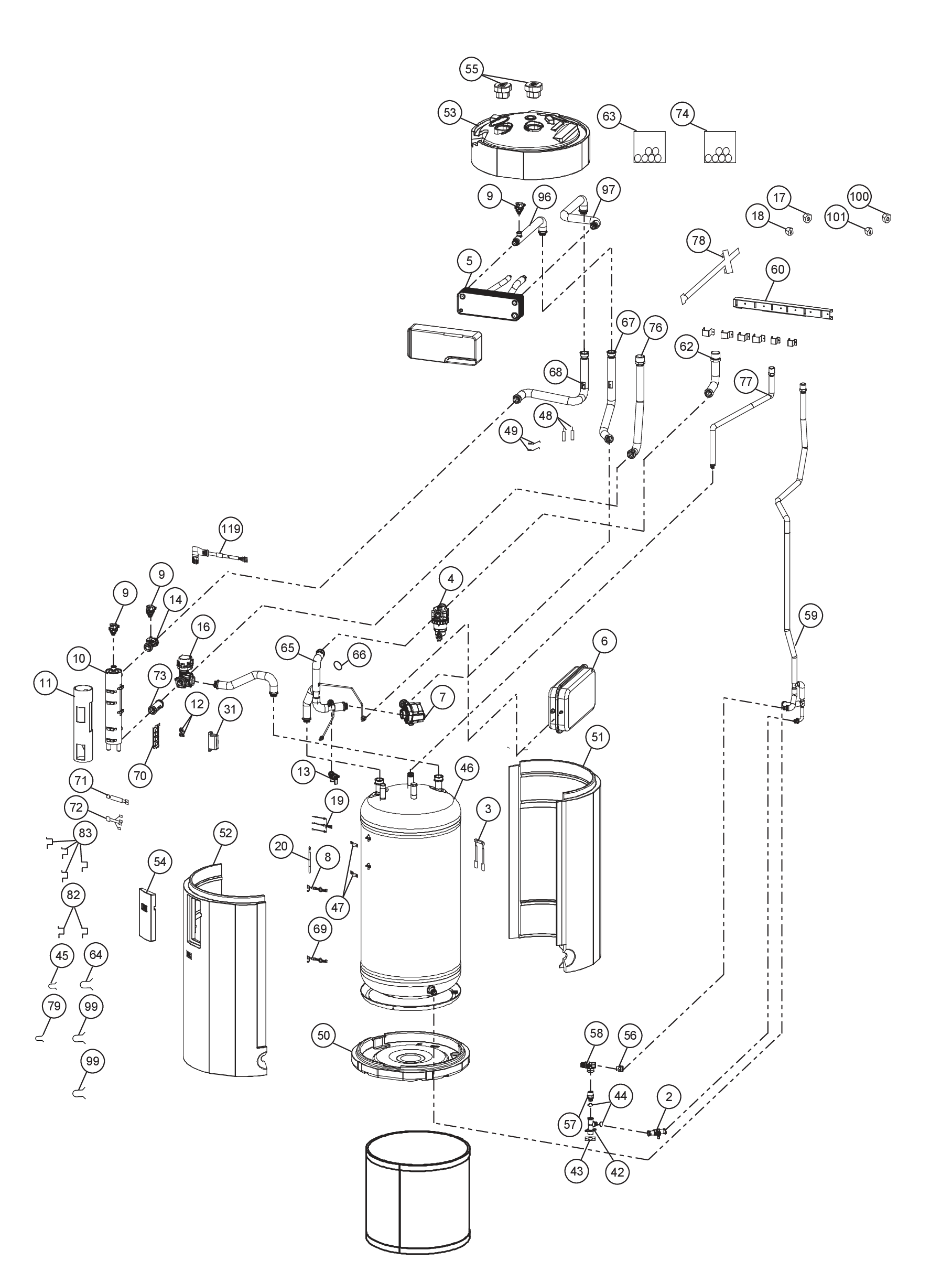

Click an exploded view to enlarge it. The position numbers are shown next to each part.
