Panasonic WH-ADC0309J3E5C spare parts

In brief

Instalpunt supplies 19 original parts for the Panasonic WH-ADC0309J3E5C, including sensors, flow sensors and flow switches, PCBs and controls. Order online.

19Spare parts
13In stock
€20.91From
11Types
availableExploded view

Looking for parts for the Panasonic WH-ADC0309J3E5C (heat pump)? Below are all 19 original parts, grouped by part type, with the matching exploded view. Choose a type to jump straight to the right table.

View the interactive exploded view →

Quick left to the right part for the Panasonic WH-ADC0309J3E5C

Part	From	Delivery
Flow sensor Panasonic flow sensor with cable	€229.95	In stock
Display Panasonic remote control wired	€548.95	In stock

Prices incl. VAT, taken directly from our checkout. Below is the complete parts list for this model.

Installer or self-employed engineer? Create a business account: prices excl. VAT and invoices in your company name.

Sensors 3
Flow sensors and flow switches 1
PCBs and controls 1
Diverter valves and hydroblocks 1
Expansion vessels 1
Thermostats and controls 1
Displays and controls 1
Filters 1
Valves 5
Pressure gauges 1
Cables and wiring harnesses 2
Other parts 1

Sensors for the Panasonic WH-ADC0309J3E5C (3) all Panasonic sensors →

Part	Item no. / mfr. no.	Price	Stock
Panasonic sensor for e.g. WH-ADC1216H6E5C ACXA50C16390	9950001 Mfr. no. ACXA50C16390	€53.95	In stock	View & order
Panasonic sensor for e.g. WH-ADC1216H6E5C ACXA50C16380	9950002 Mfr. no. ACXA50C16380	€74.95	In stock	View & order
Panasonic sensor for e.g. WH-ADC1216H6E5C ACXA50C16520	9950005 Mfr. no. ACXA50C16520	€74.95	In stock	View & order

Flow sensors and flow switches for the Panasonic WH-ADC0309J3E5C (1)

Part	Item no. / mfr. no.	Price	Stock
Panasonic flow sensor with cable	9950086 Mfr. no. ACXB62-00912W	€229.95	In stock	View & order

PCBs and controls for the Panasonic WH-ADC0309J3E5C (1) all Panasonic PCBs and controls →

Part	Item no. / mfr. no.	Price	Stock
Panasonic PCB for WH-ADC0309J3E5C ACXA73C65740	9950007 Mfr. no. ACXA73C65740	€297.95	In stock	View & order

Diverter valves and hydroblocks for the Panasonic WH-ADC0309J3E5C (1)

Part	Item no. / mfr. no.	Price	Stock
Panasonic 3-way valve CN1 ACXB	9950073 Mfr. no. ACXB62-00092	€281.95	In stock	View & order

Expansion vessels for the Panasonic WH-ADC0309J3E5C (1)

Part	Item no. / mfr. no.	Price	Stock
Panasonic expansion vessel	9950072 Mfr. no. CWB141039	€372.95	In stock	View & order

Thermostats and controls for the Panasonic WH-ADC0309J3E5C (1)

Part	Item no. / mfr. no.	Price	Stock
Panasonic thermostat	9950057 Mfr. no. A151074	€49.95	Made-to-order item	View & order

Displays and controls for the Panasonic WH-ADC0309J3E5C (1)

Part	Item no. / mfr. no.	Price	Stock
Panasonic remote control wired	9950050 Mfr. no. ACXA75C15753	€548.95	In stock	View & order

Filters for the Panasonic WH-ADC0309J3E5C (1)

Part	Item no. / mfr. no.	Price	Stock
Panasonic filter complete for e.g. WH-SDC0509L3E5 ACXB51C00110	9950000 Mfr. no. ACXB51C00110	€327.95	Made-to-order item	View & order

Valves for the Panasonic WH-ADC0309J3E5C (5) all Panasonic valves →

Part	Item no. / mfr. no.	Price	Stock
Panasonic pressure relief valve	9950016 Mfr. no. ACXB62-00740	€118.95	In stock	View & order
Panasonic automatic air vent	9950028 Mfr. no. ACXB62-00130	€99.95	In stock	View & order
Panasonic pressure valve	9950058 Mfr. no. ACXB62-00111	€95.95	In stock	View & order
Panasonic valve for e.g. WH-ADC1216H6E5C ACXB65C00111	9950006 Mfr. no. ACXB65C00111	€117.95	Made-to-order item	View & order
Panasonic valve for e.g. WH-ADC1216H6E5C B65C1026	9950054 Mfr. no. B65C1026	€86.95	Made-to-order item	View & order

Pressure gauges for the Panasonic WH-ADC0309J3E5C (1)

Part	Item no. / mfr. no.	Price	Stock
Panasonic pressure gauge for WH-ADC0309J3E5C ACXB07-00100	9950004 Mfr. no. ACXB07-00100	€90.95	In stock	View & order

Cables and wiring harnesses for the Panasonic WH-ADC0309J3E5C (2)

Part	Item no. / mfr. no.	Price	Stock
Panasonic cable for remote control	9950021 Mfr. no. ACXA60C04350	€23.95	In stock	View & order
Panasonic cable for water pump	9950017 Mfr. no. ACXA60C73630	€103.95	Made-to-order item	View & order

Other parts for the Panasonic WH-ADC0309J3E5C (1)

Part	Item no. / mfr. no.	Price	Stock
Panasonic electric liquid pump	9950093 Mfr. no. ACXB53-00391CZ	€522.95	Made-to-order item	View & order

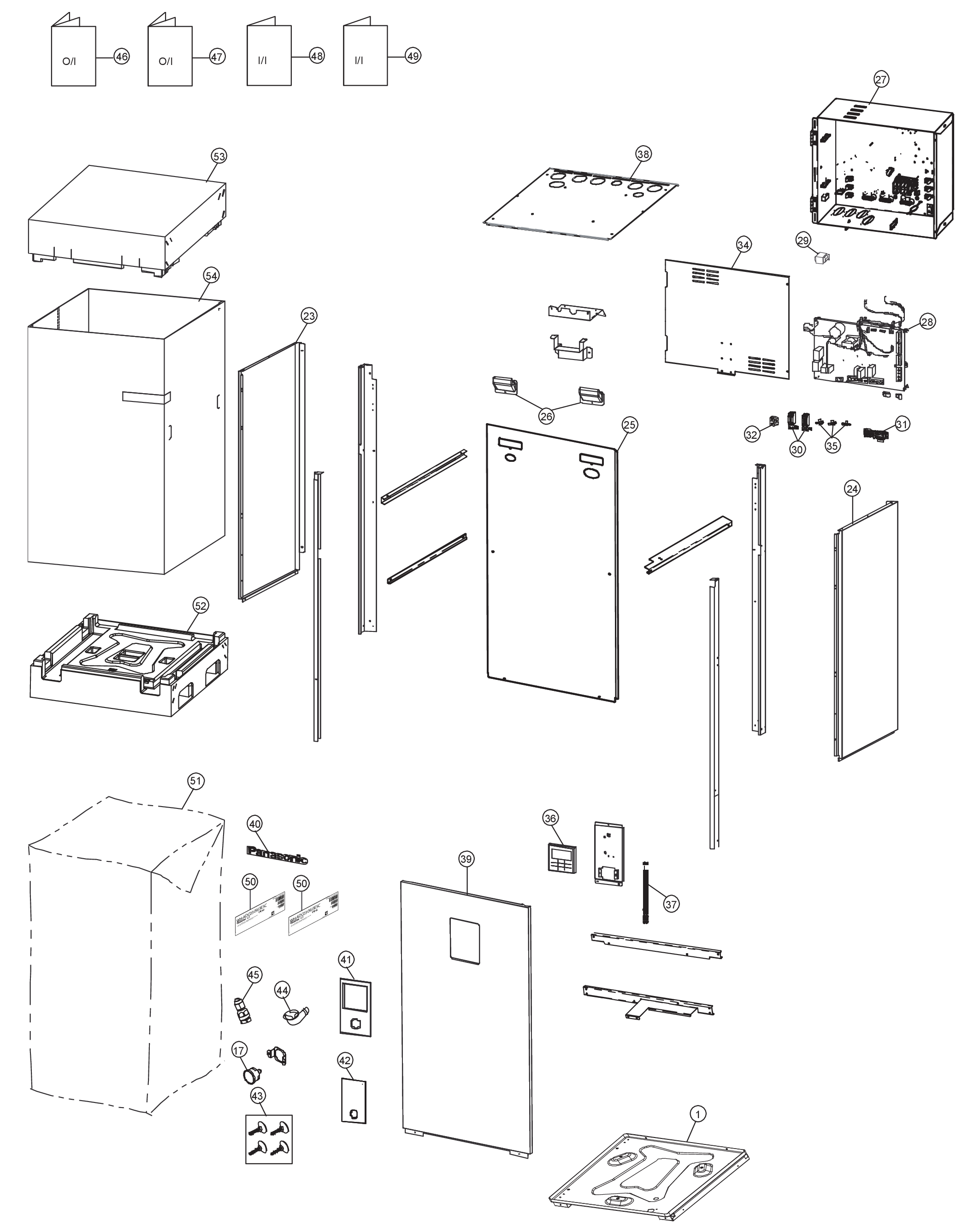

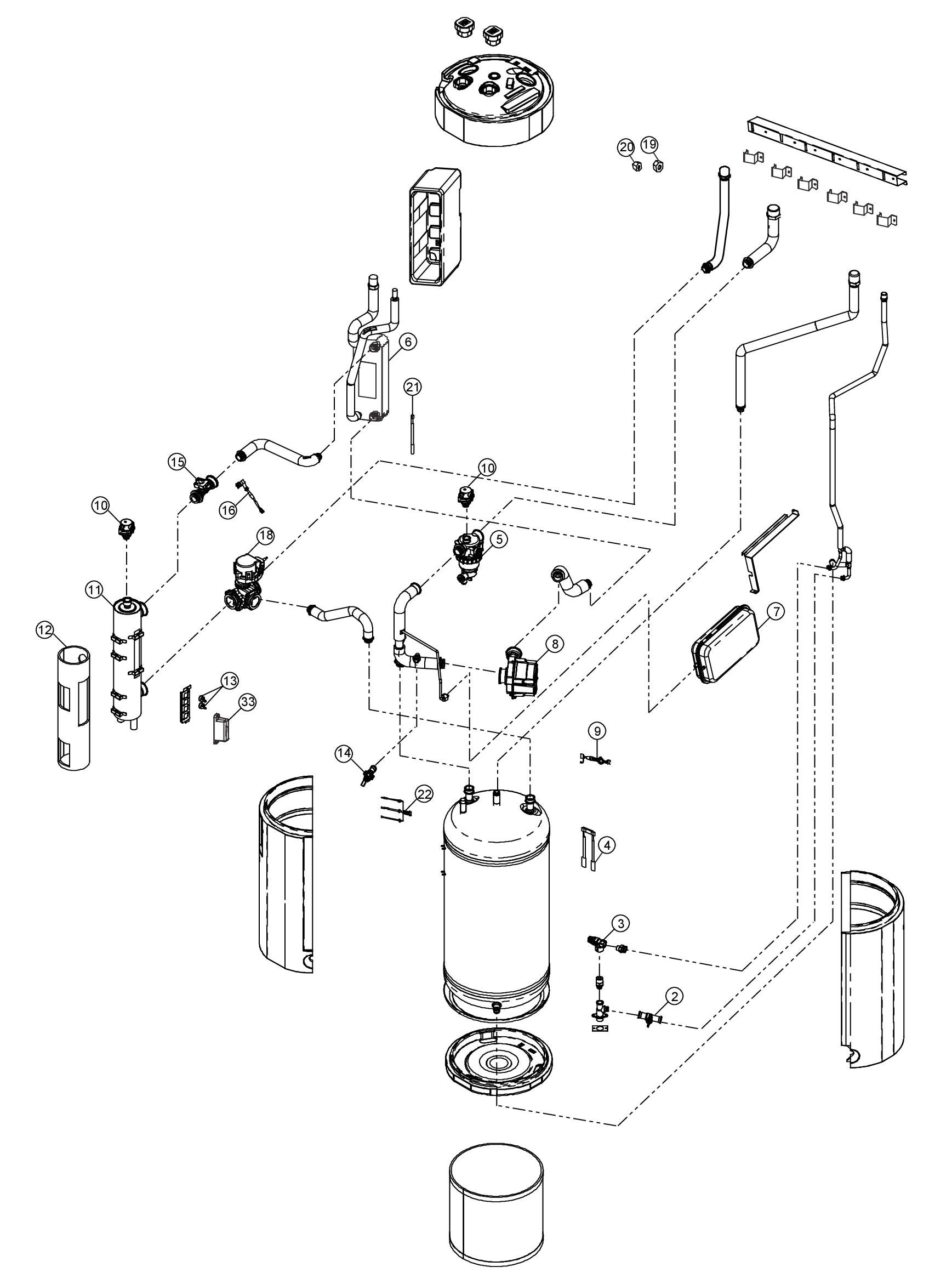

Exploded views of the Panasonic WH-ADC0309J3E5C

Click an exploded view to enlarge it. The position numbers are shown next to each part.

Other Panasonic heat pumps

← All Panasonic parts

Frequently asked questions

Which parts are available for the Panasonic WH-ADC0309J3E5C?

The catalogue lists 19 original parts for the Panasonic WH-ADC0309J3E5C, including sensors, flow sensors and flow switches, PCBs and controls, diverter valves and hydroblocks. All parts are listed above, grouped by type, with part number and price.

How much does a sensor for the Panasonic WH-ADC0309J3E5C cost?

The sensors for this model cost between €58.81 and €78.41 incl. VAT. Check the table "Sensors" above for the right part number.

Are the parts for the Panasonic WH-ADC0309J3E5C in stock?

13 of the 19 parts are in stock; shipping to EU countries from €12.95 (€16.95 for more distant countries), usually 3–5 working days. Parts marked "Made-to-order item" are ordered specially for you; the delivery time is shown on the product page.

How do I know which part I need for the Panasonic WH-ADC0309J3E5C?

Search for the part by part number or use the exploded view of the Panasonic WH-ADC0309J3E5C. Is your appliance showing a fault code? The fault code table shows the matching part type.

Are these original Panasonic parts?

Yes. All 19 parts in this list are original manufacturer parts for the Panasonic WH-ADC0309J3E5C, supplied through the official technical wholesale channel and with the correct part number.

How much do parts for the Panasonic WH-ADC0309J3E5C cost?

Parts for the Panasonic WH-ADC0309J3E5C range from €20.91 to €706.98 incl. VAT. The exact price of each part is shown in the tables above.

Can I return a part?

You have a 14-day right of withdrawal. Return unused parts, in their original packaging where possible; details are in our returns conditions.
