Panasonic WH-ADC0309H3E5B spare parts

In brief

Instalpunt supplies 15 original parts for the Panasonic WH-ADC0309H3E5B, including sensors, flow sensors and flow switches, diverter valves and hydroblocks. Order online.

15Spare parts
10In stock
€7.19From
10Types
availableExploded view

Looking for parts for the Panasonic WH-ADC0309H3E5B (heat pump)? Below are all 15 original parts, grouped by part type, with the matching exploded view. Choose a type to jump straight to the right table.

View the interactive exploded view →

Quick left to the right part for the Panasonic WH-ADC0309H3E5B

Part	From	Delivery
Flow sensor Panasonic flow sensor with cable	€229.95	In stock
Display Panasonic remote control wired	€548.95	In stock

Prices incl. VAT, taken directly from our checkout. Below is the complete parts list for this model.

Installer or self-employed engineer? Create a business account: prices excl. VAT and invoices in your company name.

Sensors 1
Flow sensors and flow switches 1
Diverter valves and hydroblocks 1
Expansion vessels 1
Thermostats and controls 1
Displays and controls 1
Filters 1
Valves 4
Pressure gauges 1
Cables and wiring harnesses 2
Other parts 1

Sensors for the Panasonic WH-ADC0309H3E5B (1) all Panasonic sensors →

Part	Item no. / mfr. no.	Price	Stock
Panasonic sensor for e.g. WH-ADC0309H3E5 CWA50C3257	9950042 Mfr. no. CWA50C3257	€46.95	Made-to-order item	View & order

Flow sensors and flow switches for the Panasonic WH-ADC0309H3E5B (1)

Part	Item no. / mfr. no.	Price	Stock
Panasonic flow sensor with cable	9950086 Mfr. no. ACXB62-00912W	€229.95	In stock	View & order

Diverter valves and hydroblocks for the Panasonic WH-ADC0309H3E5B (1)

Part	Item no. / mfr. no.	Price	Stock
Panasonic 3-way valve CN1 ACXB	9950073 Mfr. no. ACXB62-00092	€281.95	In stock	View & order

Expansion vessels for the Panasonic WH-ADC0309H3E5B (1)

Part	Item no. / mfr. no.	Price	Stock
Panasonic expansion vessel	9950072 Mfr. no. CWB141039	€372.95	In stock	View & order

Thermostats and controls for the Panasonic WH-ADC0309H3E5B (1)

Part	Item no. / mfr. no.	Price	Stock
Panasonic thermostat	9950057 Mfr. no. A151074	€49.95	Made-to-order item	View & order

Displays and controls for the Panasonic WH-ADC0309H3E5B (1)

Part	Item no. / mfr. no.	Price	Stock
Panasonic remote control wired	9950050 Mfr. no. ACXA75C15753	€548.95	In stock	View & order

Filters for the Panasonic WH-ADC0309H3E5B (1)

Part	Item no. / mfr. no.	Price	Stock
Panasonic filter complete for e.g. WH-ADC0309H3E5 CWB51C1021	9950041 Mfr. no. CWB51C1021	€527.95	In stock	View & order

Valves for the Panasonic WH-ADC0309H3E5B (4) all Panasonic valves →

Part	Item no. / mfr. no.	Price	Stock
Panasonic pressure relief valve	9950016 Mfr. no. ACXB62-00740	€118.95	In stock	View & order
Panasonic automatic air vent	9950028 Mfr. no. ACXB62-00130	€99.95	In stock	View & order
Panasonic pressure valve	9950058 Mfr. no. ACXB62-00111	€95.95	In stock	View & order
Panasonic valve for e.g. WH-ADC0309H3E5 CWB65C1026	9950039 Mfr. no. CWB65C1026	€86.95	Made-to-order item	View & order

Pressure gauges for the Panasonic WH-ADC0309H3E5B (1)

Part	Item no. / mfr. no.	Price	Stock
Panasonic pressure gauge for e.g. WH-ADC0309H3E5 B070003	9950066 Mfr. no. B070003	€102.95	In stock	View & order

Cables and wiring harnesses for the Panasonic WH-ADC0309H3E5B (2)

Part	Item no. / mfr. no.	Price	Stock
Panasonic cable for remote control	9950021 Mfr. no. ACXA60C04350	€23.95	In stock	View & order
Panasonic cable for water	9950022 Mfr. no. ACXA60C05360	€97.95	Made-to-order item	View & order

Other parts for the Panasonic WH-ADC0309H3E5B (1)

Part	Item no. / mfr. no.	Price	Stock
Panasonic air vent plug	9950040 Mfr. no. CWB821027	€10.95	Made-to-order item	View & order

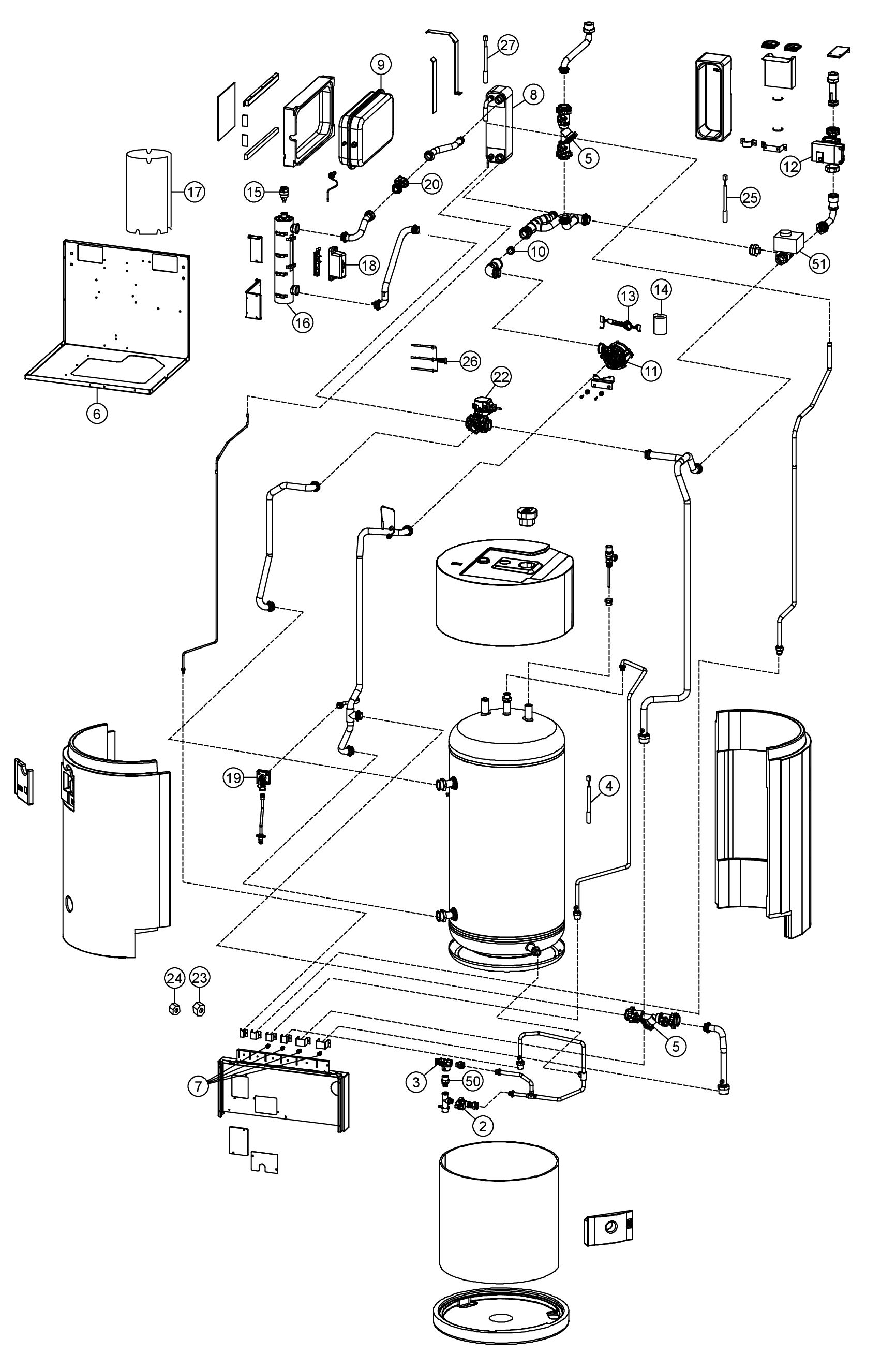

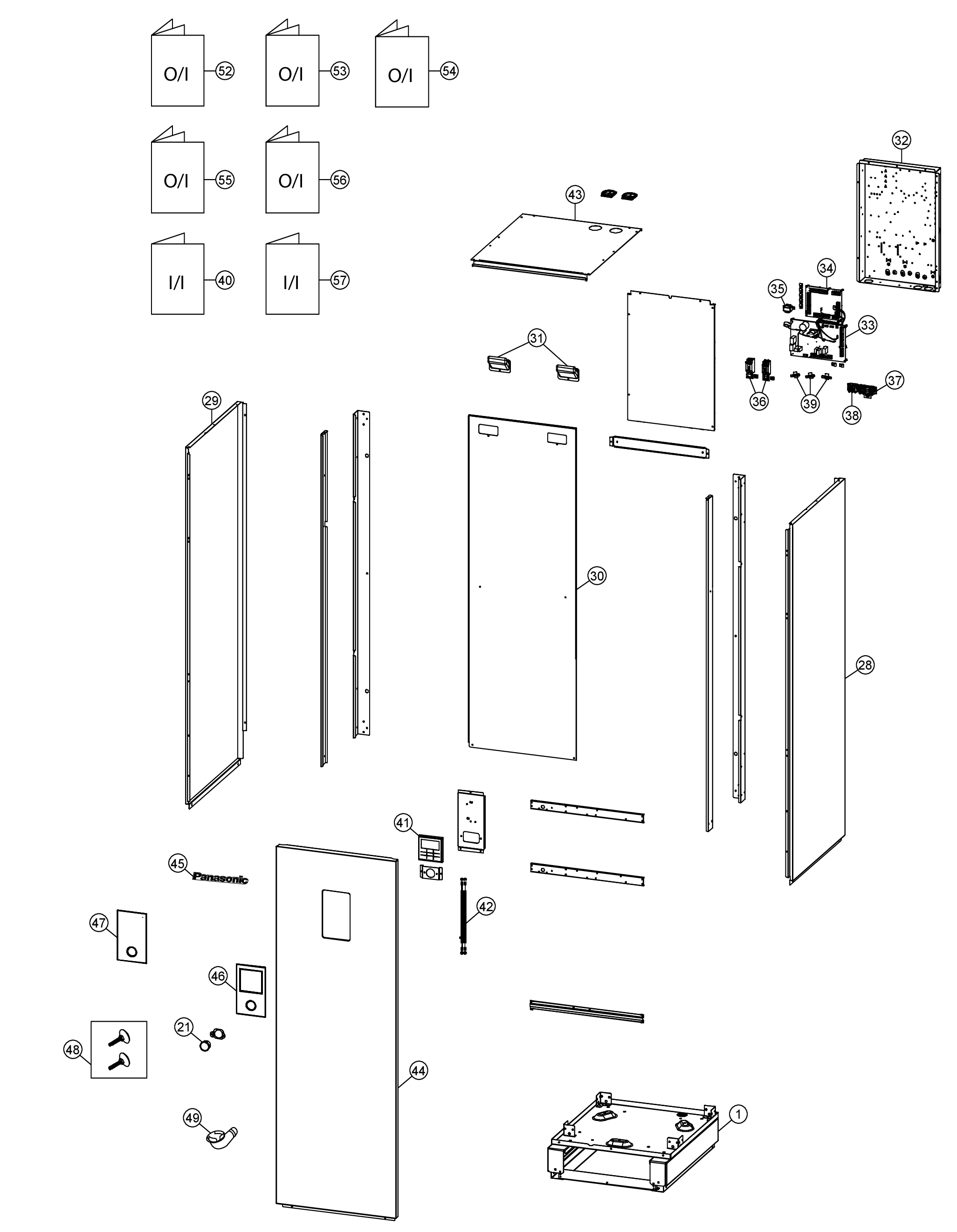

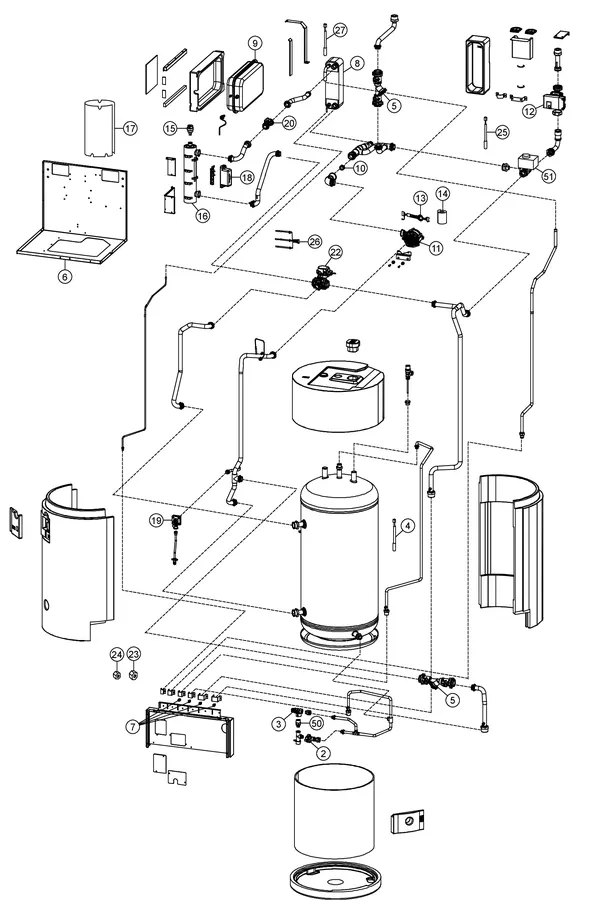

Exploded views of the Panasonic WH-ADC0309H3E5B

Click an exploded view to enlarge it. The position numbers are shown next to each part.

Other Panasonic heat pumps

← All Panasonic parts

Frequently asked questions

Which parts are available for the Panasonic WH-ADC0309H3E5B?

The catalogue lists 15 original parts for the Panasonic WH-ADC0309H3E5B, including sensors, flow sensors and flow switches, diverter valves and hydroblocks, expansion vessels. All parts are listed above, grouped by type, with part number and price.

How much does a sensor for the Panasonic WH-ADC0309H3E5B cost?

The sensors for this model cost €33.98 incl. VAT. Check the table "Sensors" above for the right part number.

Are the parts for the Panasonic WH-ADC0309H3E5B in stock?

10 of the 15 parts are in stock; shipping to EU countries from €12.95 (€16.95 for more distant countries), usually 3–5 working days. Parts marked "Made-to-order item" are ordered specially for you; the delivery time is shown on the product page.

How do I know which part I need for the Panasonic WH-ADC0309H3E5B?

Search for the part by part number or use the exploded view of the Panasonic WH-ADC0309H3E5B. Is your appliance showing a fault code? The fault code table shows the matching part type.

Are these original Panasonic parts?

Yes. All 15 parts in this list are original manufacturer parts for the Panasonic WH-ADC0309H3E5B, supplied through the official technical wholesale channel and with the correct part number.

How much do parts for the Panasonic WH-ADC0309H3E5B cost?

Parts for the Panasonic WH-ADC0309H3E5B range from €7.19 to €706.98 incl. VAT. The exact price of each part is shown in the tables above.

Can I return a part?

As a consumer you have a 14-day right of withdrawal. You may unpack and inspect the part; do not install or connect it. For a part that has been installed, connected or damaged we deduct the diminished value, up to the full price for circuit boards.
