Remeha Avanta 35C Combi-CW5 spare parts

In brief

Instalpunt supplies 101 original parts for the Remeha Avanta 35C Combi-CW5, including fans, sensors, flow sensors and flow switches. Order online.

101Spare parts
69In stock
€13.07From
25Types
availableExploded view

Looking for parts for the Remeha Avanta 35C Combi-CW5 (boiler)? Below are all 101 original parts, grouped by part type, with the matching exploded view. Choose a type to jump straight to the right table.

View the interactive exploded view →

Quick left to the right part for the Remeha Avanta 35C Combi-CW5

Part	From	Delivery
Fan Remeha fan 24V for Avanta	€325.45	In stock
Ignition part Remeha ignition electrode (including cable for black transformer) after 4/2006 (Avanta)	€43.95	In stock
Flow sensor Remeha flow sensor 35C 1.2 l/min restriction 12 l/min for Avanta	€96.95	In stock
Pump Remeha energy-efficient pump for Avanta 24/28/35C (after 2015)	€232.95	In stock
Heat exchanger Remeha DHW plate heat exchanger 35C for Avanta	€218.95	In stock
Burner control unit Remeha burner control unit BIC 321 Avanta	€324.45	In stock
Display Remeha front casing Avanta	€321.95	In stock

Prices incl. VAT, taken directly from our checkout. Below is the complete parts list for this model.

Installer or self-employed engineer? Create a business account: prices excl. VAT and invoices in your company name.

Fans for the Remeha Avanta 35C Combi-CW5 (2) all Remeha fans →

Part	Item no. / mfr. no.	Price	Stock
Remeha fan 24V for Avanta	8016289 Mfr. no. S100011	€325.45	In stock	View & order
Rewind refurbished fan for Remeha Avanta (S100011)	8930183	€194.95	In stock	View & order

Sensors for the Remeha Avanta 35C Combi-CW5 (3) all Remeha sensors →

Part	Item no. / mfr. no.	Price	Stock
Remeha flow/return temperature sensor (2 pcs) for Avanta	8012112 Mfr. no. S58733	€52.45	In stock	View & order
Remeha Hall sensor (DHW NTC) for Avanta	8012127 Mfr. no. S59133	€51.45	In stock	View & order
Remeha thermal protection DHW	8016011 Mfr. no. 7668538	€44.95	In stock	View & order

Flow sensors and flow switches for the Remeha Avanta 35C Combi-CW5 (1) all Remeha flow sensors and flow switches →

Part	Item no. / mfr. no.	Price	Stock
Remeha flow sensor 35C 1.2 l/min restriction 12 l/min for Avanta	8016304 Mfr. no. S100180	€96.95	In stock	View & order

Pressure switches and differential pressure switches for the Remeha Avanta 35C Combi-CW5 (1) all Remeha pressure switches and differential pressure switches →

Part	Item no. / mfr. no.	Price	Stock
Remeha pressure switch Avanta	8010259 Mfr. no. S101350	€27.95	In stock	View & order

Pumps for the Remeha Avanta 35C Combi-CW5 (3) all Remeha pumps →

Part	Item no. / mfr. no.	Price	Stock
Remeha pump conversion kit to A-label pump Avanta (before 2015)	8010483 Mfr. no. 7731045	€382.95	In stock	View & order
Remeha energy-efficient pump for Avanta 24/28/35C (after 2015)	8010937 Mfr. no. 7820435	€232.95	In stock	View & order
Remeha pump 24-39kW for Avanta	8740748 Mfr. no. 7791283	€241.95	In stock	View & order

Heat exchangers for the Remeha Avanta 35C Combi-CW5 (2) all Remeha heat exchangers →

Part	Item no. / mfr. no.	Price	Stock
Remeha DHW plate heat exchanger 35C for Avanta	8016315 Mfr. no. S62776	€218.95	In stock	View & order
Remeha heat exchanger 35 kW for Avanta	8016290 Mfr. no. S100014	€905.95	In stock	View & order

Gas valves and gas control for the Remeha Avanta 35C Combi-CW5 (3) all Remeha gas valves and gas control →

Part	Item no. / mfr. no.	Price	Stock
Remeha gas valve Dungs for Avanta / Aquanta	8012116 Mfr. no. S58685	€155.95	In stock	View & order
Remeha venturi for Avanta	8012115 Mfr. no. S58683	€96.95	Made-to-order item	View & order
Remeha gas tap for e.g. Avanta 28C Combi CW4 S59115	8012132 Mfr. no. S59115	€63.95	Made-to-order item	View & order

PCBs and controls for the Remeha Avanta 35C Combi-CW5 (1) all Remeha PCBs and controls →

Part	Item no. / mfr. no.	Price	Stock
Remeha display PCB CW3 to 5 for Avanta	8012119 Mfr. no. S59128	€64.95	In stock	View & order

Burner control units for the Remeha Avanta 35C Combi-CW5 (1) all Remeha burner control units →

Part	Item no. / mfr. no.	Price	Stock
Remeha burner control unit BIC 321 Avanta	8012099 Mfr. no. 7628815	€324.45	In stock	View & order

Diverter valves and hydroblocks for the Remeha Avanta 35C Combi-CW5 (3) all Remeha diverter valves and hydroblocks →

Part	Item no. / mfr. no.	Price	Stock
Remeha insert (three-way valve) hydroblock right for Avanta	8018577 Mfr. no. S100217	€87.95	In stock	View & order
Remeha hydroblock right 12 l/min for Avanta	8016293 Mfr. no. S100018	€251.95	In stock	View & order
Remeha hydroblock left	8012126 Mfr. no. S59138	€104.95	In stock	View & order

Ignition and ionisation for the Remeha Avanta 35C Combi-CW5 (2) all Remeha ignition and ionisation →

Part	Item no. / mfr. no.	Price	Stock
Remeha ignition electrode (including cable for black transformer) after 4/2006 (Avanta)	8018529 Mfr. no. S62743	€43.95	In stock	View & order
Remeha ignition transformer black including electrode for Avanta	8016316 Mfr. no. S100012	€52.45	In stock	View & order

Siphons and condensate drains for the Remeha Avanta 35C Combi-CW5 (3) all Remeha siphons and condensate drains →

Part	Item no. / mfr. no.	Price	Stock
Remeha siphon for an Avanta up to 2006	8012111 Mfr. no. S58710	€40.95	In stock	View & order
Remeha siphon for an Avanta after 2006	8016291 Mfr. no. S100015	€24.45	In stock	View & order
Remeha siphon central drain for Avanta	8012129 Mfr. no. S59111	€67.95	Made-to-order item	View & order

Burners for the Remeha Avanta 35C Combi-CW5 (1) all Remeha burners →

Part	Item no. / mfr. no.	Price	Stock
Remeha burner 35kW for Avanta	8016292 Mfr. no. S100017	€104.45	Made-to-order item	View & order

Displays and controls for the Remeha Avanta 35C Combi-CW5 (1) all Remeha displays and controls →

Part	Item no. / mfr. no.	Price	Stock
Remeha front casing Avanta	8012100 Mfr. no. S101332	€321.95	In stock	View & order

Filters for the Remeha Avanta 35C Combi-CW5 (1) all Remeha filters →

Part	Item no. / mfr. no.	Price	Stock
Remeha CH flow filter plastic	8016297 Mfr. no. S100032	€26.95	In stock	View & order

Maintenance and service kits for the Remeha Avanta 35C Combi-CW5 (2) all Remeha maintenance and service kits →

Part	Item no. / mfr. no.	Price	Stock
Remeha overhaul/maintenance kit 2 Avanta after 2006	8014004 Mfr. no. 7619082	€59.95	In stock	View & order
Remeha maintenance set 2 Avanta after 2006	8010008 Mfr. no. 7668579	€43.95	In stock	View & order

Valves for the Remeha Avanta 35C Combi-CW5 (8) all Remeha valves →

Part	Item no. / mfr. no.	Price	Stock
Remeha automatic pump air vent for Calenta Ace and Avanta	8018569 Mfr. no. S100197	€45.45	In stock	View & order
Remeha automatic air vent 3/8"	8015936 Mfr. no. S62728	€32.95	In stock	View & order
Remeha safety relief valve Caleffi 1/2" for Avanta	8012130 Mfr. no. S58398	€42.95	In stock	View & order
Remeha inlet combination 15mm	8012133 Mfr. no. S59112	€83.95	In stock	View & order
Remeha pressure relief valve	8017644 Mfr. no. S62257	€65.95	In stock	View & order
Remeha fill/drain cock 1/2" for e.g. Avanta 28C Combi CW4 S55703	8012131 Mfr. no. S55703	€57.95	In stock	View & order
Remeha inlet combination	8014129 Mfr. no. 7667598	€70.95	Made-to-order item	View & order
Remeha safety relief valve with hex socket for Avanta	8019168 Mfr. no. 7667602	€64.95	Made-to-order item	View & order

Pressure gauges for the Remeha Avanta 35C Combi-CW5 (2) all Remeha pressure gauges →

Part	Item no. / mfr. no.	Price	Stock
Remeha pressure gauge	8012113 Mfr. no. S58725	€40.45	In stock	View & order
Remeha pressure gauge for mounting frame Avanta	8019346 Mfr. no. 7667599	€58.95	Made-to-order item	View & order

Electrical parts for the Remeha Avanta 35C Combi-CW5 (1) all Remeha electrical parts →

Part	Item no. / mfr. no.	Price	Stock
Remeha glass fuse 2A slow-blow 10 pcs for Avanta and Calenta etc.	8016196 Mfr. no. S43561	€42.95	In stock	View & order

Cables and wiring harnesses for the Remeha Avanta 35C Combi-CW5 (2) all Remeha cables and wiring harnesses →

Part	Item no. / mfr. no.	Price	Stock
Remeha pump cable for Avanta	8013659 Mfr. no. 7632905	€38.95	In stock	View & order
Remeha wiring harness set 28-35kW for Avanta	8016305 Mfr. no. 7631140	€107.95	Made-to-order item	View & order

Gaskets and seals for the Remeha Avanta 35C Combi-CW5 (16) all Remeha gaskets and seals →

Part	Item no. / mfr. no.	Price	Stock
Remeha front plate gasket (10 pcs) for Avanta	8012134 Mfr. no. S59596	€85.95	In stock	View & order
Remeha O-ring 18 x 2.8 mm (10 pcs)	8012140 Mfr. no. S59597	€18.95	In stock	View & order
Remeha sealing ring 23.8 x 17.7 x 2 mm (20 pcs) for Quinta and Calenta etc.	8012141 Mfr. no. S56155	€24.45	In stock	View & order
Remeha O-ring 94 x 2 mm (10 pcs)	8016310 Mfr. no. S62718	€27.95	In stock	View & order
Remeha burner gasket 5 pcs for Avanta	8019698 Mfr. no. S103172	€40.45	In stock	View & order
Remeha sealing ring Ø 80 mm (5 pcs)	8012921 Mfr. no. S100855	€40.95	In stock	View & order
Remeha fan sealing ring 10 pcs for Quinta and Avanta	8012117 Mfr. no. S45182	€24.95	In stock	View & order
Remeha O-ring 10 pcs	8012145 Mfr. no. S58730	€21.95	In stock	View & order
Remeha O-ring 63 x 3 mm 10 pcs	8012148 Mfr. no. S58739	€25.95	In stock	View & order
Remeha O-ring 20 pcs	8012159 Mfr. no. S59131	€26.95	In stock	View & order
Remeha gasket plate ignition electrode (10 pcs) for Calenta and Tzerra etc.	8016235 Mfr. no. S62105	€20.95	In stock	View & order
Remeha siphon seal for Avanta	8016264 Mfr. no. S62394	€25.95	In stock	View & order
Remeha gasket plate front plate - mixing chamber 10 pcs for Avanta	8016311 Mfr. no. S62719	€56.95	In stock	View & order
Remeha sleeve Ø80mm flue 2 pcs	8016318 Mfr. no. S100031	€23.95	In stock	View & order
Remeha O-ring 14.5 x 2 mm 10 pcs	8012149 Mfr. no. S58762	€16.95	In stock	View & order
Remeha compression ring 15 mm 10 pcs	8015701 Mfr. no. S100339	€48.95	Made-to-order item	View & order

Pipes, tubes and hoses for the Remeha Avanta 35C Combi-CW5 (7) all Remeha pipes, tubes and hoses →

Part	Item no. / mfr. no.	Price	Stock
Remeha pipe set water side after 6/2006	8016298 Mfr. no. S100033	€199.95	Made-to-order item	View & order
Remeha flue pipe	8012108 Mfr. no. S58767	€46.95	In stock	View & order
Remeha air inlet silencer for e.g. Avanta 28C Combi CW4 S58709	8012146 Mfr. no. S58709	€53.95	In stock	View & order
Remeha T-piece 22 x 16 mm	8015597 Mfr. no. S100020	€37.95	In stock	View & order
Remeha flue adapter Ø60/100 mm	0050234 Mfr. no. S59291	€51.95	In stock	View & order
Remeha pipe set gas side for Avanta 35C after 4/2006	8017748 Mfr. no. S101037	€81.95	In stock	View & order
Remeha damper 15 mm for pump set of 5 pcs (Avanta)	8019853 Mfr. no. S62793	€44.95	Made-to-order item	View & order

Casing and panels for the Remeha Avanta 35C Combi-CW5 (3) all Remeha casing and panels →

Part	Item no. / mfr. no.	Price	Stock
Remeha heat exchanger front plate 35kW	8016288 Mfr. no. S100008	€316.95	In stock	View & order
Remeha Avanta cover casing	0050294 Mfr. no. S58775	€89.95	Made-to-order item	View & order
Remeha burner cover for Avanta	8016313 Mfr. no. S62742	€63.95	Made-to-order item	View & order

Insulation for the Remeha Avanta 35C Combi-CW5 (1) all Remeha insulation →

Part	Item no. / mfr. no.	Price	Stock
Remeha insulation front plate heat exchanger Avanta after 2006	8014006 Mfr. no. 7619579	€48.45	In stock	View & order

Fixing material for the Remeha Avanta 35C Combi-CW5 (21) all Remeha fixing material →

Part	Item no. / mfr. no.	Price	Stock
Remeha screw M4 x 10 mm 50 pcs	8019700 Mfr. no. S48950	€22.95	In stock	View & order
Remeha cap test point flue 2 pcs	8018321 Mfr. no. S57163	€17.95	In stock	View & order
Remeha flange nut M6 20 pcs	8012143 Mfr. no. S54755	€21.95	In stock	View & order
Remeha bolt M5 x 45 mm 20 pcs	8012101 Mfr. no. S58763	€39.95	In stock	View & order
Remeha hairpin clips 10 pcs for e.g. Avanta 28C Combi CW4 S59586	8012138 Mfr. no. S59586	€26.95	In stock	View & order
Remeha sheet metal screw 4.2 x 9.5 mm 20 pcs	8012155 Mfr. no. S14254	€17.95	In stock	View & order
Remeha pump air vent cap 5 pcs for Avanta	8016295 Mfr. no. S100026	€18.95	In stock	View & order
Remeha clip 10.3 5 pcs	8012969 Mfr. no. S100814	€20.95	In stock	View & order
Remeha hairpin clips 10 pcs for e.g. Avanta 28C Combi CW4 S59135	8012161 Mfr. no. S59135	€26.95	Made-to-order item	View & order
Remeha hairpin clips 10 pcs for e.g. Avanta 28C Combi CW4 S58731	8012139 Mfr. no. S58731	€32.95	Made-to-order item	View & order
Remeha hairpin clips 10 pcs S58757	8012152 Mfr. no. S58757	€47.95	Made-to-order item	View & order
Remeha screw DIN933 M5x8 20 pcs	8012142 Mfr. no. S59578	€28.95	Made-to-order item	View & order
Remeha screw M6 x 2 mm 15 pcs	8012151 Mfr. no. S59149	€28.95	Made-to-order item	View & order
Remeha screw CK M4 x 12 mm 10 pcs	8012153 Mfr. no. S30564	€26.95	Made-to-order item	View & order
Remeha screw M5 x 16 mm 10 pcs	8012154 Mfr. no. S54621	€47.95	Made-to-order item	View & order
Remeha screw M4 x 16 mm 10 pcs	8012157 Mfr. no. S33974	€33.95	Made-to-order item	View & order
Remeha screw M5 x 18 mm 15 pcs	8012162 Mfr. no. S59141	€28.95	Made-to-order item	View & order
Remeha clip for water pressure sensor (Quinta and Quinta Ace etc.)	8019565 Mfr. no. 7605371	€25.95	Made-to-order item	View & order
Remeha nut 1/2" 5 pcs	8015937 Mfr. no. S62794	€27.95	Made-to-order item	View & order
Remeha nut clips M5 10 pcs	8012156 Mfr. no. S58765	€42.95	Made-to-order item	View & order
Remeha hexagon nut M8 10 pcs	8016199 Mfr. no. S44483	€25.95	Made-to-order item	View & order

Other parts for the Remeha Avanta 35C Combi-CW5 (10)

Part	Item no. / mfr. no.	Price	Stock
Remeha servo motor	8012124 Mfr. no. S59132	€67.95	In stock	View & order
Remeha cleaning brush for Avanta/Aquanta heat exchanger	0050247 Mfr. no. S59580	€39.95	In stock	View & order
Remeha hex screwdriver with ball head S4	0050270 Mfr. no. S62385	€39.95	In stock	View & order
Remeha sight glass Avanta/Aquanta	8012106 Mfr. no. S59118	€17.95	In stock	View & order
Remeha spacer for pump Avanta 24/28/35C	8015697 Mfr. no. S100286	€31.95	Made-to-order item	View & order
Remeha mounting strip for heat exchanger CW3 + 1 4 + 1 (Avanta)	8015596 Mfr. no. S100016	€41.95	Made-to-order item	View & order
Remeha mounting strip heat exchanger	8019974 Mfr. no. S100984	€45.95	Made-to-order item	View & order
Remeha hairpin clip of pump air vent for Avanta	8016002 Mfr. no. S121020	€26.95	Made-to-order item	View & order
Remeha gas/air mixing piece	8015595 Mfr. no. S100013	€119.95	Made-to-order item	View & order
Remeha flange nut galvanised M5 10 pcs	8012150 Mfr. no. S46687	€24.95	Made-to-order item	View & order

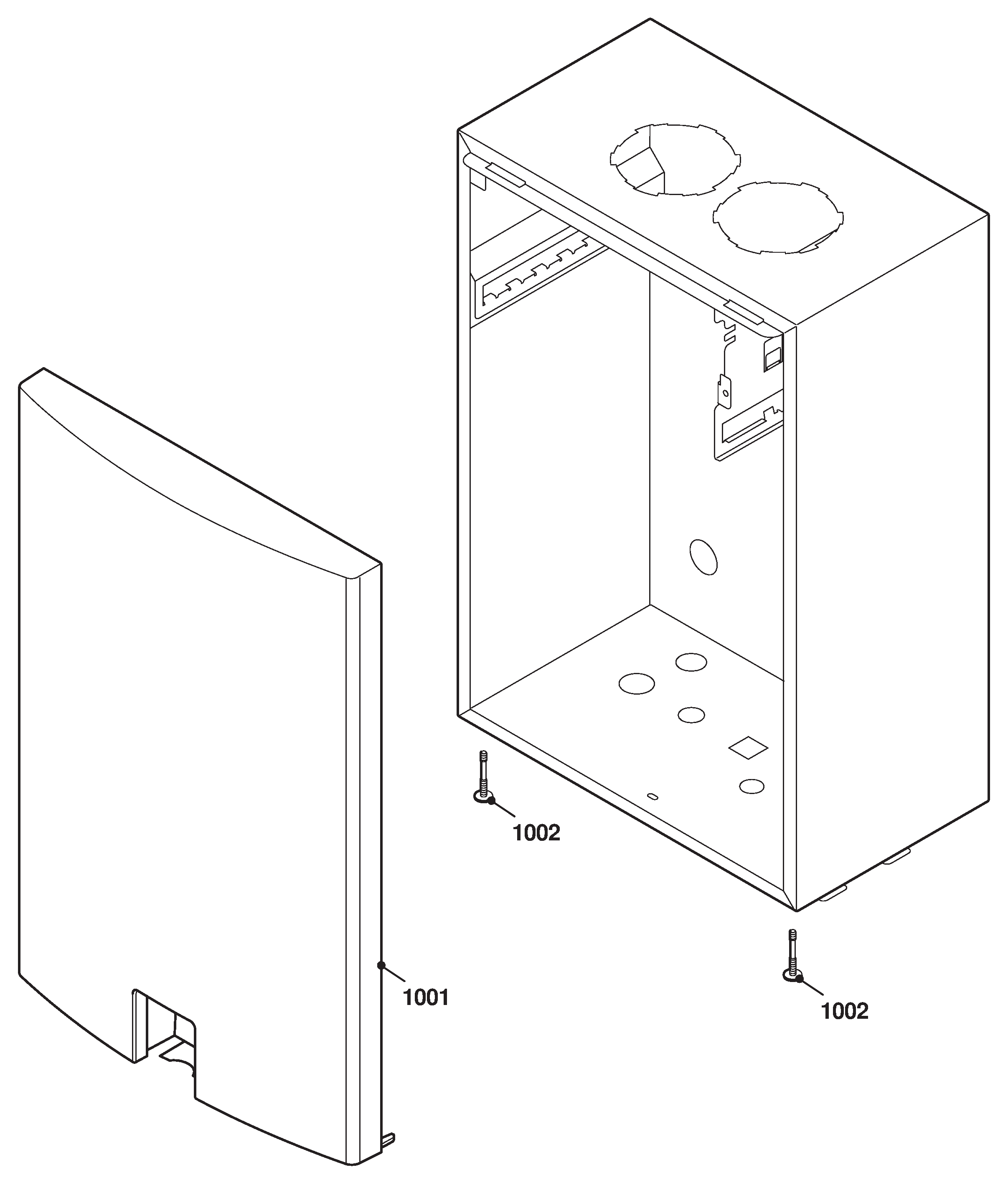

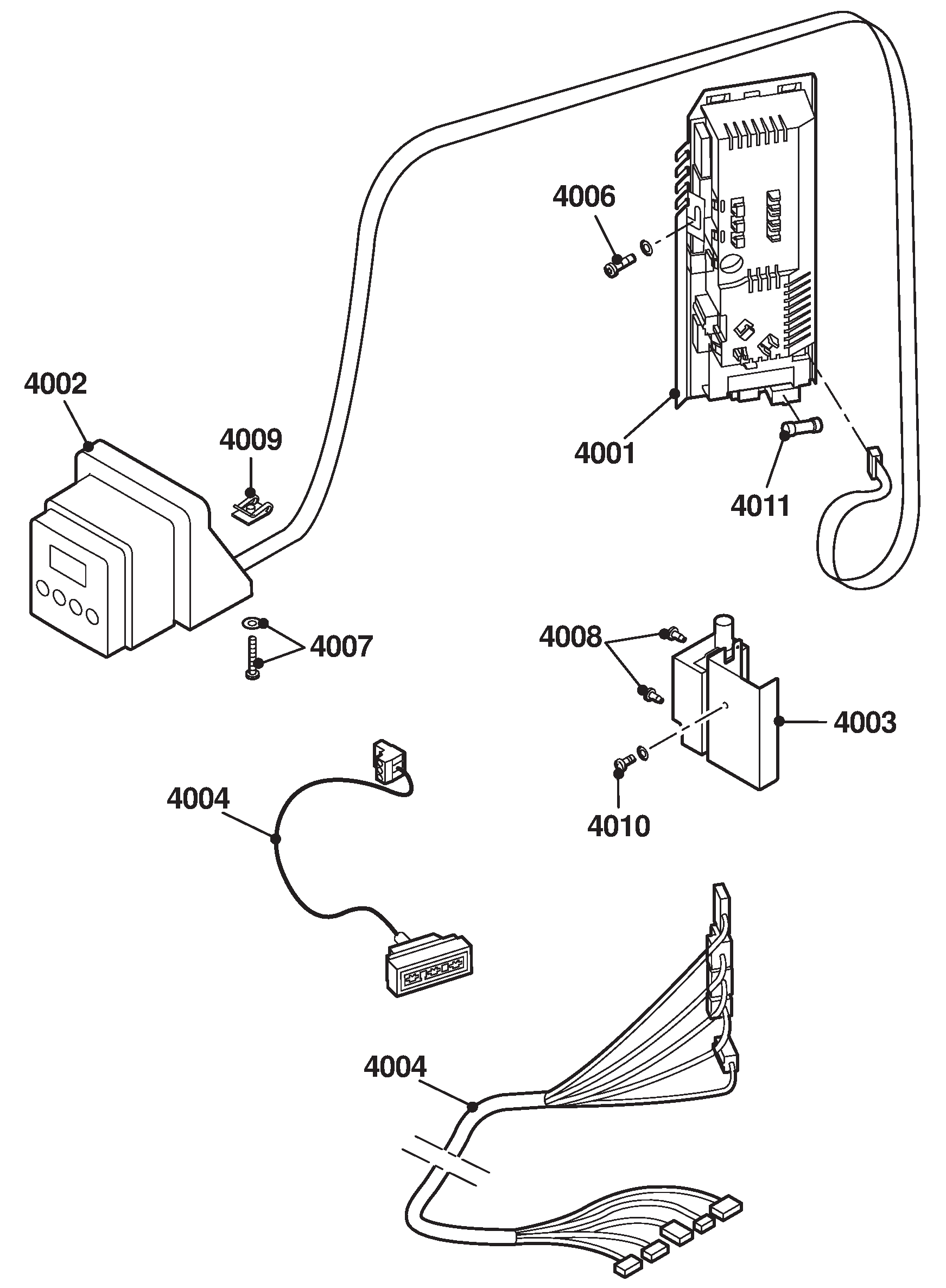

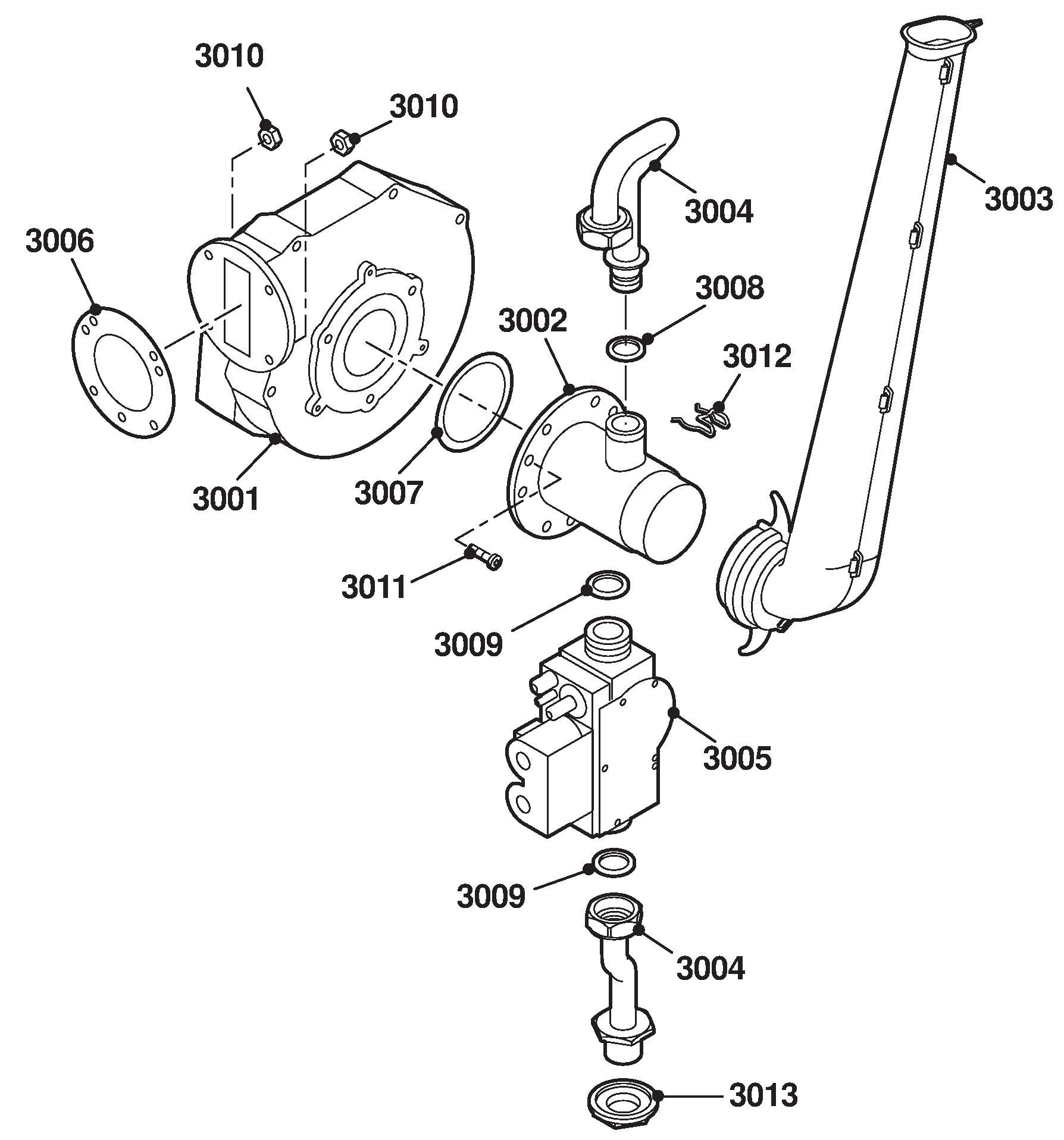

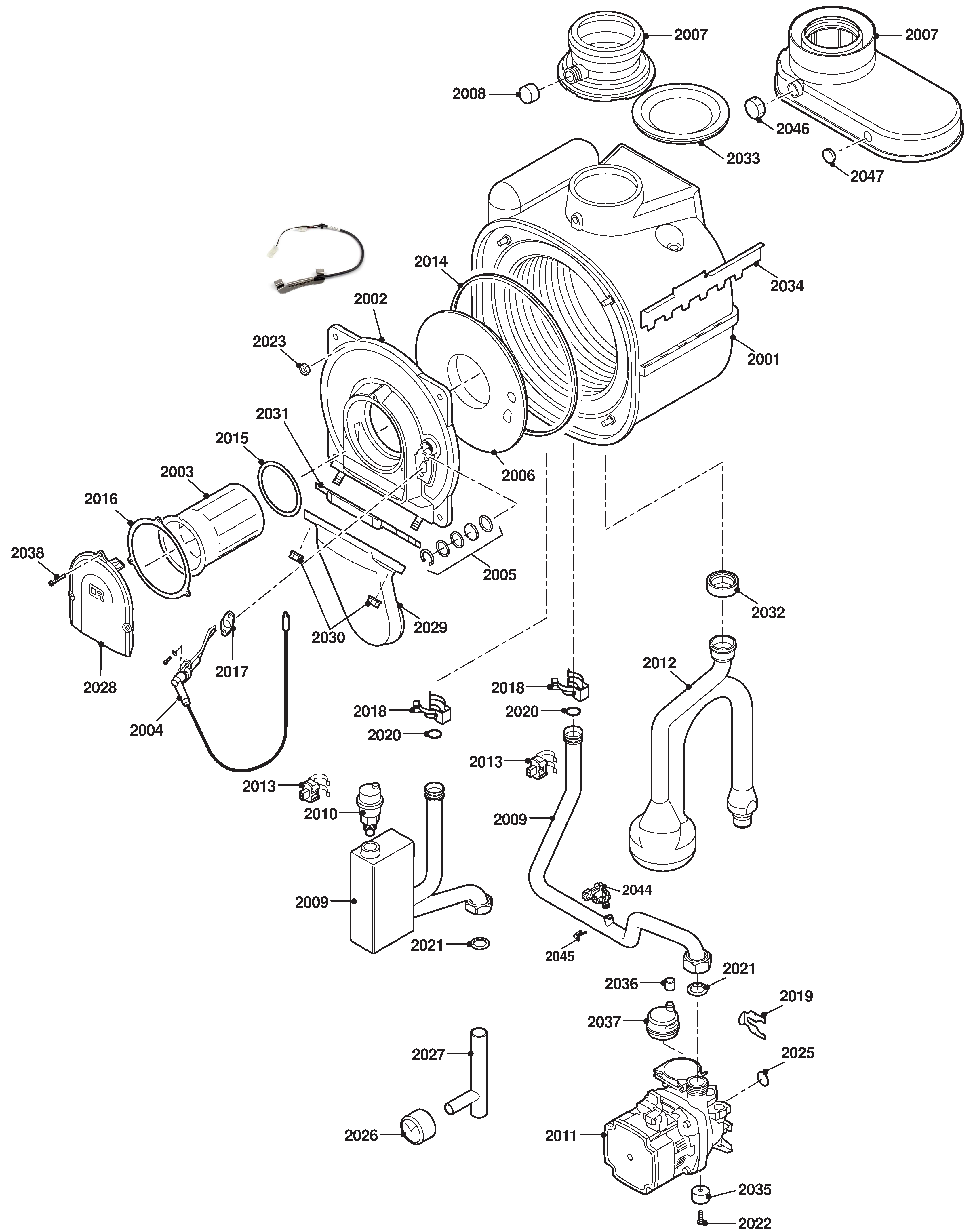

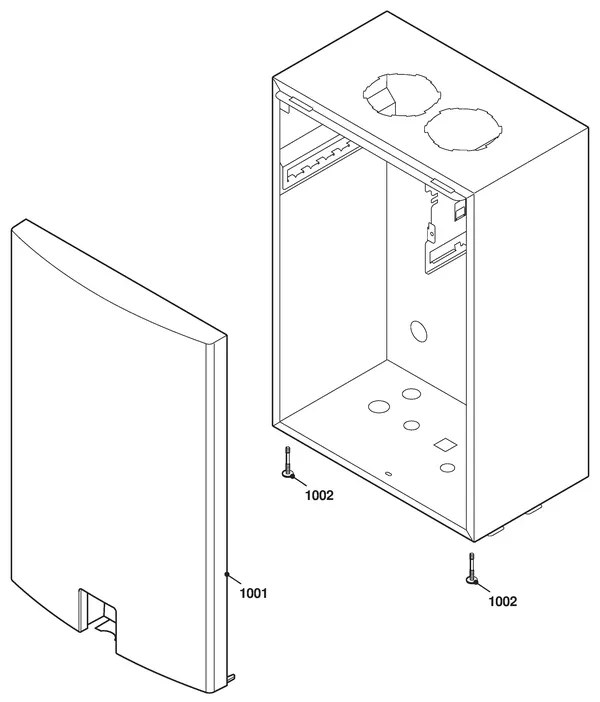

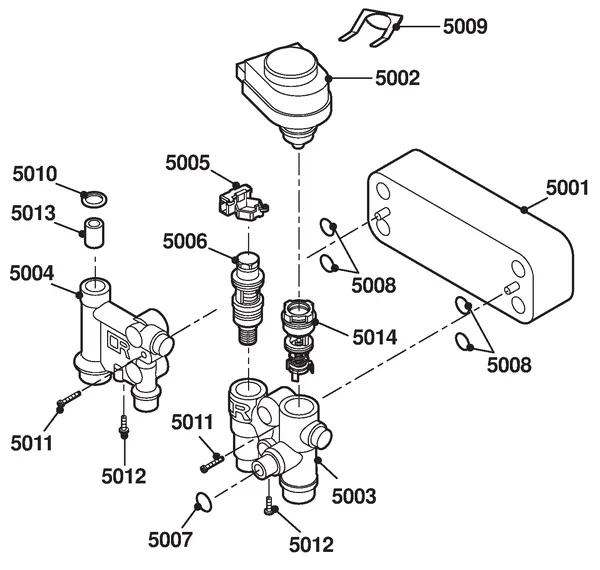

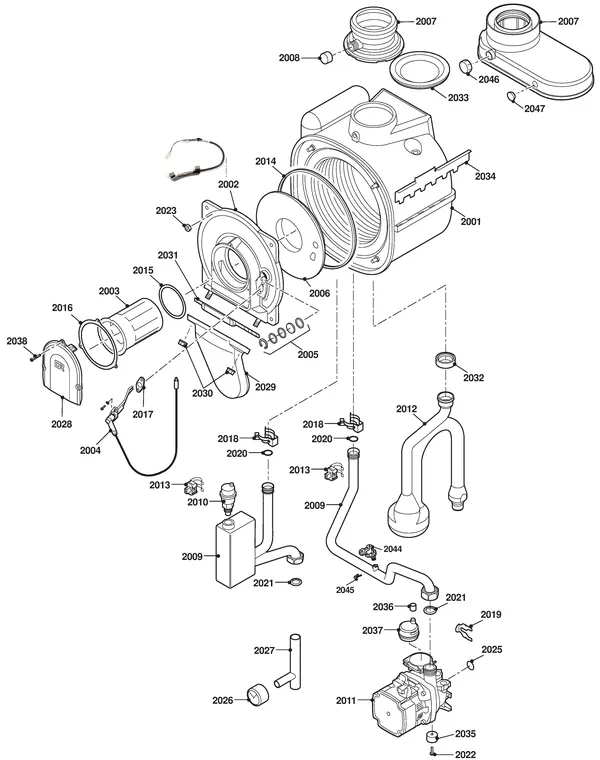

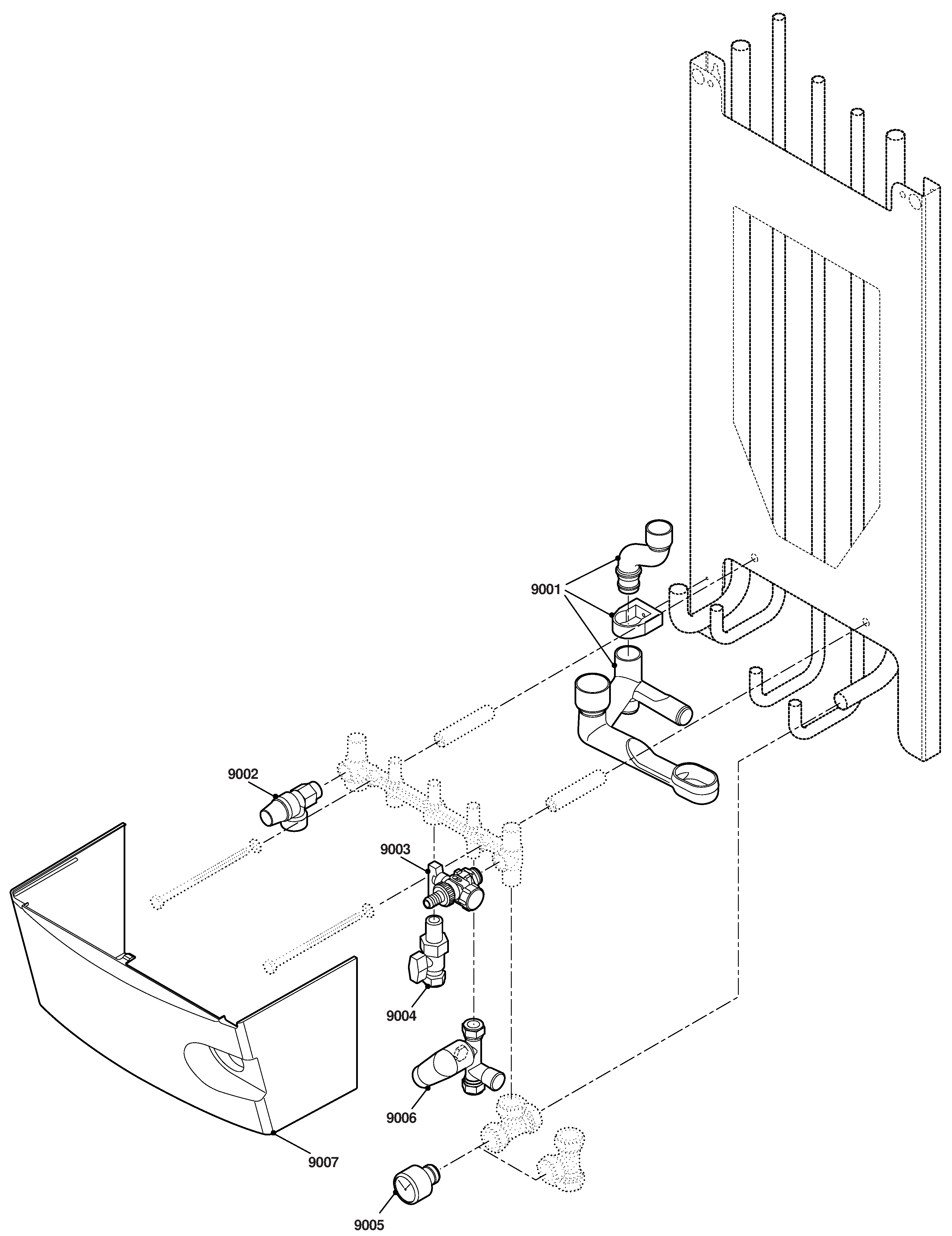

Exploded views of the Remeha Avanta 35C Combi-CW5

Click an exploded view to enlarge it. The position numbers are shown next to each part.

Fault code on your Remeha Avanta 35C Combi-CW5? This is the part type involved

Common Remeha fault codes and the part type that is usually the cause; the parts for this model are listed above. All codes explained: Remeha fault codes.

Code	What is going on	Part type
02	No flame formation or no ionisation (after 5 start attempts). No ignition spark.	Ignition and ionisation
3	Gas valve defective	Gas valves and gas control
4	Maximum heat exchanger temperature rise exceeded	Heat exchangers
6	Flame detected out of normal sequence (before opening or after closing of the gas valve).	Gas valves and gas control
23	A flame is detected before ignition.	Ignition and ionisation
24	Temperature sensor	Sensors

For guidance only: the same code can have a different cause depending on the situation.

Other Remeha boilers

← All Remeha parts

Frequently asked questions

Which parts are available for the Remeha Avanta 35C Combi-CW5?

The catalogue lists 101 original parts for the Remeha Avanta 35C Combi-CW5, including fans, sensors, flow sensors and flow switches, pressure switches and differential pressure switches. All parts are listed above, grouped by type, with part number and price.

How much does a fan for the Remeha Avanta 35C Combi-CW5 cost?

The fans for this model cost €326.70 incl. VAT. Check the table "Fans" above for the right part number.

Are the parts for the Remeha Avanta 35C Combi-CW5 in stock?

69 of the 101 parts are in stock; shipping to EU countries from €12.95 (€16.95 for more distant countries), usually 3–5 working days. Parts marked "Made-to-order item" are ordered specially for you; the delivery time is shown on the product page.

How do I know which part I need for the Remeha Avanta 35C Combi-CW5?

Search for the part by part number or use the exploded view of the Remeha Avanta 35C Combi-CW5.

Are these original Remeha parts?

Yes. All 101 parts in this list are original manufacturer parts for the Remeha Avanta 35C Combi-CW5, supplied through the official technical wholesale channel and with the correct part number.

How much do parts for the Remeha Avanta 35C Combi-CW5 cost?

Parts for the Remeha Avanta 35C Combi-CW5 range from €13.07 to €1,216.63 incl. VAT. The exact price of each part is shown in the tables above.

Can I return a part?

As a consumer you have a 14-day right of withdrawal. You may unpack and inspect the part; do not install or connect it. For a part that has been installed, connected or damaged we deduct the diminished value, up to the full price for circuit boards.
