Remeha Azorra Ace 250 spare parts
In brief
Instalpunt supplies 46 original parts for the Remeha Azorra Ace 250, including displays and controls, heating elements, cables and wiring harnesses. Order online.
- 46Spare parts
- 0In stock
- €1.97From
- 7Types
- availableExploded view
Looking for parts for the Remeha Azorra Ace 250 (heat pump water heater)? Below are all 46 original parts, grouped by part type, with the matching exploded view. Choose a type to jump straight to the right table.
View the interactive exploded view →- Displays and controls 1
- Heating elements 1
- Cables and wiring harnesses 4
- Gaskets and seals 3
- Casing and panels 1
- Insulation 1
- Fixing material 3
- Other parts 32
Displays and controls for the Remeha Azorra Ace 250 (1) all Remeha displays and controls →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Remeha control panel MK2.1 B (1.09) | 80103077 Mfr. no. 7787198 | €228.95 | Made-to-order item | View & order |
Heating elements for the Remeha Azorra Ace 250 (1) all Remeha heating elements →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Remeha heating element 1800W complete | 80102956 Mfr. no. 7850621 | €84.95 | Made-to-order item | View & order |
Cables and wiring harnesses for the Remeha Azorra Ace 250 (4) all Remeha cables and wiring harnesses →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Remeha heat pump sensor wiring harness | 80103631 Mfr. no. 7755588 | €54.95 | Not available | View & order |
| Remeha 2-pole connector | 80103444 Mfr. no. 300024269 | €8.95 | Made-to-order item | View & order |
| Remeha wiring harness L-BUS L300 | 8740960 Mfr. no. 7622059 | €26.95 | Not available | View & order |
| Remeha white 3-pin connector | 80102089 Mfr. no. 7843638 | €41.95 | Made-to-order item | View & order |
Gaskets and seals for the Remeha Azorra Ace 250 (3) all Remeha gaskets and seals →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Remeha gasket 3x24x15mm EPDM | 80103512 Mfr. no. 7796347 | €7.95 | Made-to-order item | View & order |
| Remeha seal set 7mm with support ring 5mm | 8012473 Mfr. no. 7687067 | €43.95 | Made-to-order item | View & order |
| Remeha green gasket 24x17x2 mm (10 pcs) | 80102146 Mfr. no. 7845099 | €33.95 | Made-to-order item | View & order |
Casing and panels for the Remeha Azorra Ace 250 (1) all Remeha casing and panels →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Remeha adjustable foot m10 x 35 | 8013797 Mfr. no. 97860646 | €7.95 | Not available | View & order |
Insulation for the Remeha Azorra Ace 250 (1) all Remeha insulation →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Remeha buffer insulation | 8012885 Mfr. no. 300026994 | €10.95 | Made-to-order item | View & order |
Fixing material for the Remeha Azorra Ace 250 (3) all Remeha fixing material →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Remeha screw 3,94 x 25 | 80103551 Mfr. no. 95770697 | €7.95 | Made-to-order item | View & order |
| Remeha screw M5 x 20 mm (20 pcs) | 8018775 Mfr. no. S62708 | €50.95 | Not available | View & order |
| Remeha screw M4x8 Torx (10 pcs) | 80102927 Mfr. no. 7831584 | €9.95 | Made-to-order item | View & order |
Other parts for the Remeha Azorra Ace 250 (32)
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Remeha Schrader valve . | 80103515 Mfr. no. 7778241 | €11.95 | Made-to-order item | View & order |
| Remeha titanium anode complete | 80103563 Mfr. no. 200021118 | €65.95 | Made-to-order item | View & order |
| Remeha power cable for e.g. Azorra Ace 200 7755586 | 80103570 Mfr. no. 7755586 | €49.95 | Made-to-order item | View & order |
| Remeha enamelled inspection hatch Ø 192 mm | 80103702 Mfr. no. 89525501 | €119.95 | Made-to-order item | View & order |
| Remeha pipe grommet | 80103112 Mfr. no. 7783760 | €7.95 | Made-to-order item | View & order |
| Remeha safety strip tank | 80103113 Mfr. no. 7793199 | €7.95 | Made-to-order item | View & order |
| Remeha quick-fit nut | 80103715 Mfr. no. 97758856 | €7.95 | Made-to-order item | View & order |
| Remeha earth clamp | 80103589 Mfr. no. 7720184 | €7.95 | Made-to-order item | View & order |
| Remeha sensor tube cap | 80103452 Mfr. no. 7798297 | €9.95 | Made-to-order item | View & order |
| Remeha refrigerant unit r290 | 80103205 Mfr. no. 7813500 | €1,109.95 | Made-to-order item | View & order |
| Remeha compressor cable | 80103404 Mfr. no. 7755585 | €90.95 | Made-to-order item | View & order |
| Remeha capacitor 400v-13 uf | 80103462 Mfr. no. 7751828 | €69.95 | Made-to-order item | View & order |
| Remeha cable titanium anode | 80103612 Mfr. no. 7774992 | €24.95 | Made-to-order item | View & order |
| Remeha wiring harness tank sensor | 80103420 Mfr. no. 7755584 | €86.95 | Not available | View & order |
| Remeha union nut g3/4" d15 mm | 80103286 Mfr. no. 300027388 | €24.95 | Made-to-order item | View & order |
| Remeha control panel casing | 80103480 Mfr. no. 7771745 | €47.95 | Made-to-order item | View & order |
| Remeha pre-heater cable | 80103677 Mfr. no. 7755587 | €32.95 | Made-to-order item | View & order |
| Remeha silicone gasket 54 x 44 x 3 mm | 80103553 Mfr. no. 7777343 | €11.95 | Made-to-order item | View & order |
| Remeha heat pump sensor support | 80103681 Mfr. no. 7601764 | €7.95 | Made-to-order item | View & order |
| Remeha 3/4" pipe collar, red | 80103159 Mfr. no. 7759214 | €10.95 | Made-to-order item | View & order |
| Remeha 3/4" pipe collar, blue | 80103160 Mfr. no. 7759216 | €10.95 | Made-to-order item | View & order |
| Remeha front flap | 80103086 Mfr. no. 7768002 | €32.95 | Not available | View & order |
| Remeha complete control panel | 80103369 Mfr. no. 7778710 | €33.95 | Made-to-order item | View & order |
| Remeha copper sealing ring 1/4" SAE | 80103508 Mfr. no. 368986 | €7.95 | Made-to-order item | View & order |
| Remeha safety thermostat for e.g. Azorra Ace 200 7768070 | 80103456 Mfr. no. 7768070 | €48.95 | Made-to-order item | View & order |
| Remeha orange 2-pin BL connector | 80102088 Mfr. no. 7843637 | €55.95 | Made-to-order item | View & order |
| Remeha nut 1/4 SAE (10 pcs) | 80102117 Mfr. no. 7843674 | €61.95 | Made-to-order item | View & order |
| Remeha condensate hose | 80102297 Mfr. no. 7602241 | €32.95 | Made-to-order item | View & order |
| Remeha complete top panel | 8012018 Mfr. no. 7825687 | €193.95 | Made-to-order item | View & order |
| Remeha intermediate cover | 80103777 Mfr. no. 7844773 | €96.95 | Made-to-order item | View & order |
| Remeha dielectric fitting 3/4 MF | 8012518 Mfr. no. 711325300 | €24.95 | Made-to-order item | View & order |
| Remeha contact spring for cable sleeve | 8013766 Mfr. no. 95365613 | €8.95 | Made-to-order item | View & order |

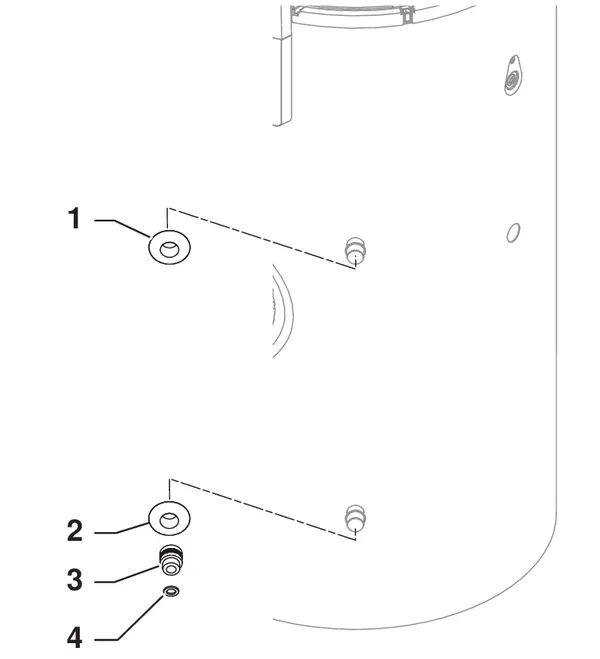

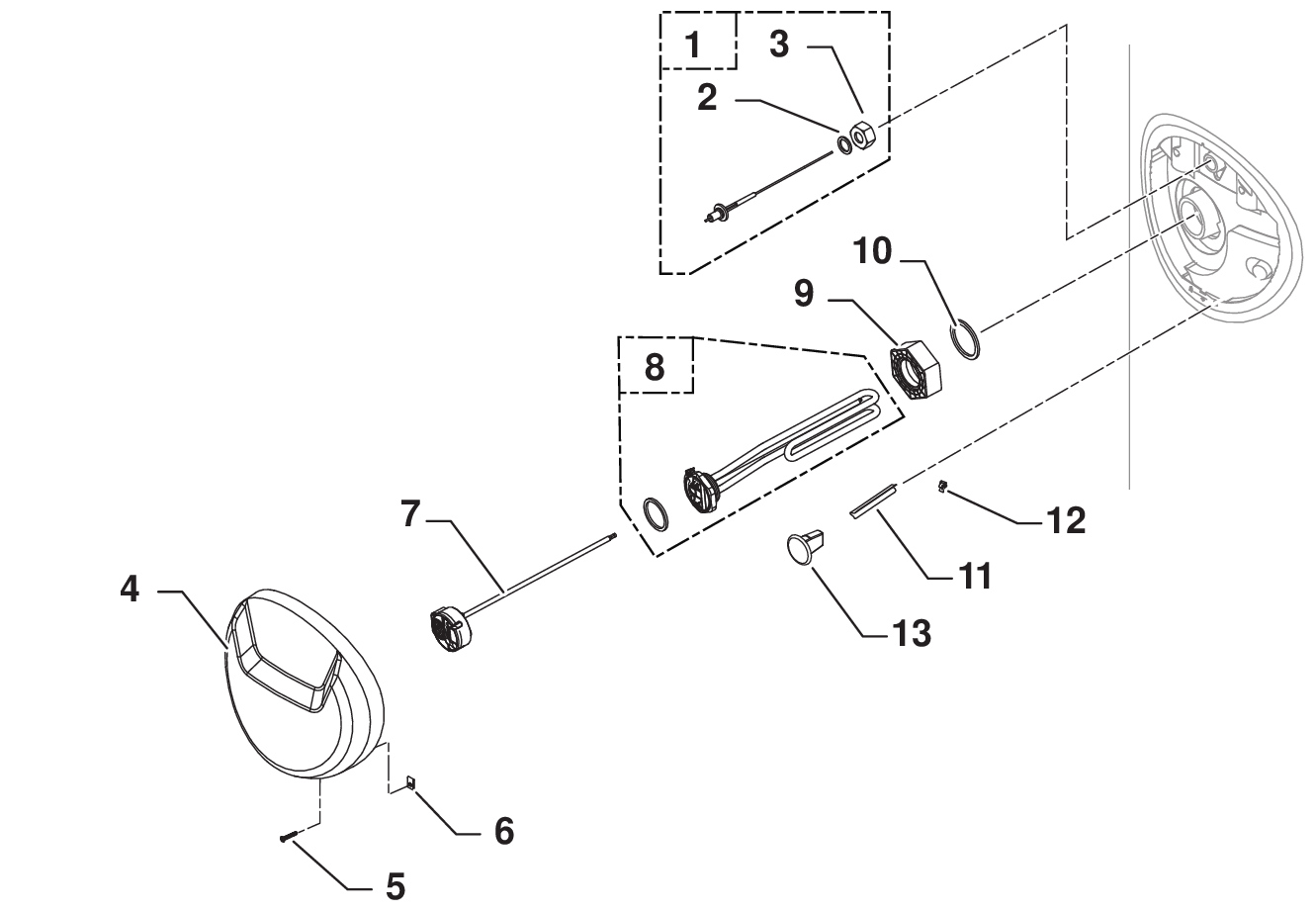

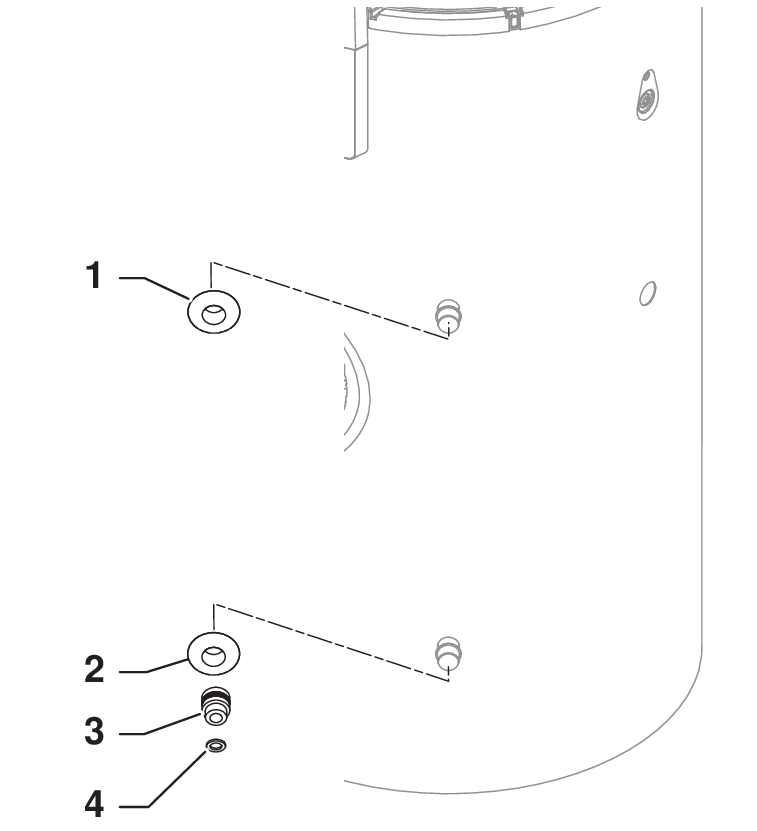

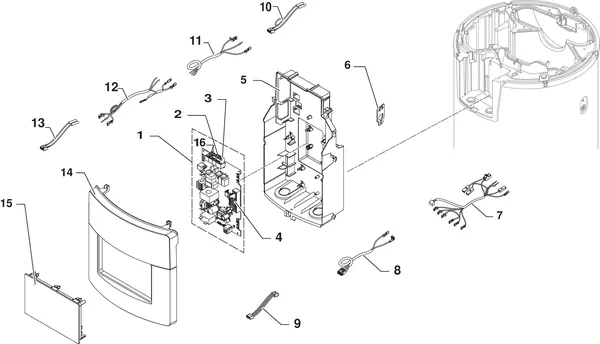

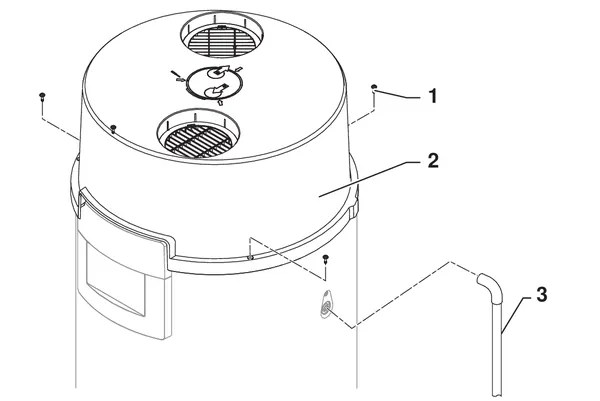

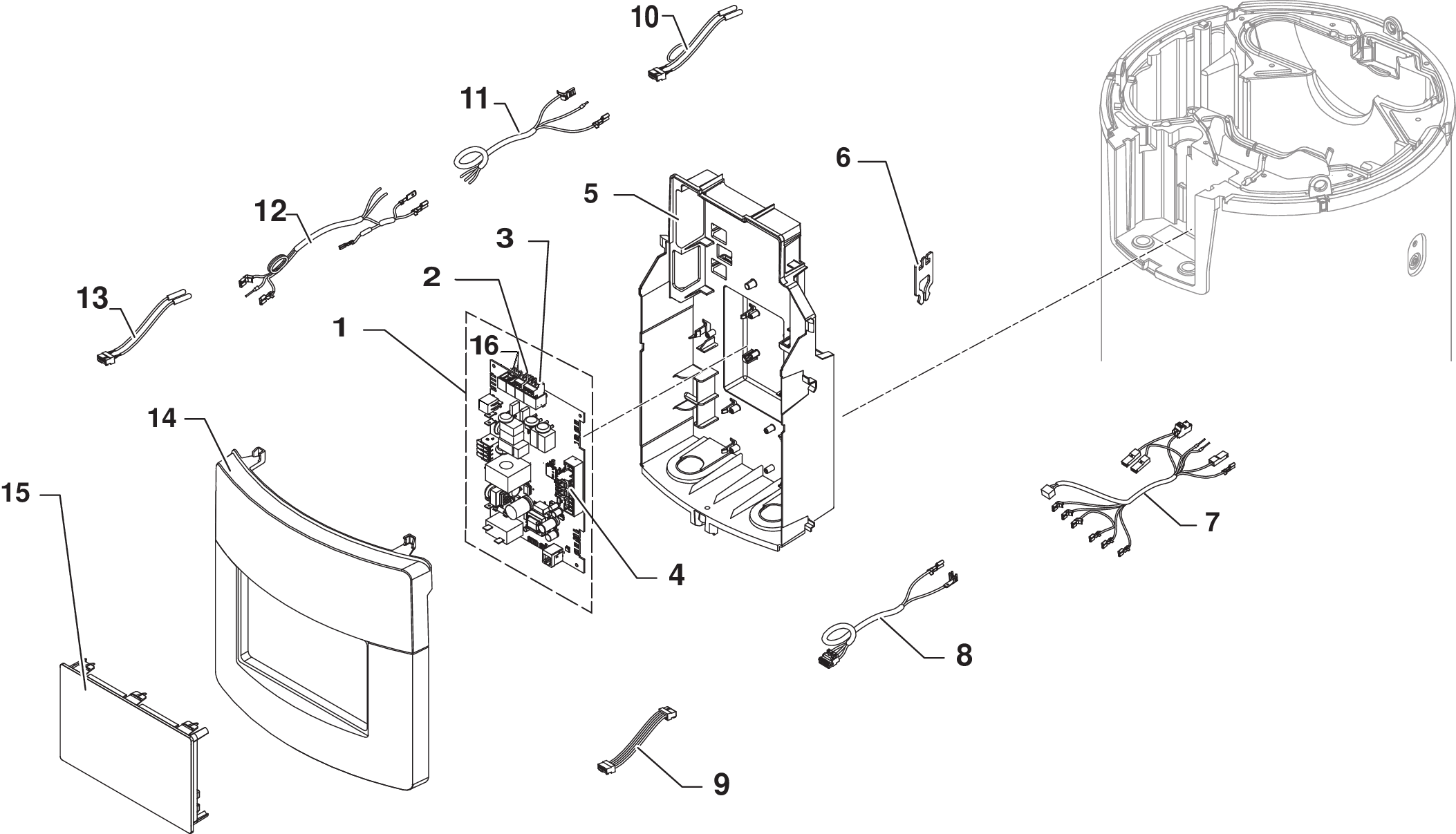

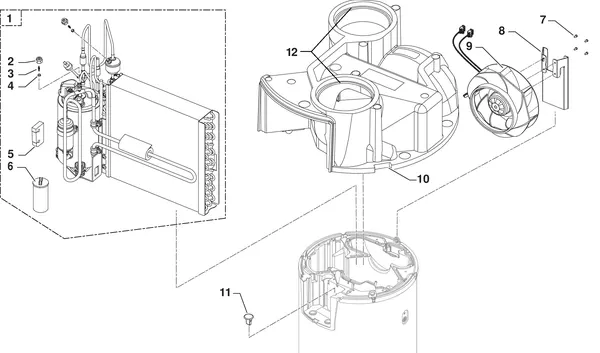

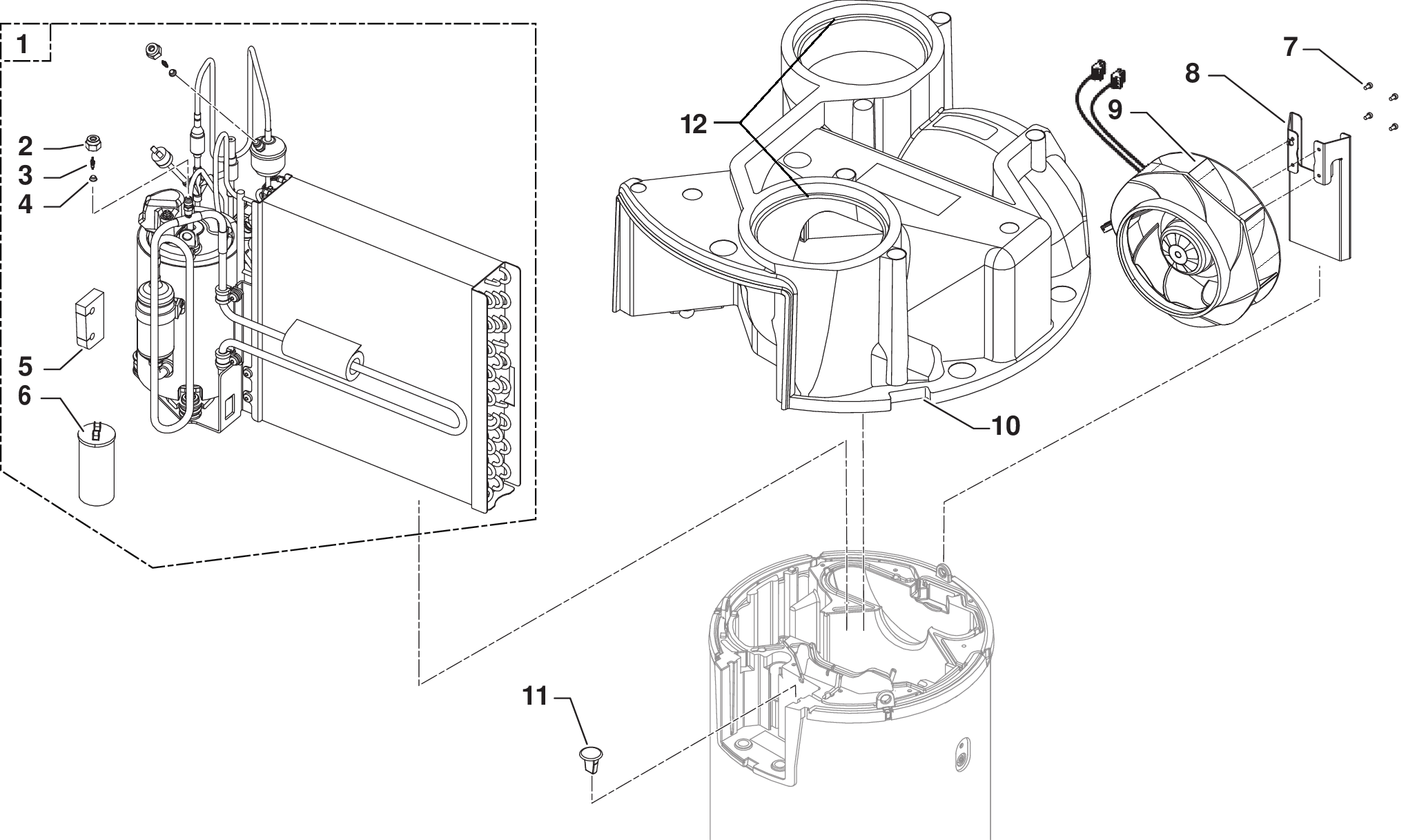

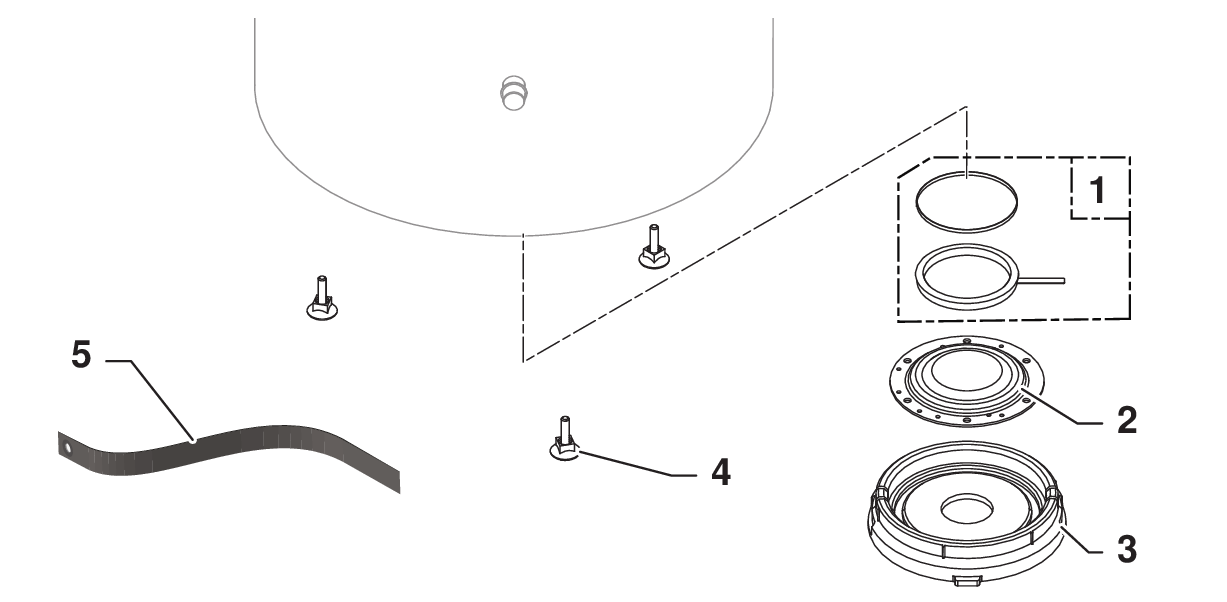

Exploded views of the Remeha Azorra Ace 250
Click an exploded view to enlarge it. The position numbers are shown next to each part.
Other Remeha heat pump water heaters
Frequently asked questions
Which parts are available for the Remeha Azorra Ace 250?
The catalogue lists 46 original parts for the Remeha Azorra Ace 250, including displays and controls, heating elements, cables and wiring harnesses, gaskets and seals. All parts are listed above, grouped by type, with part number and price.
How much does a display for the Remeha Azorra Ace 250 cost?
The displays and controls for this model cost €243.06 incl. VAT. Check the table "Displays and controls" above for the right part number.
Are the parts for the Remeha Azorra Ace 250 in stock?
Parts marked "Made-to-order item" are ordered specially for you; the delivery time is shown on the product page.
How do I know which part I need for the Remeha Azorra Ace 250?
Search for the part by part number or use the exploded view of the Remeha Azorra Ace 250.
Are these original Remeha parts?
Yes. All 46 parts in this list are original manufacturer parts for the Remeha Azorra Ace 250, supplied through the official technical wholesale channel and with the correct part number.
How much do parts for the Remeha Azorra Ace 250 cost?
Parts for the Remeha Azorra Ace 250 range from €1.97 to €1,522.42 incl. VAT. The exact price of each part is shown in the tables above.
Can I return a part?
As a consumer you have a 14-day right of withdrawal. You may unpack and inspect the part; do not install or connect it. For a part that has been installed, connected or damaged we deduct the diminished value, up to the full price for circuit boards.
