Remeha CWH Ace 30/201 spare parts

In brief

Instalpunt supplies 105 original parts for the Remeha CWH Ace 30/201, including fans, sensors, temperature sensors and NTC sensors. Order online.

105Spare parts
6In stock
€11.11From
22Types
availableExploded view

Looking for parts for the Remeha CWH Ace 30/201 (hot water cylinder)? Below are all 105 original parts, grouped by part type, with the matching exploded view. Choose a type to jump straight to the right table.

View the interactive exploded view →

Quick left to the right part for the Remeha CWH Ace 30/201

Part	From	Delivery
Fan Remeha fan CWH Ace	€474.95	In stock
Ignition part Remeha ionisation electrode complete	€101.95	In stock

Prices incl. VAT, taken directly from our checkout. Below is the complete parts list for this model.

Installer or self-employed engineer? Create a business account: prices excl. VAT and invoices in your company name.

Fans for the Remeha CWH Ace 30/201 (1) all Remeha fans →

Part	Item no. / mfr. no.	Price	Stock
Remeha fan CWH Ace	80101397 Mfr. no. 7709301	€474.95	In stock	View & order

Sensors for the Remeha CWH Ace 30/201 (1) all Remeha sensors →

Part	Item no. / mfr. no.	Price	Stock
Remeha flue gas temperature sensor B8	80101382 Mfr. no. 7709318	€143.95	Made-to-order item	View & order

Temperature sensors and NTC sensors for the Remeha CWH Ace 30/201 (3) all Remeha temperature sensors and NTC sensors →

Part	Item no. / mfr. no.	Price	Stock
Remeha temperature sensor cascade B10	80101391 Mfr. no. 7709330	€139.95	Made-to-order item	View & order
Remeha temperature sensor DHW T B3-B31	80101392 Mfr. no. 7709329	€145.95	Made-to-order item	View & order
Remeha temperature sensor flow/return B2/B7	80101393 Mfr. no. 7709317	€212.95	Made-to-order item	View & order

Pressure sensors for the Remeha CWH Ace 30/201 (1) all Remeha pressure sensors →

Part	Item no. / mfr. no.	Price	Stock
Remeha pressure sensor primary water	80101338 Mfr. no. 7709328	€312.95	Made-to-order item	View & order

Pressure switches and differential pressure switches for the Remeha CWH Ace 30/201 (1) all Remeha pressure switches and differential pressure switches →

Part	Item no. / mfr. no.	Price	Stock
Remeha air pressure switch for e.g. CWH Ace 60/201 7709288	80101371 Mfr. no. 7709288	€105.95	Made-to-order item	View & order

Pumps for the Remeha CWH Ace 30/201 (1) all Remeha pumps →

Part	Item no. / mfr. no.	Price	Stock
Remeha pump for CWH Ace	80101380 Mfr. no. 7709310	€558.95	Made-to-order item	View & order

Heat exchangers for the Remeha CWH Ace 30/201 (2) all Remeha heat exchangers →

Part	Item no. / mfr. no.	Price	Stock
Remeha heat exchanger 30kW	80101405 Mfr. no. 7709291	€3,097.95	Made-to-order item	View & order
Remeha heat exchanger 45kW	80101406 Mfr. no. 7709292	€3,502.95	Made-to-order item	View & order

Gas valves and gas control for the Remeha CWH Ace 30/201 (5) all Remeha gas valves and gas control →

Part	Item no. / mfr. no.	Price	Stock
Remeha gas tap 22mm Rigid	80101310 Mfr. no. 7709371	€101.95	Made-to-order item	View & order
Remeha gas valve CWH Ace	80101340 Mfr. no. 7709308	€333.95	Made-to-order item	View & order
Remeha venturi 30kW	80101398 Mfr. no. 7709305	€343.95	Made-to-order item	View & order
Remeha venturi 45kW	80101399 Mfr. no. 7709306	€343.95	Made-to-order item	View & order
Remeha venturi gasket	80101401 Mfr. no. 7709304	€95.95	Made-to-order item	View & order

PCBs and controls for the Remeha CWH Ace 30/201 (1) all Remeha PCBs and controls →

Part	Item no. / mfr. no.	Price	Stock
Remeha control PCB CWH Ace 30	80101321 Mfr. no. 7709319	€624.95	Made-to-order item	View & order

Ignition and ionisation for the Remeha CWH Ace 30/201 (2) all Remeha ignition and ionisation →

Part	Item no. / mfr. no.	Price	Stock
Remeha ionisation electrode complete	80101364 Mfr. no. 7709311	€101.95	In stock	View & order
Remeha ignition electrode compl.	80101376 Mfr. no. 7709312	€118.95	In stock	View & order

Siphons and condensate drains for the Remeha CWH Ace 30/201 (1) all Remeha siphons and condensate drains →

Part	Item no. / mfr. no.	Price	Stock
Remeha condensate hose 1.2 m	8741002 Mfr. no. 7748811	€90.95	Made-to-order item	View & order

Burners for the Remeha CWH Ace 30/201 (2) all Remeha burners →

Part	Item no. / mfr. no.	Price	Stock
Remeha burner 30-45kW	80101325 Mfr. no. 7709298	€329.95	Made-to-order item	View & order
Remeha burner door assembly	80101327 Mfr. no. 7720060	€283.95	Made-to-order item	View & order

Maintenance and service kits for the Remeha CWH Ace 30/201 (2) all Remeha maintenance and service kits →

Part	Item no. / mfr. no.	Price	Stock
Remeha maintenance kit CWH Ace 1	80101374 Mfr. no. 7709389	€295.95	Made-to-order item	View & order
Remeha maintenance kit CWH Ace 2	80101375 Mfr. no. 7709390	€466.95	Made-to-order item	View & order

Valves for the Remeha CWH Ace 30/201 (4) all Remeha valves →

Part	Item no. / mfr. no.	Price	Stock
Remeha isolation valve 28 mm	80101313 Mfr. no. 7709366	€135.95	Made-to-order item	View & order
Remeha drain valve 22 mm	80101319 Mfr. no. 7727903	€99.95	Made-to-order item	View & order
Remeha non-return valve for e.g. CWH Ace 60/201 7709287	80101394 Mfr. no. 7709287	€187.95	Made-to-order item	View & order
Remeha automatic air vent for e.g. CWH 30/60/90/120-200/300L 7617084	8013564 Mfr. no. 7617084	€49.95	Made-to-order item	View & order

Electrical parts for the Remeha CWH Ace 30/201 (1) all Remeha electrical parts →

Part	Item no. / mfr. no.	Price	Stock
Remeha fuses for PCB 2 pcs	80101408 Mfr. no. 7709324	€69.95	Made-to-order item	View & order

Conversion kits for the Remeha CWH Ace 30/201 (1) all Remeha conversion kits →

Part	Item no. / mfr. no.	Price	Stock
Remeha propane conversion kit 30/45kW burner	0800894 Mfr. no. 7720061	€96.95	Made-to-order item	View & order

Tap parts for the Remeha CWH Ace 30/201 (1) all Remeha tap parts →

Part	Item no. / mfr. no.	Price	Stock
Remeha anti-vacuum aerator for CWH ACE	0800896 Mfr. no. 7720076	€353.95	Made-to-order item	View & order

Cables and wiring harnesses for the Remeha CWH Ace 30/201 (6) all Remeha cables and wiring harnesses →

Part	Item no. / mfr. no.	Price	Stock
Remeha communication appliance cable	80101329 Mfr. no. 7709285	€253.95	Made-to-order item	View & order
Remeha connector gas valve	80101332 Mfr. no. 7709309	€111.95	Made-to-order item	View & order
Remeha cable gland	80101365 Mfr. no. 7709386	€32.95	Made-to-order item	View & order
Remeha wiring harness 30/60 CWH Ace	80101366 Mfr. no. 7727904	€590.95	Made-to-order item	View & order
Remeha wiring harness double heat exchanger 90/120kW	80101367 Mfr. no. 7709388	€562.95	Made-to-order item	View & order
Remeha ionisation electrode cable	8741017 Mfr. no. 5142139	€109.95	Made-to-order item	View & order

Gaskets and seals for the Remeha CWH Ace 30/201 (9) all Remeha gaskets and seals →

Part	Item no. / mfr. no.	Price	Stock
Remeha connection gasket	80101317 Mfr. no. 7720038	€47.95	Made-to-order item	View & order
Remeha door gasket CWH Ace 200	80101333 Mfr. no. 7709377	€118.95	Made-to-order item	View & order
Remeha front casing gasket	80101339 Mfr. no. 7709294	€96.95	Made-to-order item	View & order
Remeha O-ring burner	80101377 Mfr. no. 7709300	€93.95	Made-to-order item	View & order
Remeha gasket fan CWH Ace	80101378 Mfr. no. 7709302	€61.95	Made-to-order item	View & order
Remeha pump / NRV gasket	80101379 Mfr. no. 7720039	€49.95	Made-to-order item	View & order
Remeha flue gasket double	80101383 Mfr. no. 7709363	€112.95	Made-to-order item	View & order
Remeha flue gasket single	80101384 Mfr. no. 7709362	€61.95	Made-to-order item	View & order
Remeha gasket inspection hatch for e.g. CWH Ace 60/201 7767672	8740723 Mfr. no. 7767672	€46.95	Made-to-order item	View & order

Pipes, tubes and hoses for the Remeha CWH Ace 30/201 (25) all Remeha pipes, tubes and hoses →

Part	Item no. / mfr. no.	Price	Stock
Remeha 19mm T-piece	8740964 Mfr. no. 7748812	€21.95	In stock	View & order
Remeha reducing casting bspm 22 x 1/2"	80101311 Mfr. no. 7709369	€95.95	Made-to-order item	View & order
Remeha flow pipe cylinder vessel 28 mm	80101318 Mfr. no. 7709351	€343.95	Made-to-order item	View & order
Remeha gas pipe 22 mm CWHA201	80101341 Mfr. no. 7709356	€348.95	Made-to-order item	View & order
Remeha gas pipe 22 mm CWHA302	80101342 Mfr. no. 7709357	€355.95	Made-to-order item	View & order
Remeha Hex1 flow pipe 28 mm CWHA 30kW 201/301	80101344 Mfr. no. 7709346	€291.95	Made-to-order item	View & order
Remeha Hex1 flow pipe 28 mm CWHA 90/120 302	80101346 Mfr. no. 7709343	€390.95	Made-to-order item	View & order
Remeha Hex1 gas pipe 22 mm 30/45kW 201/301/302	80101347 Mfr. no. 7709352	€292.95	Made-to-order item	View & order
Remeha Hex1 gas pipe 22 mm 60kW 201/301/302	80101348 Mfr. no. 7709353	€304.95	Made-to-order item	View & order
Remeha Hex1 return pipe 28 mm CWHA 30/60 201	80101349 Mfr. no. 7709337	€342.95	Made-to-order item	View & order
Remeha Hex1 return pipe 28 mm CWHA 30/60 201/301	80101350 Mfr. no. 7709335	€318.95	Made-to-order item	View & order
Remeha Hex1 return pipe 28 mm CWHA 90/120 302 for e.g. CWH Ace 60/201 7709342	80101352 Mfr. no. 7709342	€379.95	Made-to-order item	View & order
Remeha Hex1 return pipe 28 mm CWHA 90/120 302 for e.g. CWH Ace 90/302 7709341	80101353 Mfr. no. 7709341	€357.95	Made-to-order item	View & order
Remeha Hex1 return pipe 28 mm CWHA 90/120 302 for e.g. CWH Ace 90/302 7709336	80101354 Mfr. no. 7709336	€345.95	Made-to-order item	View & order
Remeha Hex2 flow pipe 28 mm CWHA 90/120 302	80101357 Mfr. no. 7709348	€316.95	Made-to-order item	View & order
Remeha Hex2 flow pipe 28 mm CWHA 90kW 302 for e.g. CWH Ace 60/201 7709344	80101358 Mfr. no. 7709344	€379.95	Made-to-order item	View & order
Remeha Hex2 flow pipe 28 mm CWHA 90kW 302 for e.g. CWH Ace 90/302 7709349	80101359 Mfr. no. 7709349	€296.95	Made-to-order item	View & order
Remeha Hex2 gas pipe 22 mm 30/45kW 302	80101360 Mfr. no. 7709354	€292.95	Made-to-order item	View & order
Remeha Hex2 return pipe 28 mm CWHA 90/120 302	80101362 Mfr. no. 7709340	€352.95	Made-to-order item	View & order
Remeha Hex2 return pipe 28 mm	80101363 Mfr. no. 7709339	€326.95	Made-to-order item	View & order
Remeha air hose (incl. clip)	80101372 Mfr. no. 7709316	€115.95	Made-to-order item	View & order
Remeha 19 mm elbow coupling	8740969 Mfr. no. 7748813	€29.95	Made-to-order item	View & order
Remeha 5 mm hose 1.6 m	8740976 Mfr. no. 7748810	€30.95	Made-to-order item	View & order
Remeha 19 mm to 6 mm coupling	8740979 Mfr. no. 7748814	€30.95	Made-to-order item	View & order
Remeha connection piece fan/burner	8741064 Mfr. no. 7795381	€728.95	Made-to-order item	View & order

Casing and panels for the Remeha CWH Ace 30/201 (2) all Remeha casing and panels →

Part	Item no. / mfr. no.	Price	Stock
Remeha heat exchanger front plate	80101404 Mfr. no. 7709315	€139.95	Made-to-order item	View & order
Remeha front casing CWH Ace 200L	8740908 Mfr. no. 7709379	€1,617.95	Made-to-order item	View & order

Fixing material for the Remeha CWH Ace 30/201 (4) all Remeha fixing material →

Part	Item no. / mfr. no.	Price	Stock
Remeha castor assembly	80101328 Mfr. no. 7709385	€280.95	Made-to-order item	View & order
Remeha plug for combustion test CWH appliances	8019311 Mfr. no. 7726469	€22.95	Made-to-order item	View & order
Remeha plastic clip condensate hose	8740961 Mfr. no. 7748816	€25.95	Made-to-order item	View & order
Remeha metal clip condensate hose	8740962 Mfr. no. 7748815	€26.95	Made-to-order item	View & order

Other parts for the Remeha CWH Ace 30/201 (29)

Part	Item no. / mfr. no.	Price	Stock
Remeha siphon CWH	8011024 Mfr. no. 7617073	€109.95	In stock	View & order
Remeha burner door insulation	80101324 Mfr. no. 7709296	€111.95	In stock	View & order
Remeha Modbus module	0800891 Mfr. no. 7720069	€327.95	Made-to-order item	View & order
Remeha anti-legionella module	0800893 Mfr. no. 7720071	€140.95	Made-to-order item	View & order
Remeha clip-in expansion module	0800892 Mfr. no. 7720070	€277.95	Made-to-order item	View & order
Remeha compression tee 28 mm	80101312 Mfr. no. 7709368	€100.95	Made-to-order item	View & order
Remeha obtuse compression elbow 28 mm	80101314 Mfr. no. 7709372	€186.95	Made-to-order item	View & order
Remeha compression tee 28 x 28 x 1/2"	80101315 Mfr. no. 7709367	€89.95	Made-to-order item	View & order
Remeha on/off button	80101316 Mfr. no. 7709332	€109.95	Made-to-order item	View & order
Remeha condensate system single	80101330 Mfr. no. 7709358	€379.95	Made-to-order item	View & order
Remeha condensate system twin	80101331 Mfr. no. 7709359	€466.95	Made-to-order item	View & order
Remeha door hinge set	80101335 Mfr. no. 7709376	€104.95	Made-to-order item	View & order
Remeha door locking set	80101336 Mfr. no. 7709375	€252.95	Made-to-order item	View & order
Remeha DIN rail terminal block	80101337 Mfr. no. 7709334	€54.95	Made-to-order item	View & order
Remeha user interface CWH	80101343 Mfr. no. 7709326	€596.95	Made-to-order item	View & order
Remeha cord seal front casing	80101369 Mfr. no. 7709295	€90.95	Made-to-order item	View & order
Remeha lead for spark electrode	80101370 Mfr. no. 7709313	€126.95	Made-to-order item	View & order
Remeha nut set for burner door	80101373 Mfr. no. 7709297	€41.95	Made-to-order item	View & order
Remeha reset switch	80101381 Mfr. no. 7709333	€111.95	Made-to-order item	View & order
Remeha flue system double	80101385 Mfr. no. 7709361	€700.95	Made-to-order item	View & order
Remeha flue system single	80101386 Mfr. no. 7709360	€360.95	Made-to-order item	View & order
Remeha screws for fan	80101387 Mfr. no. 7709303	€97.95	Made-to-order item	View & order
Remeha slave control PCB CWH Ace 90	80101388 Mfr. no. 7709323	€633.95	Made-to-order item	View & order
Remeha temperature limit thermostat 90°C	80101390 Mfr. no. 7709331	€116.95	Made-to-order item	View & order
Remeha access hatch and tube 20 tank	80101395 Mfr. no. 7720063	€502.95	Made-to-order item	View & order
Remeha spark generator	80101402 Mfr. no. 7709314	€143.95	Made-to-order item	View & order
Remeha front casing fixing screws	80101403 Mfr. no. 7709381	€61.95	Made-to-order item	View & order
Remeha front casing 200l	8740531 Mfr. no. 7709373	€1,613.95	Made-to-order item	View & order
Remeha tank 200l	8013561 Mfr. no. 7617080	€2,940.95	Made-to-order item	View & order

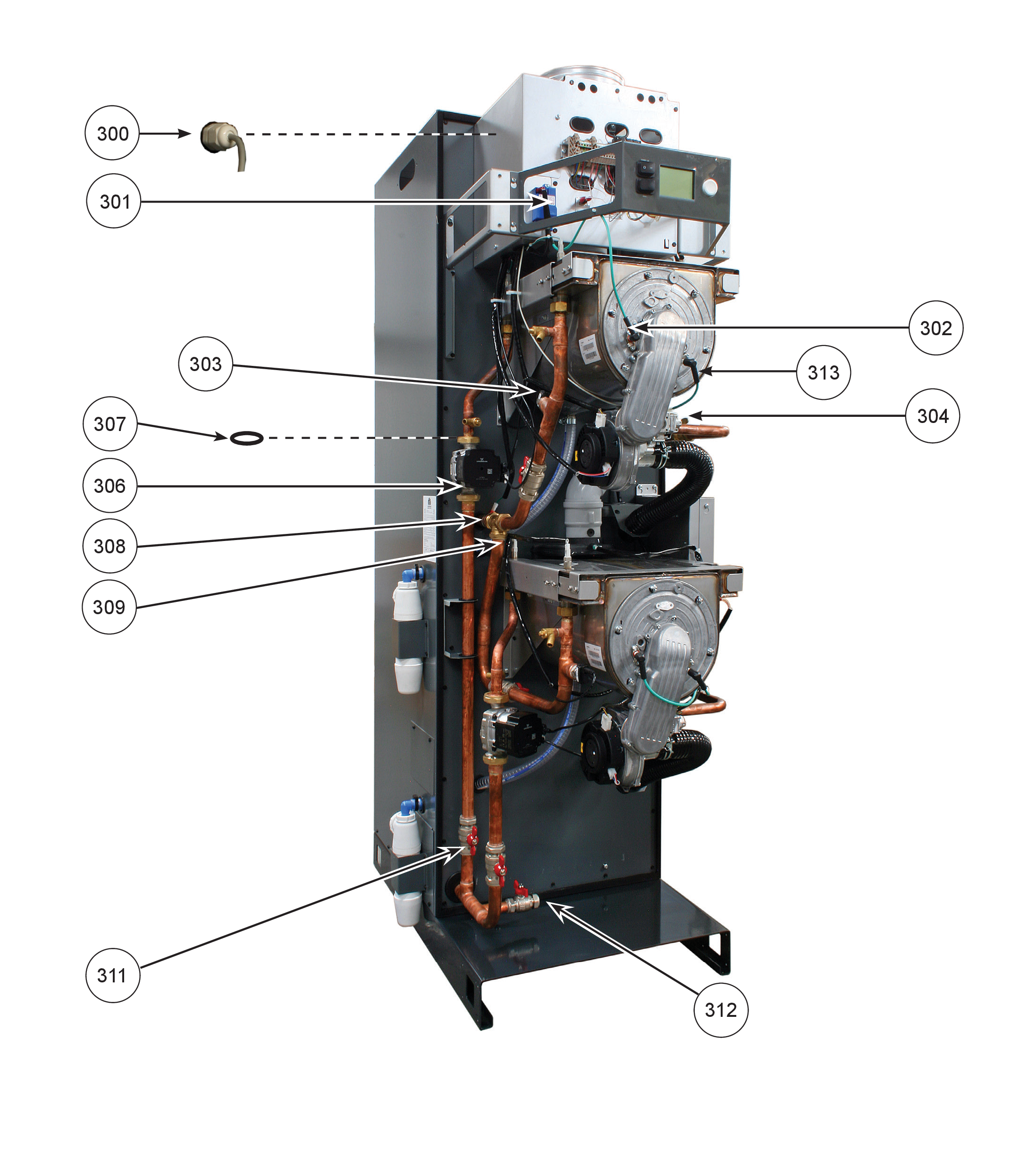

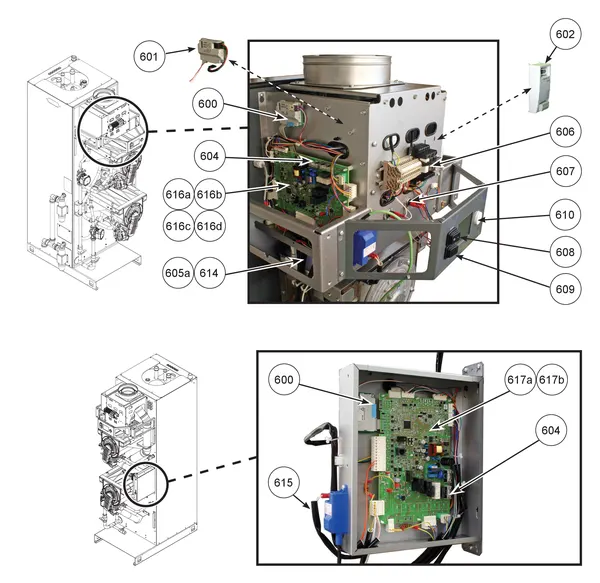

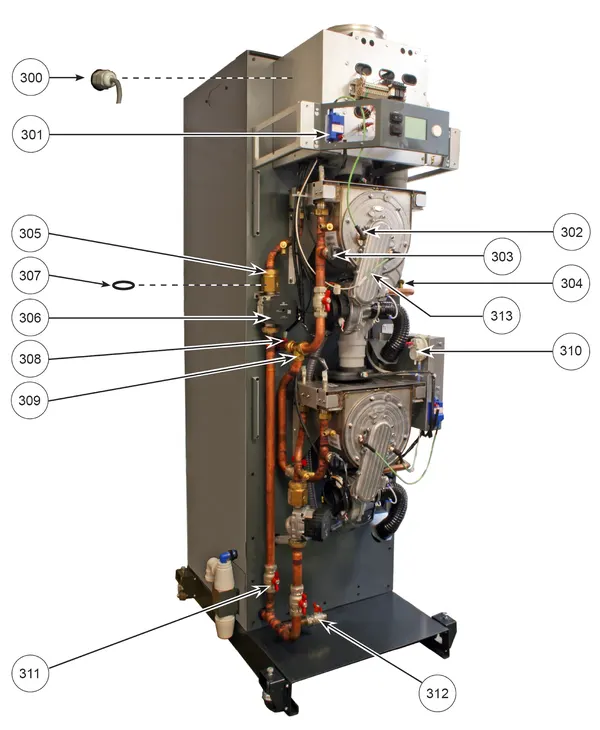

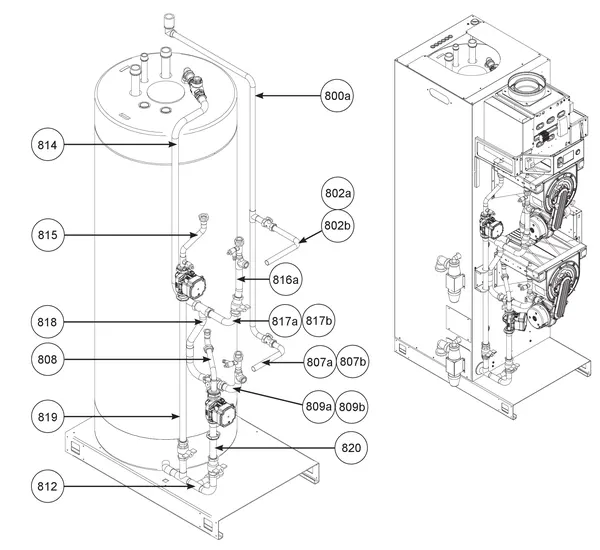

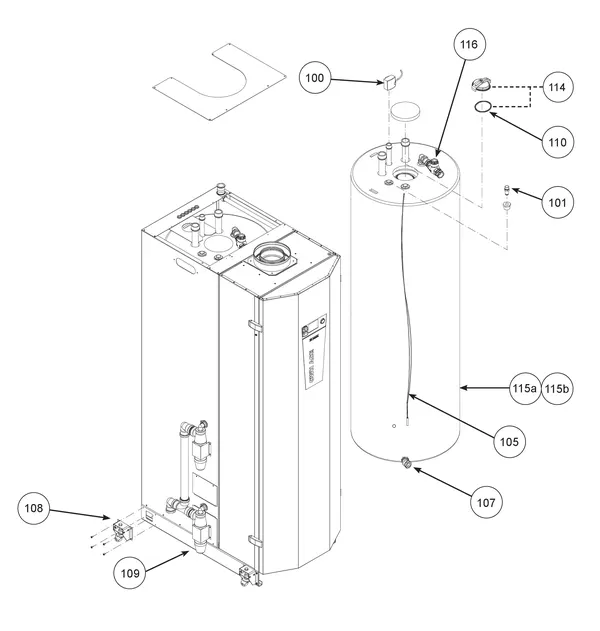

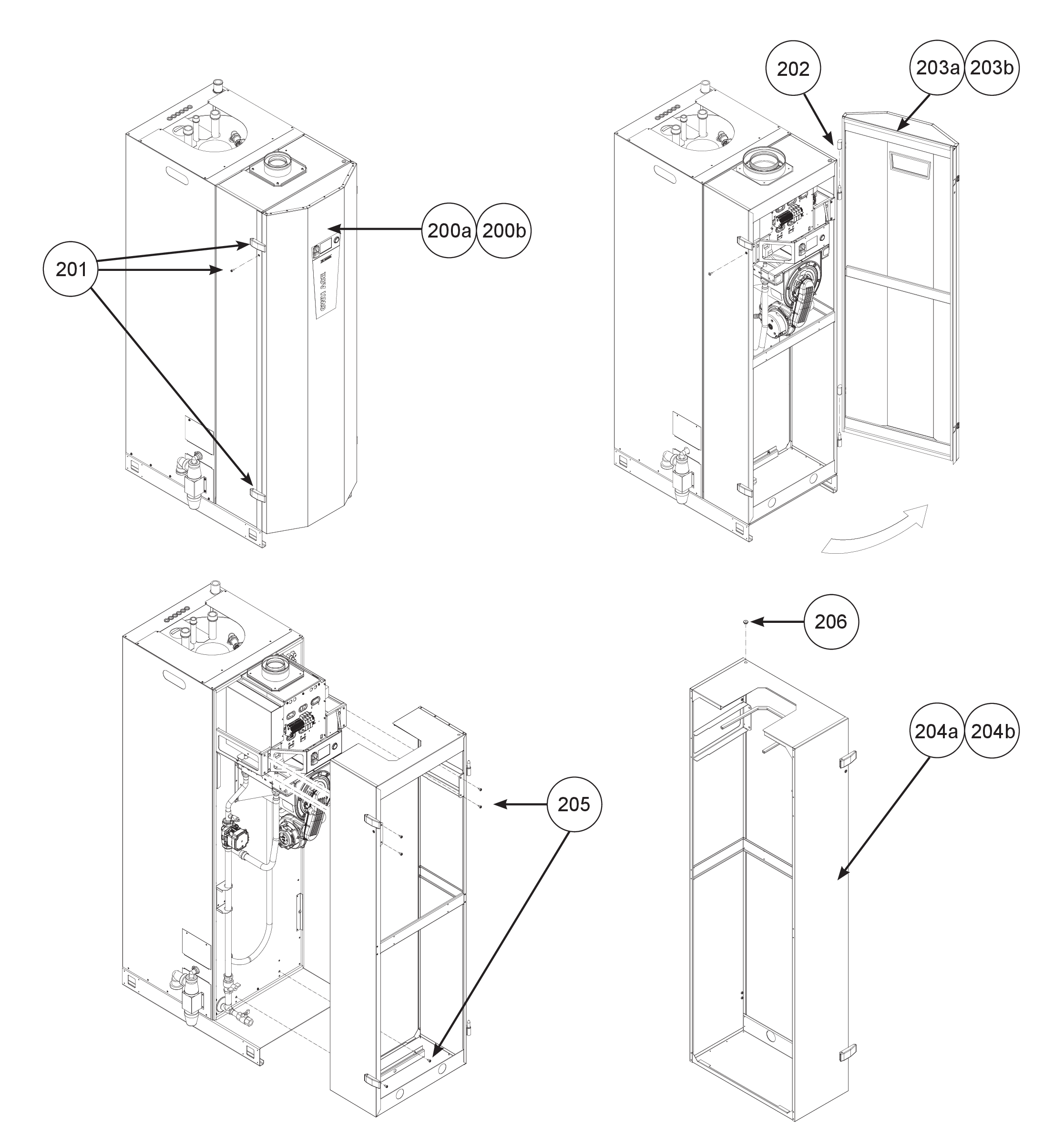

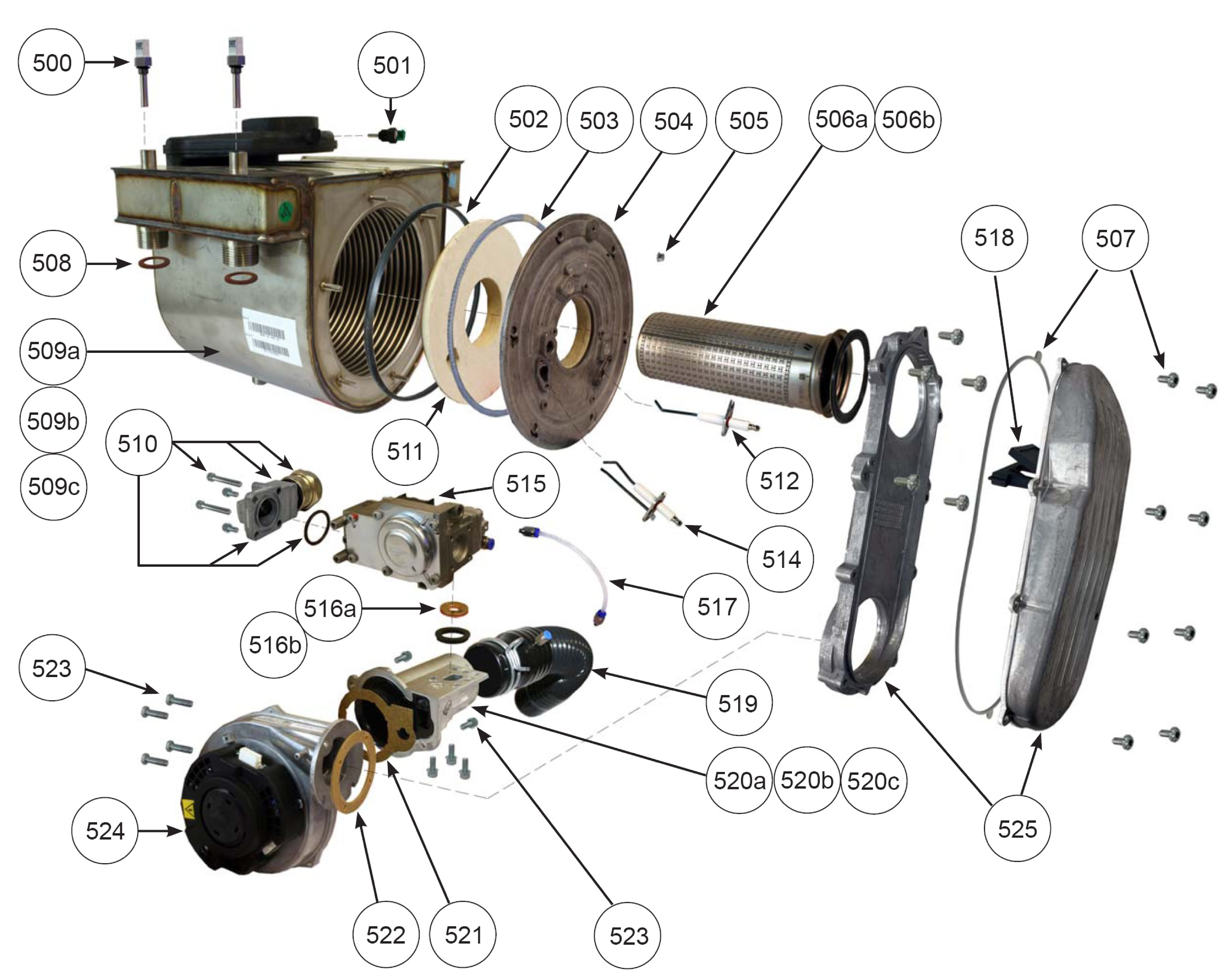

Exploded views of the Remeha CWH Ace 30/201

Click an exploded view to enlarge it. The position numbers are shown next to each part.

Fault code on your Remeha CWH Ace 30/201? This is the part type involved

Common Remeha fault codes and the part type that is usually the cause; the parts for this model are listed above. All codes explained: Remeha fault codes.

Code	What is going on	Part type
02	No flame formation or no ionisation (after 5 start attempts). No ignition spark.	Ignition and ionisation
3	Gas valve defective	Gas valves and gas control
4	Maximum heat exchanger temperature rise exceeded	Heat exchangers
6	Flame detected out of normal sequence (before opening or after closing of the gas valve).	Gas valves and gas control
23	A flame is detected before ignition.	Ignition and ionisation
24	Temperature sensor	Sensors

For guidance only: the same code can have a different cause depending on the situation.

Other Remeha hot water cylinders

← All Remeha parts

Frequently asked questions

Which parts are available for the Remeha CWH Ace 30/201?

The catalogue lists 105 original parts for the Remeha CWH Ace 30/201, including fans, sensors, temperature sensors and NTC sensors, pressure sensors. All parts are listed above, grouped by type, with part number and price.

How much does a fan for the Remeha CWH Ace 30/201 cost?

The fans for this model cost €619.42 incl. VAT. Check the table "Fans" above for the right part number.

Are the parts for the Remeha CWH Ace 30/201 in stock?

6 of the 105 parts are in stock; shipping to EU countries from €12.95 (€16.95 for more distant countries), usually 3–5 working days. Parts marked "Made-to-order item" are ordered specially for you; the delivery time is shown on the product page.

How do I know which part I need for the Remeha CWH Ace 30/201?

Search for the part by part number or use the exploded view of the Remeha CWH Ace 30/201.

Are these original Remeha parts?

Yes. All 105 parts in this list are original manufacturer parts for the Remeha CWH Ace 30/201, supplied through the official technical wholesale channel and with the correct part number.

How much do parts for the Remeha CWH Ace 30/201 cost?

Parts for the Remeha CWH Ace 30/201 range from €11.11 to €4,641.75 incl. VAT. The exact price of each part is shown in the tables above.

Can I return a part?

As a consumer you have a 14-day right of withdrawal. You may unpack and inspect the part; do not install or connect it. For a part that has been installed, connected or damaged we deduct the diminished value, up to the full price for circuit boards.
