Vaillant geoTHERM VWS 101/2 spare parts
In brief
Instalpunt supplies 68 original parts for the Vaillant geoTHERM VWS 101/2, including sensors, pumps, heat exchangers. Order online.
- 68Spare parts
- 6In stock
- €9.15From
- 18Types
- availableExploded view
Looking for parts for the Vaillant geoTHERM VWS 101/2 (heat pump)? Below are all 68 original parts, grouped by part type, with the matching exploded view. Choose a type to jump straight to the right table.
View the interactive exploded view →- Sensors 3
- Pumps 2
- Heat exchangers 3
- PCBs and controls 3
- Diverter valves and hydroblocks 1
- Expansion vessels 1
- Expansion valves 1
- Compressors 1
- Filters 1
- Valves 3
- Motors 1
- Electrical parts 3
- Cables and wiring harnesses 8
- Gaskets and seals 5
- Pipes, tubes and hoses 11
- Casing and panels 10
- Insulation 2
- Fixing material 6
- Other parts 3
Sensors for the Vaillant geoTHERM VWS 101/2 (3) all Vaillant sensors →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Vaillant temperature sensor cylinder heat pump | 8050051 Mfr. no. 0020038756 | €38.95 | In stock | View & order |
| Vaillant high pressure sensor for e.g. geoTHERM VWS 103/3 0020031981 | 8053616 Mfr. no. 0020031981 | €225.95 | Made-to-order item | View & order |
| Vaillant low-pressure sensor for e.g. geoTHERM VWS 103/3 560661 | 8053555 Mfr. no. 560661 | €202.95 | Made-to-order item | View & order |
Pumps for the Vaillant geoTHERM VWS 101/2 (2) all Vaillant pumps →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Vaillant high-efficiency pump excluding pump cable for e.g. geoTHERM VWS 83/2 0010030651 | 80508260 Mfr. no. 0010030651 | €242.95 | In stock | View & order |
| Vaillant high-efficiency pump excl. pump cable for e.g. geoTHERM VWS 83/2 0010030652 | 80508261 Mfr. no. 0010030652 | €303.95 | Made-to-order item | View & order |
Heat exchangers for the Vaillant geoTHERM VWS 101/2 (3) all Vaillant heat exchangers →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Vaillant condenser 10kw | 8053988 Mfr. no. 0020031967 | €812.95 | Made-to-order item | View & order |
| Vaillant evaporator 10kw | 8053947 Mfr. no. 0020031972 | €995.95 | Made-to-order item | View & order |
| Vaillant heat exchanger for e.g. geoTHERM VWS 103/3 560653 | 8053714 Mfr. no. 560653 | €266.95 | Made-to-order item | View & order |
PCBs and controls for the Vaillant geoTHERM VWS 101/2 (3) all Vaillant PCBs and controls →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Vaillant PCB geotherm | 8053886 Mfr. no. 0020093196 | €391.95 | In stock | View & order |
| Vaillant controller Geotherm | 8050171 Mfr. no. 0020093224 | €285.95 | In stock | View & order |
| Vaillant electric heating coil | 8053488 Mfr. no. 560680 | €144.95 | Made-to-order item | View & order |
Diverter valves and hydroblocks for the Vaillant geoTHERM VWS 101/2 (1) all Vaillant diverter valves and hydroblocks →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Vaillant three-way valve for e.g. uniTOWER VIH QW 190/1 E (0010019709) 0020032008 | 8053592 Mfr. no. 0020032008 | €239.95 | Made-to-order item | View & order |
Expansion vessels for the Vaillant geoTHERM VWS 101/2 (1) all Vaillant expansion vessels →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Vaillant expansion vessel for e.g. geoTHERM VWS 103/3 0020031984 | 8053189 Mfr. no. 0020031984 | €110.95 | Made-to-order item | View & order |
Expansion valves for the Vaillant geoTHERM VWS 101/2 (1) all Vaillant expansion valves →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Vaillant expansion valve 10-14kw | 8053668 Mfr. no. 0020031978 | €239.95 | Made-to-order item | View & order |
Compressors for the Vaillant geoTHERM VWS 101/2 (1) all Vaillant compressors →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Vaillant compressor 10kw | 8054402 Mfr. no. 0020031961 | €1,666.95 | Made-to-order item | View & order |
Filters for the Vaillant geoTHERM VWS 101/2 (1) all Vaillant filters →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Vaillant filter drier for e.g. geoTHERM VWS 103/3 0020031985 | 8053321 Mfr. no. 0020031985 | €101.95 | Made-to-order item | View & order |
Valves for the Vaillant geoTHERM VWS 101/2 (3) all Vaillant valves →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Vaillant safety valve for e.g. ecoTEC plus VHR 45/4 S A 190721 | 8059251 Mfr. no. 190721 | €49.95 | In stock | View & order |
| Vaillant drain valve VHR4565 | 8058081 Mfr. no. 106350 | €44.95 | Made-to-order item | View & order |
| Vaillant Schrader valve for e.g. geoTHERM VWS 103/3 560666 | 8059594 Mfr. no. 560666 | €27.95 | Made-to-order item | View & order |
Motors for the Vaillant geoTHERM VWS 101/2 (1) all Vaillant motors →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Vaillant three-way valve motor 230V | 8053508 Mfr. no. 0020038758 | €172.95 | In stock | View & order |
Electrical parts for the Vaillant geoTHERM VWS 101/2 (3) all Vaillant electrical parts →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Vaillant high-pressure switch | 8053669 Mfr. no. 0020031980 | €234.95 | Made-to-order item | View & order |
| Vaillant low-pressure switch | 8053671 Mfr. no. 0020031982 | €239.95 | Made-to-order item | View & order |
| Vaillant fuse 40at 10 pcs VHR10 to 45 for ecoTEC plus | 8058553 Mfr. no. 251957 | €28.95 | Made-to-order item | View & order |
Cables and wiring harnesses for the Vaillant geoTHERM VWS 101/2 (8) all Vaillant cables and wiring harnesses →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Vaillant wiring harness 3WV for e.g. geoTHERM VWS 104/3 0020059444 | 8059507 Mfr. no. 0020059444 | €49.95 | Made-to-order item | View & order |
| Vaillant compressor wiring harness 6-10 kw | 8059921 Mfr. no. 0020031997 | €56.95 | Made-to-order item | View & order |
| Vaillant controller wiring harness | 8059550 Mfr. no. 0020032004 | €27.95 | Made-to-order item | View & order |
| Vaillant sensor wiring harness | 8053451 Mfr. no. 0020032000 | €129.95 | Made-to-order item | View & order |
| Vaillant wiring harness control interface | 8059672 Mfr. no. 0020032002 | €46.95 | Made-to-order item | View & order |
| Vaillant wiring harness VR adapter | 8059653 Mfr. no. 0020032003 | €33.95 | Made-to-order item | View & order |
| Vaillant wiring harness amu/3-geotherm/2 | 8050675 Mfr. no. 0020117288 | €43.95 | Made-to-order item | View & order |
| Vaillant plug for e.g. flexoTHERM VWF 87/4 0020066202 | 8059728 Mfr. no. 0020066202 | €53.95 | Made-to-order item | View & order |
Gaskets and seals for the Vaillant geoTHERM VWS 101/2 (5) all Vaillant gaskets and seals →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Vaillant O-ring R 23 x 3 mm | 8050062 Mfr. no. 0020107696 | €23.95 | Made-to-order item | View & order |
| Vaillant gasket 1.1/2" heat pumps | 8053334 Mfr. no. 0020072036 | €85.95 | Made-to-order item | View & order |
| Vaillant gasket 1 1/4 heat pumps | 8053284 Mfr. no. 0020072035 | €69.95 | Made-to-order item | View & order |
| Vaillant sealing ring for e.g. aroTHERM VWL 75/6 A 0020032001 | 8059534 Mfr. no. 0020032001 | €23.95 | Made-to-order item | View & order |
| Vaillant sealing ring 1.1/2" | 8059563 Mfr. no. 0020038759 | €25.95 | Made-to-order item | View & order |
Pipes, tubes and hoses for the Vaillant geoTHERM VWS 101/2 (11) all Vaillant pipes, tubes and hoses →
Casing and panels for the Vaillant geoTHERM VWS 101/2 (10) all Vaillant casing and panels →
Insulation for the Vaillant geoTHERM VWS 101/2 (2) all Vaillant insulation →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Vaillant compressor insulation 6-10kW | 8053674 Mfr. no. 0020038760 | €192.95 | Made-to-order item | View & order |
| Vaillant insulation pipe feed-through | 8059695 Mfr. no. 0020046106 | €29.95 | Made-to-order item | View & order |
Fixing material for the Vaillant geoTHERM VWS 101/2 (6) all Vaillant fixing material →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Vaillant screw m6x20 iso 14583 | 8050533 Mfr. no. 0020081364 | €24.95 | Made-to-order item | View & order |
| Vaillant mounting set | 8059909 Mfr. no. 091629 | €59.95 | Made-to-order item | View & order |
| Vaillant mounting set PCB | 8059765 Mfr. no. 0020032005 | €56.95 | Made-to-order item | View & order |
| Vaillant holder for e.g. geoTHERM VWS 103/3 0020117276 | 8050676 Mfr. no. 0020117276 | €44.95 | Made-to-order item | View & order |
| Vaillant clamping band for e.g. geoTHERM VWS 103/3 0020066199 | 8059747 Mfr. no. 0020066199 | €51.95 | Made-to-order item | View & order |
| Vaillant ring handle | 8059535 Mfr. no. 0020038755 | €25.95 | Made-to-order item | View & order |
Other parts for the Vaillant geoTHERM VWS 101/2 (3)
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Vaillant terminal strip for e.g. geoTHERM VWS 103/3 0020060862 | 8053329 Mfr. no. 0020060862 | €93.95 | Made-to-order item | View & order |
| Vaillant condensate tray for e.g. geoTHERM VWS 103/3 0020072037 | 8059821 Mfr. no. 0020072037 | €48.95 | Made-to-order item | View & order |
| Vaillant switch protection | 8053229 Mfr. no. 257003 | €90.95 | Made-to-order item | View & order |

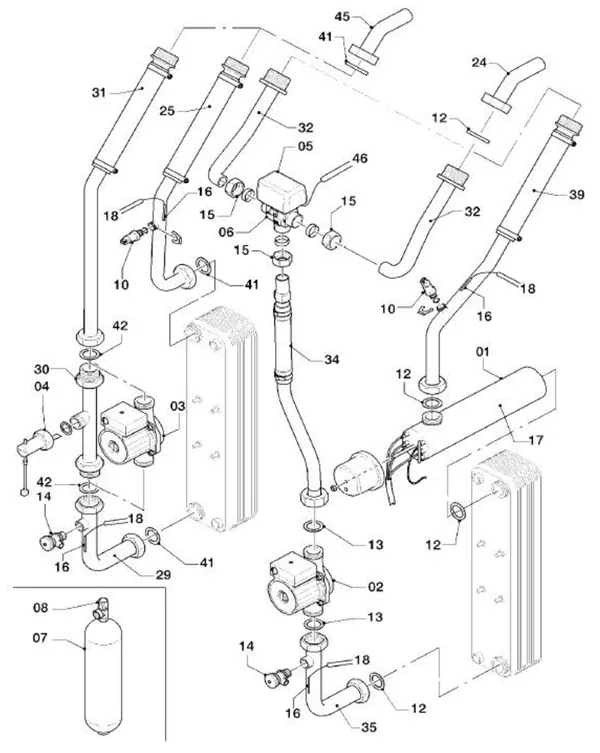

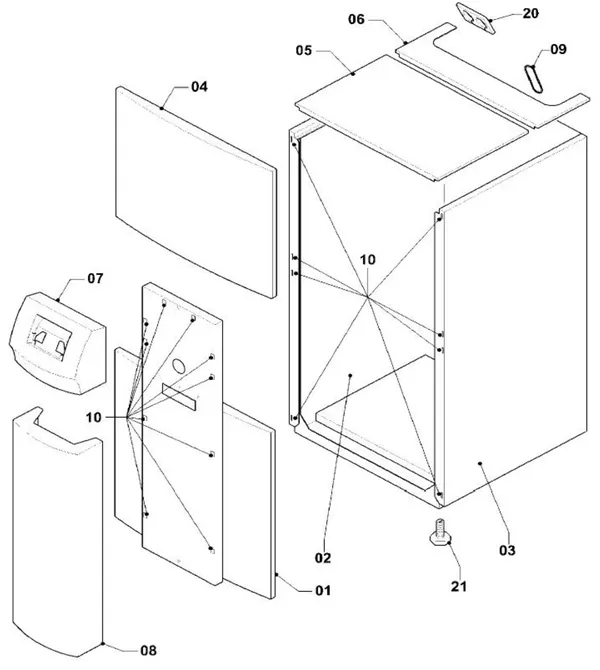

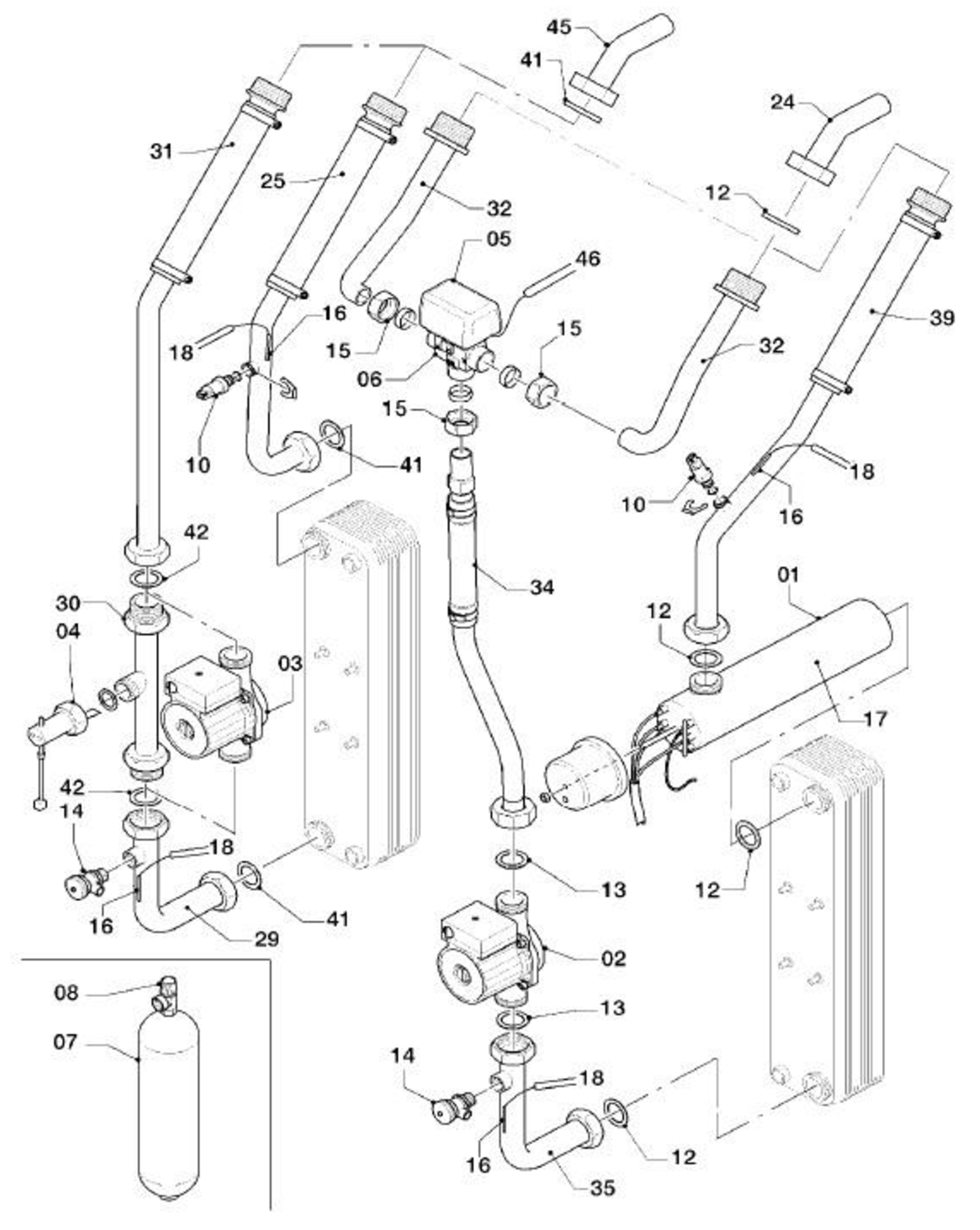

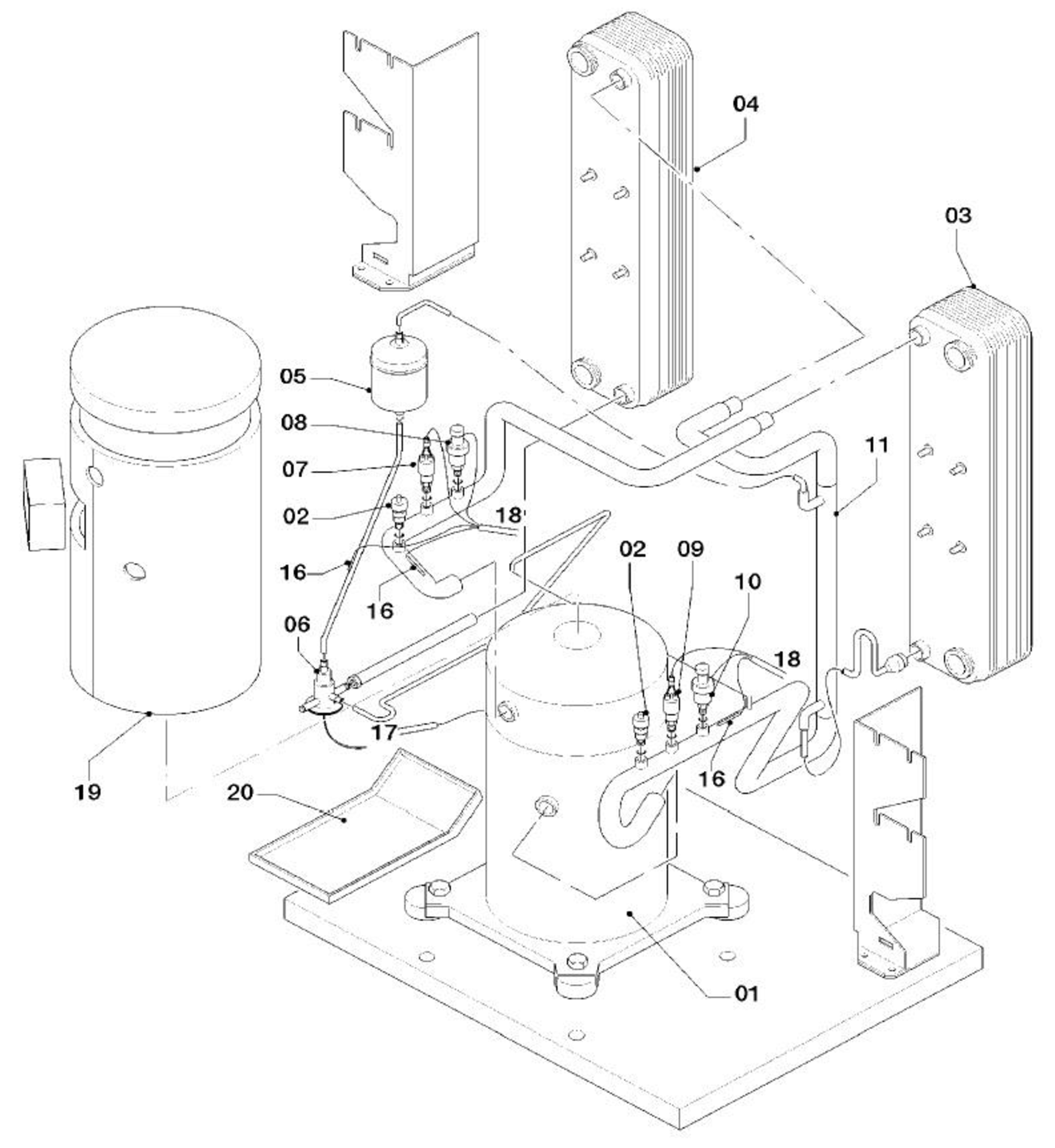

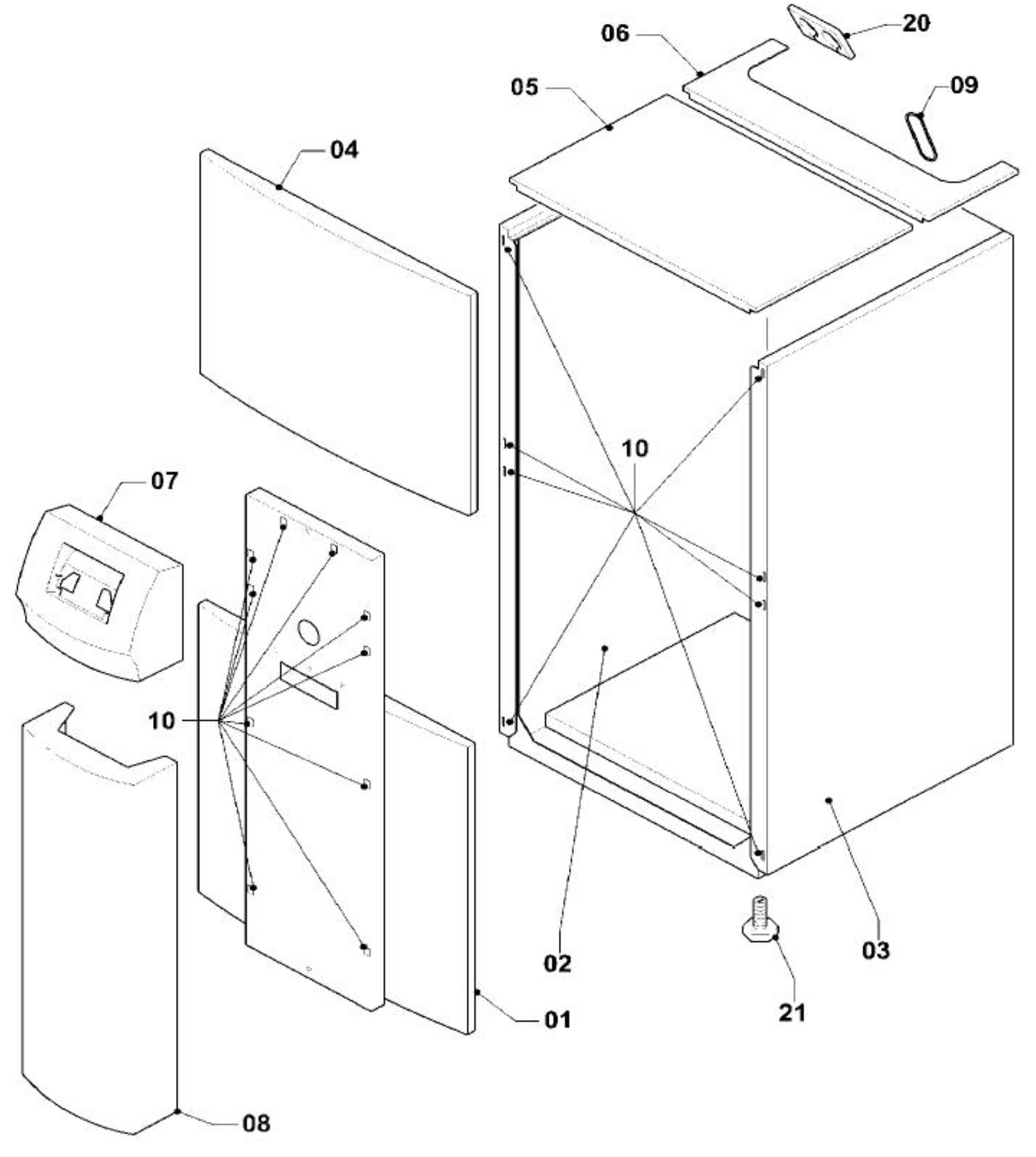

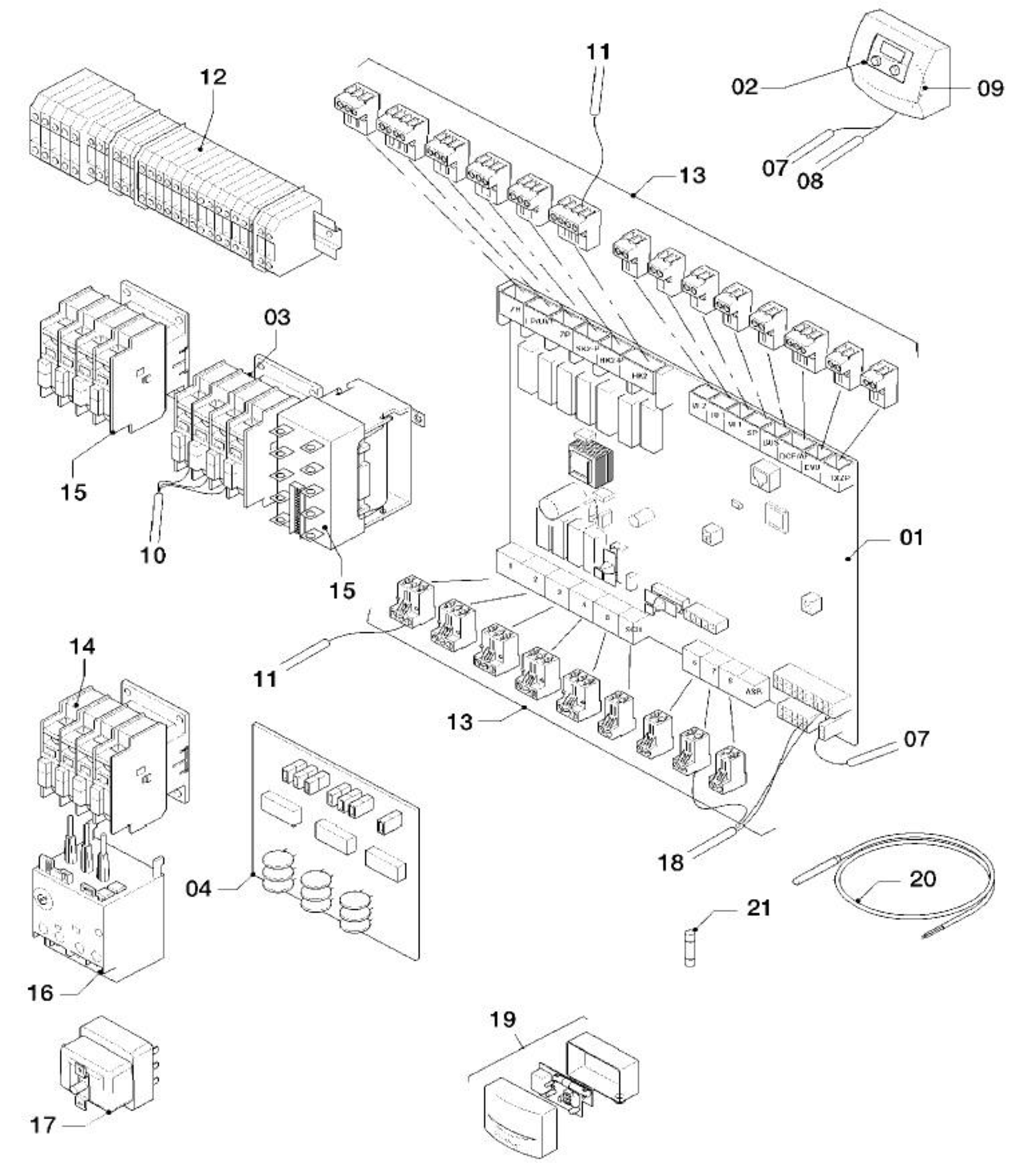

Exploded views of the Vaillant geoTHERM VWS 101/2
Click an exploded view to enlarge it. The position numbers are shown next to each part.
Fault code on your Vaillant geoTHERM VWS 101/2? This is the part type involved
Common Vaillant fault codes and the part type that is usually the cause; the parts for this model are listed above. All codes explained: Vaillant fault codes.
| Code | What is going on | Part type |
|---|---|---|
| F.00 | The flow temperature sensor signal is interrupted. | Sensors |
| F.01 | The return temperature sensor signal is interrupted. | Sensors |
| F.02 | The hot water connection temperature sensor signal is interrupted. | Sensors |
| F.022 | Pressure loss in the heating circuit due to a leak or air lock, heating circuit pressure sensor defective | Sensors |
| F.03 | The cylinder temperature sensor signal is interrupted. | Sensors |
| F.042 | Break in the heat exchanger wiring harness | Heat exchangers |
For guidance only: the same code can have a different cause depending on the situation.
Other Vaillant heat pumps
- Vaillant aroCOLLECT VWL 11/4 SA (ODU) 33
- Vaillant aroTHERM VWL 105/5 AS 75
- Vaillant aroTHERM VWL 105/5 AS 400V 8
- Vaillant aroTHERM VWL 105/7.2 AS 230V S3 41
- Vaillant aroTHERM VWL 115/2 A 400V 80
- Vaillant aroTHERM VWL 125/5 AS 75
- Vaillant aroTHERM VWL 125/6 A 400V 111
- Vaillant aroTHERM VWL 125/6 A R1 400V 126
- Vaillant aroTHERM VWL 127/5 IS 76
- Vaillant aroTHERM VWL 155/2 A 400V 84
- Vaillant aroTHERM VWL 35/5 AS 72
- Vaillant aroTHERM VWL 35/6 A 95
Frequently asked questions
Which parts are available for the Vaillant geoTHERM VWS 101/2?
The catalogue lists 68 original parts for the Vaillant geoTHERM VWS 101/2, including sensors, pumps, heat exchangers, PCBs and controls. All parts are listed above, grouped by type, with part number and price.
How much does a sensor for the Vaillant geoTHERM VWS 101/2 cost?
The sensors for this model cost between €41.82 and €252.21 incl. VAT. Check the table "Sensors" above for the right part number.
Are the parts for the Vaillant geoTHERM VWS 101/2 in stock?
6 of the 68 parts are in stock; shipping to EU countries from €12.95 (€16.95 for more distant countries), usually 3–5 working days. Parts marked "Made-to-order item" are ordered specially for you; the delivery time is shown on the product page.
How do I know which part I need for the Vaillant geoTHERM VWS 101/2?
Search for the part by part number or use the exploded view of the Vaillant geoTHERM VWS 101/2.
Are these original Vaillant parts?
Yes. All 68 parts in this list are original manufacturer parts for the Vaillant geoTHERM VWS 101/2, supplied through the official technical wholesale channel and with the correct part number.
How much do parts for the Vaillant geoTHERM VWS 101/2 cost?
Parts for the Vaillant geoTHERM VWS 101/2 range from €9.15 to €2,195.42 incl. VAT. The exact price of each part is shown in the tables above.
