Vaillant hrEXCLUSIEF VHR 35 C spare parts
In brief
Instalpunt supplies 88 original parts for the Vaillant hrEXCLUSIEF VHR 35 C, including fans, sensors, temperature sensors and NTC sensors. Order online.
- 88Spare parts
- 35In stock
- €5.89From
- 24Types
- availableExploded view
Looking for parts for the Vaillant hrEXCLUSIEF VHR 35 C (boiler)? Below are all 88 original parts, grouped by part type, with the matching exploded view. Choose a type to jump straight to the right table.
View the interactive exploded view →Quick left to the right part for the Vaillant hrEXCLUSIEF VHR 35 C
| Part | From | Delivery |
|---|---|---|
| Fan Vaillant fan VHR1018-2224-2835 mvl | €292.95 | In stock |
| Ignition part Vaillant ignition electrode VHR 1018-2224-283545 for ecoTEC plus | €37.95 | In stock |
| Temperature sensor Vaillant NTC sensor VC/W T3110-282VU/WVHR | €48.95 | In stock |
| Display Vaillant knob grey 3 pcs VC/W254-255/3CWK245/3VHR45 | €38.95 | In stock |
Prices incl. VAT, taken directly from our checkout. Below is the complete parts list for this model.
Installer or self-employed engineer? Create a business account: prices excl. VAT and invoices in your company name.
- Fans 1
- Sensors 2
- Temperature sensors and NTC sensors 1
- Pressure switches and differential pressure switches 1
- Pumps 1
- Heat exchangers 2
- Gas valves and gas control 2
- PCBs and controls 2
- Diverter valves and hydroblocks 1
- Ignition and ionisation 2
- Siphons and condensate drains 1
- Burners 2
- Displays and controls 2
- Filters 1
- Valves 2
- Pressure gauges 1
- Motors 1
- Electrical parts 6
- Cables and wiring harnesses 3
- Gaskets and seals 16
- Pipes, tubes and hoses 11
- Casing and panels 3
- Insulation 2
- Fixing material 16
- Other parts 6
Fans for the Vaillant hrEXCLUSIEF VHR 35 C (1) all Vaillant fans →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Vaillant fan VHR1018-2224-2835 mvl | 8056571 Mfr. no. 190235 | €292.95 | In stock | View & order |
Sensors for the Vaillant hrEXCLUSIEF VHR 35 C (2) all Vaillant sensors →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Vaillant flow sensor VHR35C | 8057006 Mfr. no. 194834 | €273.95 | Made-to-order item | View & order |
| Vaillant Hall sensor | 8057016 Mfr. no. 711933 | €61.95 | Made-to-order item | View & order |
Temperature sensors and NTC sensors for the Vaillant hrEXCLUSIEF VHR 35 C (1) all Vaillant temperature sensors and NTC sensors →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Vaillant NTC sensor VC/W T3110-282VU/WVHR | 8052090 Mfr. no. 252805 | €48.95 | In stock | View & order |
Pressure switches and differential pressure switches for the Vaillant hrEXCLUSIEF VHR 35 C (1) all Vaillant pressure switches and differential pressure switches →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Vaillant pressure switch VCW254-255/3CWK 245/3 VHR 45 | 8056587 Mfr. no. 712087 | €51.95 | In stock | View & order |
Pumps for the Vaillant hrEXCLUSIEF VHR 35 C (1) all Vaillant pumps →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Vaillant high-efficiency pump excl. pump cable for ecoTEC pro | 80502116 Mfr. no. 0010030636 | €386.95 | Made-to-order item | View & order |
Heat exchangers for the Vaillant hrEXCLUSIEF VHR 35 C (2) all Vaillant heat exchangers →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Vaillant heat exchanger VHR35 | 8056275 Mfr. no. 065119 | €794.95 | Made-to-order item | View & order |
| Vaillant plate heat exchanger VCW254-255/3 VHR 35c | 8056609 Mfr. no. 065132 | €402.95 | Made-to-order item | View & order |
Gas valves and gas control for the Vaillant hrEXCLUSIEF VHR 35 C (2) all Vaillant gas valves and gas control →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Vaillant gas valve VHR35 | 8057004 Mfr. no. 053500 | €353.95 | In stock | View & order |
| Vaillant gas mixing tube VHR10-45 | 8056592 Mfr. no. 116688 | €122.95 | Made-to-order item | View & order |
PCBs and controls for the Vaillant hrEXCLUSIEF VHR 35 C (2) all Vaillant PCBs and controls →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Vaillant PCB VHR3545 | 8057099 Mfr. no. 130826 | €393.95 | In stock | View & order |
| Vaillant controller protection grey | 8050527 Mfr. no. 0020130491 | €25.95 | Made-to-order item | View & order |
Diverter valves and hydroblocks for the Vaillant hrEXCLUSIEF VHR 35 C (1) all Vaillant diverter valves and hydroblocks →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Vaillant bypass VHR35 | 8057009 Mfr. no. 150238 | €62.95 | Made-to-order item | View & order |
Ignition and ionisation for the Vaillant hrEXCLUSIEF VHR 35 C (2) all Vaillant ignition and ionisation →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Vaillant ignition electrode VHR 1018-2224-283545 for ecoTEC plus | 8051128 Mfr. no. 090709 | €37.95 | In stock | View & order |
| Vaillant ignition cable VHR3545 | 8057015 Mfr. no. 091551 | €58.95 | Made-to-order item | View & order |
Siphons and condensate drains for the Vaillant hrEXCLUSIEF VHR 35 C (1) all Vaillant siphons and condensate drains →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Vaillant siphon VHR for ecoTEC plus | 8057248 Mfr. no. 0020081567 | €40.95 | In stock | View & order |
Burners for the Vaillant hrEXCLUSIEF VHR 35 C (2) all Vaillant burners →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Vaillant burner VHR35-45 for ecoTEC plus and ecoTEC pro etc. | 8057000 Mfr. no. 050430 | €298.95 | In stock | View & order |
| Vaillant burner plate complete incl. insulation | 8055871 Mfr. no. 088134 | €182.95 | In stock | View & order |
Displays and controls for the Vaillant hrEXCLUSIEF VHR 35 C (2) all Vaillant displays and controls →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Vaillant knob grey 3 pcs VC/W254-255/3CWK245/3VHR45 | 8056624 Mfr. no. 114288 | €38.95 | In stock | View & order |
| Vaillant PCB VC/W254-255/3 VHR 3545 | 8056585 Mfr. no. 130822 | €95.95 | Made-to-order item | View & order |
Filters for the Vaillant hrEXCLUSIEF VHR 35 C (1) all Vaillant filters →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Vaillant strainer VHR18-2224-2835c | 8056522 Mfr. no. 074517 | €58.95 | Made-to-order item | View & order |
Valves for the Vaillant hrEXCLUSIEF VHR 35 C (2) all Vaillant valves →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Vaillant automatic air vent | 8050850 Mfr. no. 061707 | €38.95 | In stock | View & order |
| Vaillant valve VHR354565 | 8057749 Mfr. no. 078925 | €106.95 | Made-to-order item | View & order |
Pressure gauges for the Vaillant hrEXCLUSIEF VHR 35 C (1) all Vaillant pressure gauges →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Vaillant pressure gauge VHR18243545 after 2005 254-255/3CWK 245/3 | 8057017 Mfr. no. 101271 | €67.95 | Made-to-order item | View & order |
Motors for the Vaillant hrEXCLUSIEF VHR 35 C (1) all Vaillant motors →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Vaillant three-way valve motor VCW254/255-3CWK245/3VHR after 2005 | 8057072 Mfr. no. 140429 | €106.95 | In stock | View & order |
Electrical parts for the Vaillant hrEXCLUSIEF VHR 35 C (6) all Vaillant electrical parts →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Vaillant cable gland for e.g. hrEXCLUSIEF VHR 35 S 088367 | 8057986 Mfr. no. 088367 | €25.95 | Made-to-order item | View & order |
| Vaillant cable gland for e.g. hrEXCLUSIEF VHR 35 S 088368 | 8057987 Mfr. no. 088368 | €25.95 | Made-to-order item | View & order |
| Vaillant mains lead | 8057841 Mfr. no. 081232 | €55.95 | Made-to-order item | View & order |
| Vaillant control box complete VHR3545 | 8058689 Mfr. no. 295248 | €202.95 | Made-to-order item | View & order |
| Vaillant strain relief | 8051468 Mfr. no. 078533 | €44.95 | Made-to-order item | View & order |
| Vaillant fuse 40at 10 pcs VHR10 to 45 for ecoTEC plus | 8058553 Mfr. no. 251957 | €28.95 | Made-to-order item | View & order |
Cables and wiring harnesses for the Vaillant hrEXCLUSIEF VHR 35 C (3) all Vaillant cables and wiring harnesses →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Vaillant pump connection cable for e.g. hrEXCLUSIEF VHR 35 S 0010032772 | 8070044 Mfr. no. 0010032772 | €41.95 | In stock | View & order |
| Vaillant cable complete 24V VC/W254-255/2/3 CWK245/3 VHR35 | 8058574 Mfr. no. 255775 | €93.95 | Not available | View & order |
| Vaillant wiring harness VHR35 | 8057010 Mfr. no. 256149 | €56.95 | Made-to-order item | View & order |
Gaskets and seals for the Vaillant hrEXCLUSIEF VHR 35 C (16) all Vaillant gaskets and seals →
Pipes, tubes and hoses for the Vaillant hrEXCLUSIEF VHR 35 C (11) all Vaillant pipes, tubes and hoses →
Casing and panels for the Vaillant hrEXCLUSIEF VHR 35 C (3) all Vaillant casing and panels →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Vaillant cap 5 pcs VHR354565 | 8058292 Mfr. no. 147392 | €33.95 | In stock | View & order |
| Vaillant logo plate VC/W254-255/3 CWK245/3 | 8057191 Mfr. no. 118096 | €44.95 | Made-to-order item | View & order |
| Vaillant casing complete VHR35/45 | 8057005 Mfr. no. 077399 | €357.95 | Made-to-order item | View & order |
Insulation for the Vaillant hrEXCLUSIEF VHR 35 C (2) all Vaillant insulation →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Vaillant insulation plate 10 mm nut / washer | 8050715 Mfr. no. 210779 | €55.95 | Made-to-order item | View & order |
| Vaillant insulation Solide VHR 1018-2224-283545 | 8056400 Mfr. no. 210734 | €48.95 | In stock | View & order |
Fixing material for the Vaillant hrEXCLUSIEF VHR 35 C (16) all Vaillant fixing material →
Other parts for the Vaillant hrEXCLUSIEF VHR 35 C (6)
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Vaillant gasket set I for ecoTEC plus and ecoTEC pro etc. | 8055580 Mfr. no. 0020025929 | €20.95 | In stock | View & order |
| Vaillant spark plug cap | 8058980 Mfr. no. 0020075412 | €27.95 | Made-to-order item | View & order |
| Vaillant three-way valve VHR VCW254-255/3 CWK 245/3 | 8057003 Mfr. no. 252457 | €200.95 | In stock | View & order |
| Vaillant sight glass VHR1018-2224-283545 | 8057022 Mfr. no. 161245 | €16.95 | In stock | View & order |
| Vaillant condensate tray + gasket VHR45S for ecoTEC plus | 8055301 Mfr. no. 076560 | €185.95 | Made-to-order item | View & order |
| Vaillant hose clamp | 8059580 Mfr. no. 0020052092 | €24.95 | Made-to-order item | View & order |

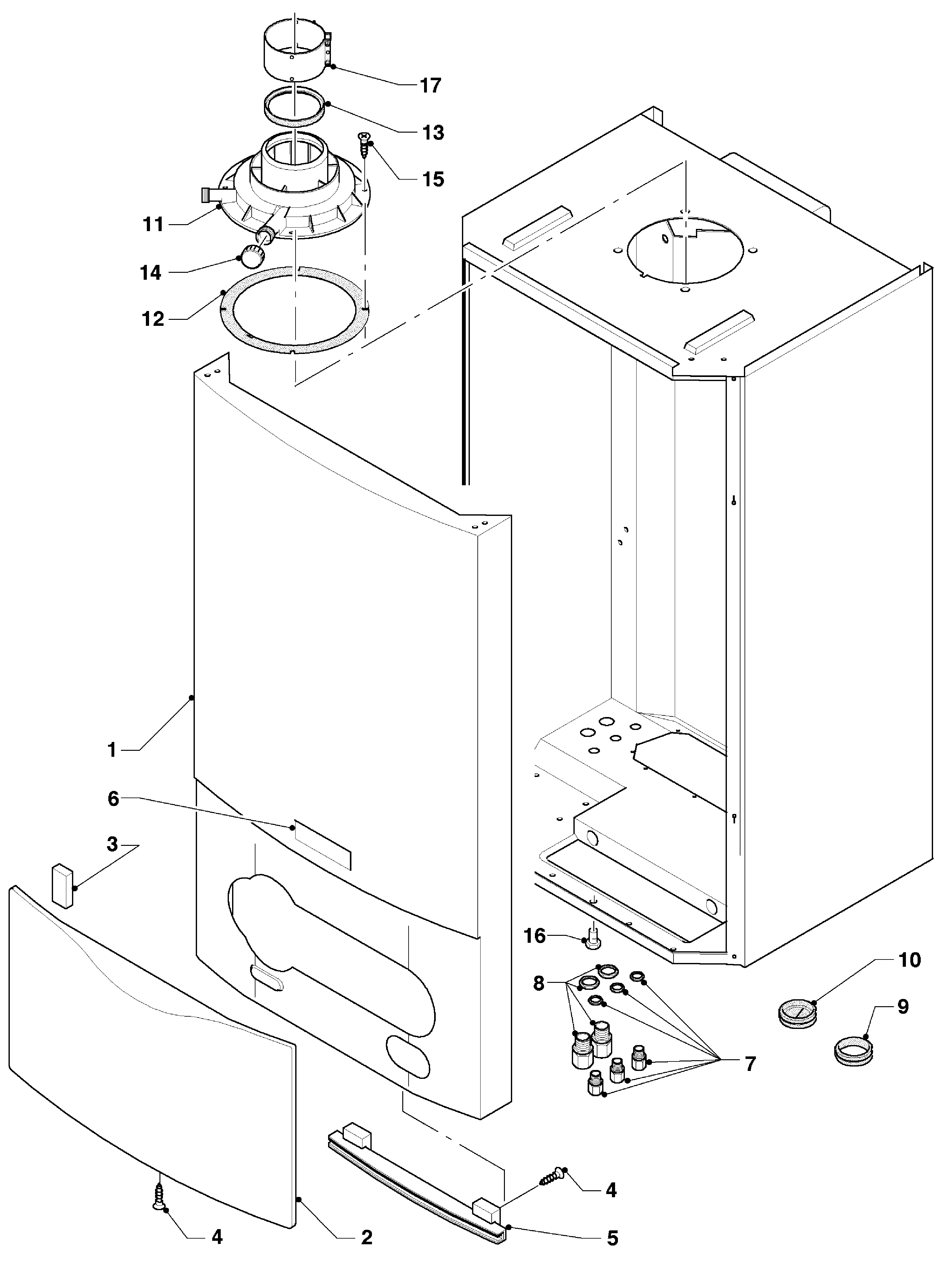

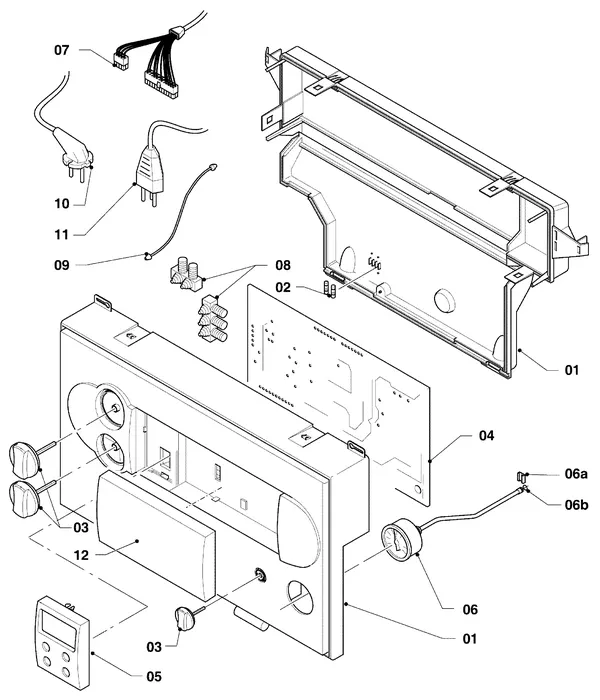

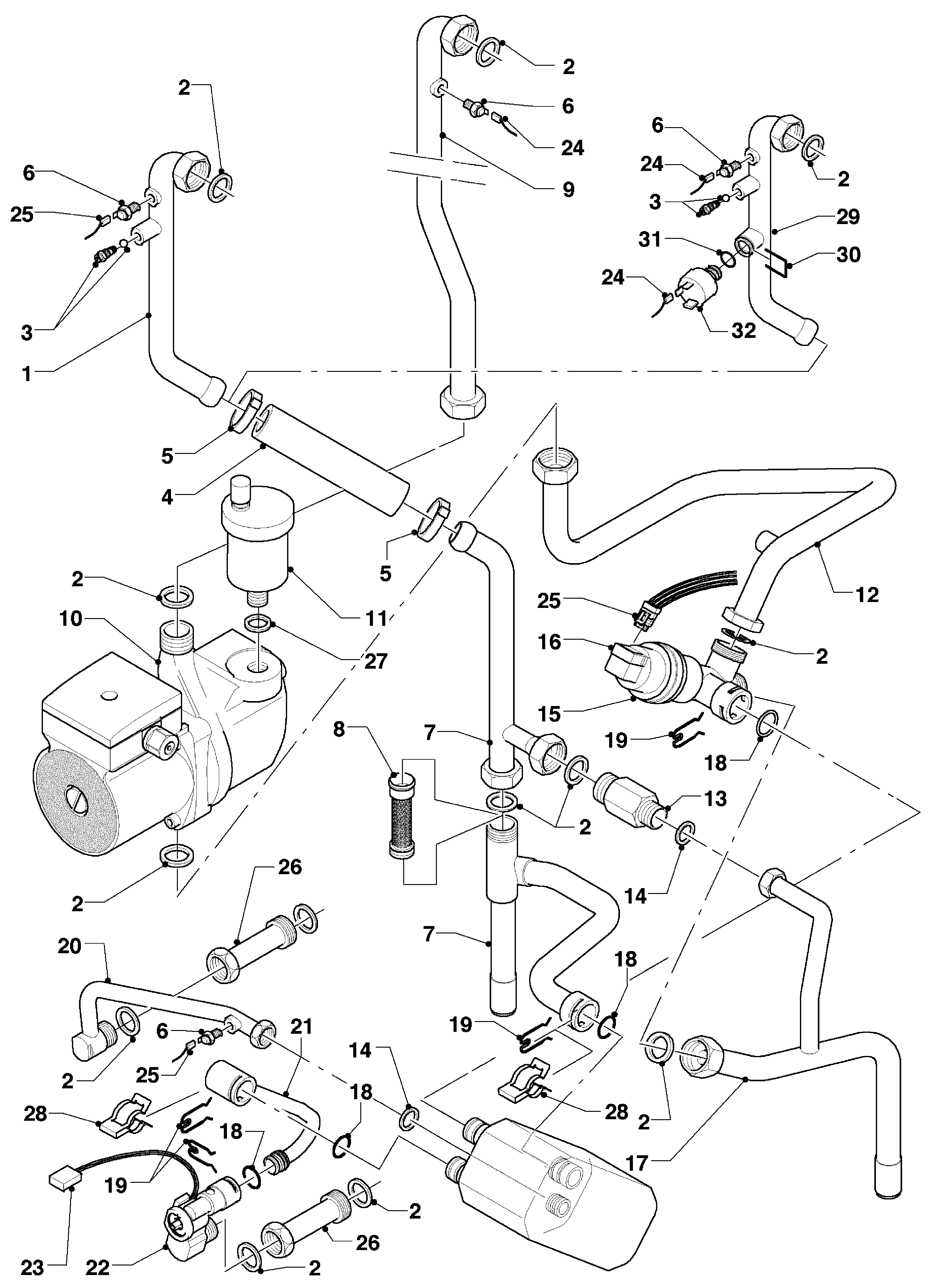

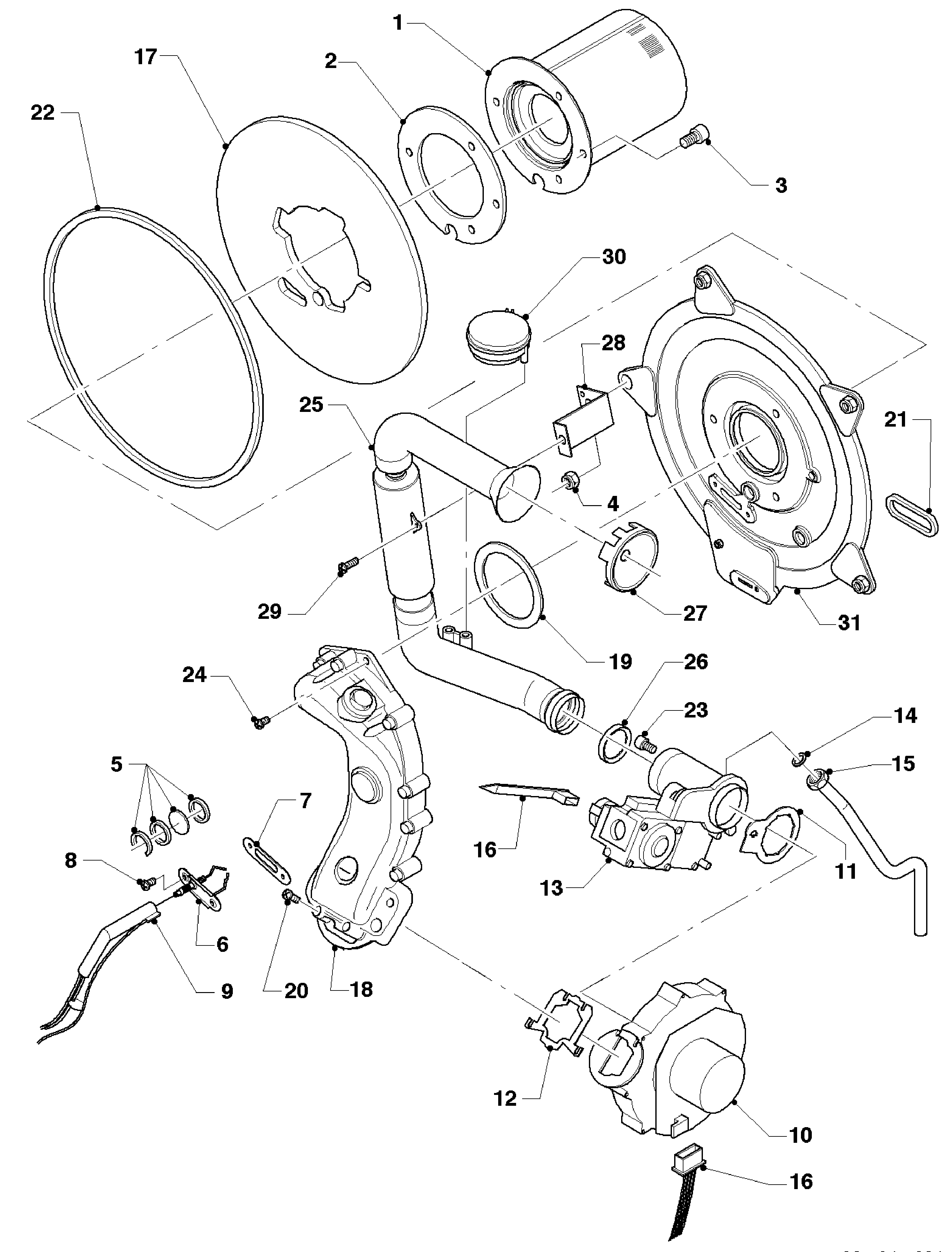

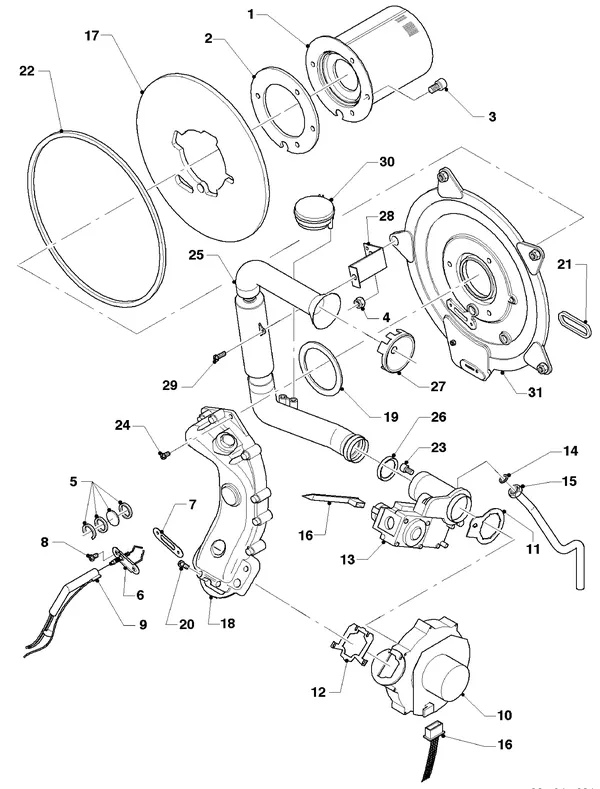

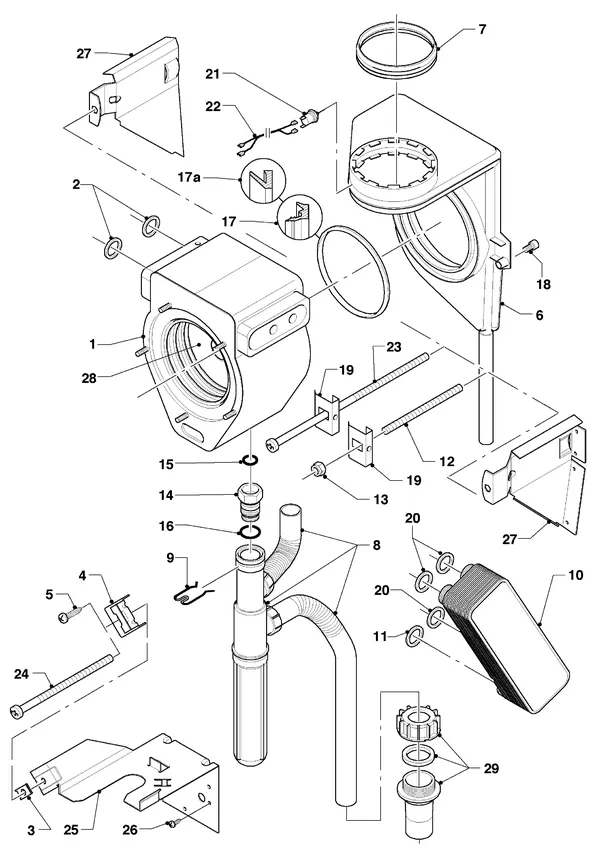

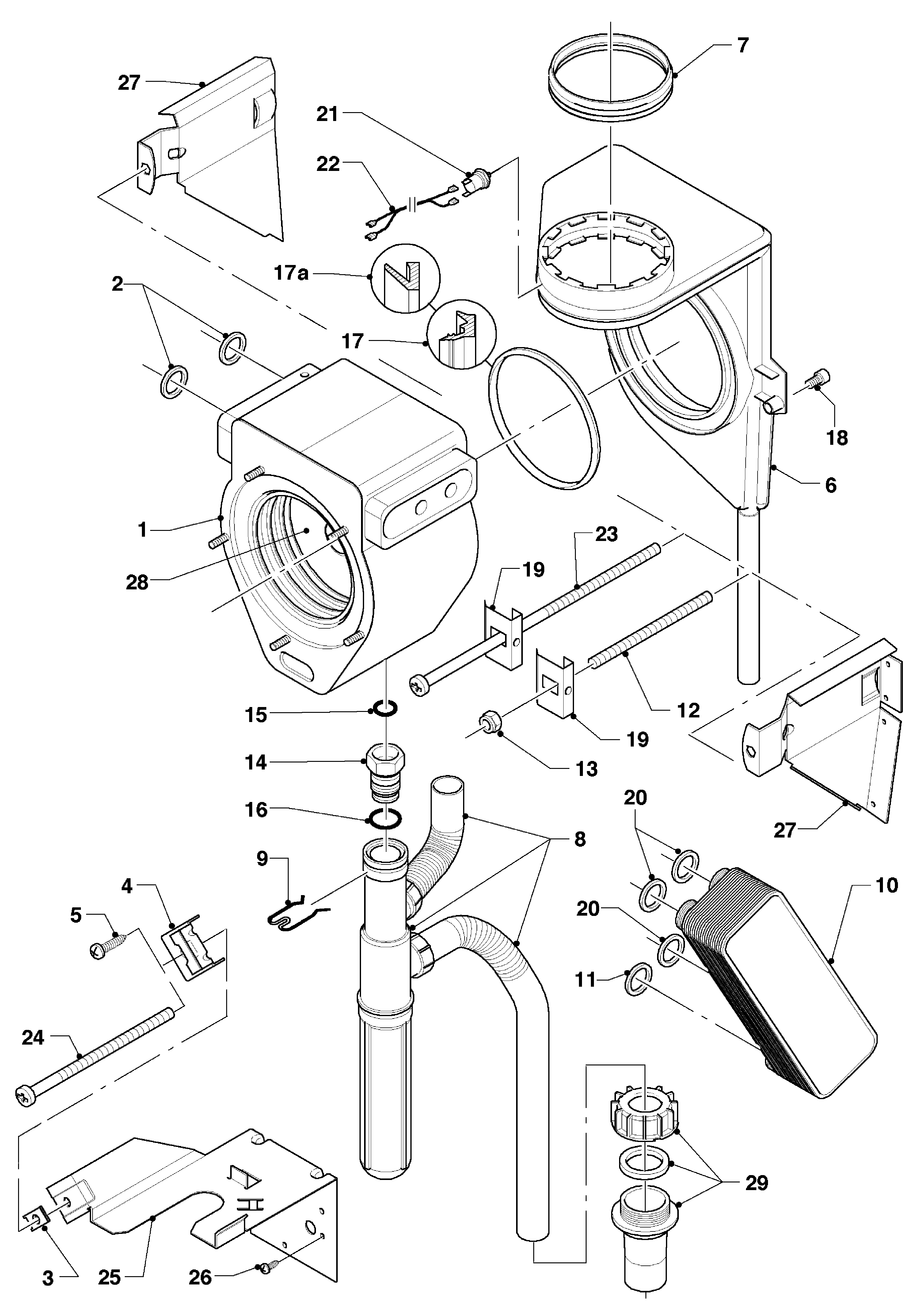

Exploded views of the Vaillant hrEXCLUSIEF VHR 35 C
Click an exploded view to enlarge it. The position numbers are shown next to each part.
Fault code on your Vaillant hrEXCLUSIEF VHR 35 C? This is the part type involved
Common Vaillant fault codes and the part type that is usually the cause; the parts for this model are listed above. All codes explained: Vaillant fault codes.
| Code | What is going on | Part type |
|---|---|---|
| F.00 | The flow temperature sensor signal is interrupted. | Sensors |
| F.01 | Ignition fault (no flame detection), no gas / gas tap closed, no ignition | Ignition and ionisation |
| F.01 | The return temperature sensor signal is interrupted. | Sensors |
| F.02 | The hot water connection temperature sensor signal is interrupted. | Sensors |
| F.022 | Pressure loss in the heating circuit due to a leak or air lock, heating circuit pressure sensor defective | Sensors |
| F.03 | The cylinder temperature sensor signal is interrupted. | Sensors |
For guidance only: the same code can have a different cause depending on the situation.
Other Vaillant boilers
- Vaillant Combi boiler Turbo CWK 24-12 128
- Vaillant Combi boiler Turbo CWK 24-12 E SO28 136
- Vaillant Combi boiler Turbo CWK 24-12 SO28 127
- Vaillant Combi boiler Turbo CWK 245/3 81
- Vaillant Combi boiler Turbo CWK 245/3 R1 81
- Vaillant Combi boiler Turbo CWK 245/4-5 115
- Vaillant Combi boiler Turbo CWK 245/4-5 R3 115
- Vaillant Combi boiler Turbo CWK 245/4-5 R4 115
- Vaillant Combi boiler Turbo VCW 182 E 139
- Vaillant Combi boiler Turbo VCW 185 E 133
- Vaillant Combi boiler Turbo VCW 242 E 138
- Vaillant Combi boiler Turbo VCW 242 E S028 127
Frequently asked questions
Which parts are available for the Vaillant hrEXCLUSIEF VHR 35 C?
The catalogue lists 88 original parts for the Vaillant hrEXCLUSIEF VHR 35 C, including fans, sensors, temperature sensors and NTC sensors, pressure switches and differential pressure switches. All parts are listed above, grouped by type, with part number and price.
How much does a fan for the Vaillant hrEXCLUSIEF VHR 35 C cost?
The fans for this model cost €399.88 incl. VAT. Check the table "Fans" above for the right part number.
Are the parts for the Vaillant hrEXCLUSIEF VHR 35 C in stock?
35 of the 88 parts are in stock; shipping to EU countries from €12.95 (€16.95 for more distant countries), usually 3–5 working days. Parts marked "Made-to-order item" are ordered specially for you; the delivery time is shown on the product page.
How do I know which part I need for the Vaillant hrEXCLUSIEF VHR 35 C?
Search for the part by part number or use the exploded view of the Vaillant hrEXCLUSIEF VHR 35 C.
Are these original Vaillant parts?
Yes. All 88 parts in this list are original manufacturer parts for the Vaillant hrEXCLUSIEF VHR 35 C, supplied through the official technical wholesale channel and with the correct part number.
How much do parts for the Vaillant hrEXCLUSIEF VHR 35 C cost?
Parts for the Vaillant hrEXCLUSIEF VHR 35 C range from €5.89 to €1,057.20 incl. VAT. The exact price of each part is shown in the tables above.
Can I return a part?
As a consumer you have a 14-day right of withdrawal. You may unpack and inspect the part; do not install or connect it. For a part that has been installed, connected or damaged we deduct the diminished value, up to the full price for circuit boards.
