Vaillant hrEXCLUSIEF VHR 65 S spare parts

In brief

Instalpunt supplies 98 original parts for the Vaillant hrEXCLUSIEF VHR 65 S, including fans, temperature sensors and NTC sensors, pressure switches and differential pressure switches. Order online.

98Spare parts
26In stock
€6.21From
22Types
availableExploded view

Looking for parts for the Vaillant hrEXCLUSIEF VHR 65 S (boiler)? Below are all 98 original parts, grouped by part type, with the matching exploded view. Choose a type to jump straight to the right table.

View the interactive exploded view →

Quick left to the right part for the Vaillant hrEXCLUSIEF VHR 65 S

Part	From	Delivery
Fan Vaillant fan VHR65 for ecoTEC plus	€592.95	In stock
Ignition part Vaillant ignition electrode VHR 1018-2224-283545 for ecoTEC plus	€37.95	In stock
Temperature sensor Vaillant NTC sensor VC/W T3110-282VU/WVHR	€48.95	In stock
Display Vaillant knob grey 3 pcs VC/W254-255/3CWK245/3VHR45	€38.95	In stock

Prices incl. VAT, taken directly from our checkout. Below is the complete parts list for this model.

Installer or self-employed engineer? Create a business account: prices excl. VAT and invoices in your company name.

Fans for the Vaillant hrEXCLUSIEF VHR 65 S (1) all Vaillant fans →

Part	Item no. / mfr. no.	Price	Stock
Vaillant fan VHR65 for ecoTEC plus	8051695 Mfr. no. 180901	€592.95	In stock	View & order

Temperature sensors and NTC sensors for the Vaillant hrEXCLUSIEF VHR 65 S (1) all Vaillant temperature sensors and NTC sensors →

Part	Item no. / mfr. no.	Price	Stock
Vaillant NTC sensor VC/W T3110-282VU/WVHR	8052090 Mfr. no. 252805	€48.95	In stock	View & order

Pressure switches and differential pressure switches for the Vaillant hrEXCLUSIEF VHR 65 S (2) all Vaillant pressure switches and differential pressure switches →

Part	Item no. / mfr. no.	Price	Stock
Vaillant pressure switch VCW254-255/3CWK 245/3 VHR 45	8056587 Mfr. no. 712087	€51.95	In stock	View & order
Vaillant differential pressure switch for hrEXCLUSIEF VHR 65 S 180927	8051682 Mfr. no. 180927	€202.95	Made-to-order item	View & order

Pumps for the Vaillant hrEXCLUSIEF VHR 65 S (1) all Vaillant pumps →

Part	Item no. / mfr. no.	Price	Stock
Vaillant pump for ecoTEC plus (e.g. ecoTEC plus VHR 65/4 S A) 0020211454	8054648 Mfr. no. 0020211454	€413.95	Made-to-order item	View & order

Heat exchangers for the Vaillant hrEXCLUSIEF VHR 65 S (1) all Vaillant heat exchangers →

Part	Item no. / mfr. no.	Price	Stock
Vaillant heat exchanger for ecoTEC plus (e.g. ecoTEC plus VHR 65/4 S A) 180912	8054406 Mfr. no. 180912	€1,556.95	Made-to-order item	View & order

Gas valves and gas control for the Vaillant hrEXCLUSIEF VHR 65 S (3) all Vaillant gas valves and gas control →

Part	Item no. / mfr. no.	Price	Stock
Vaillant concentric gas connection	8051673 Mfr. no. 180921	€161.95	In stock	View & order
Vaillant gas valve complete for ecoTEC plus	8051688 Mfr. no. 180930	€298.95	In stock	View & order
Vaillant gas mixing tube	8051683 Mfr. no. 180908	€222.95	Made-to-order item	View & order

PCBs and controls for the Vaillant hrEXCLUSIEF VHR 65 S (2) all Vaillant PCBs and controls →

Part	Item no. / mfr. no.	Price	Stock
Vaillant PCB complete	8051689 Mfr. no. 193546	€357.95	Made-to-order item	View & order
Vaillant controller protection grey	8050527 Mfr. no. 0020130491	€25.95	Made-to-order item	View & order

Ignition and ionisation for the Vaillant hrEXCLUSIEF VHR 65 S (2) all Vaillant ignition and ionisation →

Part	Item no. / mfr. no.	Price	Stock
Vaillant ignition electrode VHR 1018-2224-283545 for ecoTEC plus	8051128 Mfr. no. 090709	€37.95	In stock	View & order
Vaillant ignition cable VHR3545	8057015 Mfr. no. 091551	€58.95	Made-to-order item	View & order

Siphons and condensate drains for the Vaillant hrEXCLUSIEF VHR 65 S (1) all Vaillant siphons and condensate drains →

Part	Item no. / mfr. no.	Price	Stock
Vaillant siphon complete for ecoTEC plus	8051657 Mfr. no. 180914	€68.95	Made-to-order item	View & order

Burners for the Vaillant hrEXCLUSIEF VHR 65 S (2) all Vaillant burners →

Part	Item no. / mfr. no.	Price	Stock
Vaillant burner for ecoTEC plus (e.g. ecoTEC plus VHR 65/4 S A) 180900	8051678 Mfr. no. 180900	€347.95	Made-to-order item	View & order
Vaillant burner plate for e.g. ecoTEC plus VHR 65/4 S A 180903	8051687 Mfr. no. 180903	€399.95	Made-to-order item	View & order

Displays and controls for the Vaillant hrEXCLUSIEF VHR 65 S (2) all Vaillant displays and controls →

Part	Item no. / mfr. no.	Price	Stock
Vaillant knob grey 3 pcs VC/W254-255/3CWK245/3VHR45	8056624 Mfr. no. 114288	€38.95	In stock	View & order
Vaillant PCB VC/W254-255/3 VHR 3545	8056585 Mfr. no. 130822	€95.95	Made-to-order item	View & order

Filters for the Vaillant hrEXCLUSIEF VHR 65 S (1) all Vaillant filters →

Part	Item no. / mfr. no.	Price	Stock
Vaillant filter for e.g. ecoTEC plus VHR 45/4 S A 0020045974	8059847 Mfr. no. 0020045974	€51.95	Made-to-order item	View & order

Valves for the Vaillant hrEXCLUSIEF VHR 65 S (3) all Vaillant valves →

Part	Item no. / mfr. no.	Price	Stock
Vaillant automatic air vent	8050850 Mfr. no. 061707	€38.95	In stock	View & order
Vaillant drain valve VHR4565	8058081 Mfr. no. 106350	€44.95	Made-to-order item	View & order
Vaillant valve VHR354565	8057749 Mfr. no. 078925	€106.95	Made-to-order item	View & order

Pressure gauges for the Vaillant hrEXCLUSIEF VHR 65 S (1) all Vaillant pressure gauges →

Part	Item no. / mfr. no.	Price	Stock
Vaillant pressure gauge VHR18243545 after 2005 254-255/3CWK 245/3	8057017 Mfr. no. 101271	€67.95	Made-to-order item	View & order

Electrical parts for the Vaillant hrEXCLUSIEF VHR 65 S (4) all Vaillant electrical parts →

Part	Item no. / mfr. no.	Price	Stock
Vaillant mains lead	8057841 Mfr. no. 081232	€55.95	Made-to-order item	View & order
Vaillant control box complete VHR3545	8058689 Mfr. no. 295248	€202.95	Made-to-order item	View & order
Vaillant strain relief	8051468 Mfr. no. 078533	€44.95	Made-to-order item	View & order
Vaillant fuse 40at 10 pcs VHR10 to 45 for ecoTEC plus	8058553 Mfr. no. 251957	€28.95	Made-to-order item	View & order

Cables and wiring harnesses for the Vaillant hrEXCLUSIEF VHR 65 S (3) all Vaillant cables and wiring harnesses →

Part	Item no. / mfr. no.	Price	Stock
Vaillant wiring harness for hrEXCLUSIEF VHR 65 S 180906	8051671 Mfr. no. 180906	€116.95	Made-to-order item	View & order
Vaillant wiring harness for hrEXCLUSIEF VHR 65 S 180907	8051658 Mfr. no. 180907	€85.95	Made-to-order item	View & order
Vaillant wiring harness for hrEXCLUSIEF VHR 65 S 180909	8051554 Mfr. no. 180909	€29.95	Made-to-order item	View & order

Gasket sets for the Vaillant hrEXCLUSIEF VHR 65 S (2) all Vaillant gasket sets →

Part	Item no. / mfr. no.	Price	Stock
Vaillant burner plate gasket set for ecoTEC plus	8051546 Mfr. no. 180904	€23.95	In stock	View & order
Vaillant gasket set for ecoTEC plus	8051555 Mfr. no. 981051	€49.95	Made-to-order item	View & order

Gaskets and seals for the Vaillant hrEXCLUSIEF VHR 65 S (20) all Vaillant gaskets and seals →

Part	Item no. / mfr. no.	Price	Stock
Vaillant ignition pin gasket VHR for ecoTEC plus and ecoTEC pro etc.	8052535 Mfr. no. 981330	€14.95	In stock	View & order
Vaillant O-ring siphon cap 5 pcs VHR24-28/3 for ecoTEC plus and ecoTEC pro etc.	8058984 Mfr. no. 0020077919	€24.95	In stock	View & order
Vaillant gasket gas valve/fan VHR1018-2224-28SC3545 for ecoTEC plus	8052557 Mfr. no. 981104	€18.95	In stock	View & order
Vaillant burner gasket 102 x 59 x 1 VHR1018-2224-28SC3545 for ecoTEC plus and ecoTEC pro etc.	8054355 Mfr. no. 981103	€11.95	In stock	View & order
Vaillant gasket 3/4" (10 pcs) for ecoTEC plus and ecoTEC pro etc.	8052292 Mfr. no. 981140	€15.95	In stock	View & order
Vaillant lip ring 80mm VHR354565	8057020 Mfr. no. 981227	€18.45	In stock	View & order
Vaillant gasket 1/2" (10 pcs) for ecoTEC plus and ecoTEC pro etc.	8057027 Mfr. no. 981142	€14.95	In stock	View & order
Vaillant O-ring R 7x15 (10 pcs)	8057040 Mfr. no. 981155	€14.95	In stock	View & order
Vaillant O-ring (10 pcs) for e.g. hrSOLIDE VHR 24-28 C 981163	8057046 Mfr. no. 981163	€14.95	In stock	View & order
Vaillant burner flange seal (ecoTEC plus)	8056919 Mfr. no. 981333	€11.95	In stock	View & order
Vaillant gasket ring 10 pcs for ecoTEC plus (e.g. hrSOLIDE VHR 24-28 C) 981158	8057156 Mfr. no. 981158	€22.95	Made-to-order item	View & order
Vaillant gasket (10 pcs) for e.g. hrEXCLUSIEF VHR 35 S 981154	8057039 Mfr. no. 981154	€22.95	Made-to-order item	View & order
Vaillant lip ring air intake pipe VHR1018-2224-28SC3545	8057024 Mfr. no. 981111	€11.95	In stock	View & order
Vaillant gasket ring 10 pcs for e.g. aguaFLOW VPM 20/25/2W 0020162577	90170057 Mfr. no. 0020162577	€29.95	Made-to-order item	View & order
Vaillant O-ring for e.g. ecoTEC plus VHR 45/4 S A 0020045975	8059669 Mfr. no. 0020045975	€41.95	Made-to-order item	View & order
Vaillant sealing ring 10 pcs for ecoTEC plus	8051545 Mfr. no. 180918	€22.95	Made-to-order item	View & order
Vaillant sealing ring VHR4565s for ecoTEC plus	8058891 Mfr. no. 981311	€33.95	Made-to-order item	View & order
Vaillant sealing ring (10 pcs) VHR4565S for ecoTEC plus	8058890 Mfr. no. 981272	€28.95	Made-to-order item	View & order
Vaillant sealing ring complete for ecoTEC plus	8051559 Mfr. no. 180920	€48.95	Made-to-order item	View & order
Vaillant sealing ring for ecoTEC plus	8058841 Mfr. no. 980270	€22.95	Made-to-order item	View & order

Pipes, tubes and hoses for the Vaillant hrEXCLUSIEF VHR 65 S (16) all Vaillant pipes, tubes and hoses →

Part	Item no. / mfr. no.	Price	Stock
Vaillant air vent nipple	8051596 Mfr. no. 140015	€22.95	Made-to-order item	View & order
Vaillant adapter piece for hrEXCLUSIEF VHR 65 S 0020038598	8059815 Mfr. no. 0020038598	€59.95	Made-to-order item	View & order
Vaillant gas pipe for e.g. ecoTEC plus VHR 65/4 S A 0020046760	8053783 Mfr. no. 0020046760	€283.95	Made-to-order item	View & order
Vaillant sleeve 2 pcs	8051659 Mfr. no. 180917	€85.95	Made-to-order item	View & order
Vaillant compression fitting for hrEXCLUSIEF VHR 65 S 0020012126	8059732 Mfr. no. 0020012126	€54.95	Made-to-order item	View & order
Vaillant gas coupling 1"	8050990 Mfr. no. 080075	€52.95	Made-to-order item	View & order
Vaillant pipe complete for hrEXCLUSIEF VHR 65 S 180922	8051679 Mfr. no. 180922	€262.95	Not available	View & order
Vaillant pipe complete for hrEXCLUSIEF VHR 65 S 193541	8051676 Mfr. no. 193541	€139.95	Made-to-order item	View & order
Vaillant pipe complete for hrEXCLUSIEF VHR 65 S 193545	8051677 Mfr. no. 193545	€235.95	Made-to-order item	View & order
Vaillant air intake pipe complete	8051654 Mfr. no. 180910	€62.95	Made-to-order item	View & order
Vaillant hose for e.g. ecoTEC plus VHR 65/4 S A 180916	8051548 Mfr. no. 180916	€22.95	Made-to-order item	View & order
Vaillant control line complete for hrEXCLUSIEF VHR 65 S 509229	8051651 Mfr. no. 509229	€59.95	Made-to-order item	View & order
Vaillant control line complete for hrEXCLUSIEF VHR 65 S 509230	8051652 Mfr. no. 509230	€58.95	Made-to-order item	View & order
Vaillant connecting piece for e.g. ecoTEC plus VHR 65/4 S A 180902	8051653 Mfr. no. 180902	€59.95	Made-to-order item	View & order
Vaillant connecting piece complete	8051552 Mfr. no. 509683	€26.95	Made-to-order item	View & order
Vaillant connecting piece for e.g. ecoTEC plus VHR 65/4 S A 0020046759	8059848 Mfr. no. 0020046759	€48.95	Made-to-order item	View & order

Casing and panels for the Vaillant hrEXCLUSIEF VHR 65 S (6) all Vaillant casing and panels →

Part	Item no. / mfr. no.	Price	Stock
Vaillant cap 5 pcs VHR354565	8058292 Mfr. no. 147392	€33.95	In stock	View & order
Vaillant cover for e.g. ecoTEC plus VHR 65/4 S A 0020015445	8053449 Mfr. no. 0020015445	€103.95	Made-to-order item	View & order
Vaillant cap complete for e.g. ecoTEC exclusive VHR NL 35-45/5-7 180915	8051655 Mfr. no. 180915	€66.95	Made-to-order item	View & order
Vaillant cap complete for e.g. uniTOWER Pure VWL 108/7.2 IS 193543	8051556 Mfr. no. 193543	€41.95	Made-to-order item	View & order
Vaillant logo plate VC/W254-255/3 CWK245/3	8057191 Mfr. no. 118096	€44.95	Made-to-order item	View & order
Vaillant casing complete VHR35/45	8057005 Mfr. no. 077399	€357.95	Made-to-order item	View & order

Insulation for the Vaillant hrEXCLUSIEF VHR 65 S (2) all Vaillant insulation →

Part	Item no. / mfr. no.	Price	Stock
Vaillant insulation 16 mm	8059964 Mfr. no. 0020093190	€51.45	In stock	View & order
Vaillant insulation plate	8051558 Mfr. no. 180913	€47.95	In stock	View & order

Fixing material for the Vaillant hrEXCLUSIEF VHR 65 S (18) all Vaillant fixing material →

Part	Item no. / mfr. no.	Price	Stock
Vaillant screw 10 pcs burner VHR Solide for ecoTEC plus and ecoTEC pro etc.	8055903 Mfr. no. 105900	€23.95	In stock	View & order
Vaillant retainer for e.g. hrSOLIDE plus VHR 24-28/3-5 R3 0020107694	8050116 Mfr. no. 0020107694	€26.95	In stock	View & order
Vaillant retaining spring 5 pcs VU/WVC/WVHR254XE	8050032 Mfr. no. 0020107702	€22.95	Made-to-order item	View & order
Vaillant retaining ring VUW VCW254-255/2/3 CWK 245/3 VHR45	8050119 Mfr. no. 0020107709	€10.95	Made-to-order item	View & order
Vaillant hinge VHR3545	8057014 Mfr. no. 088028	€48.95	Made-to-order item	View & order
Vaillant screw 10 pcs VHR354565	8058079 Mfr. no. 105839	€29.95	Made-to-order item	View & order
Vaillant screw complete set 10 pcs	8051549 Mfr. no. 509685	€22.95	Made-to-order item	View & order
Vaillant locking plate VCW180-282E	8050059 Mfr. no. 0020107697	€10.95	Made-to-order item	View & order
Vaillant screw 0020235950, 10 pcs	90170466 Mfr. no. 0020235950	€22.95	Made-to-order item	View & order
Vaillant grommet per 10 pcs for e.g. hrSOLIDE plus VHR 24-28/3-5 R3 509121	8051464 Mfr. no. 509121	€43.95	Made-to-order item	View & order
Vaillant grommet per 10 pcs for e.g. hrSOLIDE plus VHR 24-28/3-5 R3 509120	8051469 Mfr. no. 509120	€48.95	Made-to-order item	View & order
Vaillant suspension bracket VHR354565	8058060 Mfr. no. 103892	€26.95	Made-to-order item	View & order
Vaillant holder for e.g. ecoTEC plus VHR 65/4 S A 180911	8051557 Mfr. no. 180911	€43.95	Made-to-order item	View & order
Vaillant holder for e.g. ecoTEC plus VHR 65/4 S A 180919	8053312 Mfr. no. 180919	€100.95	Made-to-order item	View & order
Vaillant nut 5 pcs for e.g. hrSOLIDE VHR 24-28 C 0020026537	8059506 Mfr. no. 0020026537	€25.95	Made-to-order item	View & order
Vaillant nut 2 pcs	8051553 Mfr. no. 180923	€42.95	Not available	View & order
Vaillant ring 10 pcs for e.g. ecoTEC plus VHR 30-34/5-5 R3 0020135152	8050302 Mfr. no. 0020135152	€21.95	Made-to-order item	View & order
Vaillant extension holder VHR354565	8058054 Mfr. no. 098912	€31.95	Made-to-order item	View & order

Other parts for the Vaillant hrEXCLUSIEF VHR 65 S (4)

Part	Item no. / mfr. no.	Price	Stock
Vaillant spark plug cap	8058980 Mfr. no. 0020075412	€27.95	Made-to-order item	View & order
Vaillant sight glass VHR1018-2224-283545	8057022 Mfr. no. 161245	€16.95	In stock	View & order
Vaillant flow connection pipe complete	8051686 Mfr. no. 193542	€227.95	Made-to-order item	View & order
Vaillant air/dirt separator VHR4565s	8057760 Mfr. no. 0020045973	€348.95	Made-to-order item	View & order

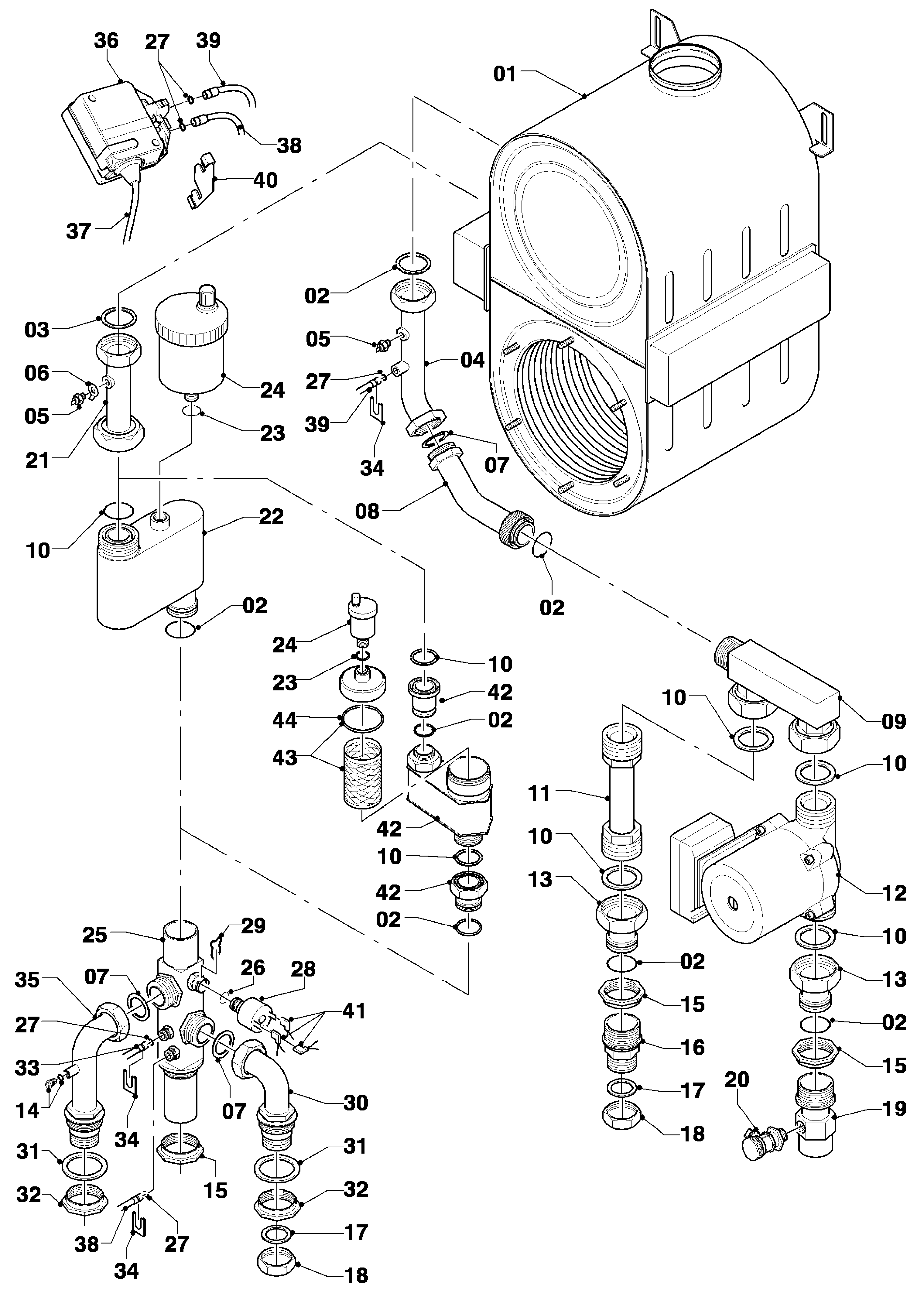

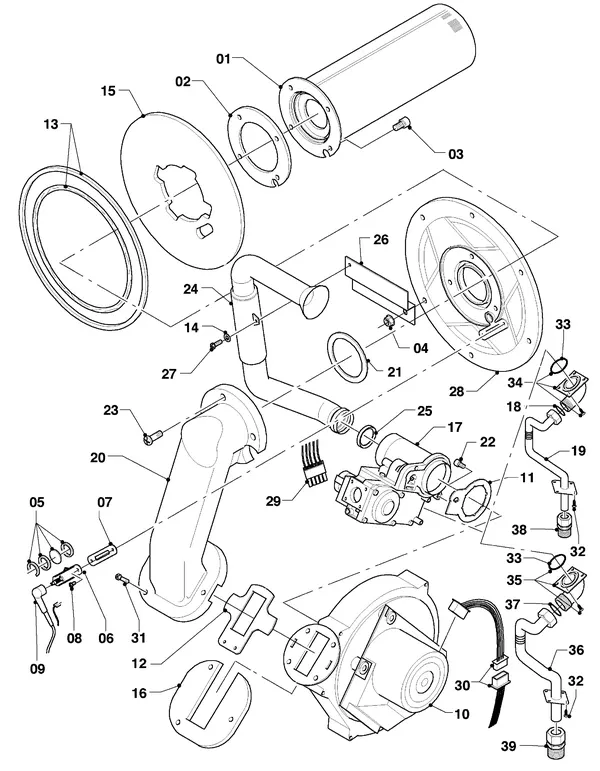

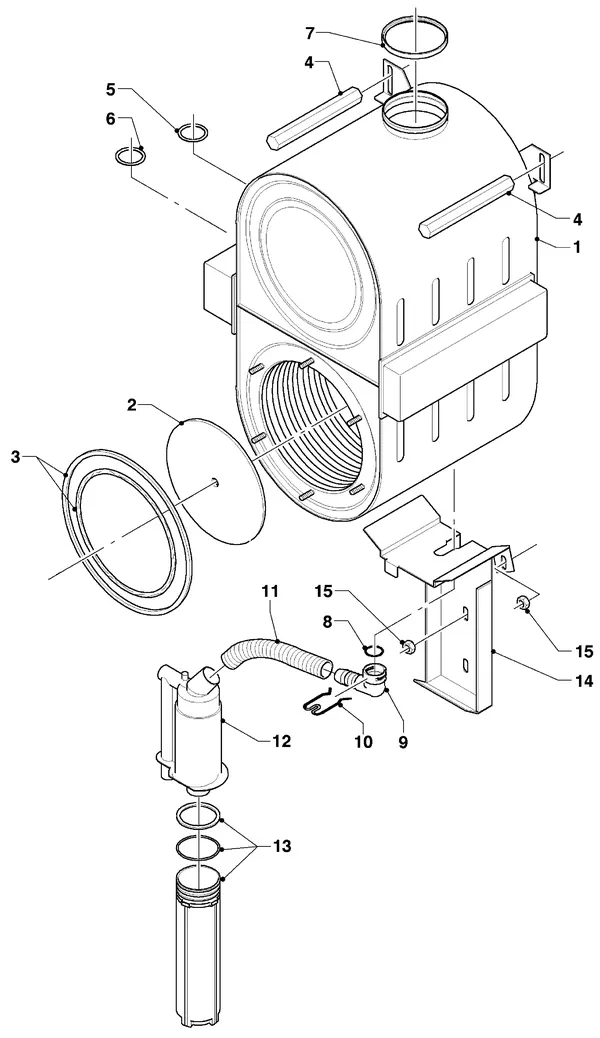

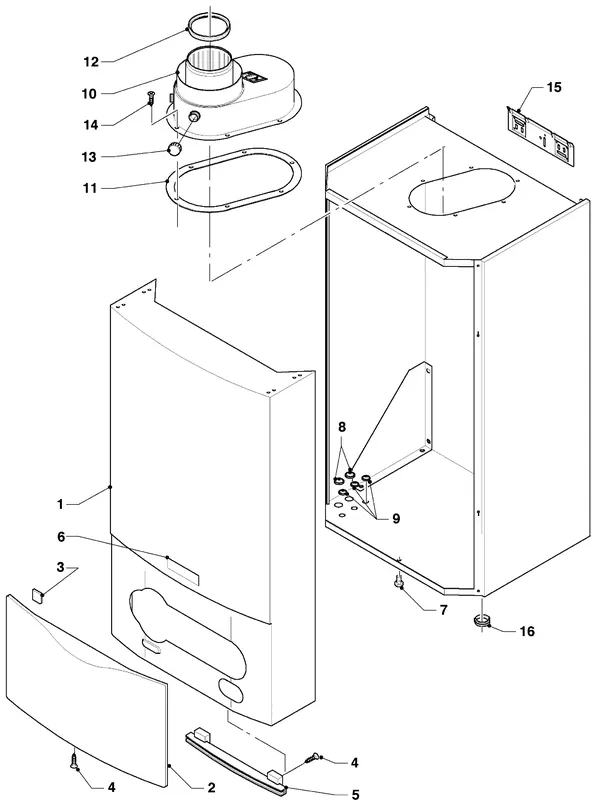

Exploded views of the Vaillant hrEXCLUSIEF VHR 65 S

Click an exploded view to enlarge it. The position numbers are shown next to each part.

Fault code on your Vaillant hrEXCLUSIEF VHR 65 S? This is the part type involved

Common Vaillant fault codes and the part type that is usually the cause; the parts for this model are listed above. All codes explained: Vaillant fault codes.

Code	What is going on	Part type
F.01	Ignition fault (no flame detection), no gas / gas tap closed, no ignition	Ignition and ionisation
F.037	Obstruction in the product's air duct, fan motor defective or not connected, connection between the main PCB and the fan PCB damaged or interrupted	Fans
F.04	Fan fault	Fans
F.042	The product coding resistor is defective or missing, fan motor defective or not connected, plug X25 not connected or connected incorrectly	Fans
F.042	Break in the heat exchanger wiring harness	Heat exchangers
F.05	High-limit fault, flow temperature too high (pump not running, but has voltage)	Pumps

For guidance only: the same code can have a different cause depending on the situation.

Other Vaillant boilers

← All Vaillant parts

Frequently asked questions

Which parts are available for the Vaillant hrEXCLUSIEF VHR 65 S?

The catalogue lists 98 original parts for the Vaillant hrEXCLUSIEF VHR 65 S, including fans, temperature sensors and NTC sensors, pressure switches and differential pressure switches, pumps. All parts are listed above, grouped by type, with part number and price.

How much does a fan for the Vaillant hrEXCLUSIEF VHR 65 S cost?

The fans for this model cost €814.14 incl. VAT. Check the table "Fans" above for the right part number.

Are the parts for the Vaillant hrEXCLUSIEF VHR 65 S in stock?

26 of the 98 parts are in stock; shipping to EU countries from €12.95 (€16.95 for more distant countries), usually 3–5 working days. Parts marked "Made-to-order item" are ordered specially for you; the delivery time is shown on the product page.

How do I know which part I need for the Vaillant hrEXCLUSIEF VHR 65 S?

Search for the part by part number or use the exploded view of the Vaillant hrEXCLUSIEF VHR 65 S.

Are these original Vaillant parts?

Yes. All 98 parts in this list are original manufacturer parts for the Vaillant hrEXCLUSIEF VHR 65 S, supplied through the official technical wholesale channel and with the correct part number.

How much do parts for the Vaillant hrEXCLUSIEF VHR 65 S cost?

Parts for the Vaillant hrEXCLUSIEF VHR 65 S range from €6.21 to €2,049.06 incl. VAT. The exact price of each part is shown in the tables above.

Can I return a part?

As a consumer you have a 14-day right of withdrawal. You may unpack and inspect the part; do not install or connect it. For a part that has been installed, connected or damaged we deduct the diminished value, up to the full price for circuit boards.
