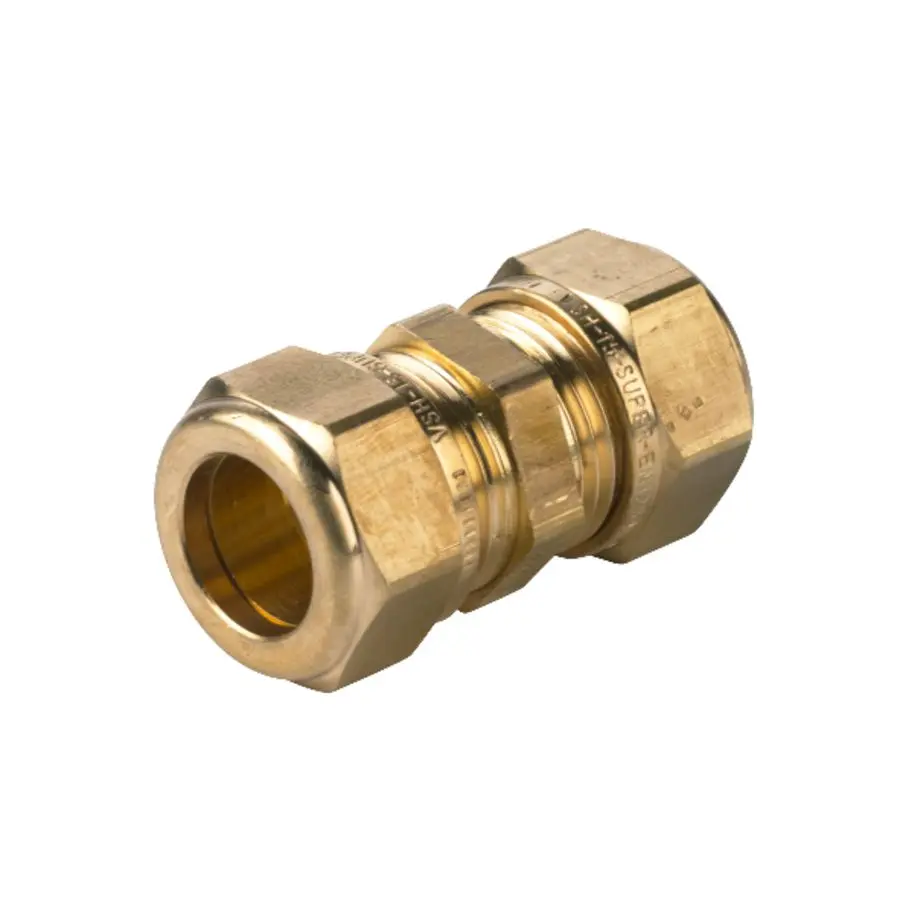

This brass straight compression coupling 22 x 22 mm (straight coupling, 2x compression) joins copper pipes without soldering. The price is per piece; minimum order 2 pieces.
A compression fitting is installed without soldering or pressing: cut the pipe square and deburr it, slide on the nut and olive, push the pipe in up to the stop and tighten the nut. For copper pipe in heating and drinking-water systems. Use a pipe insert on soft or thin-walled pipe.
Specifications
- Version: Straight coupling, 2x compression
- Connection size: 22 x 22 mm
- Material: brass
- Working pressure: max. 10 bar
- Temperature: -35 °C to 200 °C
- Overall length: 32 mm
- Diameter: DN20
- Minimum order: 2 pcs
Image for illustration; the finish and markings on the fitting may differ.
