A.O. Smith BTR 197 spare parts
In brief
Instalpunt supplies 10 original parts for the A.O. Smith BTR 197, including ignition and ionisation, thermostats and controls, anodes. Order online.
- 10Spare parts
- 6In stock
- €36.59From
- 6Types
- availableExploded view

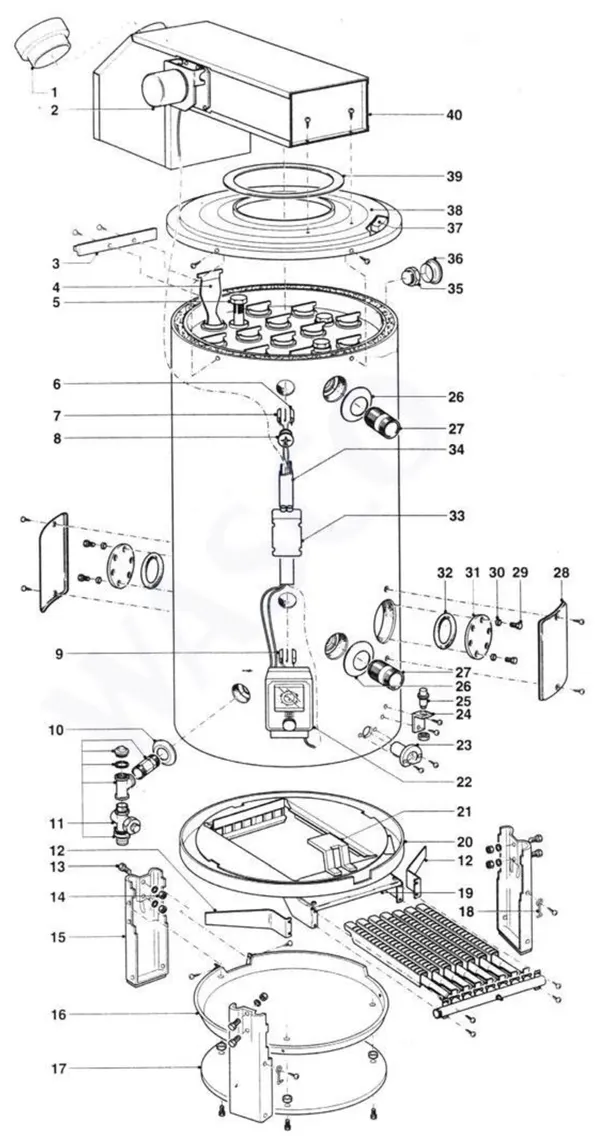

Looking for parts for the A.O. Smith BTR 197 (hot water cylinder)? Below are all 10 original parts, grouped by part type, with the matching exploded view. Choose a type to jump straight to the right table.
View the interactive exploded view →- Ignition and ionisation 1
- Thermostats and controls 3
- Anodes 1
- Motors 1
- Gaskets and seals 3
- Pipes, tubes and hoses 1
Ignition and ionisation for the A.O. Smith BTR 197 (1) all A.O. Smith ignition and ionisation →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| A.O. Smith piezo ignition | 8750160 Mfr. no. 0307596(S) | €59.95 | In stock | View & order |
Thermostats and controls for the A.O. Smith BTR 197 (3) all A.O. Smith thermostats and controls →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| A.O. Smith maximum thermostat 84°C | 8750191 Mfr. no. 0302991(S) | €58.95 | In stock | View & order |
| A.O. Smith control thermostat for e.g. BTE 155 NN 0303941(S) | 8750080 Mfr. no. 0303941(S) | €131.95 | Made-to-order item | View & order |
| A.O. Smith safety thermostat 95° | 8750085 Mfr. no. 0300457(S) | €145.95 | Made-to-order item | View & order |
Anodes for the A.O. Smith BTR 197 (1) all A.O. Smith anodes →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| A.O. Smith anode 3/4" | 8750125 Mfr. no. 0183463039(S) | €47.95 | In stock | View & order |
Motors for the A.O. Smith BTR 197 (1)
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| A.O. Smith flue damper motor separate | 8750317 Mfr. no. 0306648(S) | €972.95 | Made-to-order item | View & order |
Gaskets and seals for the A.O. Smith BTR 197 (3) all A.O. Smith gaskets and seals →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| A.O. Smith O-ring manhole R126x14 | 8750145 Mfr. no. 0304741(S) | €36.95 | In stock | View & order |
| A.O. Smith service gasket manhole | 8750155 Mfr. no. 0301125(S) | €54.95 | In stock | View & order |
| A.O. Smith gasket for e.g. ADM(C) 50 0097329(S) | 8750267 Mfr. no. 0097329(S) | €39.95 | In stock | View & order |
Pipes, tubes and hoses for the A.O. Smith BTR 197 (1) all A.O. Smith pipes, tubes and hoses →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| A.O. Smith dip tube 1/2 | 8750216 Mfr. no. 0301020(S) | €55.95 | Made-to-order item | View & order |
Fault code on your A.O. Smith BTR 197? This is the part type involved
Common A.O. Smith fault codes and the part type that is usually the cause; the parts for this model are listed above. All codes explained: A.O. Smith fault codes.
| Code | What is going on | Part type |
|---|---|---|
| 0A5 | The thermal fuse has interrupted the control circuit. | Thermostats and controls |
| F01 | Control fault: Live and neutral were swapped during connection | Ignition and ionisation |
| F02 | Defective motor and/or rotor | Motors |
| F04 | Three unsuccessful ignition attempts: fault in the glow igniter circuit | Ignition and ionisation |
| F06 | Contact with a metal surface due to a broken cable or deformed ionisation pin. | Ignition and ionisation |
| F08 | Ionisation fault: defective safety relay | Ignition and ionisation |
For guidance only: the same code can have a different cause depending on the situation.
Other A.O. Smith hot water cylinders
- A.O. Smith ADM(C) 115 17
- A.O. Smith ADM(C) 135 17
- A.O. Smith ADM(C) 40 21
- A.O. Smith ADM(C) 50 21
- A.O. Smith ADM(C) 60 16
- A.O. Smith ADM(C) 80 21
- A.O. Smith ADM(C) 90 20
- A.O. Smith ADMR 115 19
- A.O. Smith ADMR 135 19
- A.O. Smith ADMR 40 32
- A.O. Smith ADMR 50 24
- A.O. Smith ADMR 60 22
Frequently asked questions
Which parts are available for the A.O. Smith BTR 197?
The catalogue lists 10 original parts for the A.O. Smith BTR 197, including ignition and ionisation, thermostats and controls, anodes, motors. All parts are listed above, grouped by type, with part number and price.
How much does an ignition part for the A.O. Smith BTR 197 cost?
The ignition and ionisation for this model cost €62.73 incl. VAT. Check the table "Ignition and ionisation" above for the right part number.
Are the parts for the A.O. Smith BTR 197 in stock?
6 of the 10 parts are in stock; shipping to EU countries from €12.95 (€16.95 for more distant countries), usually 3–5 working days. Parts marked "Made-to-order item" are ordered specially for you; the delivery time is shown on the product page.
How do I know which part I need for the A.O. Smith BTR 197?
Search for the part by part number or use the exploded view of the A.O. Smith BTR 197.
Are these original A.O. Smith parts?
Yes. All 10 parts in this list are original manufacturer parts for the A.O. Smith BTR 197, supplied through the official technical wholesale channel and with the correct part number.
How much do parts for the A.O. Smith BTR 197 cost?
Parts for the A.O. Smith BTR 197 range from €36.59 to €1,134.30 incl. VAT. The exact price of each part is shown in the tables above.
Can I return a part?
As a consumer you have a 14-day right of withdrawal. You may unpack and inspect the part; do not install or connect it. For a part that has been installed, connected or damaged we deduct the diminished value, up to the full price for circuit boards.
