A.O. Smith Tune 250 spare parts
In brief
Instalpunt supplies 9 original parts for the A.O. Smith Tune 250, including ignition and ionisation, thermostats and controls, burners. Order online.
- 9Spare parts
- 5In stock
- €7.84From
- 6Types
- availableExploded view
Looking for parts for the A.O. Smith Tune 250 (hot water cylinder)? Below are all 9 original parts, grouped by part type, with the matching exploded view. Choose a type to jump straight to the right table.

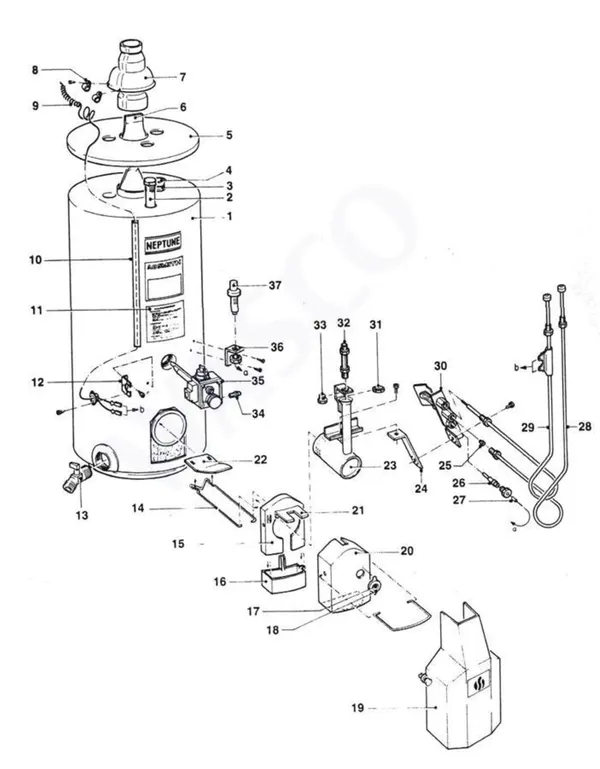

View the interactive exploded view →- Ignition and ionisation 3
- Thermostats and controls 1
- Burners 1
- Valves 1
- Anodes 1
- Casing and panels 1
- Other parts 1
Ignition and ionisation for the A.O. Smith Tune 250 (3) all A.O. Smith ignition and ionisation →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| A.O. Smith piezo ignition | 8750160 Mfr. no. 0307596(S) | €59.95 | In stock | View & order |
| A.O. Smith ignition cable | 8750060 Mfr. no. 0303927(S) | €11.95 | In stock | View & order |
| A.O. Smith ionisation electrode | 8750056 Mfr. no. 0071608(S) | €21.95 | In stock | View & order |
Thermostats and controls for the A.O. Smith Tune 250 (1) all A.O. Smith thermostats and controls →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| A.O. Smith thermocouple 500 mm | 8750075 Mfr. no. 0071872(S) | €29.95 | In stock | View & order |
Burners for the A.O. Smith Tune 250 (1) all A.O. Smith burners →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| A.O. Smith pilot flame | 8750276 Mfr. no. 0071636001(S) | €48.95 | Made-to-order item | View & order |
Valves for the A.O. Smith Tune 250 (1) all A.O. Smith valves →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| A.O. Smith drain cock for e.g. NGT 155 NN 0042037001(S) | 8750110 Mfr. no. 0042037001(S) | €31.95 | Made-to-order item | View & order |
Anodes for the A.O. Smith Tune 250 (1) all A.O. Smith anodes →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| A.O. Smith anode magnesium 750mm | 8750217 Mfr. no. 0304429(S) | €87.95 | Made-to-order item | View & order |
Casing and panels for the A.O. Smith Tune 250 (1) all A.O. Smith casing and panels →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| A.O. Smith protective cap 0071111003(S) | 8750242 Mfr. no. 0071111003(S) | €86.95 | Made-to-order item | View & order |
Other parts for the A.O. Smith Tune 250 (1)
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| A.O. Smith TTB with long sensor | 8750135 Mfr. no. 0071587(S) | €56.95 | In stock | View & order |
Fault code on your A.O. Smith Tune 250? This is the part type involved
Common A.O. Smith fault codes and the part type that is usually the cause; the parts for this model are listed above. All codes explained: A.O. Smith fault codes.
| Code | What is going on | Part type |
|---|---|---|
| 0A5 | The thermal fuse has interrupted the control circuit. | Thermostats and controls |
| Explosive ignition | Poor flame pattern: insufficient air supply | Burners |
| F01 | Control fault: Live and neutral were swapped during connection | Ignition and ionisation |
| F04 | Three unsuccessful ignition attempts: no burner pressure | Burners |
| F04 | Three unsuccessful ignition attempts: fault in the glow igniter circuit | Ignition and ionisation |
| F06 | Contact with a metal surface due to a broken cable or deformed ionisation pin. | Ignition and ionisation |
For guidance only: the same code can have a different cause depending on the situation.
Other A.O. Smith hot water cylinders
- A.O. Smith ADM(C) 115 17
- A.O. Smith ADM(C) 135 17
- A.O. Smith ADM(C) 40 21
- A.O. Smith ADM(C) 50 21
- A.O. Smith ADM(C) 60 16
- A.O. Smith ADM(C) 80 21
- A.O. Smith ADM(C) 90 20
- A.O. Smith ADMR 115 19
- A.O. Smith ADMR 135 19
- A.O. Smith ADMR 40 32
- A.O. Smith ADMR 50 24
- A.O. Smith ADMR 60 22
Frequently asked questions
Which parts are available for the A.O. Smith Tune 250?
The catalogue lists 9 original parts for the A.O. Smith Tune 250, including ignition and ionisation, thermostats and controls, burners, valves. All parts are listed above, grouped by type, with part number and price.
How much does an ignition part for the A.O. Smith Tune 250 cost?
The ignition and ionisation for this model cost between €7.84 and €62.73 incl. VAT. Check the table "Ignition and ionisation" above for the right part number.
Are the parts for the A.O. Smith Tune 250 in stock?
5 of the 9 parts are in stock; shipping to EU countries from €12.95 (€16.95 for more distant countries), usually 3–5 working days. Parts marked "Made-to-order item" are ordered specially for you; the delivery time is shown on the product page.
How do I know which part I need for the A.O. Smith Tune 250?
Search for the part by part number or use the exploded view of the A.O. Smith Tune 250.
Are these original A.O. Smith parts?
Yes. All 9 parts in this list are original manufacturer parts for the A.O. Smith Tune 250, supplied through the official technical wholesale channel and with the correct part number.
How much do parts for the A.O. Smith Tune 250 cost?
Parts for the A.O. Smith Tune 250 range from €7.84 to €70.57 incl. VAT. The exact price of each part is shown in the tables above.
Can I return a part?
As a consumer you have a 14-day right of withdrawal. You may unpack and inspect the part; do not install or connect it. For a part that has been installed, connected or damaged we deduct the diminished value, up to the full price for circuit boards.
