Alpha Innotec HMD 1-R/RE spare parts

In brief

Instalpunt supplies 13 original parts for the Alpha Innotec HMD 1-R/RE, including temperature sensors and NTC sensors, flow sensors and flow switches, pumps. Order online.

13Spare parts
5In stock
€61.42From
8Types

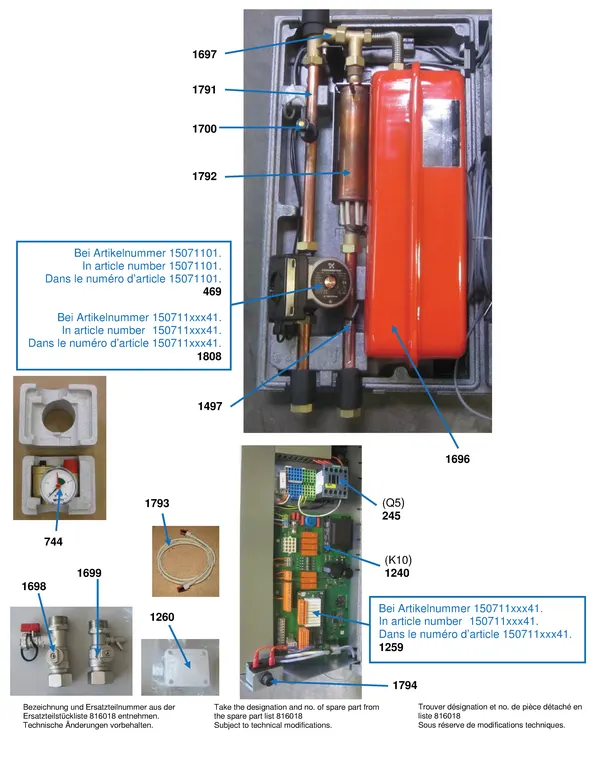

availableExploded view

Looking for parts for the Alpha Innotec HMD 1-R/RE (heat pump)? Below are all 13 original parts, grouped by part type, with the matching exploded view. Choose a type to jump straight to the right table.

View the interactive exploded view →

Quick left to the right part for the Alpha Innotec HMD 1-R/RE

Part	From	Delivery
Temperature sensor Alpha Innotec contact sensor for e.g. WZSV 62K3M AI60057701	€88.95	In stock
Pump Alpha Innotec pump UPM2 15-75 130 0-10V	€392.95	In stock

Prices incl. VAT, taken directly from our checkout. Below is the complete parts list for this model.

Installer or self-employed engineer? Create a business account: prices excl. VAT and invoices in your company name.

Temperature sensors and NTC sensors 1
Flow sensors and flow switches 1
Pumps 1
PCBs and controls 2
Expansion vessels 1
Valves 2
Heating elements 1
Cables and wiring harnesses 1
Other parts 3

Temperature sensors and NTC sensors for the Alpha Innotec HMD 1-R/RE (1) all Alpha Innotec temperature sensors and NTC sensors →

Part	Item no. / mfr. no.	Price	Stock
Alpha Innotec contact sensor for e.g. WZSV 62K3M AI60057701	8651031 Mfr. no. AI60057701	€88.95	In stock	View & order

Flow sensors and flow switches for the Alpha Innotec HMD 1-R/RE (1)

Part	Item no. / mfr. no.	Price	Stock
Alpha Innotec flow switch	8651097 Mfr. no. AI60738701	€147.95	Made-to-order item	View & order

Pumps for the Alpha Innotec HMD 1-R/RE (1) all Alpha Innotec pumps →

Part	Item no. / mfr. no.	Price	Stock
Alpha Innotec pump UPM2 15-75 130 0-10V	8654061 Mfr. no. AIE60790502	€392.95	In stock	View & order

PCBs and controls for the Alpha Innotec HMD 1-R/RE (2) all Alpha Innotec PCBs and controls →

Part	Item no. / mfr. no.	Price	Stock
Alpha Innotec control PCB for Luxtronik LUX II	8651004 Mfr. no. AI60399801	€420.95	In stock	View & order
Alpha Innotec comfort PCB Luxtronic II	8651094 Mfr. no. AI60620801	€472.95	Made-to-order item	View & order

Expansion vessels for the Alpha Innotec HMD 1-R/RE (1)

Part	Item no. / mfr. no.	Price	Stock
Alpha Innotec expansion vessel 12 litre	8651093 Mfr. no. AI60738901	€174.95	In stock	View & order

Valves for the Alpha Innotec HMD 1-R/RE (2) all Alpha Innotec valves →

Part	Item no. / mfr. no.	Price	Stock
Alpha Innotec pump ball valve	8653052 Mfr. no. AI61067901	€71.95	Made-to-order item	View & order
Alpha Innotec pump ball valve with fill/drain cock 1 F x G1 M	8653090 Mfr. no. AI61067801	€89.95	Made-to-order item	View & order

Heating elements for the Alpha Innotec HMD 1-R/RE (1)

Part	Item no. / mfr. no.	Price	Stock
Alpha Innotec instantaneous heating element 6 kW	8651819 Mfr. no. AI61076801	€363.95	Made-to-order item	View & order

Cables and wiring harnesses for the Alpha Innotec HMD 1-R/RE (1)

Part	Item no. / mfr. no.	Price	Stock
Alpha Innotec connection cable 1 metre	8653624 Mfr. no. AI60216901	€102.95	Made-to-order item	View & order

Other parts for the Alpha Innotec HMD 1-R/RE (3)

Part	Item no. / mfr. no.	Price	Stock
Alpha Innotec safety group E60327301	8651008 Mfr. no. AI60327301	€137.95	In stock	View & order
Alpha Innotec mounting compressor relay K1 E-element K5	8651426 Mfr. no. AI60035301	€214.95	Made-to-order item	View & order
Alpha Innotec pipe end 22 x G1 + 3/4 nipple for DFS	8651471 Mfr. no. AI60739701	€132.95	Made-to-order item	View & order

Other Alpha Innotec heat pumps

← All Alpha Innotec parts

Frequently asked questions

Which parts are available for the Alpha Innotec HMD 1-R/RE?

The catalogue lists 13 original parts for the Alpha Innotec HMD 1-R/RE, including temperature sensors and NTC sensors, flow sensors and flow switches, pumps, PCBs and controls. All parts are listed above, grouped by type, with part number and price.

How much does a temperature sensor for the Alpha Innotec HMD 1-R/RE cost?

The temperature sensors and NTC sensors for this model cost €86.25 incl. VAT. Check the table "Temperature sensors and NTC sensors" above for the right part number.

Are the parts for the Alpha Innotec HMD 1-R/RE in stock?

5 of the 13 parts are in stock; shipping to EU countries from €12.95 (€16.95 for more distant countries), usually 3–5 working days. Parts marked "Made-to-order item" are ordered specially for you; the delivery time is shown on the product page.

How do I know which part I need for the Alpha Innotec HMD 1-R/RE?

Search for the part by part number or use the exploded view of the Alpha Innotec HMD 1-R/RE. Is your appliance showing a fault code? The fault code table shows the matching part type.

Are these original Alpha Innotec parts?

Yes. All 13 parts in this list are original manufacturer parts for the Alpha Innotec HMD 1-R/RE, supplied through the official technical wholesale channel and with the correct part number.

How much do parts for the Alpha Innotec HMD 1-R/RE cost?

Parts for the Alpha Innotec HMD 1-R/RE range from €61.42 to €471.75 incl. VAT. The exact price of each part is shown in the tables above.

Can I return a part?

As a consumer you have a 14-day right of withdrawal. You may unpack and inspect the part; do not install or connect it. For a part that has been installed, connected or damaged we deduct the diminished value, up to the full price for circuit boards.
