Alpha Innotec LWD 50-70A-SX spare parts

In brief

Instalpunt supplies 18 original parts for the Alpha Innotec LWD 50-70A-SX, including fans, sensors, temperature sensors and NTC sensors. Order online.

18Spare parts
3In stock
€31.36From
9Types
availableExploded view

Looking for parts for the Alpha Innotec LWD 50-70A-SX (heat pump)? Below are all 18 original parts, grouped by part type, with the matching exploded view. Choose a type to jump straight to the right table.

View the interactive exploded view →

Fans 1
Sensors 1
Temperature sensors and NTC sensors 2
Pressure sensors 2
Pressure switches and differential pressure switches 1
PCBs and controls 1
Expansion valves 1
Electrical parts 1
Casing and panels 3
Other parts 5

Fans for the Alpha Innotec LWD 50-70A-SX (1)

Part	Item no. / mfr. no.	Price	Stock
Alpha Innotec axial fan EC USK	8654740 Mfr. no. AI64002201	€756.95	Made-to-order item	View & order

Sensors for the Alpha Innotec LWD 50-70A-SX (1)

Part	Item no. / mfr. no.	Price	Stock
Alpha Innotec WQ contact sensor 2m	8651064 Mfr. no. AI60675901	€84.95	In stock	View & order

Temperature sensors and NTC sensors for the Alpha Innotec LWD 50-70A-SX (2) all Alpha Innotec temperature sensors and NTC sensors →

Part	Item no. / mfr. no.	Price	Stock
Alpha Innotec contact sensor for e.g. LWD 50-70A-RX AI60741701	8651088 Mfr. no. AI60741701	€92.95	Made-to-order item	View & order
Alpha Innotec contact sensor 3m for e.g. LWD 50-70A-RX AI60676101	8651197 Mfr. no. AI60676101	€110.95	Made-to-order item	View & order

Pressure sensors for the Alpha Innotec LWD 50-70A-SX (2)

Part	Item no. / mfr. no.	Price	Stock
Alpha Innotec pressure sensor 0-10 bar	8651843 Mfr. no. AI60754001	€224.95	Made-to-order item	View & order
Alpha Innotec pressure sensor 0-40 bar	8651844 Mfr. no. AI60745401	€224.95	Made-to-order item	View & order

Pressure switches and differential pressure switches for the Alpha Innotec LWD 50-70A-SX (1)

Part	Item no. / mfr. no.	Price	Stock
Alpha Innotec pressure switch HP limiter	8653119 Mfr. no. AI60757801	€126.95	Made-to-order item	View & order

PCBs and controls for the Alpha Innotec LWD 50-70A-SX (1) all Alpha Innotec PCBs and controls →

Part	Item no. / mfr. no.	Price	Stock
Alpha Innotec main PCB WP-I/0	8652159 Mfr. no. AI61108001	€364.95	In stock	View & order

Expansion valves for the Alpha Innotec LWD 50-70A-SX (1) all Alpha Innotec expansion valves →

Part	Item no. / mfr. no.	Price	Stock
Alpha Innotec expansion valve head	8652022 Mfr. no. AI60765001	€187.95	Made-to-order item	View & order

Electrical parts for the Alpha Innotec LWD 50-70A-SX (1)

Part	Item no. / mfr. no.	Price	Stock
Alpha Innotec coil for 4-way valve	8653854 Mfr. no. AI60741801	€113.95	Made-to-order item	View & order

Casing and panels for the Alpha Innotec LWD 50-70A-SX (3)

Part	Item no. / mfr. no.	Price	Stock
Alpha Innotec sealing plate	8651264 Mfr. no. AI60744901	€47.95	Made-to-order item	View & order
Alpha Innotec contactor DILM-25-10	8651396 Mfr. no. AI61047501	€117.95	Made-to-order item	View & order
Alpha Innotec contactor DILM-9-10	8651399 Mfr. no. AI61128201	€114.95	Made-to-order item	View & order

Other parts for the Alpha Innotec LWD 50-70A-SX (5)

Part	Item no. / mfr. no.	Price	Stock
Alpha Innotec oil crankcase heater for e.g. LWD 50-70A-RX AI60036301	8652587 Mfr. no. AI60036301	€124.95	In stock	View & order
Alpha Innotec protection	8651424 Mfr. no. AI60347401	€323.95	Made-to-order item	View & order
Alpha Innotec mounting compressor relay K1 E-element K5	8651426 Mfr. no. AI60035301	€214.95	Made-to-order item	View & order
Alpha Innotec condensate connection incl. screws	8654086 Mfr. no. AIE60743002	€92.95	Made-to-order item	View & order
Alpha Innotec capacitor for LWD 50-70A-SX AI60777101	8651105 Mfr. no. AI60777101	€300.95	Made-to-order item	View & order

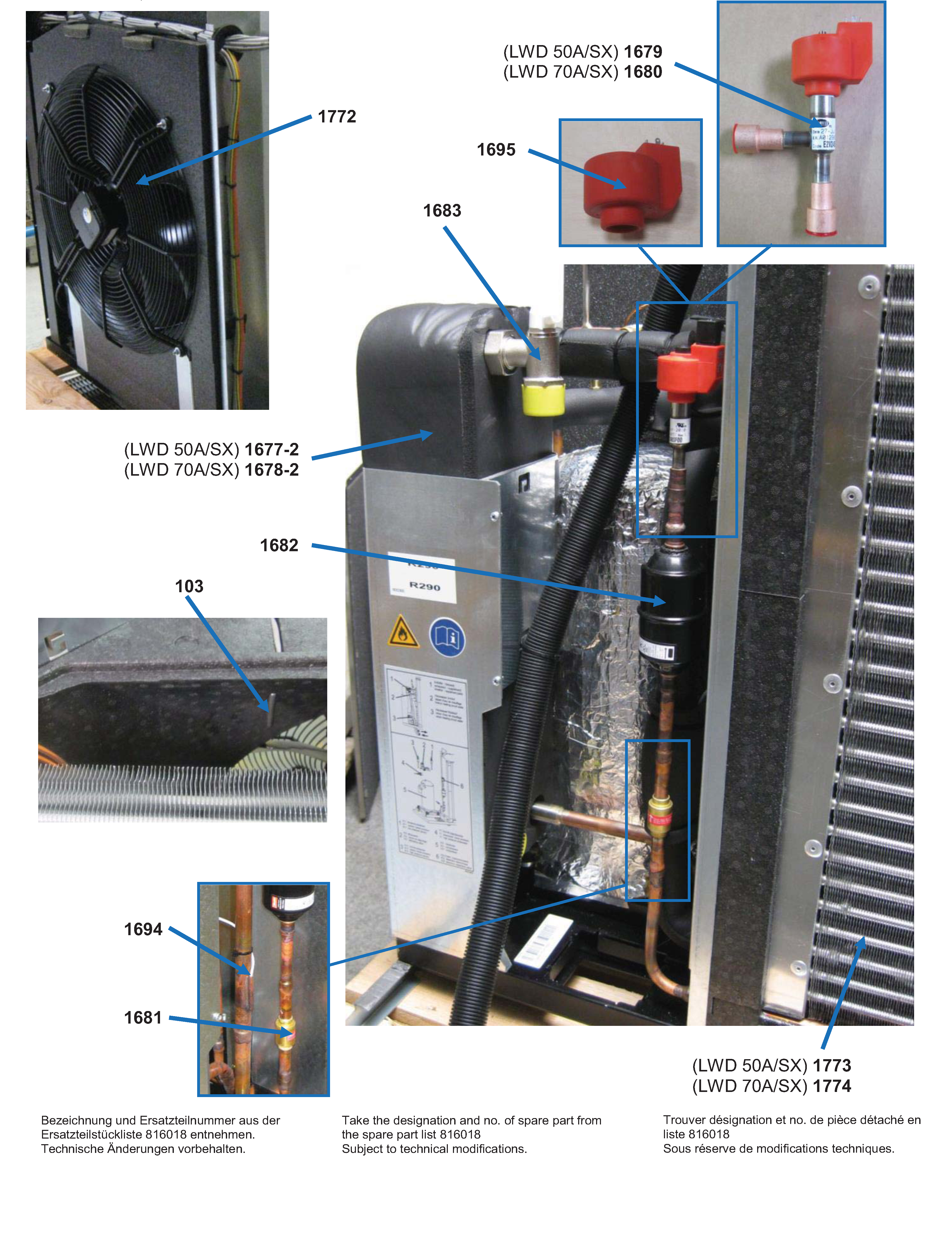

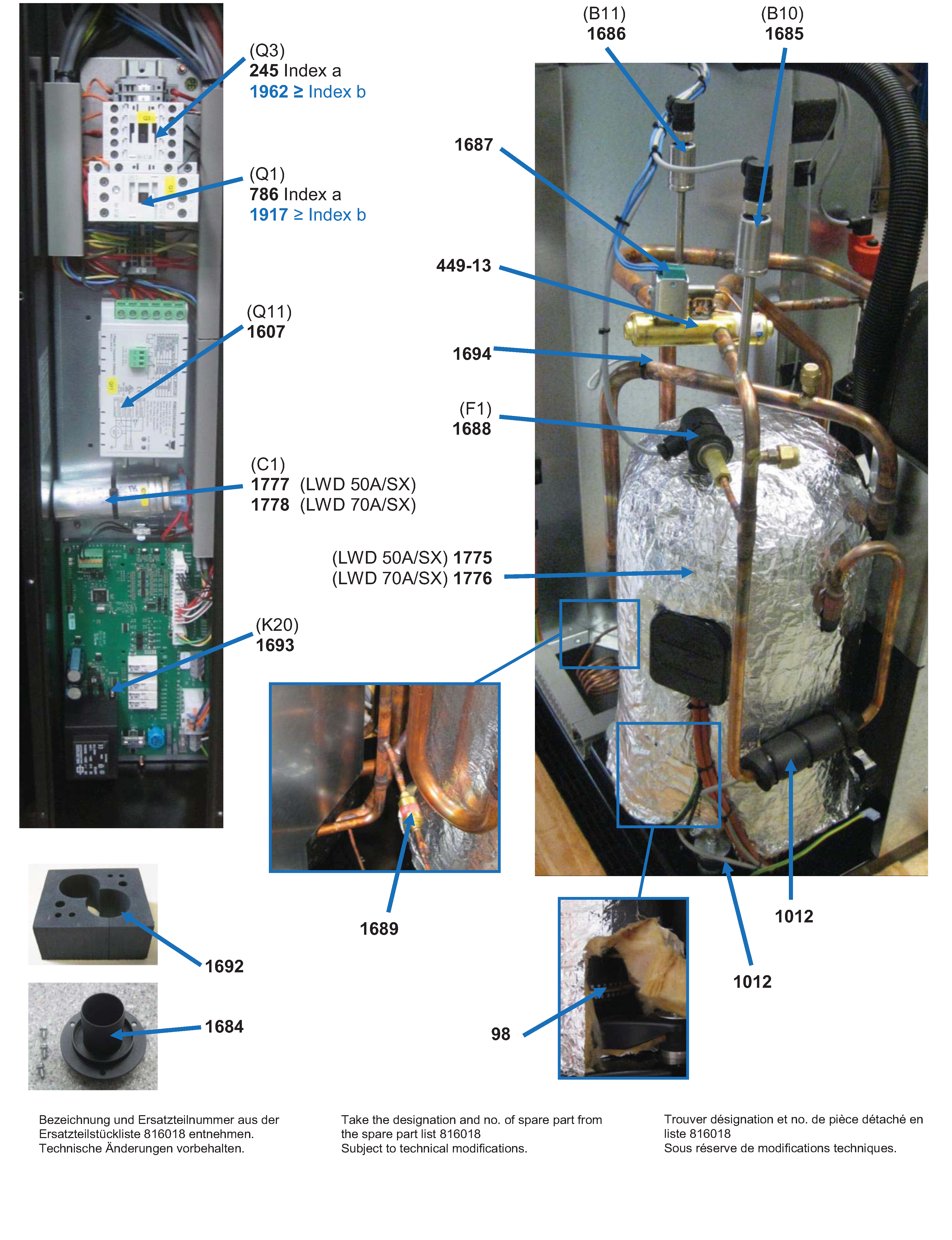

Exploded views of the Alpha Innotec LWD 50-70A-SX

Click an exploded view to enlarge it. The position numbers are shown next to each part.

Other Alpha Innotec heat pumps

← All Alpha Innotec parts

Frequently asked questions

Which parts are available for the Alpha Innotec LWD 50-70A-SX?

The catalogue lists 18 original parts for the Alpha Innotec LWD 50-70A-SX, including fans, sensors, temperature sensors and NTC sensors, pressure sensors. All parts are listed above, grouped by type, with part number and price.

How much does a fan for the Alpha Innotec LWD 50-70A-SX cost?

The fans for this model cost €832.43 incl. VAT. Check the table "Fans" above for the right part number.

Are the parts for the Alpha Innotec LWD 50-70A-SX in stock?

3 of the 18 parts are in stock; shipping to EU countries from €12.95 (€16.95 for more distant countries), usually 3–5 working days. Parts marked "Made-to-order item" are ordered specially for you; the delivery time is shown on the product page.

How do I know which part I need for the Alpha Innotec LWD 50-70A-SX?

Search for the part by part number or use the exploded view of the Alpha Innotec LWD 50-70A-SX. Is your appliance showing a fault code? The fault code table shows the matching part type.

Are these original Alpha Innotec parts?

Yes. All 18 parts in this list are original manufacturer parts for the Alpha Innotec LWD 50-70A-SX, supplied through the official technical wholesale channel and with the correct part number.

How much do parts for the Alpha Innotec LWD 50-70A-SX cost?

Parts for the Alpha Innotec LWD 50-70A-SX range from €31.36 to €832.43 incl. VAT. The exact price of each part is shown in the tables above.

Can I return a part?

As a consumer you have a 14-day right of withdrawal. You may unpack and inspect the part; do not install or connect it. For a part that has been installed, connected or damaged we deduct the diminished value, up to the full price for circuit boards.
