Alpha Innotec WZSV 62K3M spare parts
In brief
Instalpunt supplies 40 original parts for the Alpha Innotec WZSV 62K3M, including temperature sensors and NTC sensors, pressure sensors, pressure switches and differential pressure switches. Order online.
- 40Spare parts
- 9In stock
- €35.28From
- 16Types
- availableExploded view
Looking for parts for the Alpha Innotec WZSV 62K3M (heat pump)? Below are all 40 original parts, grouped by part type, with the matching exploded view. Choose a type to jump straight to the right table.
View the interactive exploded view →Quick left to the right part for the Alpha Innotec WZSV 62K3M
| Part | From | Delivery |
|---|---|---|
| Temperature sensor Alpha Innotec contact sensor WQ TWE 1, TP with Molex plug 39-01-2020 | €69.95 | In stock |
| Pump Alpha Innotec pump UPM4 25-75 130 PWM 9 | €246.95 | In stock |
Prices incl. VAT, taken directly from our checkout. Below is the complete parts list for this model.
Installer or self-employed engineer? Create a business account: prices excl. VAT and invoices in your company name.
- Temperature sensors and NTC sensors 5
- Pressure sensors 2
- Pressure switches and differential pressure switches 1
- Pumps 2
- Heat exchangers 2
- Expansion valves 1
- Compressors 1
- Filters 2
- Valves 5
- Heating elements 1
- Motors 2
- Gasket sets 1
- Gaskets and seals 1
- Casing and panels 1
- Insulation 1
- Fixing material 2
- Other parts 10
Temperature sensors and NTC sensors for the Alpha Innotec WZSV 62K3M (5) all Alpha Innotec temperature sensors and NTC sensors →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Alpha Innotec contact sensor for e.g. WZSV 62K3M AI60057701 | 8651031 Mfr. no. AI60057701 | €88.95 | In stock | View & order |
| Alpha Innotec contact sensor WQ TWE 1, TP with Molex plug 39-01-2020 | 8651091 Mfr. no. AI61158101 | €69.95 | In stock | View & order |
| Alpha Innotec superheat sensor TT4x40TP NTC2, length 1m, with Molex plug 39-01-2020 | 8651089 Mfr. no. AI61157901 | €89.95 | Made-to-order item | View & order |
| Alpha Innotec hot gas sensor with 1m silicone cable, with Molex plug 39-01-2020 | 8651090 Mfr. no. AI61158001 | €63.95 | Made-to-order item | View & order |
| Alpha Innotec contact sensor 1m with plug | 8651196 Mfr. no. AI61292301 | €63.95 | Made-to-order item | View & order |
Pressure sensors for the Alpha Innotec WZSV 62K3M (2)
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Alpha Innotec pressure sensor 0-10 bar | 8651843 Mfr. no. AI60754001 | €224.95 | Made-to-order item | View & order |
| Alpha Innotec pressure sensor 0-40 bar | 8651844 Mfr. no. AI60745401 | €224.95 | Made-to-order item | View & order |
Pressure switches and differential pressure switches for the Alpha Innotec WZSV 62K3M (1)
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Alpha Innotec pressure switch for e.g. WZSV 62K3M AI61263901 | 8653107 Mfr. no. AI61263901 | €68.95 | Made-to-order item | View & order |
Pumps for the Alpha Innotec WZSV 62K3M (2) all Alpha Innotec pumps →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Alpha Innotec pump UPM GEO 25-85 130 mm PWM upward 9h | 8651114 Mfr. no. AI61136701 | €390.95 | In stock | View & order |
| Alpha Innotec pump UPM4 25-75 130 PWM 9 | 8654160 Mfr. no. AI61986001 | €246.95 | In stock | View & order |
Heat exchangers for the Alpha Innotec WZSV 62K3M (2) all Alpha Innotec heat exchangers →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Alpha Innotec plate heat exchanger CB62E 24 evaporator 6 kW | 8652764 Mfr. no. AIE61263502 | €949.95 | Not available | View & order |
| Alpha Innotec plate heat exchanger CB62C 24 | 8652763 Mfr. no. AIE61263602 | €1,224.95 | Made-to-order item | View & order |
Expansion valves for the Alpha Innotec WZSV 62K3M (1) all Alpha Innotec expansion valves →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Alpha Innotec expansion valve for WZSV 62K3M AI61263701 | 8651918 Mfr. no. AI61263701 | €255.95 | Made-to-order item | View & order |
Compressors for the Alpha Innotec WZSV 62K3M (1) all Alpha Innotec compressors →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Alpha Innotec compressor for WZSV 62K3M AI61263301 | 8651531 Mfr. no. AI61263301 | €1,185.95 | Made-to-order item | View & order |
Filters for the Alpha Innotec WZSV 62K3M (2)
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Alpha Innotec EMC filter | 8651876 Mfr. no. AI61289201 | €472.95 | Made-to-order item | View & order |
| Alpha Innotec filter drier | 8652041 Mfr. no. AI61263801 | €66.95 | Made-to-order item | View & order |
Valves for the Alpha Innotec WZSV 62K3M (5) all Alpha Innotec valves →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Alpha Innotec fill/drain cock brass 1/2 - 3/4 Index a | 8652315 Mfr. no. AI60987201 | €56.95 | Made-to-order item | View & order |
| Alpha Innotec ball valve DN 25 fill/drain cock Index | 8652348 Mfr. no. AI61218001 | €123.95 | Made-to-order item | View & order |
| Alpha Innotec non-return valve 1 with T28 | 8653464 Mfr. no. AI61223801 | €89.95 | Made-to-order item | View & order |
| Alpha Innotec safety valve | 8653870 Mfr. no. AI60103801 | €91.95 | Made-to-order item | View & order |
| Alpha Innotec angle valve T28 DN27,5 | 8654081 Mfr. no. AIE61095202 | €107.95 | Made-to-order item | View & order |
Heating elements for the Alpha Innotec WZSV 62K3M (1)
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Alpha Innotec instantaneous heater | 8651821 Mfr. no. AI61204001 | €355.95 | Made-to-order item | View & order |
Motors for the Alpha Innotec WZSV 62K3M (2)
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Alpha Innotec actuator EMV 110 99V0-M for DN25 with Molex connector 2-core | 8651120 Mfr. no. AI61146201 | €131.95 | In stock | View & order |
| Alpha Innotec actuator EMV 110 91S0-M for DN25 with Molex connector 3-core | 8651121 Mfr. no. AI61146301 | €126.95 | In stock | View & order |
Gasket sets for the Alpha Innotec WZSV 62K3M (1)
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Alpha Innotec seal kit Modulbox | 8651096 Mfr. no. AIE29019809 | €68.95 | Made-to-order item | View & order |
Gaskets and seals for the Alpha Innotec WZSV 62K3M (1)
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Alpha Innotec seal set | 8654131 Mfr. no. AIE29019811 | €54.95 | Made-to-order item | View & order |
Casing and panels for the Alpha Innotec WZSV 62K3M (1)
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Alpha Innotec contactor DILM-9-10 | 8651399 Mfr. no. AI61128201 | €114.95 | Made-to-order item | View & order |
Insulation for the Alpha Innotec WZSV 62K3M (1)
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Alpha Innotec d48 insulation hose incl. cable ties | 8654082 Mfr. no. AIE61057103 | €56.95 | Made-to-order item | View & order |
Fixing material for the Alpha Innotec WZSV 62K3M (2)
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Alpha Innotec clip type 28 (set = 11 pcs) | 8654059 Mfr. no. AIE61098804 | €62.95 | Made-to-order item | View & order |
| Alpha Innotec clip type 28 (set = 6 pcs) | 8654060 Mfr. no. AIE61098803 | €56.95 | Made-to-order item | View & order |
Other parts for the Alpha Innotec WZSV 62K3M (10)

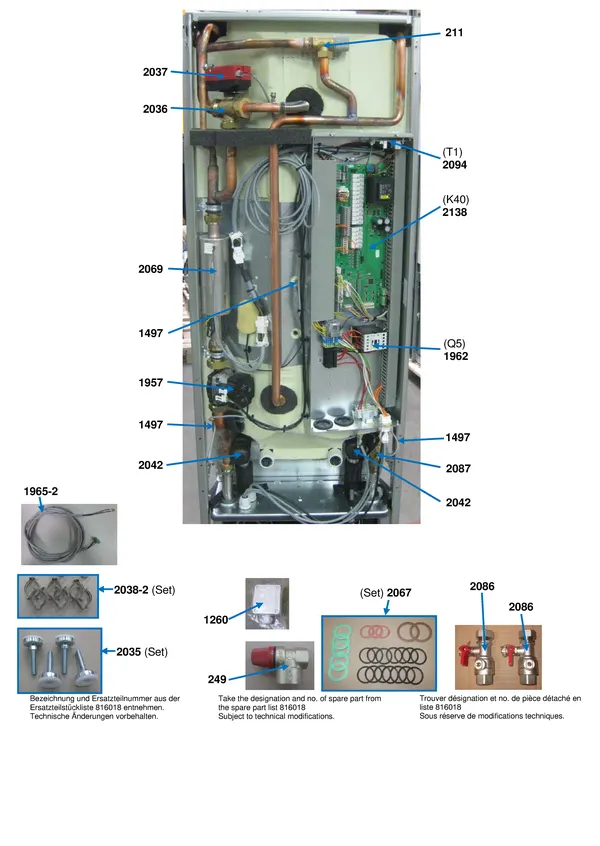

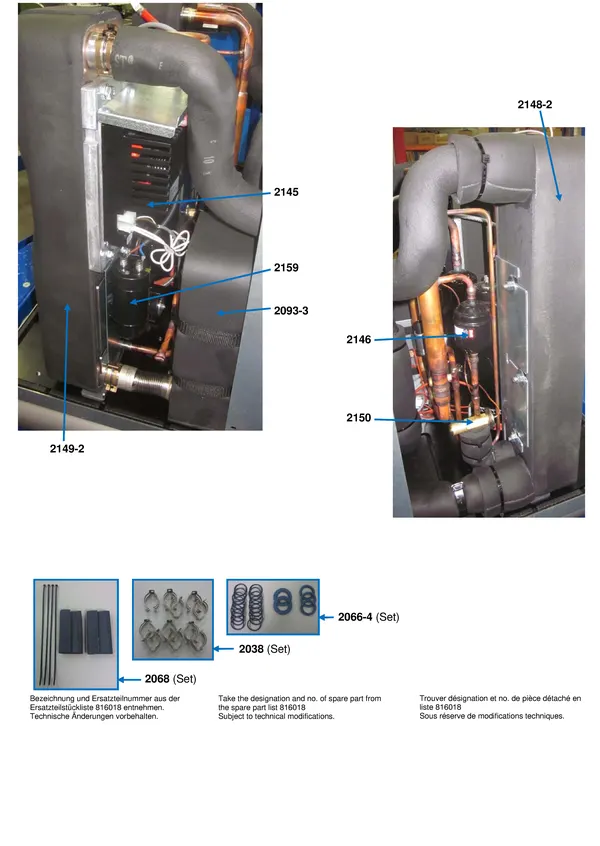

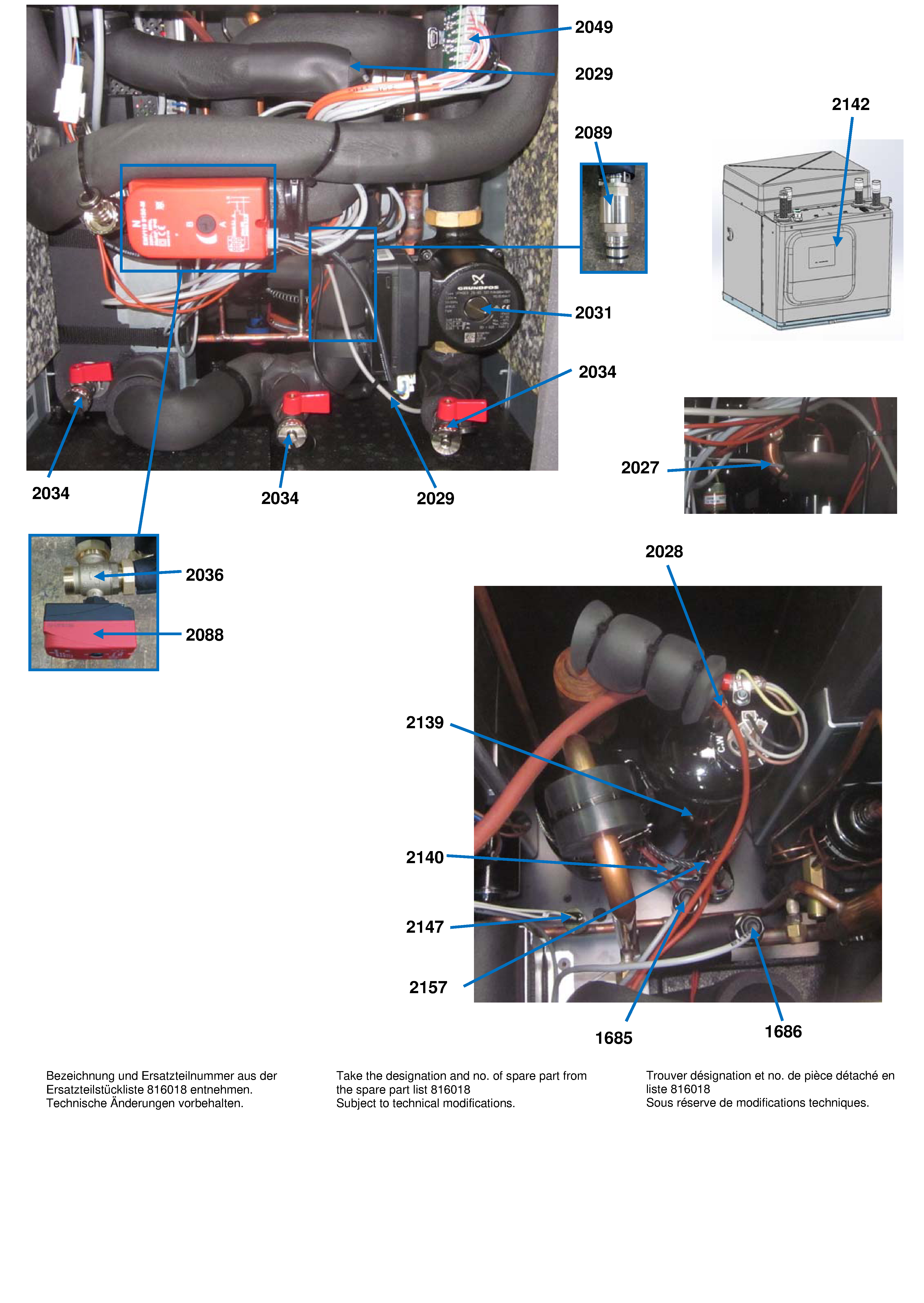

Exploded views of the Alpha Innotec WZSV 62K3M
Click an exploded view to enlarge it. The position numbers are shown next to each part.
Other Alpha Innotec heat pumps
- Alpha Innotec HMD 1-R/RE 13
- Alpha Innotec HMD 1-S 13
- Alpha Innotec HTD 19
- Alpha Innotec HTD S 19
- Alpha Innotec LWD 50-70A-RX 23
- Alpha Innotec LWD 50-70A-SX 18
- Alpha Innotec SWCV 162K3 34
- Alpha Innotec WZS 102K3M / WZS 122K3M 37
- Alpha Innotec WZS 41H-KS 27
- Alpha Innotec WZS 42K3M / WZS 82K3M 41
- Alpha Innotec WZS 61HK-101HK 49
- Alpha Innotec WZSV 162K3M 36
Frequently asked questions
Which parts are available for the Alpha Innotec WZSV 62K3M?
The catalogue lists 40 original parts for the Alpha Innotec WZSV 62K3M, including temperature sensors and NTC sensors, pressure sensors, pressure switches and differential pressure switches, pumps. All parts are listed above, grouped by type, with part number and price.
How much does a temperature sensor for the Alpha Innotec WZSV 62K3M cost?
The temperature sensors and NTC sensors for this model cost between €52.27 and €86.25 incl. VAT. Check the table "Temperature sensors and NTC sensors" above for the right part number.
Are the parts for the Alpha Innotec WZSV 62K3M in stock?
9 of the 40 parts are in stock; shipping to EU countries from €12.95 (€16.95 for more distant countries), usually 3–5 working days. Parts marked "Made-to-order item" are ordered specially for you; the delivery time is shown on the product page.
How do I know which part I need for the Alpha Innotec WZSV 62K3M?
Search for the part by part number or use the exploded view of the Alpha Innotec WZSV 62K3M. Is your appliance showing a fault code? The fault code table shows the matching part type.
Are these original Alpha Innotec parts?
Yes. All 40 parts in this list are original manufacturer parts for the Alpha Innotec WZSV 62K3M, supplied through the official technical wholesale channel and with the correct part number.
How much do parts for the Alpha Innotec WZSV 62K3M cost?
Parts for the Alpha Innotec WZSV 62K3M range from €35.28 to €11,851.37 incl. VAT. The exact price of each part is shown in the tables above.
Can I return a part?
As a consumer you have a 14-day right of withdrawal. You may unpack and inspect the part; do not install or connect it. For a part that has been installed, connected or damaged we deduct the diminished value, up to the full price for circuit boards.
