Atag Blauwe Engel CMA 650 spare parts
In brief
Instalpunt supplies 29 original parts for the Atag Blauwe Engel CMA 650, including fans, flow sensors and flow switches, pressure switches and differential pressure switches. Order online.
- 29Spare parts
- 7In stock
- €16.99From
- 12Types
- availableExploded view
Looking for parts for the Atag Blauwe Engel CMA 650 (boiler)? Below are all 29 original parts, grouped by part type, with the matching exploded view. Choose a type to jump straight to the right table.
View the interactive exploded view →- Fans 1
- Flow sensors and flow switches 1
- Pressure switches and differential pressure switches 1
- Pumps 1
- Diverter valves and hydroblocks 1
- Ignition and ionisation 2
- Thermostats and controls 1
- Valves 3
- Cables and wiring harnesses 1
- Gaskets and seals 4
- Pipes, tubes and hoses 1
- Fixing material 2
- Other parts 10
Fans for the Atag Blauwe Engel CMA 650 (1) all Atag fans →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Atag fan motor + capacitor 3/5-brick | 8131920 Mfr. no. S9298100 | €233.95 | Made-to-order item | View & order |
Flow sensors and flow switches for the Atag Blauwe Engel CMA 650 (1)
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Atag flow switch 950 | 8131790 Mfr. no. S9095900 | €252.95 | Made-to-order item | View & order |
Pressure switches and differential pressure switches for the Atag Blauwe Engel CMA 650 (1)
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Atag air pressure switch | 8131020 Mfr. no. S4123200 | €223.95 | Made-to-order item | View & order |
Pumps for the Atag Blauwe Engel CMA 650 (1) all Atag pumps →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Atag pump M.UPMO 20/60 130 9U 230V on/off | 8131482 Mfr. no. S5034000 | €352.95 | In stock | View & order |
Diverter valves and hydroblocks for the Atag Blauwe Engel CMA 650 (1) all Atag diverter valves and hydroblocks →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Atag three-way valve VC8010 complete | 8136090 Mfr. no. S4209300 | €317.95 | Made-to-order item | View & order |
Ignition and ionisation for the Atag Blauwe Engel CMA 650 (2) all Atag ignition and ionisation →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Atag ionisation electrode incl. gasket | 8130530 Mfr. no. S4297700 | €58.95 | Made-to-order item | View & order |
| Atag ignition electrode incl. gasket | 8130540 Mfr. no. S4297600 | €56.95 | Made-to-order item | View & order |
Thermostats and controls for the Atag Blauwe Engel CMA 650 (1)
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Atag cylinder thermostat 63°C red | 8136010 Mfr. no. S4095000 | €35.95 | In stock | View & order |
Valves for the Atag Blauwe Engel CMA 650 (3) all Atag valves →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Atag automatic air vent + water trap | 8130205 Mfr. no. S4175410 | €59.95 | In stock | View & order |
| Atag mixing valve SAM. | 8131120 Mfr. no. S4224300 | €105.95 | Made-to-order item | View & order |
| Atag fill and drain valve 1/2" | 8132060 Mfr. no. S1002200 | €54.95 | Made-to-order item | View & order |
Cables and wiring harnesses for the Atag Blauwe Engel CMA 650 (1) all Atag cables and wiring harnesses →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Atag ionisation cable for e.g. Blauwe Engel HR 39 S1082600 | 8130730 Mfr. no. S1082600 | €32.95 | Made-to-order item | View & order |
Gaskets and seals for the Atag Blauwe Engel CMA 650 (4) all Atag gaskets and seals →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Atag pump gasket 3/4" DN20 R38x25x2 mm 2 pcs | 8130150 Mfr. no. S1003810 | €21.95 | In stock | View & order |
| Atag gasket electrode + sight glass 3 | 8131370 Mfr. no. S1027520 | €28.95 | Made-to-order item | View & order |
| Atag condensate bottom tray gasket VR18-30 | 8131630 Mfr. no. S1039120 | €43.95 | Made-to-order item | View & order |
| Atag ionisation pin gasket | 8131390 Mfr. no. S1022710 | €29.95 | Made-to-order item | View & order |
Pipes, tubes and hoses for the Atag Blauwe Engel CMA 650 (1) all Atag pipes, tubes and hoses →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Atag hose red for air pressure switch 6 x 8 mm | 8131660 Mfr. no. S1077000 | €44.95 | Made-to-order item | View & order |
Fixing material for the Atag Blauwe Engel CMA 650 (2) all Atag fixing material →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Atag sealing cap exhaust pipe Ø13mm for flue gas measurement | 8136420 Mfr. no. S4521600 | €22.95 | In stock | View & order |
| Atag retaining clip VR (3 pcs) | 8130801 Mfr. no. S1039800 | €46.95 | Made-to-order item | View & order |
Other parts for the Atag Blauwe Engel CMA 650 (10)
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Atag sealing cap flue | 8137116 Mfr. no. S4339400 | €20.95 | In stock | View & order |
| Atag burner stone smooth | 8130360 Mfr. no. S1002100 | €48.95 | In stock | View & order |
| Atag cylinder 33kW VR/HR | 8130251 Mfr. no. S4203210 | €1,040.95 | Made-to-order item | View & order |
| Atag exchanger sight glass | 8130890 Mfr. no. S1022810 | €52.95 | Made-to-order item | View & order |
| Atag bottom tray/drain tray 8-brick | 8131240 Mfr. no. S4108600 | €192.95 | Made-to-order item | View & order |
| Atag rubber cap R 5x15 5 pcs (hose connection cap) | 8131490 Mfr. no. S1036900 | €31.95 | Made-to-order item | View & order |
| Atag hose connector | 8131680 Mfr. no. S1131500 | €45.95 | Made-to-order item | View & order |
| Atag fan impeller | 8131940 Mfr. no. S1002820 | €97.95 | Made-to-order item | View & order |
| Atag fibre rope 5-brick | 8131610 Mfr. no. S1087800 | €42.95 | Made-to-order item | View & order |
| Atag fibre rope 8-brick | 8131600 Mfr. no. S1087900 | €42.95 | Made-to-order item | View & order |

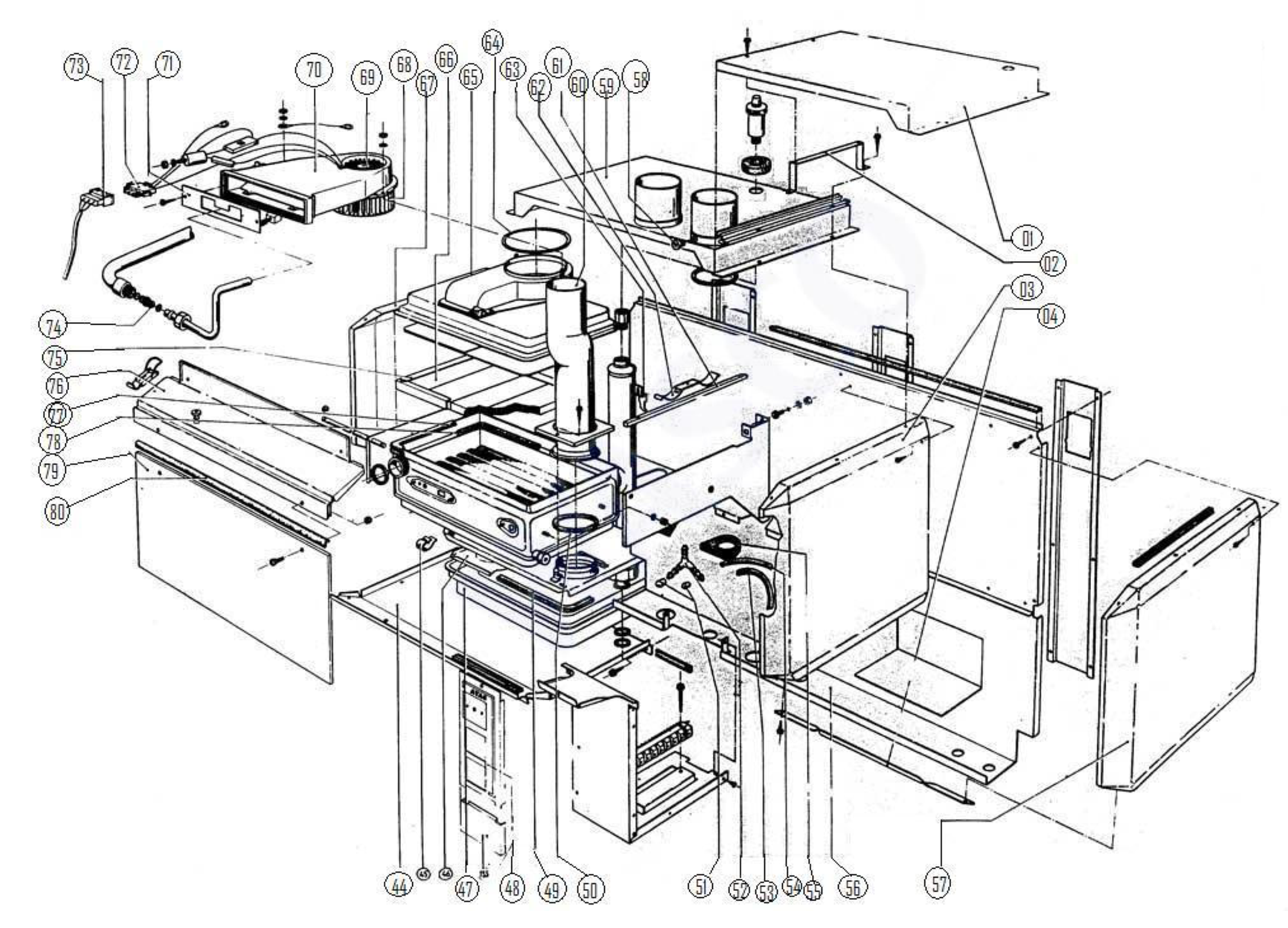

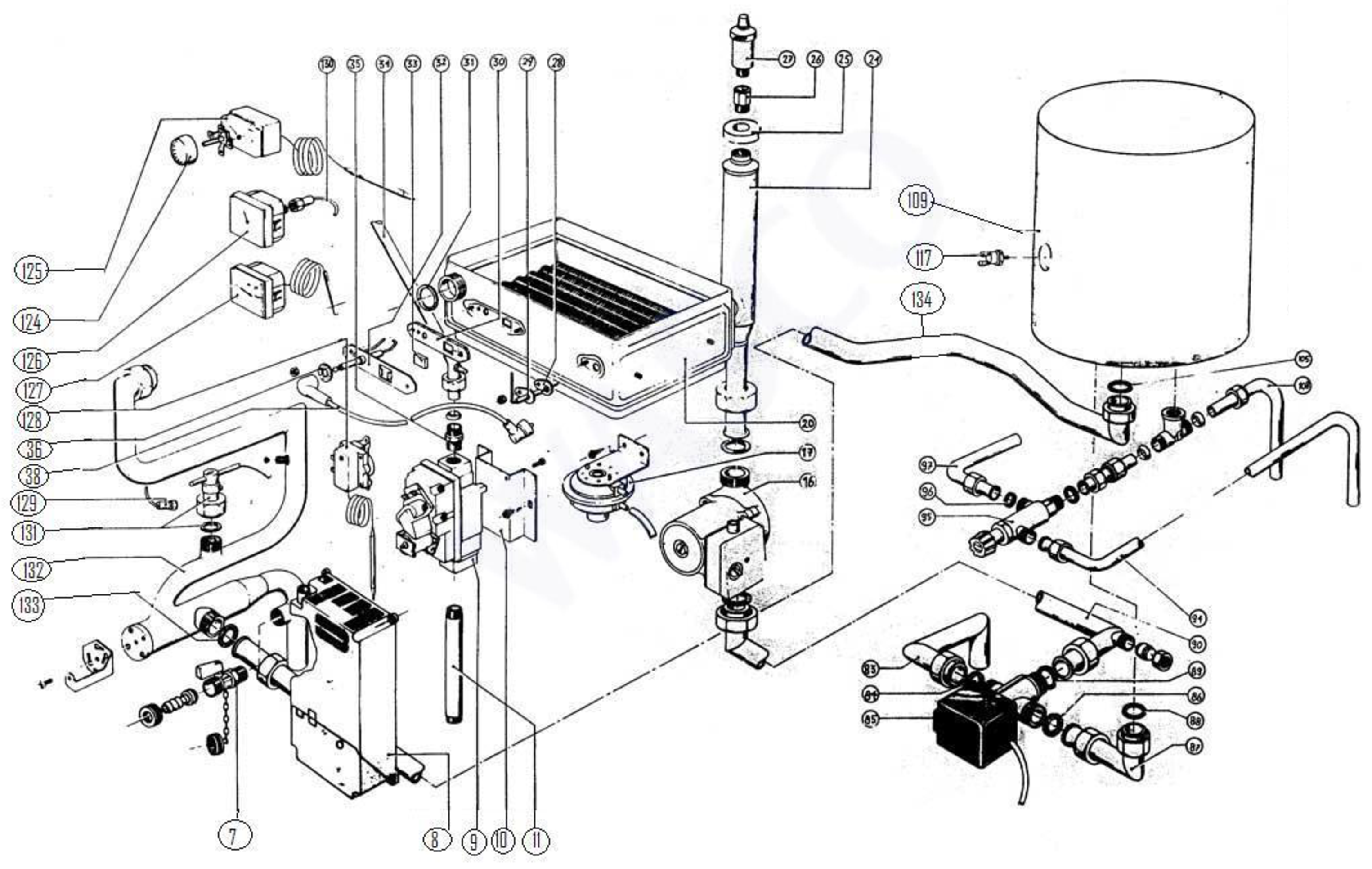

Exploded views of the Atag Blauwe Engel CMA 650
Click an exploded view to enlarge it. The position numbers are shown next to each part.
Fault code on your Atag Blauwe Engel CMA 650? This is the part type involved
Common Atag fault codes and the part type that is usually the cause; the parts for this model are listed above. All codes explained: Atag fault codes.
| Code | What is going on | Part type |
|---|---|---|
| 2P4 | Electric element thermostat (man.) | Thermostats and controls |
| 2P5 | Electric element thermostat (auto) | Thermostats and controls |
| 9E18 | Safety thermostat ST1 fault | Thermostats and controls |
| 9E31 | Compressor thermostat protection | Thermostats and controls |
| 78 | Water pressure sensor out of range or not connected or, if water pressure is OK: pump defective. | Pumps |
| 104 | No pump kick | Pumps |
For guidance only: the same code can have a different cause depending on the situation.
Other Atag boilers
- Atag A203C | from 2008 OSS1 97
- Atag A203EC | from 10-2016 OSS2 97
- Atag A244C | from 2008 up to 11-2009 OSS2 98
- Atag A244CL | from 11-2009 OSS1 95
- Atag A244EC | from 2008 OSS2 98
- Atag A285C | from 2017 OSS2 92
- Atag A285EC | from 2017 OSS2 90
- Atag Blauwe Engel CMA 350 29
- Atag Blauwe Engel CMA 352 12
- Atag Blauwe Engel CMA 652 12
- Atag Blauwe Engel CMA 950 29
- Atag Blauwe Engel CMA 952 12
Frequently asked questions
Which parts are available for the Atag Blauwe Engel CMA 650?
The catalogue lists 29 original parts for the Atag Blauwe Engel CMA 650, including fans, flow sensors and flow switches, pressure switches and differential pressure switches, pumps. All parts are listed above, grouped by type, with part number and price.
How much does a fan for the Atag Blauwe Engel CMA 650 cost?
The fans for this model cost €261.36 incl. VAT. Check the table "Fans" above for the right part number.
Are the parts for the Atag Blauwe Engel CMA 650 in stock?
7 of the 29 parts are in stock; shipping to EU countries from €12.95 (€16.95 for more distant countries), usually 3–5 working days. Parts marked "Made-to-order item" are ordered specially for you; the delivery time is shown on the product page.
How do I know which part I need for the Atag Blauwe Engel CMA 650?
Search for the part by part number or use the exploded view of the Atag Blauwe Engel CMA 650.
Are these original Atag parts?
Yes. All 29 parts in this list are original manufacturer parts for the Atag Blauwe Engel CMA 650, supplied through the official technical wholesale channel and with the correct part number.
How much do parts for the Atag Blauwe Engel CMA 650 cost?
Parts for the Atag Blauwe Engel CMA 650 range from €16.99 to €1,360.38 incl. VAT. The exact price of each part is shown in the tables above.
Can I return a part?
As a consumer you have a 14-day right of withdrawal. You may unpack and inspect the part; do not install or connect it. For a part that has been installed, connected or damaged we deduct the diminished value, up to the full price for circuit boards.
