AWB GeniaAir 5/2 spare parts
In brief
Instalpunt supplies 69 original parts for the AWB GeniaAir 5/2, including fans, sensors, temperature sensors and NTC sensors. Order online.
- 69Spare parts
- 3In stock
- €7.84From
- 20Types
- availableExploded view
Looking for parts for the AWB GeniaAir 5/2 (heat pump)? Below are all 69 original parts, grouped by part type, with the matching exploded view. Choose a type to jump straight to the right table.
View the interactive exploded view →- Fans 1
- Sensors 1
- Temperature sensors and NTC sensors 1
- Pressure switches and differential pressure switches 1
- Pumps 1
- Heat exchangers 2
- PCBs and controls 2
- Expansion vessels 1
- Expansion valves 1
- Compressors 1
- Filters 2
- Valves 2
- Heating elements 2
- Electrical parts 4
- Cables and wiring harnesses 8
- Gaskets and seals 5
- Pipes, tubes and hoses 7
- Casing and panels 11
- Insulation 4
- Fixing material 7
- Other parts 5
Fans for the AWB GeniaAir 5/2 (1) all AWB fans →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| AWB motor, fan for GeniaAir | 8070937 Mfr. no. 0020176766 | €316.95 | In stock | View & order |
Sensors for the AWB GeniaAir 5/2 (1) all AWB sensors →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| AWB sensor, high pressure for GeniaAir | 8070878 Mfr. no. 0020161251 | €118.95 | Made-to-order item | View & order |
Temperature sensors and NTC sensors for the AWB GeniaAir 5/2 (1) all AWB temperature sensors and NTC sensors →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| AWB sensor for GeniaAir | 8070779 Mfr. no. 0020161208 | €44.95 | Made-to-order item | View & order |
Pressure switches and differential pressure switches for the AWB GeniaAir 5/2 (1) all AWB pressure switches and differential pressure switches →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| AWB pressure switch, high pressure for GeniaAir | 8070823 Mfr. no. 0020161252 | €59.95 | Made-to-order item | View & order |
Pumps for the AWB GeniaAir 5/2 (1) all AWB pumps →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| AWB pump for GeniaAir | 8070930 Mfr. no. 0020161207 | €316.95 | Made-to-order item | View & order |
Heat exchangers for the AWB GeniaAir 5/2 (2) all AWB heat exchangers →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| AWB condenser, 5k for GeniaAir | 8070951 Mfr. no. 0020192842 | €694.95 | Made-to-order item | View & order |
| AWB evaporator, 5kw for GeniaAir | 8070957 Mfr. no. 0020190060 | €1,620.95 | Made-to-order item | View & order |
PCBs and controls for the AWB GeniaAir 5/2 (2) all AWB PCBs and controls →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| AWB PCB FMU | 8078609 Mfr. no. 0020274751 | €302.95 | In stock | View & order |
| AWB PCB 0020241240 - | 8078602 Mfr. no. 0020241240 | €214.95 | Made-to-order item | View & order |
Expansion vessels for the AWB GeniaAir 5/2 (1)
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| AWB expansion vessel for GeniaAir | 8070900 Mfr. no. 0020085877 | €183.95 | Made-to-order item | View & order |
Expansion valves for the AWB GeniaAir 5/2 (1)
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| AWB expansion valve, 5k for GeniaAir | 8070871 Mfr. no. 0020192849 | €107.95 | Made-to-order item | View & order |
Compressors for the AWB GeniaAir 5/2 (1) all AWB compressors →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| AWB compressor, 5kw for GeniaAir | 8070956 Mfr. no. 0020192839 | €936.95 | Made-to-order item | View & order |
Filters for the AWB GeniaAir 5/2 (2) all AWB filters →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| AWB filter for GeniaAir | 8070734 Mfr. no. 0020161209 | €26.95 | Made-to-order item | View & order |
| AWB filter drier for GeniaAir | 8070869 Mfr. no. 0020038824 | €106.95 | Made-to-order item | View & order |
Valves for the AWB GeniaAir 5/2 (2) all AWB valves →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| AWB 4-way valve r410a 8.5kw for GeniaAir | 8070831 Mfr. no. 0020030608 | €66.95 | Made-to-order item | View & order |
| AWB valve, schrader for e.g. GeniaAir RM05/1 0020103291 | 8079427 Mfr. no. 0020103291 | €10.95 | Made-to-order item | View & order |
Heating elements for the AWB GeniaAir 5/2 (2)
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| AWB heater, compressor for GeniaAir | 8070814 Mfr. no. 0020176083 | €56.95 | Made-to-order item | View & order |
| AWB heater, heating for GeniaAir | 8070852 Mfr. no. 0020192826 | €92.95 | Made-to-order item | View & order |
Electrical parts for the AWB GeniaAir 5/2 (4) all AWB electrical parts →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| AWB cable grommet for GeniaAir | 8070726 Mfr. no. 0020161259 | €25.95 | Made-to-order item | View & order |
| AWB cable gland, m20-10 | 8079471 Mfr. no. 0020085902 | €10.95 | Made-to-order item | View & order |
| AWB coil, 4-way valve for GeniaAir | 8070821 Mfr. no. 0020161205 | €61.95 | Made-to-order item | View & order |
| AWB coil expansion valve for GeniaAir | 8070847 Mfr. no. 0020161204 | €93.95 | Made-to-order item | View & order |
Cables and wiring harnesses for the AWB GeniaAir 5/2 (8) all AWB cables and wiring harnesses →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| AWB wiring harness, 24V Ebox 0020192867 | 8078582 Mfr. no. 0020192867 | €59.95 | Made-to-order item | View & order |
| AWB wiring harness, 230V Ebox 0020241238 | 8078583 Mfr. no. 0020241238 | €59.95 | Made-to-order item | View & order |
| AWB wiring harness for GeniaAir (GeniaAir 5/2) 0020176085 | 8070752 Mfr. no. 0020176085 | €30.95 | Made-to-order item | View & order |
| AWB wiring harness for GeniaAir (GeniaAir 5/2) 0020161258 | 8070713 Mfr. no. 0020161258 | €23.95 | Made-to-order item | View & order |
| AWB wiring harness, 230V for GeniaAir | 8070826 Mfr. no. 0020192833 | €62.95 | Made-to-order item | View & order |
| AWB wiring harness, 24V for GeniaAir | 8070893 Mfr. no. 0020192834 | €143.95 | Made-to-order item | View & order |
| AWB wiring harness, pump for GeniaAir | 8070794 Mfr. no. 0020161249 | €49.95 | Made-to-order item | View & order |
| AWB wiring harness reset for GeniaAir | 8070712 Mfr. no. 0020192835 | €23.95 | Made-to-order item | View & order |
Gaskets and seals for the AWB GeniaAir 5/2 (5) all AWB gaskets and seals →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| AWB O-ring for pipe 10 mm Z | 8077553 Mfr. no. 2000801950 | €16.95 | In stock | View & order |
| AWB O-ring for GeniaAir (GeniaAir 5/2) 0020097225 | 8070194 Mfr. no. 0020097225 | €10.95 | Made-to-order item | View & order |
| AWB O-ring for GeniaAir (GeniaAir 5/2) 0020079486 | 8070715 Mfr. no. 0020079486 | €22.95 | Made-to-order item | View & order |
| AWB gasket for GeniaAir | 8070746 Mfr. no. 0020048263 | €29.95 | Made-to-order item | View & order |
| AWB gasket, pipe for GeniaAir | 8070635 Mfr. no. 0020192853 | €10.95 | Made-to-order item | View & order |
Pipes, tubes and hoses for the AWB GeniaAir 5/2 (7) all AWB pipes, tubes and hoses →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| AWB connection kit for GeniaAir | 8070891 Mfr. no. 0020186355 | €139.95 | Made-to-order item | View & order |
| AWB damper for GeniaAir | 8070787 Mfr. no. 0020174495 | €56.95 | Not available | View & order |
| AWB pipe for GeniaAir (GeniaAir 5/2) 0020192855 | 8070890 Mfr. no. 0020192855 | €139.95 | Made-to-order item | View & order |
| AWB pipe for GeniaAir (GeniaAir 5/2) 0020192856 | 8070880 Mfr. no. 0020192856 | €123.95 | Made-to-order item | View & order |
| AWB pipe, pump for GeniaAir | 8070862 Mfr. no. 0020192854 | €95.95 | Made-to-order item | View & order |
| AWB hose for GeniaAir (GeniaAir 5/2) 0020075568 | 8070633 Mfr. no. 0020075568 | €11.95 | Made-to-order item | View & order |
| AWB hose for GeniaAir (GeniaAir 5/2) 0020192857 | 8070751 Mfr. no. 0020192857 | €31.95 | Made-to-order item | View & order |
Casing and panels for the AWB GeniaAir 5/2 (11) all AWB casing and panels →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| AWB cover 0020241241 - | 8078584 Mfr. no. 0020241241 | €63.95 | Made-to-order item | View & order |
| AWB rear panel for GeniaAir | 8070936 Mfr. no. 0020192810 | €329.95 | Made-to-order item | View & order |
| AWB cabinet for GeniaAir | 8070828 Mfr. no. 0020161216 | €65.95 | Made-to-order item | View & order |
| AWB plate, connection for GeniaAir | 8070835 Mfr. no. 0020161779 | €68.95 | Made-to-order item | View & order |
| AWB grille for GeniaAir | 8070941 Mfr. no. 0020192811 | €357.95 | Made-to-order item | View & order |
| AWB grille and air deflector for GeniaAir | 8070953 Mfr. no. 0020192825 | €779.95 | Made-to-order item | View & order |
| AWB top panel for GeniaAir | 8070935 Mfr. no. 0020192816 | €328.95 | Made-to-order item | View & order |
| AWB front panel for GeniaAir | 8070917 Mfr. no. 0020192813 | €288.95 | Made-to-order item | View & order |
| AWB side panel for GeniaAir (GeniaAir 5/2) 0020192812 | 8070929 Mfr. no. 0020192812 | €315.95 | Made-to-order item | View & order |
| AWB side panel for GeniaAir (GeniaAir 5/2) 0020192814 | 8070938 Mfr. no. 0020192814 | €342.95 | Made-to-order item | View & order |
| AWB side panel for GeniaAir (GeniaAir 5/2) 0020192815 | 8070933 Mfr. no. 0020192815 | €325.95 | Made-to-order item | View & order |
Insulation for the AWB GeniaAir 5/2 (4) all AWB insulation →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| AWB insulation for GeniaAir (GeniaAir 5/2) 0020183484 | 8070636 Mfr. no. 0020183484 | €10.95 | Made-to-order item | View & order |
| AWB insulation for GeniaAir (GeniaAir 5/2) 0020192844 | 8070780 Mfr. no. 0020192844 | €44.95 | Made-to-order item | View & order |
| AWB insulation for GeniaAir (GeniaAir 5/2) 0020192845 | 8070817 Mfr. no. 0020192845 | €58.95 | Made-to-order item | View & order |
| AWB insulation, compressor 5k for GeniaAir | 8070829 Mfr. no. 0020192850 | €64.95 | Made-to-order item | View & order |
Fixing material for the AWB GeniaAir 5/2 (7) all AWB fixing material →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| AWB screw m5x30 + washer for GeniaAir | 8070618 Mfr. no. 0020085868 | €10.95 | Made-to-order item | View & order |
| AWB screw for GeniaAir (GeniaAir 5/2) S5490600 | 8070632 Mfr. no. S5490600 | €10.95 | Made-to-order item | View & order |
| AWB screw for GeniaAir (GeniaAir 5/2) 0020103286 | 8070733 Mfr. no. 0020103286 | €26.95 | Made-to-order item | View & order |
| AWB mounting kit, compressor for GeniaAir | 8070776 Mfr. no. 0020176077 | €43.95 | Made-to-order item | View & order |
| AWB clip for GeniaAir | 8070727 Mfr. no. 05459000 | €24.95 | Made-to-order item | View & order |
| AWB clip and insulation ctn for GeniaAir | 8070714 Mfr. no. 0020166843 | €23.95 | Made-to-order item | View & order |
| AWB grommet for GeniaAir | 8070196 Mfr. no. 0020105923 | €10.95 | Made-to-order item | View & order |
Other parts for the AWB GeniaAir 5/2 (5)
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| AWB cable, earth cable 0020241242 | 8078581 Mfr. no. 0020241242 | €56.95 | Made-to-order item | View & order |
| AWB controller PCB, driver compl. 5kW 0020241231 | 8078613 Mfr. no. 0020241231 | €1,391.95 | Made-to-order item | View & order |
| AWB collector, 5k for GeniaAir | 8070913 Mfr. no. 0020192841 | €242.95 | Made-to-order item | View & order |
| AWB cable duct for GeniaAir | 8070195 Mfr. no. 0020084490 | €10.95 | Made-to-order item | View & order |
| AWB impeller | 8070830 Mfr. no. 0020161231 | €67.95 | Made-to-order item | View & order |

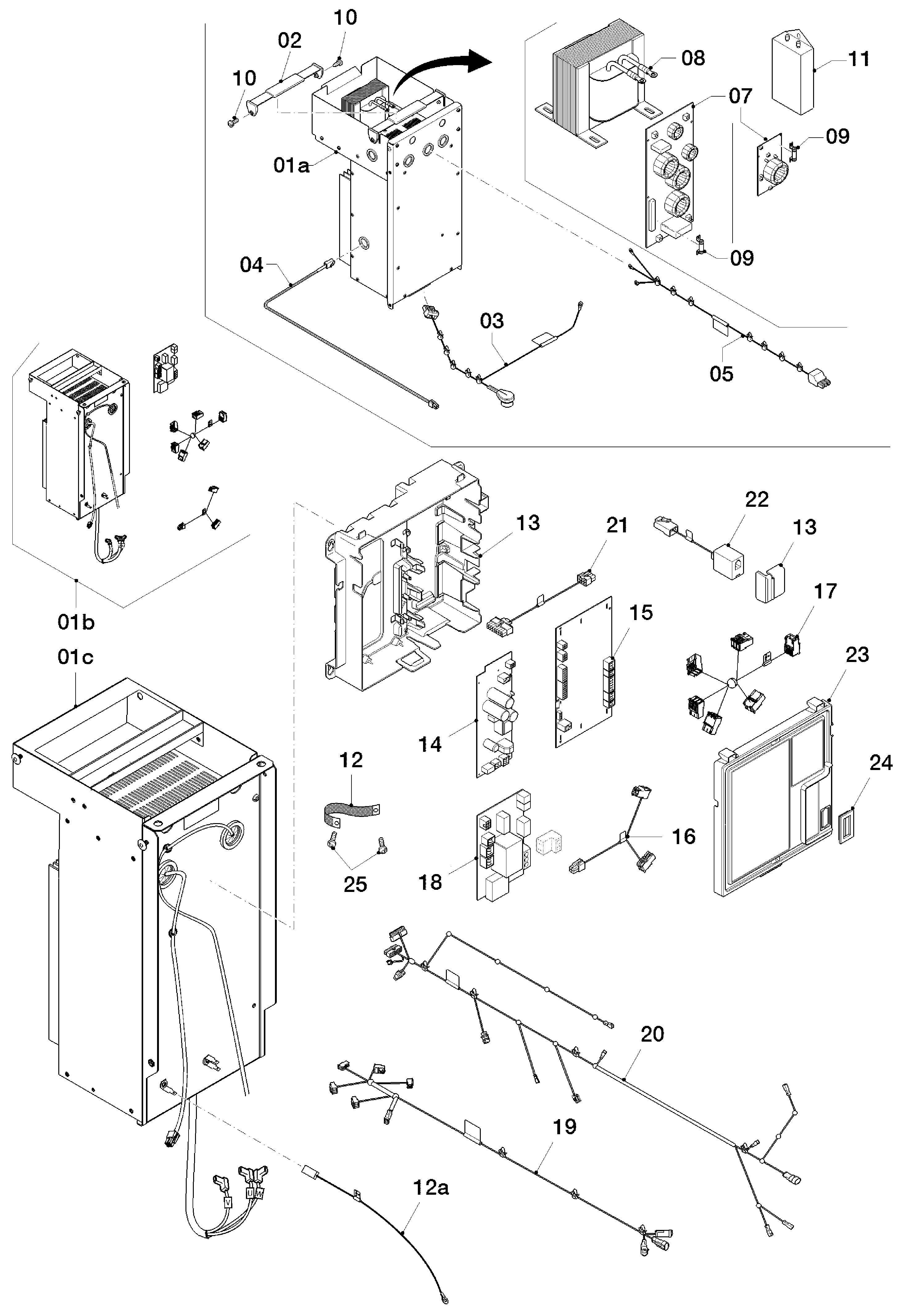

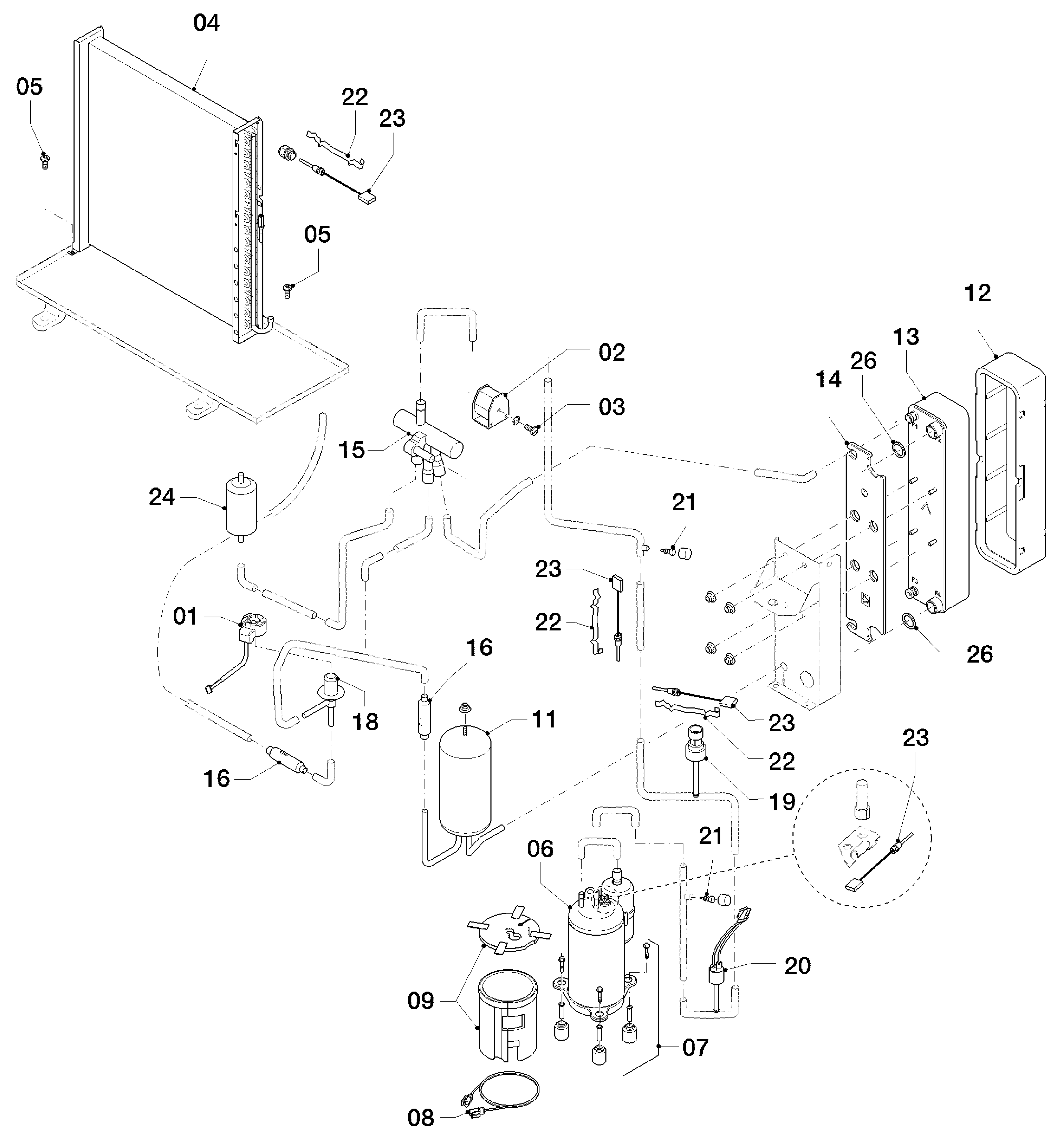

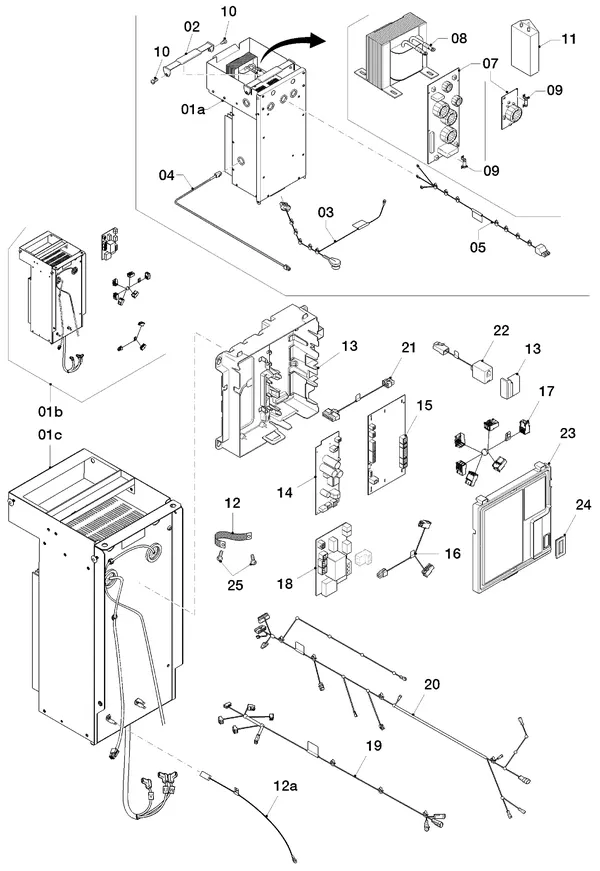

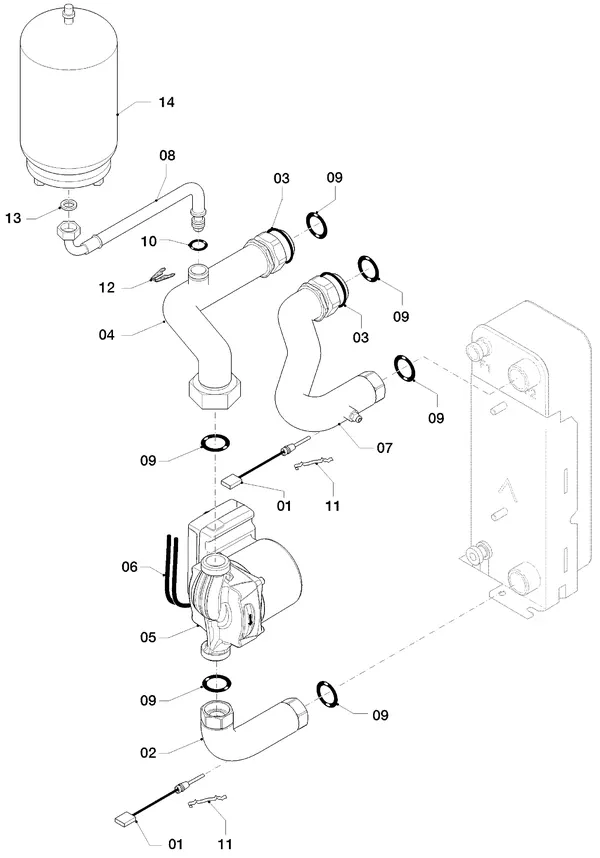

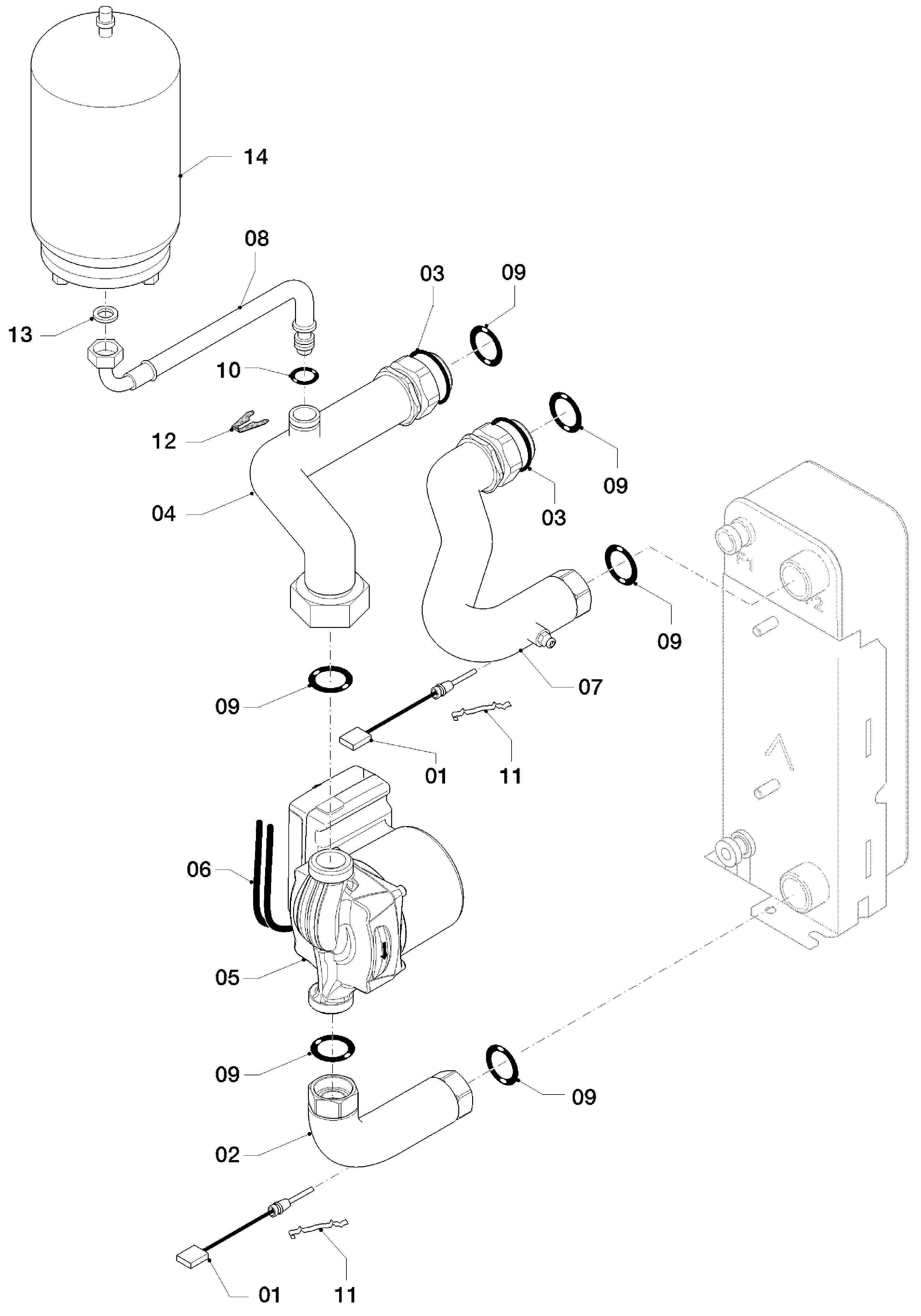

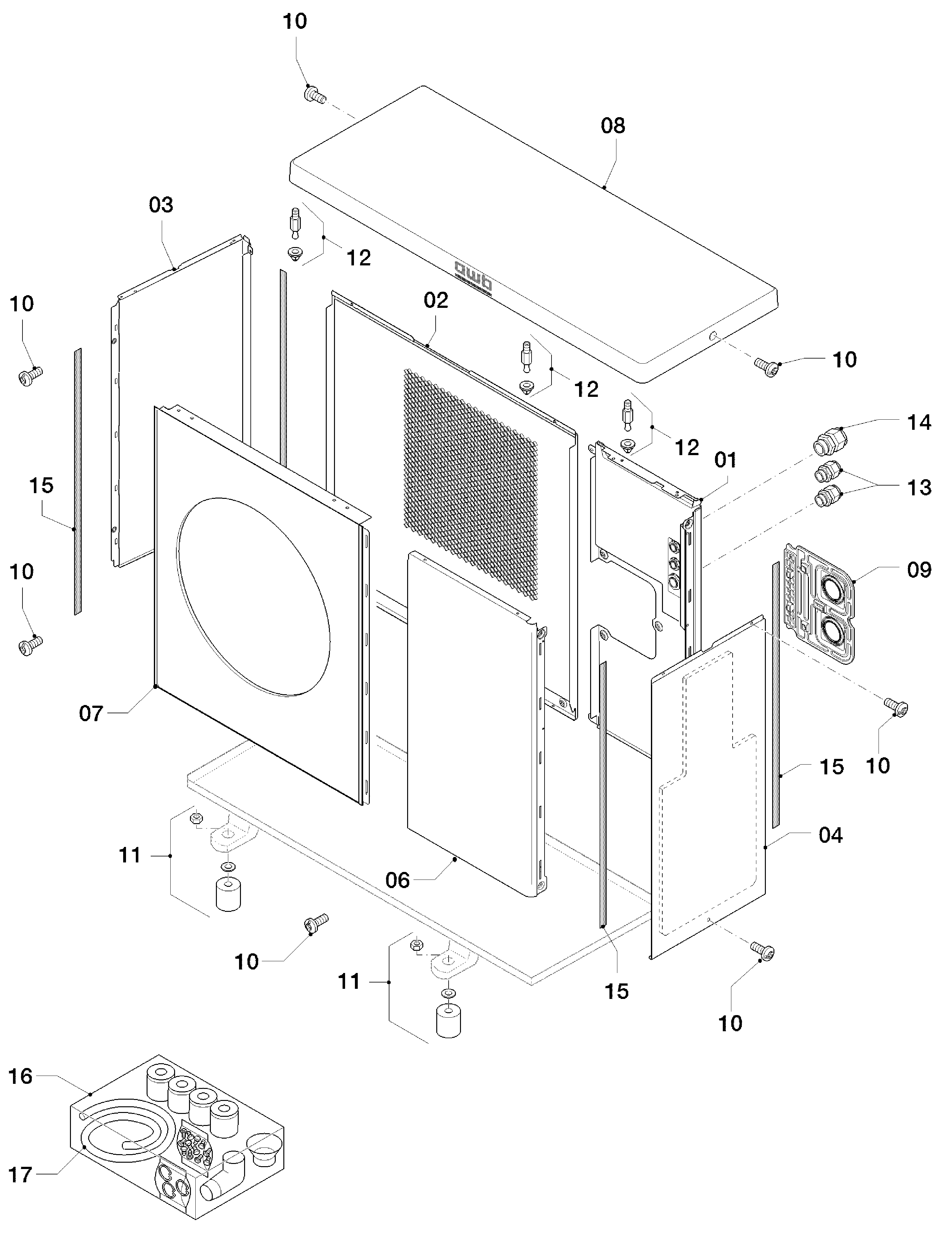

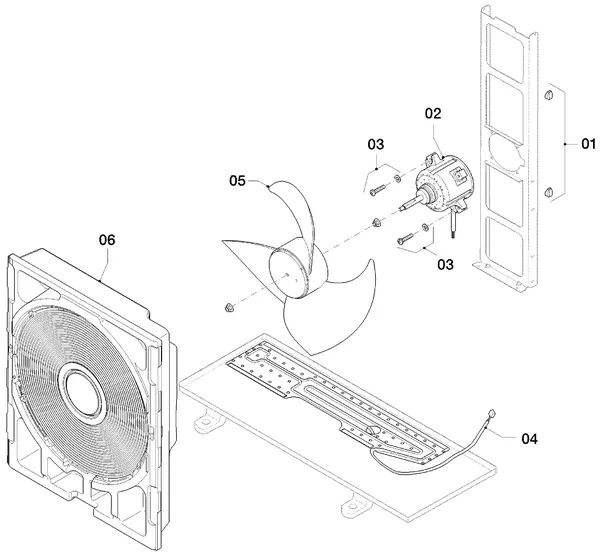

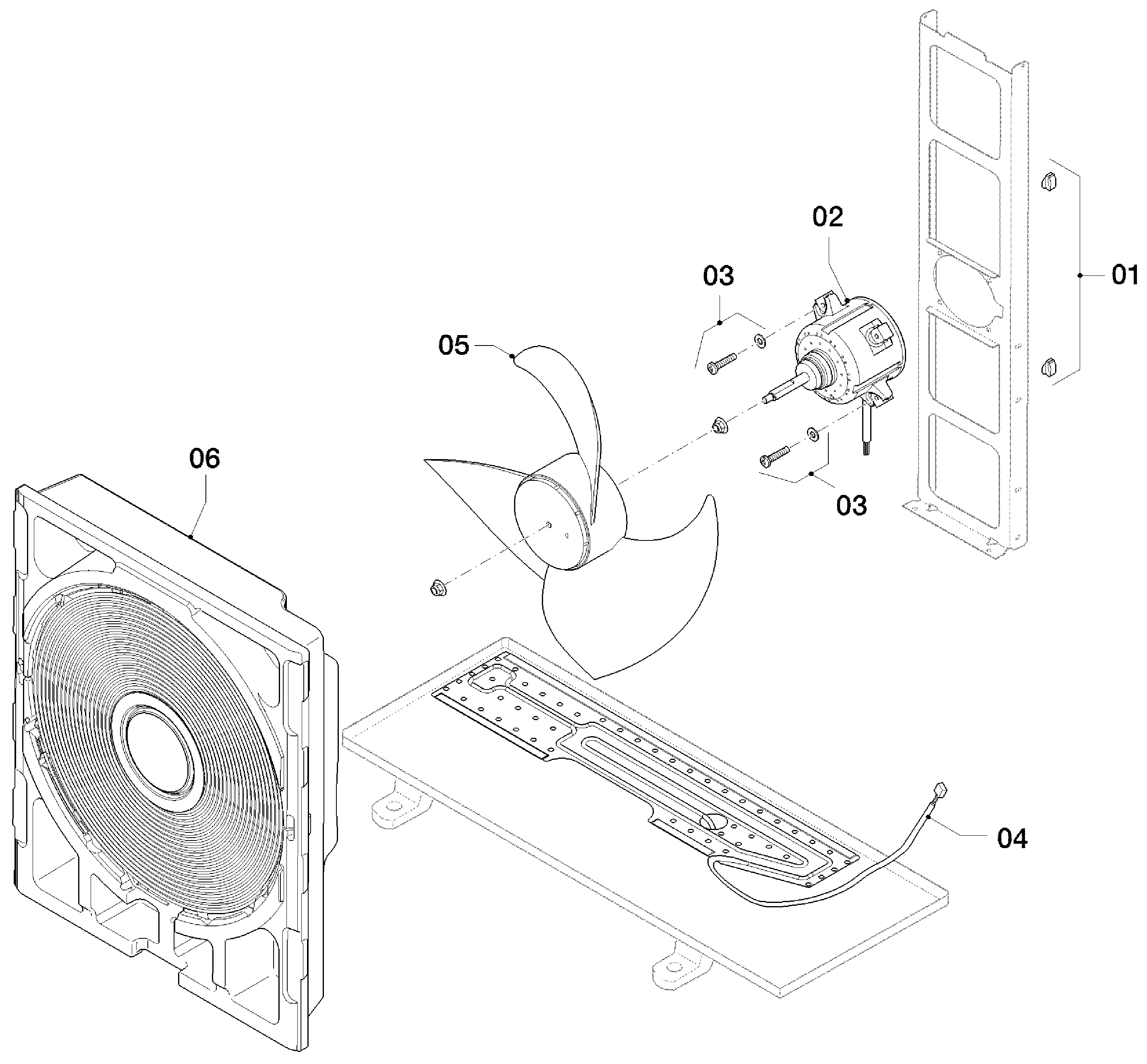

Exploded views of the AWB GeniaAir 5/2
Click an exploded view to enlarge it. The position numbers are shown next to each part.
Fault code on your AWB GeniaAir 5/2? This is the part type involved
Common AWB fault codes and the part type that is usually the cause; the parts for this model are listed above.
| Code | What is going on | Part type |
|---|---|---|
| 02 | Fan fault: | Fans |
| 2.8 | No feedback from fan to MCBA. | Fans |
| 03 | Repeated air fault: fan keeps running below the start speed. | Fans |
| 3.1 | Flow NTC short-circuited. | Sensors |
| 3.2 | Return NTC short-circuited. | Sensors |
| 3.6 | Flow NTC open circuit. | Sensors |
For guidance only: the same code can have a different cause depending on the situation.
Other AWB heat pumps
- AWB GeniaAir RM05/1 22
- AWB GeniaCompact module 26
- AWB GeniaHybrid ModuZone Z11 9
- AWB GeniaHybrid ModuZone Z20 3
- AWB GeniaHybrid controllers 6
- AWB GeniaUniversal 36
- AWB MagnaGeo 06 BPT HPS 63-2 65
- AWB MagnaGeo 08 BPT HPS 83-2 65
- AWB MagnaGeo 10 BPT HPS 100-2 46
- AWB MagnaGeo 10 BPT HPS 103-2 65
- AWB MagnaGeo 14 T HPS 140-2 46
- AWB MagnaGeo 17 T HPS 170-2 46
Frequently asked questions
Which parts are available for the AWB GeniaAir 5/2?
The catalogue lists 69 original parts for the AWB GeniaAir 5/2, including fans, sensors, temperature sensors and NTC sensors, pressure switches and differential pressure switches. All parts are listed above, grouped by type, with part number and price.
How much does a fan for the AWB GeniaAir 5/2 cost?
The fans for this model cost €432.55 incl. VAT. Check the table "Fans" above for the right part number.
Are the parts for the AWB GeniaAir 5/2 in stock?
3 of the 69 parts are in stock; shipping to EU countries from €12.95 (€16.95 for more distant countries), usually 3–5 working days. Parts marked "Made-to-order item" are ordered specially for you; the delivery time is shown on the product page.
How do I know which part I need for the AWB GeniaAir 5/2?
Search for the part by part number or use the exploded view of the AWB GeniaAir 5/2. Is your appliance showing a fault code? The fault code table shows the matching part type.
Are these original AWB parts?
Yes. All 69 parts in this list are original manufacturer parts for the AWB GeniaAir 5/2, supplied through the official technical wholesale channel and with the correct part number.
How much do parts for the AWB GeniaAir 5/2 cost?
Parts for the AWB GeniaAir 5/2 range from €7.84 to €2,148.38 incl. VAT. The exact price of each part is shown in the tables above.
Can I return a part?
You have a 14-day right of withdrawal. Return unused parts, in their original packaging where possible; details are in our returns conditions.
