Bosch Compress 5800i AW (CS5800iAW 12 E) spare parts
In brief
Instalpunt supplies 40 original parts for the Bosch Compress 5800i AW (CS5800iAW 12 E), including sensors, temperature sensors and NTC sensors, PCBs and controls. Order online.
- 40Spare parts
- 4In stock
- €5.89From
- 9Types
- availableExploded view
Looking for parts for the Bosch Compress 5800i AW (CS5800iAW 12 E) (heat pump)? Below are all 40 original parts, grouped by part type, with the matching exploded view. Choose a type to jump straight to the right table.
View the interactive exploded view →- Sensors 2
- Temperature sensors and NTC sensors 1
- PCBs and controls 1
- Siphons and condensate drains 1
- Filters 1
- Valves 1
- Electrical parts 1
- Gaskets and seals 3
- Fixing material 2
- Other parts 27
Sensors for the Bosch Compress 5800i AW (CS5800iAW 12 E) (2) all Bosch sensors →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Nefit temperature sensor 200mm 10 kohm | 8020309 Mfr. no. 8733703181 | €48.95 | In stock | View & order |
| Nefit temperature sensor NTC 1000mm R40 1000mm R40 | 8020304 Mfr. no. 8738206065 | €48.95 | In stock | View & order |
Temperature sensors and NTC sensors for the Bosch Compress 5800i AW (CS5800iAW 12 E) (1) all Bosch temperature sensors and NTC sensors →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Nefit outdoor temperature sensor | 8020026 Mfr. no. 8738203521 | €59.95 | In stock | View & order |
PCBs and controls for the Bosch Compress 5800i AW (CS5800iAW 12 E) (1) all Bosch PCBs and controls →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Bosch PCB HMI 8738211507 | 8179438 Mfr. no. 8738211507 | €89.95 | Made-to-order item | View & order |
Siphons and condensate drains for the Bosch Compress 5800i AW (CS5800iAW 12 E) (1) all Bosch siphons and condensate drains →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Bosch condensate drain Ø18 1790mm | 80200256 Mfr. no. 8738210454 | €53.95 | Made-to-order item | View & order |
Filters for the Bosch Compress 5800i AW (CS5800iAW 12 E) (1) all Bosch filters →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Bosch filter ball cap with magnet DN25 | 80200413 Mfr. no. 8738212827 | €33.95 | Made-to-order item | View & order |
Valves for the Bosch Compress 5800i AW (CS5800iAW 12 E) (1) all Bosch valves →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Nefit safety valve for e.g. Compress 5800i AW (CS5800iAW 12 E) 87186439890 | 8029286 Mfr. no. 87186439890 | €43.95 | In stock | View & order |
Electrical parts for the Bosch Compress 5800i AW (CS5800iAW 12 E) (1) all Bosch electrical parts →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Nefit cable clip (10x) | 8020865 Mfr. no. 87199053350 | €94.95 | Made-to-order item | View & order |
Gaskets and seals for the Bosch Compress 5800i AW (CS5800iAW 12 E) (3) all Bosch gaskets and seals →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Bosch O-ring 21.5x3 4 pcs | 80200270 Mfr. no. 8738211504 | €44.95 | Made-to-order item | View & order |
| Bosch O-ring for cylinder tank 10 pcs | 8185207 Mfr. no. 87167711640 | €21.95 | Made-to-order item | View & order |
| Nefit seal 1" 30 x21 x ( 10x ) x 1.0 | 8021335 Mfr. no. 87110043620 | €66.95 | Made-to-order item | View & order |
Fixing material for the Bosch Compress 5800i AW (CS5800iAW 12 E) (2) all Bosch fixing material →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Bosch support for e.g. Compress 5800i AW (CS5800iAW 12 E) 8737602306 | 80200669 Mfr. no. 8737602306 | €32.95 | Made-to-order item | View & order |
| Bosch screw M5x15 (10x) | 10740852 Mfr. no. 8737603843 | €23.95 | Not available | View & order |
Other parts for the Bosch Compress 5800i AW (CS5800iAW 12 E) (27)

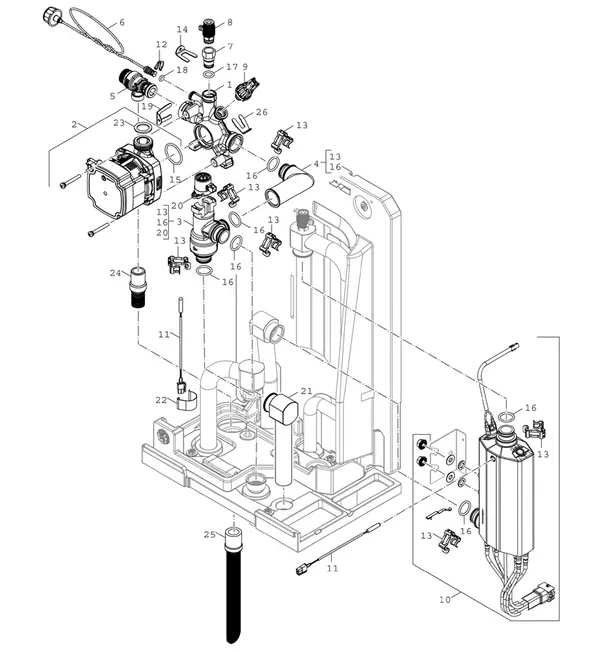

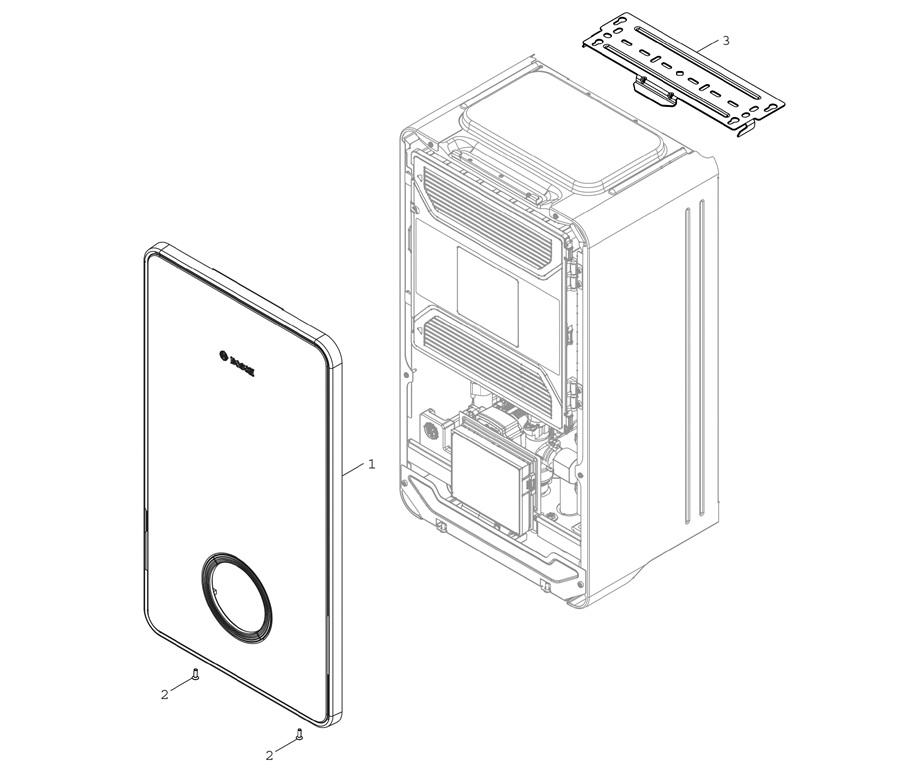

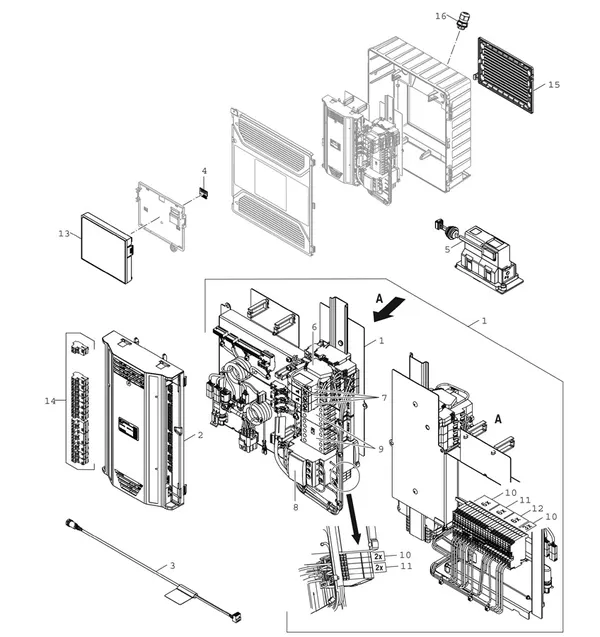

Exploded views of the Bosch Compress 5800i AW (CS5800iAW 12 E)
Click an exploded view to enlarge it. The position numbers are shown next to each part.
Fault code on your Bosch Compress 5800i AW (CS5800iAW 12 E)? This is the part type involved
Common Bosch fault codes and the part type that is usually the cause; the parts for this model are listed above.
| Code | What is going on | Part type |
|---|---|---|
| 2P564 | Temperature sensor temperature rising too fast (> 70 K/min). | Sensors |
| 317 V | Flue gas temperature sensor short circuit | Sensors |
| 318 V | Flue gas temperature sensor open circuit | Sensors |
| 815 W | Open manifold temperature sensor defective | Sensors |
| 1022 W | Cylinder temperature sensor defective or contact problems | Sensors |
| 1025 W | Return temperature sensor defective | Sensors |
For guidance only: the same code can have a different cause depending on the situation.
Other Bosch heat pumps
- Bosch Compress 3400i AWS (CS3400iAWS 10E) 64
- Bosch Compress 3400i AWS (CS3400iAWS 10M) 67
- Bosch Compress 3400i AWS (CS3400iAWS 14E) 64
- Bosch Compress 3400i AWS (CS3400iAWS 14M) 68
- Bosch Compress 3800i EW (CS3800IEW 9) 93
- Bosch Compress 5800i AW (CS5800iAW 12 M) 61
- Bosch Compress 6000 LWM 10kW 64
- Bosch Compress 6000 LWM 4,5kW 63
- Bosch Compress 7000 LW EHP 22-2 LW 66
- Bosch Compress 7000 LW EHP 28-2 LW 66
- Bosch Compress 7000 LW EHP 38-2 LW 59
- Bosch Compress 7000 LW EHP 48-2 LW 62
Frequently asked questions
Which parts are available for the Bosch Compress 5800i AW (CS5800iAW 12 E)?
The catalogue lists 40 original parts for the Bosch Compress 5800i AW (CS5800iAW 12 E), including sensors, temperature sensors and NTC sensors, PCBs and controls, siphons and condensate drains. All parts are listed above, grouped by type, with part number and price.
How much does a sensor for the Bosch Compress 5800i AW (CS5800iAW 12 E) cost?
The sensors for this model cost €56.19 incl. VAT. Check the table "Sensors" above for the right part number.
Are the parts for the Bosch Compress 5800i AW (CS5800iAW 12 E) in stock?
4 of the 40 parts are in stock; shipping to EU countries from €12.95 (€16.95 for more distant countries), usually 3–5 working days. Parts marked "Made-to-order item" are ordered specially for you; the delivery time is shown on the product page.
How do I know which part I need for the Bosch Compress 5800i AW (CS5800iAW 12 E)?
Search for the part by part number or use the exploded view of the Bosch Compress 5800i AW (CS5800iAW 12 E). Is your appliance showing a fault code? The fault code table shows the matching part type.
Are these original Bosch parts?
Yes. All 40 parts in this list are original manufacturer parts for the Bosch Compress 5800i AW (CS5800iAW 12 E), supplied through the official technical wholesale channel and with the correct part number.
How much do parts for the Bosch Compress 5800i AW (CS5800iAW 12 E) cost?
Parts for the Bosch Compress 5800i AW (CS5800iAW 12 E) range from €5.89 to €388.12 incl. VAT. The exact price of each part is shown in the tables above.
Can I return a part?
As a consumer you have a 14-day right of withdrawal. You may unpack and inspect the part; do not install or connect it. For a part that has been installed, connected or damaged we deduct the diminished value, up to the full price for circuit boards.
