Bosch Compress 6000 LWM 4,5kW spare parts
In brief
Instalpunt supplies 63 original parts for the Bosch Compress 6000 LWM 4,5kW, including sensors, temperature sensors and NTC sensors, pressure switches and differential pressure switches. Order online.
- 63Spare parts
- 3In stock
- €14.37From
- 21Types
- availableExploded view
Looking for parts for the Bosch Compress 6000 LWM 4,5kW (heat pump)? Below are all 63 original parts, grouped by part type, with the matching exploded view. Choose a type to jump straight to the right table.
View the interactive exploded view →- Sensors 4
- Temperature sensors and NTC sensors 1
- Pressure switches and differential pressure switches 1
- Heat exchangers 2
- PCBs and controls 5
- Diverter valves and hydroblocks 1
- Expansion vessels 1
- Expansion valves 1
- Compressors 2
- Thermostats and controls 1
- Displays and controls 1
- Filters 5
- Valves 3
- Anodes 1
- Heating elements 1
- Electrical parts 3
- Cables and wiring harnesses 4
- Gaskets and seals 4
- Pipes, tubes and hoses 7
- Casing and panels 7
- Insulation 2
- Other parts 6
Sensors for the Bosch Compress 6000 LWM 4,5kW (4) all Bosch sensors →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Bosch temperature sensor T1/T4 4000mm | 8179586 Mfr. no. 8738204637 | €63.95 | Made-to-order item | View & order |
| Nefit temperature sensor NTC 2000 mm Molex | 8020302 Mfr. no. 8738203395 | €46.95 | In stock | View & order |
| Bosch pressure sensor 3bar 8738203509 | 8179598 Mfr. no. 8738203509 | €96.95 | Made-to-order item | View & order |
| Nefit temperature sensor NTC 1000mm 120G | 8020305 Mfr. no. 8738204632 | €52.95 | Made-to-order item | View & order |
Temperature sensors and NTC sensors for the Bosch Compress 6000 LWM 4,5kW (1) all Bosch temperature sensors and NTC sensors →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Nefit outdoor temperature sensor | 8020026 Mfr. no. 8738203521 | €59.95 | In stock | View & order |
Pressure switches and differential pressure switches for the Bosch Compress 6000 LWM 4,5kW (1) all Bosch pressure switches and differential pressure switches →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Bosch pressure switch 42bar 8738204569 | 8179587 Mfr. no. 8738204569 | €146.95 | Made-to-order item | View & order |
Heat exchangers for the Bosch Compress 6000 LWM 4,5kW (2) all Bosch heat exchangers →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Bosch heat exchanger CBH60-30 condenser | 8179601 Mfr. no. 8738203124 | €589.95 | Made-to-order item | View & order |
| Bosch evaporator CB60-26 8738203127 | 8179600 Mfr. no. 8738203127 | €549.95 | Made-to-order item | View & order |
PCBs and controls for the Bosch Compress 6000 LWM 4,5kW (5) all Bosch PCBs and controls →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Bosch PCB PEL 87185802700 | 8179768 Mfr. no. 87185802700 | €193.95 | Made-to-order item | View & order |
| Bosch PCB 12V+15V SMPS 87183113860 | 8179787 Mfr. no. 87183113860 | €193.95 | Made-to-order item | View & order |
| Bosch PCB PIL 87183107900 | 8179796 Mfr. no. 87183107900 | €63.95 | Made-to-order item | View & order |
| Bosch PCB PGB 87185823630 | 8179765 Mfr. no. 87185823630 | €146.95 | Made-to-order item | View & order |
| Bosch PCB IO BAS LC LECP 8733702947 | 8179687 Mfr. no. 8733702947 | €283.95 | Made-to-order item | View & order |
Diverter valves and hydroblocks for the Bosch Compress 6000 LWM 4,5kW (1) all Bosch diverter valves and hydroblocks →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Bosch 3-way valve VXV525-G 1inch 8733701138 | 8179693 Mfr. no. 8733701138 | €223.95 | Made-to-order item | View & order |
Expansion vessels for the Bosch Compress 6000 LWM 4,5kW (1) all Bosch expansion vessels →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Bosch expansion vessel 4,5L plastic 87485100720 | 8179073 Mfr. no. 87485100720 | €122.95 | Made-to-order item | View & order |
Expansion valves for the Bosch Compress 6000 LWM 4,5kW (1) all Bosch expansion valves →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Bosch expansion valve 410A 1/2 Orif. 6 | 8179695 Mfr. no. 87337007830 | €261.95 | Made-to-order item | View & order |
Compressors for the Bosch Compress 6000 LWM 4,5kW (2) all Bosch compressors →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Bosch compressor insulation ZH8-13 | 8179602 Mfr. no. 8738203120 | €207.95 | Made-to-order item | View & order |
| Bosch compressor ZH04K1P 8733703136 | 8179684 Mfr. no. 8733703136 | €1,357.95 | Made-to-order item | View & order |
Thermostats and controls for the Bosch Compress 6000 LWM 4,5kW (1) all Bosch thermostats and controls →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Nefit control thermostat for Auris | 8020038 Mfr. no. 87172062120 | €112.95 | Made-to-order item | View & order |
Displays and controls for the Bosch Compress 6000 LWM 4,5kW (1) all Bosch displays and controls →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Bosch display LW BO ORA HR V3.10.0 | 80200219 Mfr. no. 8738209620 | €540.95 | Made-to-order item | View & order |
Filters for the Bosch Compress 6000 LWM 4,5kW (5) all Bosch filters →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Nefit water filter DN25 | 8020139 Mfr. no. 8733702122 | €17.95 | In stock | View & order |
| Bosch water filter DN20 8733702123 | 8179688 Mfr. no. 8733702123 | €29.95 | Made-to-order item | View & order |
| Bosch water filter with magnet 8738208894 | 8179465 Mfr. no. 8738208894 | €134.95 | Made-to-order item | View & order |
| Bosch filter ball valve DN20 | 80200251 Mfr. no. 8738210445 | €127.95 | Made-to-order item | View & order |
| Nefit filter drier | 8020072 Mfr. no. 87105070360 | €210.95 | Made-to-order item | View & order |
Valves for the Bosch Compress 6000 LWM 4,5kW (3) all Bosch valves →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Bosch safety valve 1/2inch 87485100700 | 8179075 Mfr. no. 87485100700 | €33.95 | Made-to-order item | View & order |
| Bosch valve 410A 5/16inch 8738207586 | 8179517 Mfr. no. 8738207586 | €63.95 | Made-to-order item | View & order |
| Bosch valve 5/16 87337006510 | 8179697 Mfr. no. 87337006510 | €44.95 | Made-to-order item | View & order |
Anodes for the Bosch Compress 6000 LWM 4,5kW (1)
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Bosch anode 87183108620 | 8179795 Mfr. no. 87183108620 | €303.95 | Made-to-order item | View & order |
Heating elements for the Bosch Compress 6000 LWM 4,5kW (1)
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Nefit electric heating element 3+6kW | 8021062 Mfr. no. 8733703809 | €671.95 | Made-to-order item | View & order |
Electrical parts for the Bosch Compress 6000 LWM 4,5kW (3) all Bosch electrical parts →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Bosch fuse PLS6-C6/2 87485100890 | 8179071 Mfr. no. 87485100890 | €89.95 | Made-to-order item | View & order |
| Nefit relay for Auris (e.g. Compress 3400i AWS (CS3400iAWS 10M)) 87172010480 | 8020033 Mfr. no. 87172010480 | €62.95 | Made-to-order item | View & order |
| Nefit fuse 20A | 8020032 Mfr. no. 87445030200 | €200.95 | Made-to-order item | View & order |
Cables and wiring harnesses for the Bosch Compress 6000 LWM 4,5kW (4) all Bosch cables and wiring harnesses →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Bosch cable 16-16 510mm 87183108730 | 8179794 Mfr. no. 87183108730 | €43.95 | Made-to-order item | View & order |
| Bosch cable Canbus 500 mm 87183101670 | 8179805 Mfr. no. 87183101670 | €109.95 | Made-to-order item | View & order |
| Bosch wiring harness C6-11 8738204483 | 8179589 Mfr. no. 8738204483 | €589.95 | Made-to-order item | View & order |
| Bosch cable 10-10 1000 mm 87183108740 | 8179793 Mfr. no. 87183108740 | €43.95 | Made-to-order item | View & order |
Gaskets and seals for the Bosch Compress 6000 LWM 4,5kW (4) all Bosch gaskets and seals →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Nefit seal 1" 30 x21 x ( 10x ) x 1.0 | 8021335 Mfr. no. 87110043620 | €66.95 | Made-to-order item | View & order |
| Nefit O-ring (10 pcs) for e.g. Compress 7000 LW EHP 22-2 LW 87110043590 | 8020638 Mfr. no. 87110043590 | €58.95 | Made-to-order item | View & order |
| Nefit O-ring 44 x 32 x 3 (10 pcs) | 8020623 Mfr. no. 87110043580 | €55.95 | Made-to-order item | View & order |
| Nefit gasket 10 pcs for e.g. IDU Split 2-6 T 87110043610 | 8020064 Mfr. no. 87110043610 | €47.95 | Made-to-order item | View & order |
Pipes, tubes and hoses for the Bosch Compress 6000 LWM 4,5kW (7) all Bosch pipes, tubes and hoses →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Nefit flexible hose 570 mm | 80200067 Mfr. no. 87183111530 | €193.95 | Made-to-order item | View & order |
| Nefit hose 390 mm 87183112320 - | 80200159 Mfr. no. 87183112320 | €136.95 | Made-to-order item | View & order |
| Nefit T-piece 8733701943 - | 8027664 Mfr. no. 8733701943 | €84.95 | Made-to-order item | View & order |
| Buderus pipe cu 3/8" 119mm sp | 8021207 Mfr. no. 8738204908 | €155.95 | Made-to-order item | View & order |
| Nefit flexible hose for e.g. Auris E C4 OS 87107352290 | 8020065 Mfr. no. 87107352290 | €68.95 | Made-to-order item | View & order |
| Nefit nipple pump | 8020676 Mfr. no. 87174052490 | €86.95 | Made-to-order item | View & order |
| Nefit nipple for pump | 8020066 Mfr. no. 87174052500 | €45.95 | Made-to-order item | View & order |
Casing and panels for the Bosch Compress 6000 LWM 4,5kW (7) all Bosch casing and panels →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Bosch top plate 8733703140 | 8179681 Mfr. no. 8733703140 | €303.95 | Made-to-order item | View & order |
| Bosch rear panel 8733703139 | 8179682 Mfr. no. 8733703139 | €346.95 | Made-to-order item | View & order |
| Bosch side panel L/R 8733703138 | 8179683 Mfr. no. 8733703138 | €365.95 | Made-to-order item | View & order |
| Bosch cover 410A 5/16inch 8738207560 | 8179519 Mfr. no. 8738207560 | €31.95 | Made-to-order item | View & order |
| Bosch cover 87183116810 | 8179786 Mfr. no. 87183116810 | €102.95 | Made-to-order item | View & order |
| Bosch front wall 87183108750 | 8179792 Mfr. no. 87183108750 | €589.95 | Made-to-order item | View & order |
| Bosch cover 87180058170 | 8179810 Mfr. no. 87180058170 | €27.95 | Made-to-order item | View & order |
Insulation for the Bosch Compress 6000 LWM 4,5kW (2) all Bosch insulation →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Bosch circulation pump insulation para 25 1 | 8179784 Mfr. no. 87183119190 | €47.95 | Made-to-order item | View & order |
| Bosch insulation 87183104620 | 8179799 Mfr. no. 87183104620 | €207.95 | Made-to-order item | View & order |
Other parts for the Bosch Compress 6000 LWM 4,5kW (6)
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Nefit adjustable foot 87485100850 - | 80200162 Mfr. no. 87485100850 | €24.95 | Made-to-order item | View & order |
| Bosch filling device g1inch 8733703127 | 8179685 Mfr. no. 8733703127 | €409.95 | Made-to-order item | View & order |
| Bosch rotary switch 87337008240 | 8179694 Mfr. no. 87337008240 | €47.95 | Made-to-order item | View & order |
| Nefit storage tank 87183104570 | 8179800 Mfr. no. 87183104570 | €3,082.95 | Made-to-order item | View & order |
| Nefit air vent valve | 8020653 Mfr. no. 8738206131 | €58.95 | Made-to-order item | View & order |
| Nefit thermal overload 10A | 8020029 Mfr. no. 87445030220 | €357.95 | Made-to-order item | View & order |

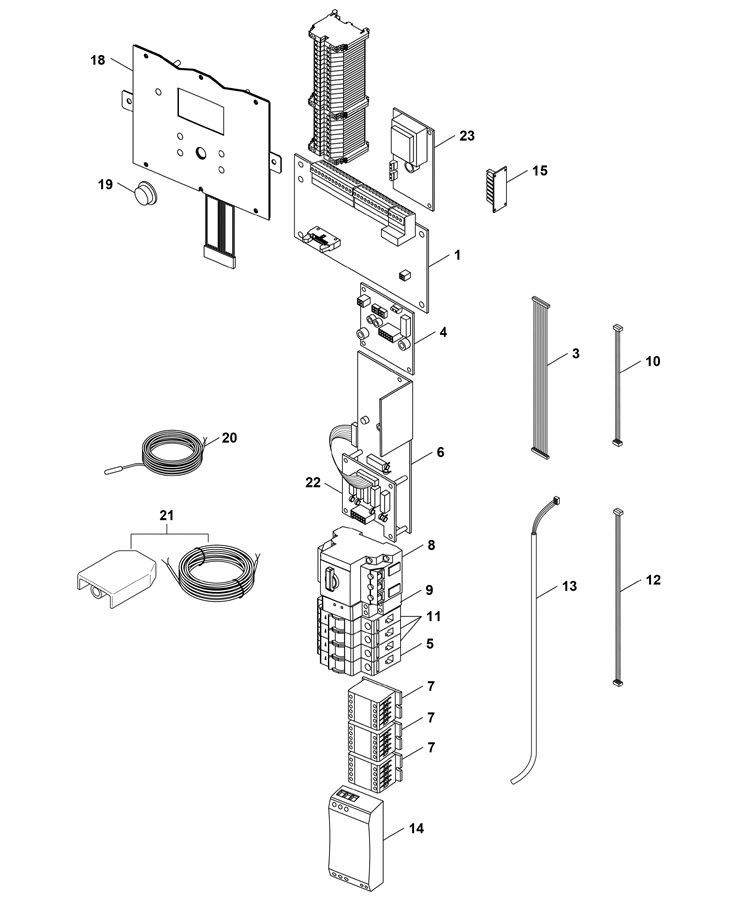

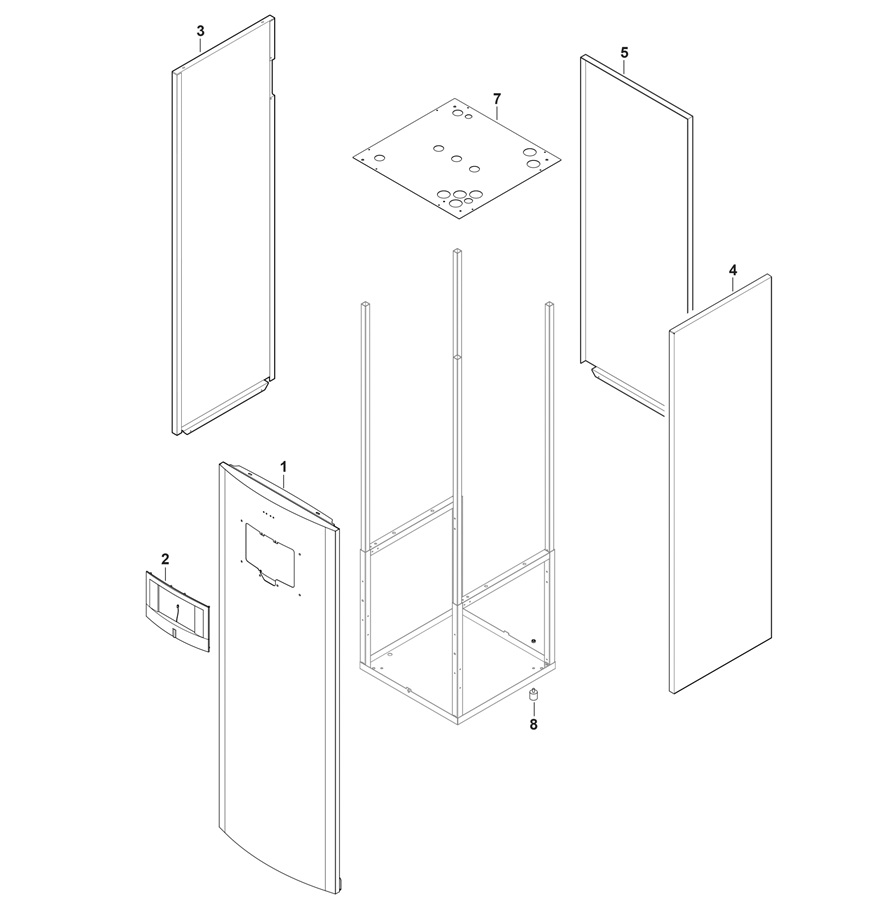

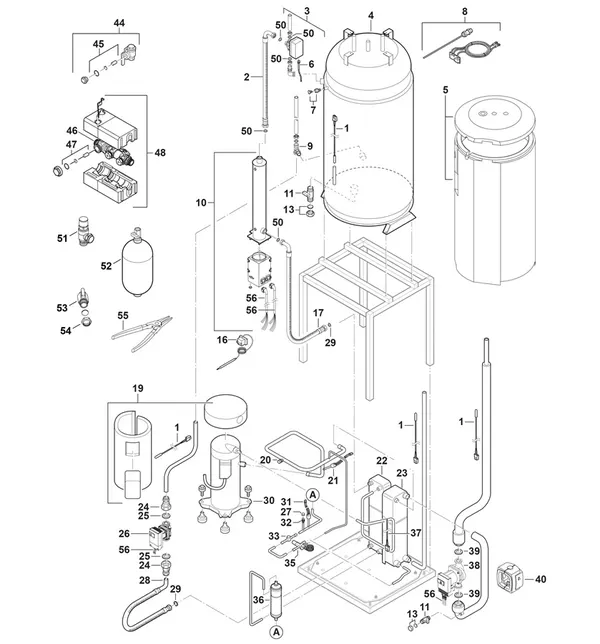

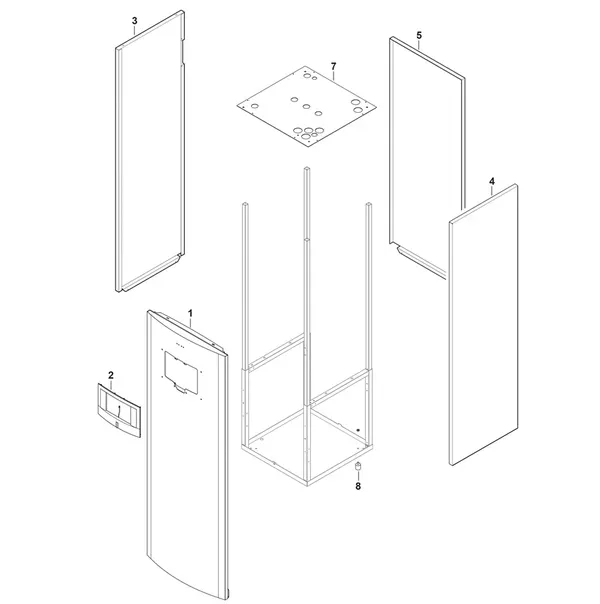

Exploded views of the Bosch Compress 6000 LWM 4,5kW
Click an exploded view to enlarge it. The position numbers are shown next to each part.
Fault code on your Bosch Compress 6000 LWM 4,5kW? This is the part type involved
Common Bosch fault codes and the part type that is usually the cause; the parts for this model are listed above.
| Code | What is going on | Part type |
|---|---|---|
| 2P564 | Temperature sensor temperature rising too fast (> 70 K/min). | Sensors |
| 317 V | Flue gas temperature sensor short circuit | Sensors |
| 318 V | Flue gas temperature sensor open circuit | Sensors |
| 815 W | Open manifold temperature sensor defective | Sensors |
| 1022 W | Cylinder temperature sensor defective or contact problems | Sensors |
| 1025 W | Return temperature sensor defective | Sensors |
For guidance only: the same code can have a different cause depending on the situation.
Other Bosch heat pumps
- Bosch Compress 3400i AWS (CS3400iAWS 10E) 64
- Bosch Compress 3400i AWS (CS3400iAWS 10M) 67
- Bosch Compress 3400i AWS (CS3400iAWS 14E) 64
- Bosch Compress 3400i AWS (CS3400iAWS 14M) 68
- Bosch Compress 3800i EW (CS3800IEW 9) 93
- Bosch Compress 5800i AW (CS5800iAW 12 E) 40
- Bosch Compress 5800i AW (CS5800iAW 12 M) 61
- Bosch Compress 6000 LWM 10kW 64
- Bosch Compress 7000 LW EHP 22-2 LW 66
- Bosch Compress 7000 LW EHP 28-2 LW 66
- Bosch Compress 7000 LW EHP 38-2 LW 59
- Bosch Compress 7000 LW EHP 48-2 LW 62
Frequently asked questions
Which parts are available for the Bosch Compress 6000 LWM 4,5kW?
The catalogue lists 63 original parts for the Bosch Compress 6000 LWM 4,5kW, including sensors, temperature sensors and NTC sensors, pressure switches and differential pressure switches, heat exchangers. All parts are listed above, grouped by type, with part number and price.
How much does a sensor for the Bosch Compress 6000 LWM 4,5kW cost?
The sensors for this model cost between €47.04 and €95.40 incl. VAT. Check the table "Sensors" above for the right part number.
Are the parts for the Bosch Compress 6000 LWM 4,5kW in stock?
3 of the 63 parts are in stock; shipping to EU countries from €12.95 (€16.95 for more distant countries), usually 3–5 working days. Parts marked "Made-to-order item" are ordered specially for you; the delivery time is shown on the product page.
How do I know which part I need for the Bosch Compress 6000 LWM 4,5kW?
Search for the part by part number or use the exploded view of the Bosch Compress 6000 LWM 4,5kW. Is your appliance showing a fault code? The fault code table shows the matching part type.
Are these original Bosch parts?
Yes. All 63 parts in this list are original manufacturer parts for the Bosch Compress 6000 LWM 4,5kW, supplied through the official technical wholesale channel and with the correct part number.
How much do parts for the Bosch Compress 6000 LWM 4,5kW cost?
Parts for the Bosch Compress 6000 LWM 4,5kW range from €14.37 to €4,167.39 incl. VAT. The exact price of each part is shown in the tables above.
Can I return a part?
As a consumer you have a 14-day right of withdrawal. You may unpack and inspect the part; do not install or connect it. For a part that has been installed, connected or damaged we deduct the diminished value, up to the full price for circuit boards.
