Panasonic WH-MDC09H3E5 spare parts

In brief

Instalpunt supplies 10 original parts for the Panasonic WH-MDC09H3E5, including fans, sensors, pressure switches and differential pressure switches. Order online.

10Spare parts
9In stock
€37.90From
7Types
availableExploded view

Looking for parts for the Panasonic WH-MDC09H3E5 (heat pump)? Below are all 10 original parts, grouped by part type, with the matching exploded view. Choose a type to jump straight to the right table.

View the interactive exploded view →

Quick links to the right part for the Panasonic WH-MDC09H3E5

Part	From	Delivery
Fan Panasonic fan blade for e.g. WH-MDC09J3E5 CWH00K1006	€99.95	In stock
Display Panasonic remote control wired	€548.95	In stock

Prices incl. VAT, taken directly from our checkout. Below is the complete parts list for this model.

Installer or self-employed engineer? Create a business account: prices excl. VAT and invoices in your company name.

Fans 2
Sensors 1
Pressure switches and differential pressure switches 1
Thermostats and controls 1
Displays and controls 1
Valves 3
Pressure gauges 1

Fans for the Panasonic WH-MDC09H3E5 (2)

Part	Item no. / mfr. no.	Price	Stock
Panasonic fan motor DC 60W	9950047 Mfr. no. EHDS80C60AC	€350.95	In stock	View & order
Panasonic fan blade for e.g. WH-MDC09J3E5 CWH00K1006	9950046 Mfr. no. CWH00K1006	€99.95	In stock	View & order

Sensors for the Panasonic WH-MDC09H3E5 (1) all Panasonic sensors →

Part	Item no. / mfr. no.	Price	Stock
Panasonic sensor for e.g. WH-UD05JE5 CWA501463	9950045 Mfr. no. CWA501463	€196.95	In stock	View & order

Pressure switches and differential pressure switches for the Panasonic WH-MDC09H3E5 (1)

Part	Item no. / mfr. no.	Price	Stock
Panasonic pressure switch	9950048 Mfr. no. CWA101013	€95.95	In stock	View & order

Thermostats and controls for the Panasonic WH-MDC09H3E5 (1)

Part	Item no. / mfr. no.	Price	Stock
Panasonic thermostat	9950057 Mfr. no. A151074	€49.95	Made-to-order item	View & order

Displays and controls for the Panasonic WH-MDC09H3E5 (1)

Part	Item no. / mfr. no.	Price	Stock
Panasonic remote control wired	9950050 Mfr. no. ACXA75C15753	€548.95	In stock	View & order

Valves for the Panasonic WH-MDC09H3E5 (3) all Panasonic valves →

Part	Item no. / mfr. no.	Price	Stock
Panasonic pressure relief valve	9950016 Mfr. no. ACXB62-00740	€118.95	In stock	View & order
Panasonic automatic air vent	9950028 Mfr. no. ACXB62-00130	€99.95	In stock	View & order
Panasonic 4-way valve V-coil with screw	9950077 Mfr. no. CWB001026JX	€123.95	In stock	View & order

Pressure gauges for the Panasonic WH-MDC09H3E5 (1)

Part	Item no. / mfr. no.	Price	Stock
Panasonic pressure gauge for e.g. WH-ADC0309H3E5 B070003	9950066 Mfr. no. B070003	€102.95	In stock	View & order

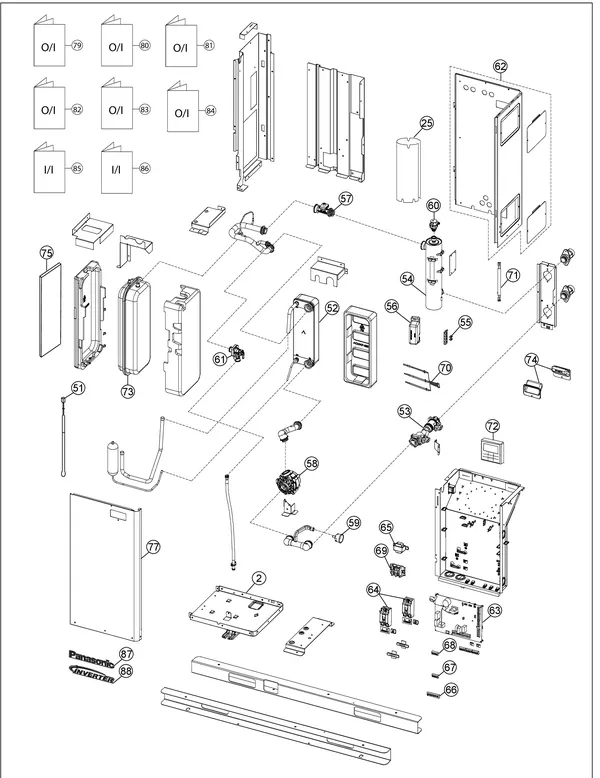

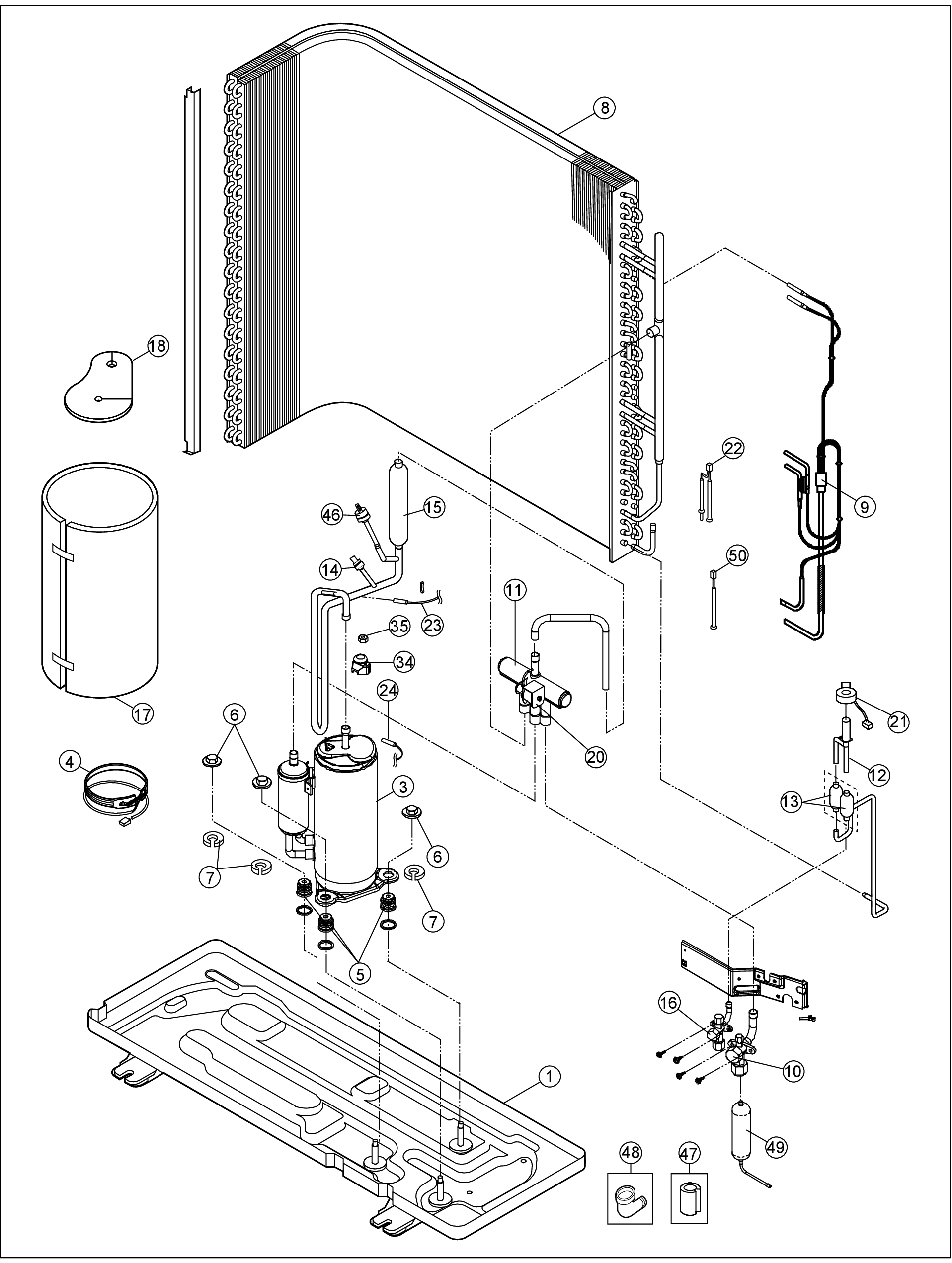

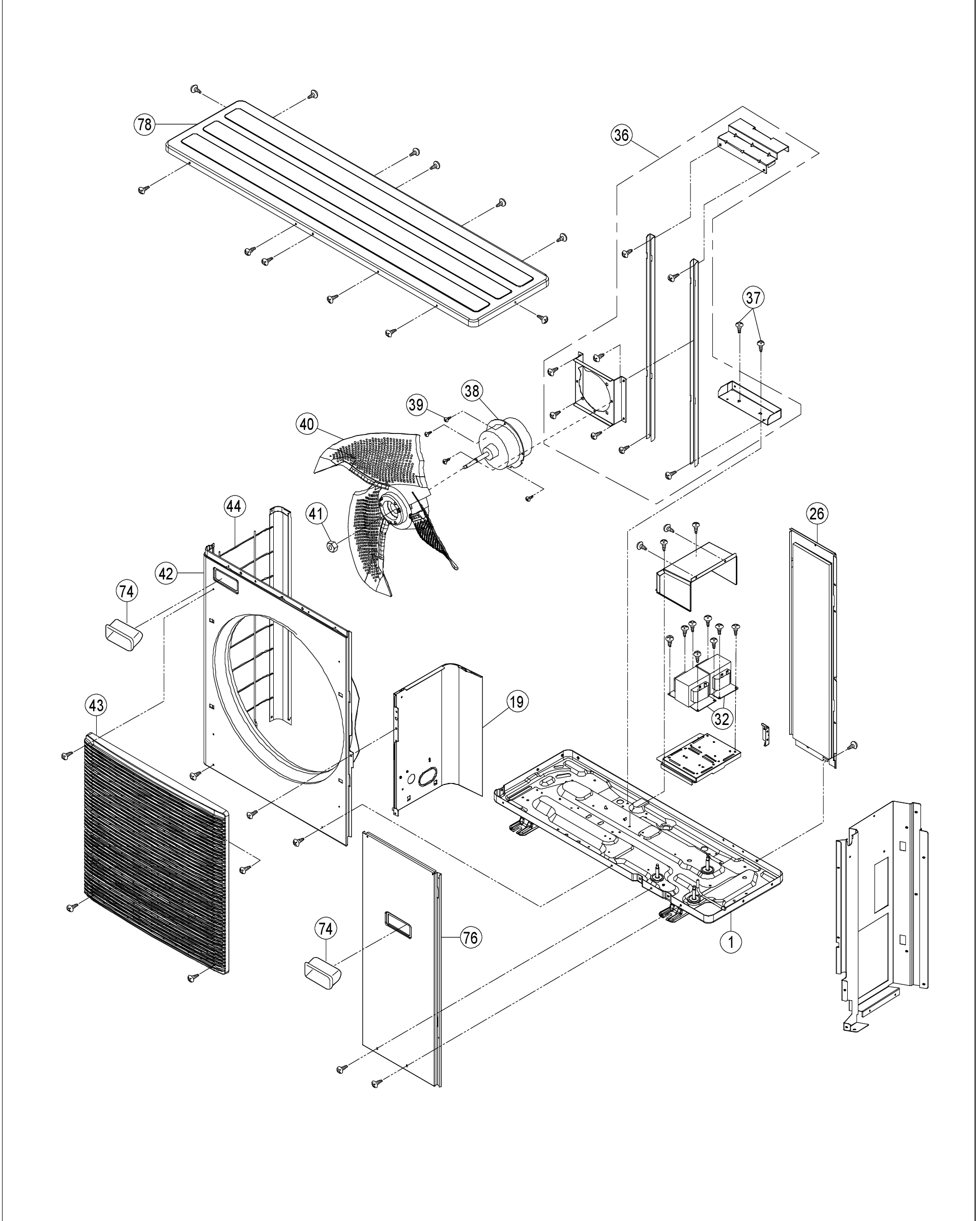

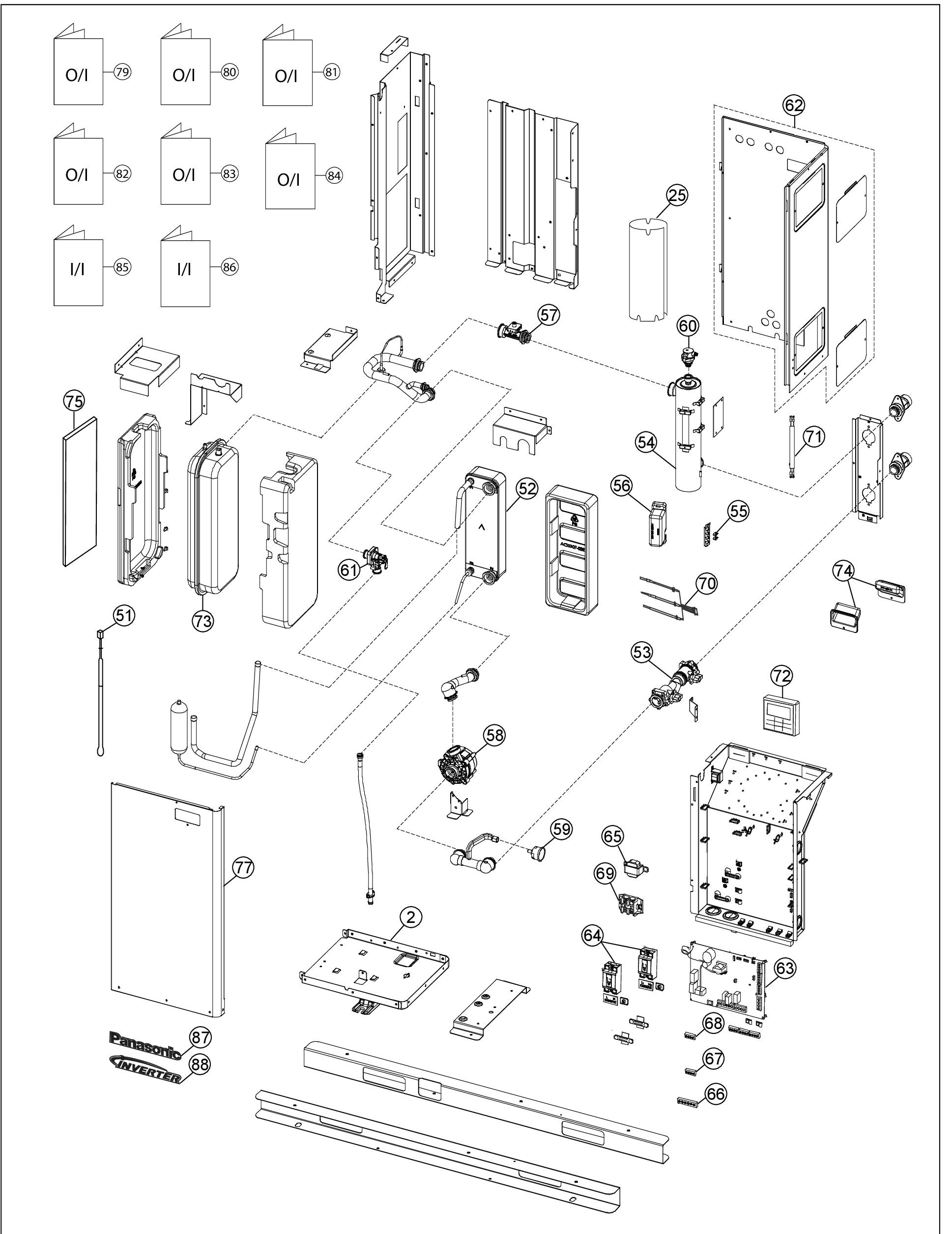

Exploded views of the Panasonic WH-MDC09H3E5

Click an exploded view to enlarge it. The position numbers are shown next to each part.

Other Panasonic heat pumps

← All Panasonic parts

Frequently asked questions

Which parts are available for the Panasonic WH-MDC09H3E5?

The catalogue lists 10 original parts for the Panasonic WH-MDC09H3E5, including fans, sensors, pressure switches and differential pressure switches, thermostats and controls. All parts are listed above, grouped by type, with part number and price.

How much does a fan for the Panasonic WH-MDC09H3E5 cost?

The fans for this model cost between €113.69 and €454.77 incl. VAT. Check the table "Fans" above for the right part number.

Are the parts for the Panasonic WH-MDC09H3E5 in stock?

9 of the 10 parts are in stock; shipping to EU countries from €17.95 (€24.95 for more distant countries), usually 3–5 working days. Parts marked "Made-to-order item" are ordered specially for you; the delivery time is shown on the product page.

How do I know which part I need for the Panasonic WH-MDC09H3E5?

Search for the part by part number or use the exploded view of the Panasonic WH-MDC09H3E5. Is your appliance showing a fault code? The fault code table shows the matching part type.

Are these original Panasonic parts?

Yes. All 10 parts in this list are original manufacturer parts for the Panasonic WH-MDC09H3E5, supplied through the official technical wholesale channel and with the correct part number.

How much do parts for the Panasonic WH-MDC09H3E5 cost?

Parts for the Panasonic WH-MDC09H3E5 range from €37.90 to €706.98 incl. VAT. The exact price of each part is shown in the tables above.

Can I return a part?

You have a 14-day right of withdrawal. Return unused parts, in their original packaging where possible; details are in our returns conditions.
