Vaillant hrEXCLUSIEF VHR 30 spare parts
In brief
Instalpunt supplies 103 original parts for the Vaillant hrEXCLUSIEF VHR 30, including fans, temperature sensors and NTC sensors, pressure sensors. Order online.
- 103Spare parts
- 48In stock
- €5.89From
- 23Types
- availableExploded view
Looking for parts for the Vaillant hrEXCLUSIEF VHR 30 (boiler)? Below are all 103 original parts, grouped by part type, with the matching exploded view. Choose a type to jump straight to the right table.
View the interactive exploded view →Quick left to the right part for the Vaillant hrEXCLUSIEF VHR 30
| Part | From | Delivery |
|---|---|---|
| Fan Vaillant fan VHR1018-2224-2835 mvl | €292.95 | In stock |
| Ignition part Vaillant ignition electrode VHR 1018-2224-283545 for ecoTEC plus | €37.95 | In stock |
| Flow sensor Vaillant flow sensor complete VHR18-22/3C24-28/3C VHR CW3 4/3 for ecoTEC plus and ecoTEC pro etc. | €55.95 | In stock |
| Temperature sensor Vaillant NTC sensor flow/return VHR18-22/3C24-28/3C for ecoTEC plus and ecoTEC pro etc. | €19.95 | In stock |
| Pump Vaillant high-efficiency pump excluding pump cable for e.g. hrEXCLUSIEF VHR 35/4 S R1 0010032790 | €346.95 | In stock |
| Heat exchanger Vaillant heat exchanger VHR24-28 | €694.95 | In stock |
| Display Vaillant buttons platinum (3 pcs) | €26.95 | In stock |
Prices incl. VAT, taken directly from our checkout. Below is the complete parts list for this model.
Installer or self-employed engineer? Create a business account: prices excl. VAT and invoices in your company name.
- Fans 1
- Temperature sensors and NTC sensors 3
- Pressure sensors 1
- Flow sensors and flow switches 1
- Pumps 1
- Heat exchangers 2
- Gas valves and gas control 2
- PCBs and controls 1
- Diverter valves and hydroblocks 1
- Ignition and ionisation 2
- Siphons and condensate drains 1
- Burners 2
- Displays and controls 3
- Filters 1
- Valves 2
- Motors 1
- Electrical parts 4
- Cables and wiring harnesses 3
- Gaskets and seals 18
- Pipes, tubes and hoses 15
- Casing and panels 5
- Insulation 2
- Fixing material 23
- Other parts 8
Fans for the Vaillant hrEXCLUSIEF VHR 30 (1) all Vaillant fans →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Vaillant fan VHR1018-2224-2835 mvl | 8056571 Mfr. no. 190235 | €292.95 | In stock | View & order |
Temperature sensors and NTC sensors for the Vaillant hrEXCLUSIEF VHR 30 (3) all Vaillant temperature sensors and NTC sensors →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Vaillant NTC sensor plate heat exchanger VHR/3C for ecoTEC pro and ecoTEC plus etc. | 8058947 Mfr. no. 103430 | €33.95 | In stock | View & order |
| Vaillant NTC sensor flow/return VHR18-22/3C24-28/3C for ecoTEC plus and ecoTEC pro etc. | 8058955 Mfr. no. 193592 | €19.95 | In stock | View & order |
| Vaillant NTC domestic hot water VHR 3/C | 8058966 Mfr. no. 103429 | €25.95 | In stock | View & order |
Pressure sensors for the Vaillant hrEXCLUSIEF VHR 30 (1)
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Vaillant pressure sensor VHR18-22/3C24-28/3C VHR CW3 4/3 for ecoTEC plus and ecoTEC pro etc. | 8058957 Mfr. no. 0020059717 | €20.95 | Made-to-order item | View & order |
Flow sensors and flow switches for the Vaillant hrEXCLUSIEF VHR 30 (1) all Vaillant flow sensors and flow switches →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Vaillant flow sensor complete VHR18-22/3C24-28/3C VHR CW3 4/3 for ecoTEC plus and ecoTEC pro etc. | 8058952 Mfr. no. 178988 | €55.95 | In stock | View & order |
Pumps for the Vaillant hrEXCLUSIEF VHR 30 (1) all Vaillant pumps →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Vaillant high-efficiency pump excluding pump cable for e.g. hrEXCLUSIEF VHR 35/4 S R1 0010032790 | 8056921 Mfr. no. 0010032790 | €346.95 | In stock | View & order |
Heat exchangers for the Vaillant hrEXCLUSIEF VHR 30 (2) all Vaillant heat exchangers →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Vaillant heat exchanger VHR24-28 | 8056270 Mfr. no. 065114 | €694.95 | In stock | View & order |
| Vaillant plate heat exchanger 20 plates vui 280/282-7 | 8059085 Mfr. no. 065153 | €185.95 | Made-to-order item | View & order |
Gas valves and gas control for the Vaillant hrEXCLUSIEF VHR 30 (2) all Vaillant gas valves and gas control →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Vaillant gas valve VHR24-30 | 8056310 Mfr. no. 053471 | €254.95 | In stock | View & order |
| Vaillant gas mixing tube VHR10-45 | 8056592 Mfr. no. 116688 | €122.95 | Made-to-order item | View & order |
PCBs and controls for the Vaillant hrEXCLUSIEF VHR 30 (1) all Vaillant PCBs and controls →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Vaillant main PCB VHR/3 and /3-5 | 8050028 Mfr. no. 0020111353 | €340.45 | In stock | View & order |
Diverter valves and hydroblocks for the Vaillant hrEXCLUSIEF VHR 30 (1) all Vaillant diverter valves and hydroblocks →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Vaillant adjustable bypass VHR/4 | 8056961 Mfr. no. 0020022744 | €66.95 | Made-to-order item | View & order |
Ignition and ionisation for the Vaillant hrEXCLUSIEF VHR 30 (2) all Vaillant ignition and ionisation →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Vaillant ignition electrode VHR 1018-2224-283545 for ecoTEC plus | 8051128 Mfr. no. 090709 | €37.95 | In stock | View & order |
| Vaillant ignition cable VHR 3/C | 8058958 Mfr. no. 193590 | €56.95 | In stock | View & order |
Siphons and condensate drains for the Vaillant hrEXCLUSIEF VHR 30 (1) all Vaillant siphons and condensate drains →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Vaillant siphon VHR for ecoTEC plus | 8057248 Mfr. no. 0020081567 | €40.95 | In stock | View & order |
Burners for the Vaillant hrEXCLUSIEF VHR 30 (2) all Vaillant burners →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Vaillant burner plate complete incl. insulation | 8055871 Mfr. no. 088134 | €182.95 | In stock | View & order |
| Vaillant burner VHR24-28 | 8054351 Mfr. no. 049345 | €187.95 | In stock | View & order |
Displays and controls for the Vaillant hrEXCLUSIEF VHR 30 (3) all Vaillant displays and controls →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Vaillant buttons platinum (3 pcs) | 8056972 Mfr. no. 0020025050 | €26.95 | In stock | View & order |
| Vaillant display for ecoTEC plus (e.g. hrSOLIDE plus VHR 24-28/3-5 R3) 0020060811 | 8050021 Mfr. no. 0020060811 | €129.95 | In stock | View & order |
| Vaillant operating handle | 8056952 Mfr. no. 0020022749 | €42.95 | Made-to-order item | View & order |
Filters for the Vaillant hrEXCLUSIEF VHR 30 (1) all Vaillant filters →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Vaillant strainer VHR18-2224-2835c | 8056522 Mfr. no. 074517 | €58.95 | Made-to-order item | View & order |
Valves for the Vaillant hrEXCLUSIEF VHR 30 (2) all Vaillant valves →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Vaillant automatic air vent | 8050850 Mfr. no. 061707 | €38.95 | In stock | View & order |
| Vaillant bypass valve assembly | 8051484 Mfr. no. 178980 | €37.95 | In stock | View & order |
Motors for the Vaillant hrEXCLUSIEF VHR 30 (1) all Vaillant motors →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Vaillant three-way valve motor VCW254/255-3CWK245/3VHR after 2005 | 8057072 Mfr. no. 140429 | €106.95 | In stock | View & order |
Electrical parts for the Vaillant hrEXCLUSIEF VHR 30 (4) all Vaillant electrical parts →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Vaillant fuse 2.0A T2H 10 pcs for ecoTEC plus and ecoTEC pro etc. | 8050127 Mfr. no. 0020067507 | €17.95 | In stock | View & order |
| Vaillant cable gland for e.g. hrEXCLUSIEF VHR 35 S 088367 | 8057986 Mfr. no. 088367 | €25.95 | Made-to-order item | View & order |
| Vaillant cable gland for e.g. hrEXCLUSIEF VHR 35 S 088368 | 8057987 Mfr. no. 088368 | €25.95 | Made-to-order item | View & order |
| Vaillant strain relief | 8051468 Mfr. no. 078533 | €44.95 | Made-to-order item | View & order |
Cables and wiring harnesses for the Vaillant hrEXCLUSIEF VHR 30 (3) all Vaillant cables and wiring harnesses →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Vaillant connection cable for e.g. ecoTEC plus VHR 45/4 S A 0020025946 | 8056974 Mfr. no. 0020025946 | €27.95 | Made-to-order item | View & order |
| Vaillant wiring harness VHR30/435/4C | 8056966 Mfr. no. 0020022746 | €92.95 | Made-to-order item | View & order |
| Vaillant connecting plugs VC/W254/2XE255/2E | 8058570 Mfr. no. 253815 | €48.95 | Made-to-order item | View & order |
Gaskets and seals for the Vaillant hrEXCLUSIEF VHR 30 (18) all Vaillant gaskets and seals →
Pipes, tubes and hoses for the Vaillant hrEXCLUSIEF VHR 30 (15) all Vaillant pipes, tubes and hoses →
Casing and panels for the Vaillant hrEXCLUSIEF VHR 30 (5) all Vaillant casing and panels →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Vaillant cap 5 pcs VHR354565 | 8058292 Mfr. no. 147392 | €33.95 | In stock | View & order |
| Vaillant cover for e.g. ecoTEC plus VHR 45/4 S A 0020022748 | 8056953 Mfr. no. 0020022748 | €111.95 | Made-to-order item | View & order |
| Vaillant case for e.g. hrEXCLUSIEF VHR 30 0020025049 | 8053281 Mfr. no. 0020025049 | €69.95 | Made-to-order item | View & order |
| Vaillant logo plate VC/W254-255/3 CWK245/3 | 8057191 Mfr. no. 118096 | €44.95 | Made-to-order item | View & order |
| Vaillant front plate | 8051084 Mfr. no. 0020024974 | €360.95 | Made-to-order item | View & order |
Insulation for the Vaillant hrEXCLUSIEF VHR 30 (2) all Vaillant insulation →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Vaillant insulation plate 10 mm nut / washer | 8050715 Mfr. no. 210779 | €55.95 | Made-to-order item | View & order |
| Vaillant insulation Solide VHR 1018-2224-283545 | 8056400 Mfr. no. 210734 | €48.95 | In stock | View & order |
Fixing material for the Vaillant hrEXCLUSIEF VHR 30 (23) all Vaillant fixing material →
Other parts for the Vaillant hrEXCLUSIEF VHR 30 (8)
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Vaillant gasket set I for ecoTEC plus and ecoTEC pro etc. | 8055580 Mfr. no. 0020025929 | €20.95 | In stock | View & order |
| Vaillant VR33 OpenTherm module | 80599971 Mfr. no. 8000020151 | €71.95 | In stock | View & order |
| Vaillant water strainer VCW254-255/3CWK245/3 | 8056622 Mfr. no. 074514 | €14.95 | In stock | View & order |
| Vaillant three-way valve VHR VCW254-255/3 CWK 245/3 | 8057003 Mfr. no. 252457 | €200.95 | In stock | View & order |
| Vaillant sight glass VHR1018-2224-283545 | 8057022 Mfr. no. 161245 | €16.95 | In stock | View & order |
| Vaillant condensate tray + gasket VHR45S for ecoTEC plus | 8055301 Mfr. no. 076560 | €185.95 | Made-to-order item | View & order |
| Vaillant connection pipe (flow sensor) VHR3035/4C | 8056963 Mfr. no. 0020021024 | €89.95 | Made-to-order item | View & order |
| Vaillant hose clamp | 8059580 Mfr. no. 0020052092 | €24.95 | Made-to-order item | View & order |

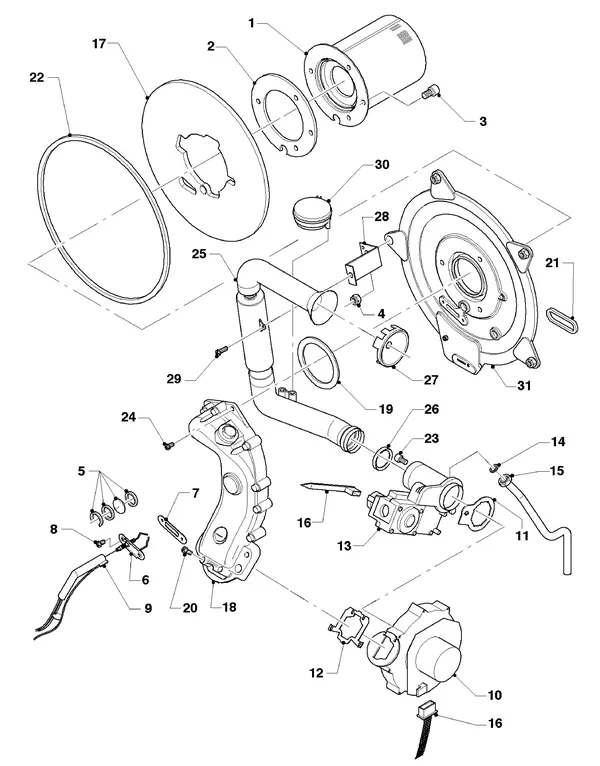

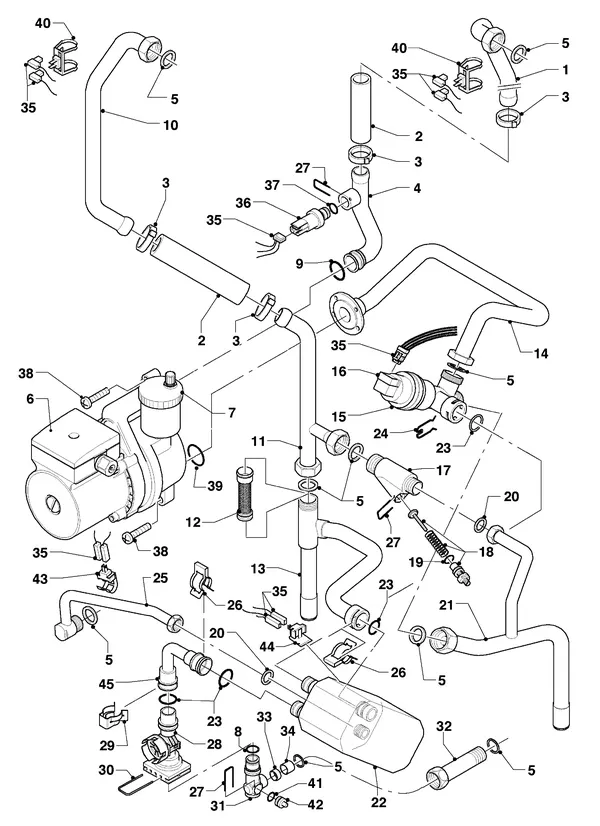

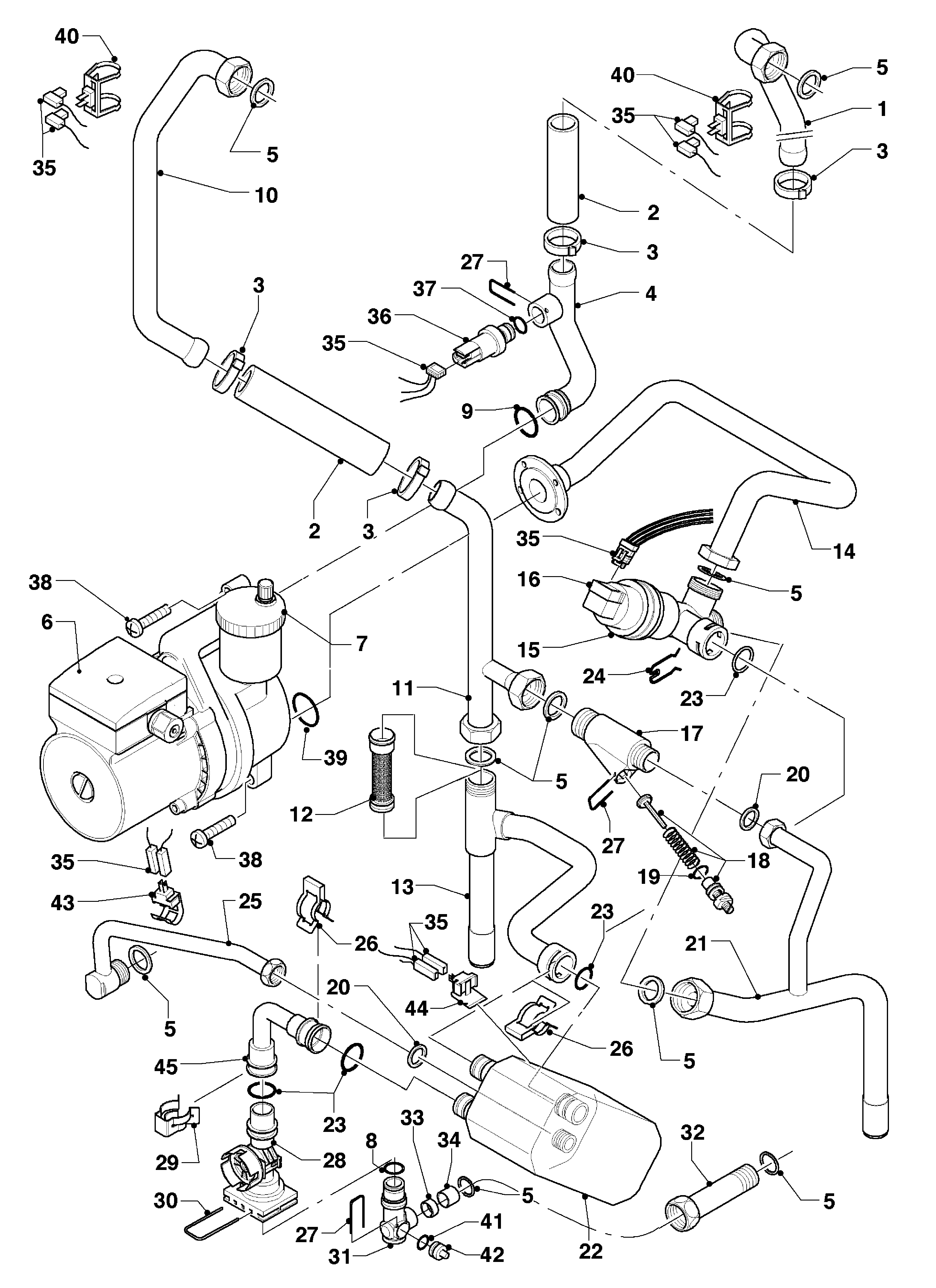

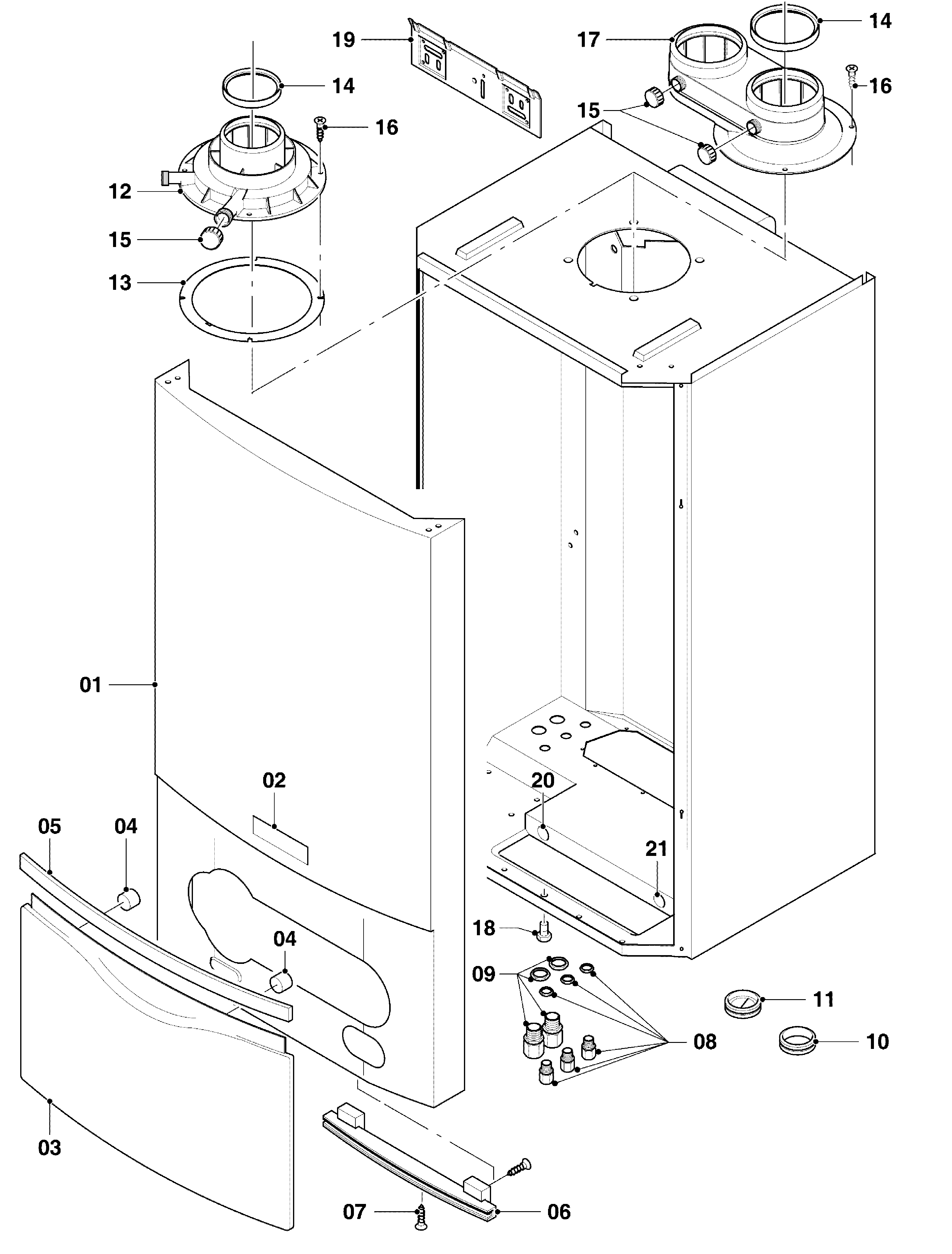

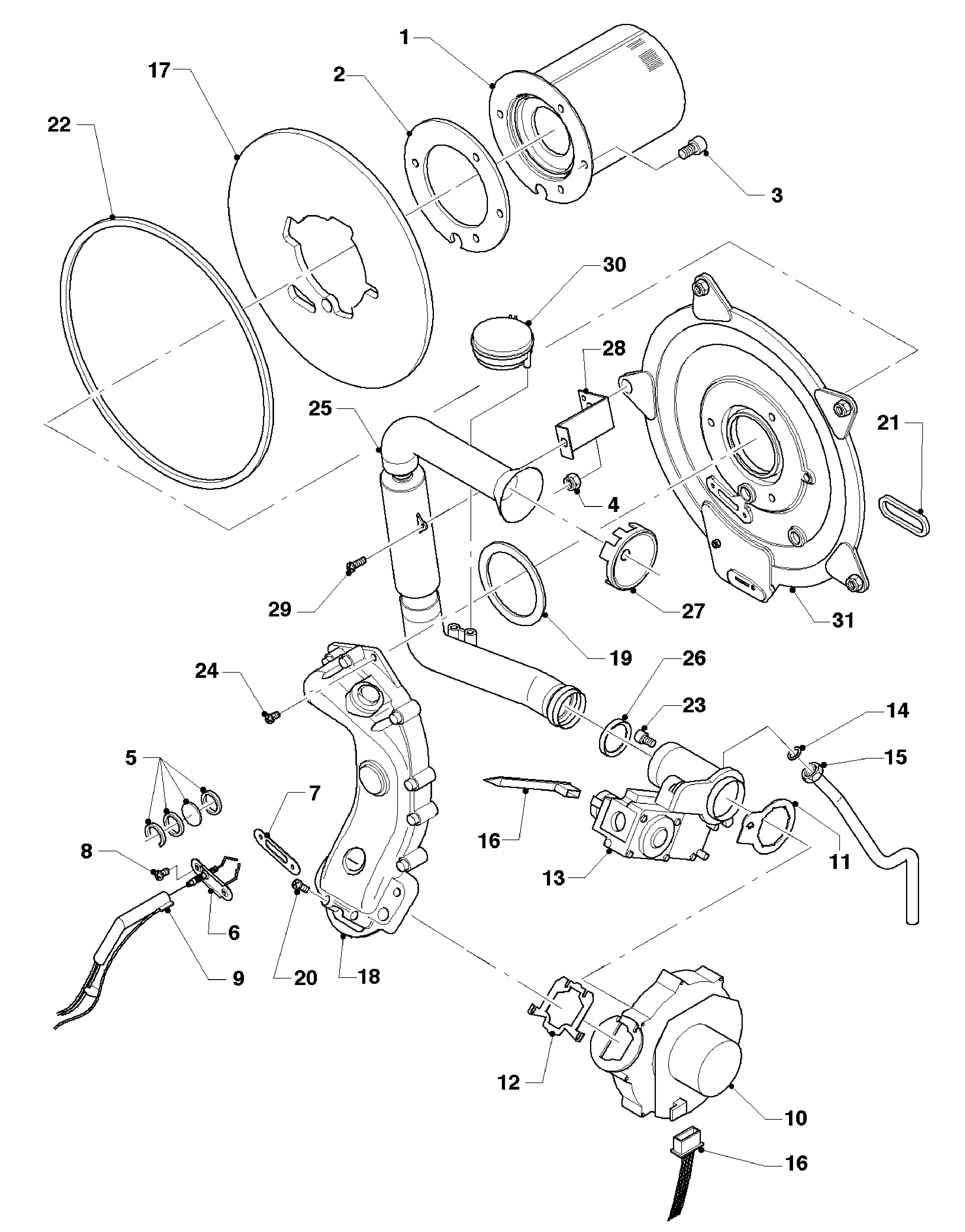

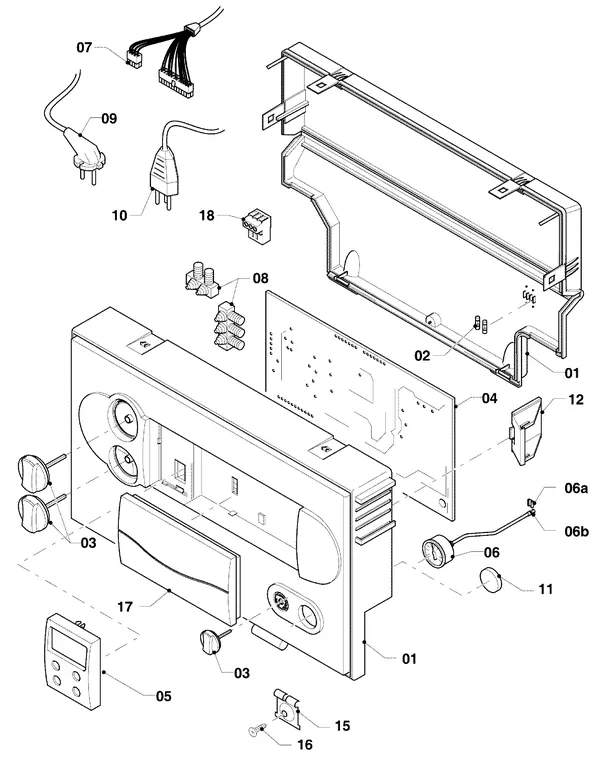

Exploded views of the Vaillant hrEXCLUSIEF VHR 30
Click an exploded view to enlarge it. The position numbers are shown next to each part.
Fault code on your Vaillant hrEXCLUSIEF VHR 30? This is the part type involved
Common Vaillant fault codes and the part type that is usually the cause; the parts for this model are listed above. All codes explained: Vaillant fault codes.
| Code | What is going on | Part type |
|---|---|---|
| F.01 | Ignition fault (no flame detection), no gas / gas tap closed, no ignition | Ignition and ionisation |
| F.037 | Obstruction in the product's air duct, fan motor defective or not connected, connection between the main PCB and the fan PCB damaged or interrupted | Fans |
| F.04 | Fan fault | Fans |
| F.042 | The product coding resistor is defective or missing, fan motor defective or not connected, plug X25 not connected or connected incorrectly | Fans |
| F.042 | Break in the heat exchanger wiring harness | Heat exchangers |
| F.05 | High-limit fault, flow temperature too high (pump not running, but has voltage) | Pumps |
For guidance only: the same code can have a different cause depending on the situation.
Other Vaillant boilers
- Vaillant Combi boiler Turbo CWK 24-12 128
- Vaillant Combi boiler Turbo CWK 24-12 E SO28 136
- Vaillant Combi boiler Turbo CWK 24-12 SO28 127
- Vaillant Combi boiler Turbo CWK 245/3 81
- Vaillant Combi boiler Turbo CWK 245/3 R1 81
- Vaillant Combi boiler Turbo CWK 245/4-5 115
- Vaillant Combi boiler Turbo CWK 245/4-5 R3 115
- Vaillant Combi boiler Turbo CWK 245/4-5 R4 115
- Vaillant Combi boiler Turbo VCW 182 E 139
- Vaillant Combi boiler Turbo VCW 185 E 133
- Vaillant Combi boiler Turbo VCW 242 E 138
- Vaillant Combi boiler Turbo VCW 242 E S028 127
Frequently asked questions
Which parts are available for the Vaillant hrEXCLUSIEF VHR 30?
The catalogue lists 103 original parts for the Vaillant hrEXCLUSIEF VHR 30, including fans, temperature sensors and NTC sensors, pressure sensors, flow sensors and flow switches. All parts are listed above, grouped by type, with part number and price.
How much does a fan for the Vaillant hrEXCLUSIEF VHR 30 cost?
The fans for this model cost €399.88 incl. VAT. Check the table "Fans" above for the right part number.
Are the parts for the Vaillant hrEXCLUSIEF VHR 30 in stock?
48 of the 103 parts are in stock; shipping to EU countries from €12.95 (€16.95 for more distant countries), usually 3–5 working days. Parts marked "Made-to-order item" are ordered specially for you; the delivery time is shown on the product page.
How do I know which part I need for the Vaillant hrEXCLUSIEF VHR 30?
Search for the part by part number or use the exploded view of the Vaillant hrEXCLUSIEF VHR 30.
Are these original Vaillant parts?
Yes. All 103 parts in this list are original manufacturer parts for the Vaillant hrEXCLUSIEF VHR 30, supplied through the official technical wholesale channel and with the correct part number.
How much do parts for the Vaillant hrEXCLUSIEF VHR 30 cost?
Parts for the Vaillant hrEXCLUSIEF VHR 30 range from €5.89 to €969.65 incl. VAT. The exact price of each part is shown in the tables above.
Can I return a part?
As a consumer you have a 14-day right of withdrawal. You may unpack and inspect the part; do not install or connect it. For a part that has been installed, connected or damaged we deduct the diminished value, up to the full price for circuit boards.
