Atag Blauwe Engel HR 45 spare parts
In brief
Instalpunt supplies 45 original parts for the Atag Blauwe Engel HR 45, including pumps, ignition and ionisation, expansion vessels. Order online.
- 45Spare parts
- 9In stock
- €16.99From
- 13Types
- availableExploded view
Looking for parts for the Atag Blauwe Engel HR 45 (boiler)? Below are all 45 original parts, grouped by part type, with the matching exploded view. Choose a type to jump straight to the right table.
View the interactive exploded view →- Pumps 1
- Ignition and ionisation 2
- Expansion vessels 1
- Siphons and condensate drains 1
- Thermostats and controls 5
- Valves 2
- Heating elements 1
- Cables and wiring harnesses 2
- Gasket sets 1
- Gaskets and seals 12
- Pipes, tubes and hoses 2
- Casing and panels 1
- Fixing material 2
- Other parts 12
Pumps for the Atag Blauwe Engel HR 45 (1) all Atag pumps →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Atag pump M.UPMO 20/60 130 9U 230V on/off | 8131482 Mfr. no. S5034000 | €352.95 | In stock | View & order |
Ignition and ionisation for the Atag Blauwe Engel HR 45 (2) all Atag ignition and ionisation →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Atag ionisation electrode incl. gasket | 8130530 Mfr. no. S4297700 | €58.95 | Made-to-order item | View & order |
| Atag ignition electrode incl. gasket | 8130540 Mfr. no. S4297600 | €56.95 | Made-to-order item | View & order |
Expansion vessels for the Atag Blauwe Engel HR 45 (1)
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Atag expansion vessel 12 litre for e.g. Blauwe Engel HR 39 S1095900 | 8139004 Mfr. no. S1095900 | €137.95 | In stock | View & order |
Siphons and condensate drains for the Atag Blauwe Engel HR 45 (1) all Atag siphons and condensate drains →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Atag siphon complete | 8134280 Mfr. no. S4164200 | €151.95 | Made-to-order item | View & order |
Thermostats and controls for the Atag Blauwe Engel HR 45 (5)
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Atag cylinder thermostat 63°C red | 8136010 Mfr. no. S4095000 | €35.95 | In stock | View & order |
| Atag high-limit thermostat Ranco 113° | 8131100 Mfr. no. S4226200 | €104.95 | Made-to-order item | View & order |
| Atag thermostat flow 85° | 8131880 Mfr. no. S1118810 | €37.95 | In stock | View & order |
| Atag control thermostat CZA | 8131860 Mfr. no. S1000810 | €102.95 | Made-to-order item | View & order |
| Atag thermostat tab 78° | 8134340 Mfr. no. S4156020 | €41.95 | Made-to-order item | View & order |
Valves for the Atag Blauwe Engel HR 45 (2) all Atag valves →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Atag automatic air vent + water trap | 8130205 Mfr. no. S4175410 | €59.95 | In stock | View & order |
| Atag mixing valve SAM. | 8131120 Mfr. no. S4224300 | €105.95 | Made-to-order item | View & order |
Heating elements for the Atag Blauwe Engel HR 45 (1)
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Atag resistor unit 8 pcs | 8134420 Mfr. no. S4203610 | €307.95 | Made-to-order item | View & order |
Cables and wiring harnesses for the Atag Blauwe Engel HR 45 (2) all Atag cables and wiring harnesses →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Atag adjusting cable spring valve | 8130190 Mfr. no. S4024010 | €43.95 | Made-to-order item | View & order |
| Atag ionisation cable for e.g. Blauwe Engel HR 39 S1082600 | 8130730 Mfr. no. S1082600 | €32.95 | Made-to-order item | View & order |
Gasket sets for the Atag Blauwe Engel HR 45 (1)
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Atag seal set three-way valve | 8130885 Mfr. no. S4161300 | €66.95 | Made-to-order item | View & order |
Gaskets and seals for the Atag Blauwe Engel HR 45 (12) all Atag gaskets and seals →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Atag lip seal for pipe 80 mm | 8131016 Mfr. no. S4136500 | €31.95 | In stock | View & order |
| Atag pump gasket 3/4" DN20 R38x25x2 mm 2 pcs | 8130150 Mfr. no. S1003810 | €21.95 | In stock | View & order |
| Atag pipe seal 28mm | 8133100 Mfr. no. S1032800 | €30.95 | Made-to-order item | View & order |
| Atag lip ring for pipe 90mm | 8133710 Mfr. no. S4181600 | €29.95 | Made-to-order item | View & order |
| Atag O-ring 23 x 2 mm condensate drain | 8133820 Mfr. no. S4131300 | €43.95 | Made-to-order item | View & order |
| Atag O-ring 78 x 3 mm silicone | 8133890 Mfr. no. S4211500 | €30.95 | Made-to-order item | View & order |
| Atag gasket flow heat exchanger k 33 x 25 x 2 mm | 8130840 Mfr. no. S1027710 | €29.95 | Made-to-order item | View & order |
| Atag gasket inspection hatch | 8134040 Mfr. no. S0860800 | €51.95 | Made-to-order item | View & order |
| Atag sealing ring heat exchanger 5-section S1030000 | 8130170 Mfr. no. S1030000 | €51.95 | Made-to-order item | View & order |
| Atag ionisation pin gasket | 8131390 Mfr. no. S1022710 | €29.95 | Made-to-order item | View & order |
| Atag gasket ignition electrode | 8131380 Mfr. no. S1022620 | €28.95 | Made-to-order item | View & order |
| Atag O-ring 28 x 2 mm condensate drain | 8133830 Mfr. no. S4131200 | €58.95 | Made-to-order item | View & order |
Pipes, tubes and hoses for the Atag Blauwe Engel HR 45 (2) all Atag pipes, tubes and hoses →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Atag pipe three-way valve/pump | 8133610 Mfr. no. S1118000 | €104.95 | Made-to-order item | View & order |
| Atag hose red for air pressure switch 6 x 8 mm | 8131660 Mfr. no. S1077000 | €44.95 | Made-to-order item | View & order |
Casing and panels for the Atag Blauwe Engel HR 45 (1) all Atag casing and panels →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Atag servo motor upper section VC8610 HR | 8130508 Mfr. no. S4228000 | €225.95 | Made-to-order item | View & order |
Fixing material for the Atag Blauwe Engel HR 45 (2) all Atag fixing material →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Atag siphon retaining clip | 8133140 Mfr. no. S4198400 | €28.95 | Made-to-order item | View & order |
| Atag hinge plastic | 8136390 Mfr. no. S4081000 | €57.95 | Made-to-order item | View & order |
Other parts for the Atag Blauwe Engel HR 45 (12)
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Atag sealing cap flue | 8137116 Mfr. no. S4339400 | €20.95 | In stock | View & order |
| Atag burner stone smooth | 8130360 Mfr. no. S1002100 | €48.95 | In stock | View & order |
| Atag cylinder 33kW VR/HR | 8130251 Mfr. no. S4203210 | €1,040.95 | Made-to-order item | View & order |
| Atag exchanger sight glass | 8130890 Mfr. no. S1022810 | €52.95 | Made-to-order item | View & order |
| Atag clamping rod | 8130790 Mfr. no. S4160800 | €55.95 | Made-to-order item | View & order |
| Atag magnetic catch white | 8131030 Mfr. no. S1050700 | €30.95 | Made-to-order item | View & order |
| Atag rubber cap R 5x15 5 pcs (hose connection cap) | 8131490 Mfr. no. S1036900 | €31.95 | Made-to-order item | View & order |
| Atag heat exchanger frame assy 5-section condensate tray gasket | 8134150 Mfr. no. S4210920 | €104.95 | Made-to-order item | View & order |
| Atag hose connector | 8131680 Mfr. no. S1131500 | €45.95 | Made-to-order item | View & order |
| Atag outlet | 8136315 Mfr. no. S4279200 | €239.95 | Made-to-order item | View & order |
| Atag fan impeller | 8131940 Mfr. no. S1002820 | €97.95 | Made-to-order item | View & order |
| Atag fibre rope 8-brick | 8131600 Mfr. no. S1087900 | €42.95 | Made-to-order item | View & order |

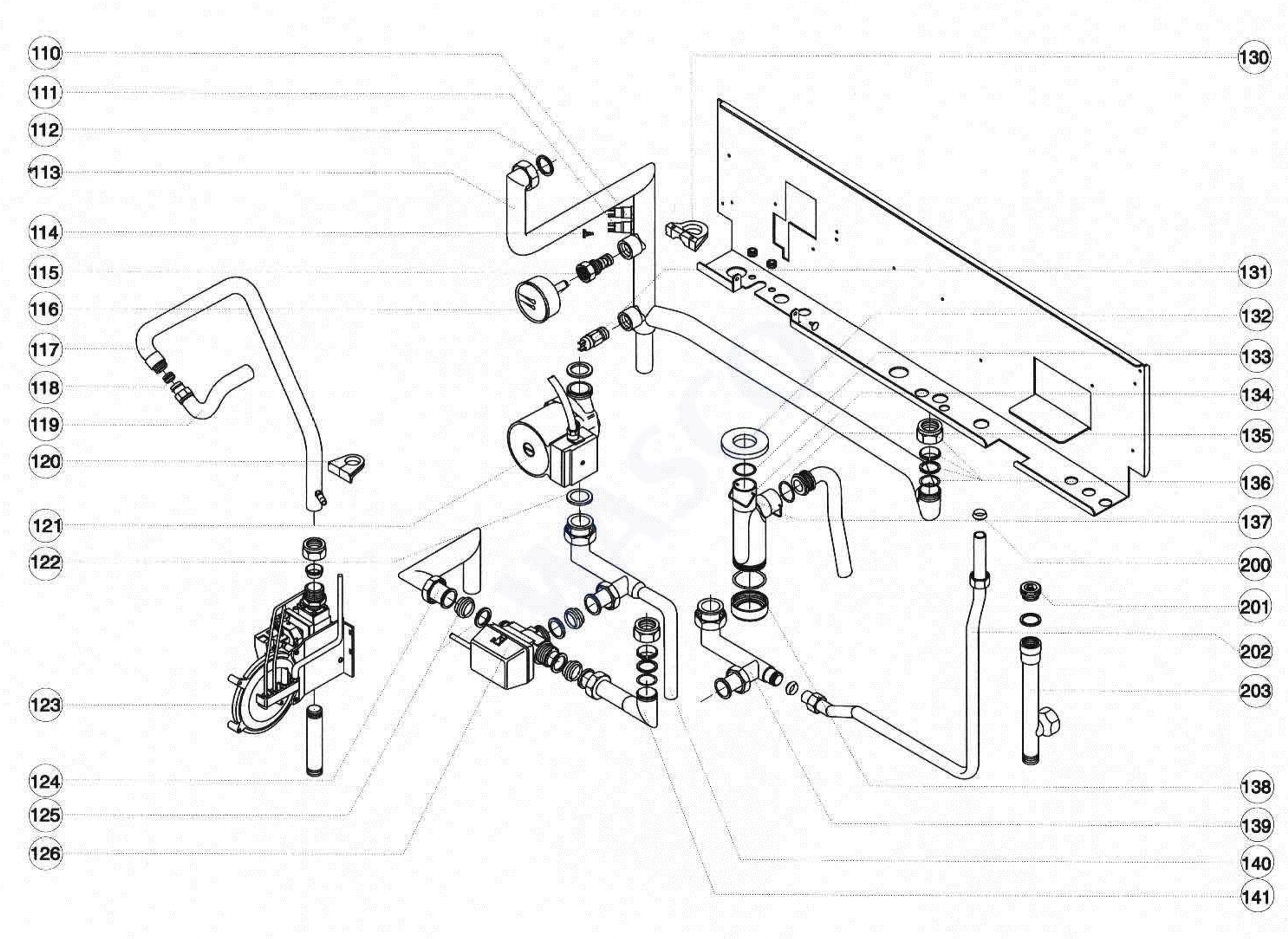

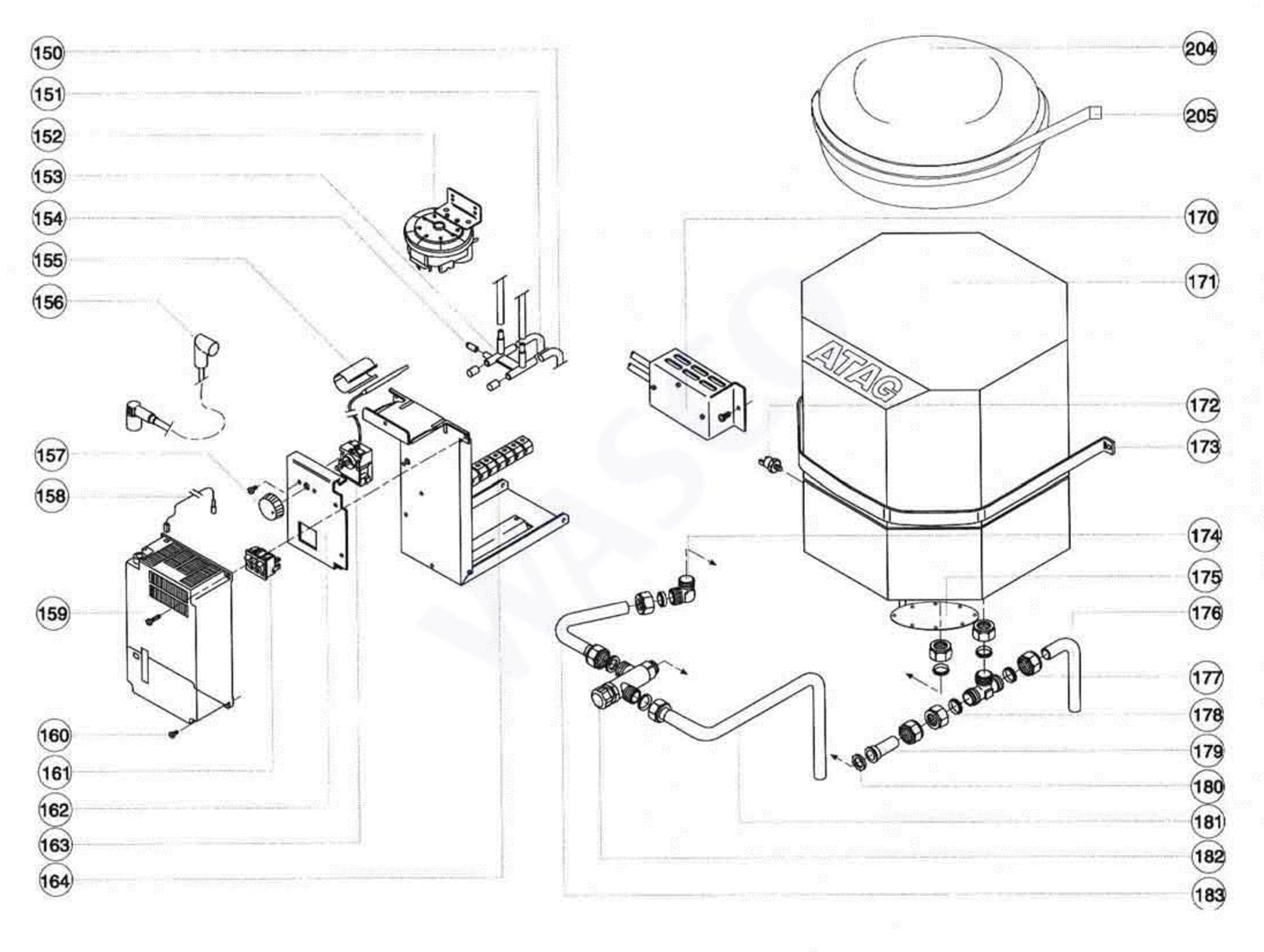

Exploded views of the Atag Blauwe Engel HR 45
Click an exploded view to enlarge it. The position numbers are shown next to each part.
Fault code on your Atag Blauwe Engel HR 45? This is the part type involved
Common Atag fault codes and the part type that is usually the cause; the parts for this model are listed above. All codes explained: Atag fault codes.
| Code | What is going on | Part type |
|---|---|---|
| 2P4 | Electric element thermostat (man.) | Thermostats and controls |
| 2P5 | Electric element thermostat (auto) | Thermostats and controls |
| 9E18 | Safety thermostat ST1 fault | Thermostats and controls |
| 9E31 | Compressor thermostat protection | Thermostats and controls |
| 78 | Water pressure sensor out of range or not connected or, if water pressure is OK: pump defective. | Pumps |
| 104 | No pump kick | Pumps |
For guidance only: the same code can have a different cause depending on the situation.
Other Atag boilers
- Atag A203C | from 2008 OSS1 97
- Atag A203EC | from 10-2016 OSS2 97
- Atag A244C | from 2008 up to 11-2009 OSS2 98
- Atag A244CL | from 11-2009 OSS1 95
- Atag A244EC | from 2008 OSS2 98
- Atag A285C | from 2017 OSS2 92
- Atag A285EC | from 2017 OSS2 90
- Atag Blauwe Engel CMA 350 29
- Atag Blauwe Engel CMA 352 12
- Atag Blauwe Engel CMA 650 29
- Atag Blauwe Engel CMA 652 12
- Atag Blauwe Engel CMA 950 29
Frequently asked questions
Which parts are available for the Atag Blauwe Engel HR 45?
The catalogue lists 45 original parts for the Atag Blauwe Engel HR 45, including pumps, ignition and ionisation, expansion vessels, siphons and condensate drains. All parts are listed above, grouped by type, with part number and price.
How much does a pump for the Atag Blauwe Engel HR 45 cost?
The pumps for this model cost €480.90 incl. VAT. Check the table "Pumps" above for the right part number.
Are the parts for the Atag Blauwe Engel HR 45 in stock?
9 of the 45 parts are in stock; shipping to EU countries from €12.95 (€16.95 for more distant countries), usually 3–5 working days. Parts marked "Made-to-order item" are ordered specially for you; the delivery time is shown on the product page.
How do I know which part I need for the Atag Blauwe Engel HR 45?
Search for the part by part number or use the exploded view of the Atag Blauwe Engel HR 45.
Are these original Atag parts?
Yes. All 45 parts in this list are original manufacturer parts for the Atag Blauwe Engel HR 45, supplied through the official technical wholesale channel and with the correct part number.
How much do parts for the Atag Blauwe Engel HR 45 cost?
Parts for the Atag Blauwe Engel HR 45 range from €16.99 to €1,360.38 incl. VAT. The exact price of each part is shown in the tables above.
Can I return a part?
As a consumer you have a 14-day right of withdrawal. You may unpack and inspect the part; do not install or connect it. For a part that has been installed, connected or damaged we deduct the diminished value, up to the full price for circuit boards.
