Atag Perfect Intelligence PF-SHR 24/32Ti spare parts

In brief

Instalpunt supplies 91 original parts for the Atag Perfect Intelligence PF-SHR 24/32Ti, including fans, sensors, pressure sensors. Order online.

91Spare parts
58In stock
€18.95From
22Types
availableExploded view

Looking for parts for the Atag Perfect Intelligence PF-SHR 24/32Ti (boiler)? Below are all 91 original parts, grouped by part type, with the matching exploded view. Choose a type to jump straight to the right table.

View the interactive exploded view →

Quick left to the right part for the Atag Perfect Intelligence PF-SHR 24/32Ti

Part	From	Delivery
Fan Atag fan assembled 24V DC SHR15/24/35	€314.45	In stock
Ignition part Atag electrode ionisation/ignition SHR	€77.95	In stock
Pressure sensor Atag water pressure sensor Huba	€114.45	In stock
Pump Atag pump M.UPMO 20/60 130 9U 230V on/off	€352.95	In stock
Heat exchanger Atag plate heat exchanger 35kW PF/ESHR	€280.95	In stock
Burner control unit Atag burner control unit MCBA 1417 H1.1	€508.95	In stock

Prices incl. VAT, taken directly from our checkout. Below is the complete parts list for this model.

Installer or self-employed engineer? Create a business account: prices excl. VAT and invoices in your company name.

Fans for the Atag Perfect Intelligence PF-SHR 24/32Ti (2) all Atag fans →

Part	Item no. / mfr. no.	Price	Stock
Rewind refurbished fan for Atag 24V DC (S44427200)	8930070	€220.95	In stock	View & order
Atag fan assembled 24V DC SHR15/24/35	8135480 Mfr. no. S4442720	€314.45	In stock	View & order

Sensors for the Atag Perfect Intelligence PF-SHR 24/32Ti (3)

Part	Item no. / mfr. no.	Price	Stock
Atag sensor hot water cylinder/return T2-3-8-9	8135300 Mfr. no. S4309700	€27.95	In stock	View & order
Atag flow sensor/DHW T1 12k ohm	8135000 Mfr. no. S4307420	€44.45	In stock	View & order
Atag flue gas sensor + cable	8135320 Mfr. no. S4368200	€85.95	Made-to-order item	View & order

Pressure sensors for the Atag Perfect Intelligence PF-SHR 24/32Ti (1)

Part	Item no. / mfr. no.	Price	Stock
Atag water pressure sensor Huba	8135490 Mfr. no. S4466300	€114.45	In stock	View & order

Pumps for the Atag Perfect Intelligence PF-SHR 24/32Ti (1) all Atag pumps →

Part	Item no. / mfr. no.	Price	Stock
Atag pump M.UPMO 20/60 130 9U 230V on/off	8131482 Mfr. no. S5034000	€352.95	In stock	View & order

Heat exchangers for the Atag Perfect Intelligence PF-SHR 24/32Ti (1) all Atag heat exchangers →

Part	Item no. / mfr. no.	Price	Stock
Atag plate heat exchanger 35kW PF/ESHR	8139132 Mfr. no. S4722600	€280.95	In stock	View & order

Gas valves and gas control for the Atag Perfect Intelligence PF-SHR 24/32Ti (2) all Atag gas valves and gas control →

Part	Item no. / mfr. no.	Price	Stock
Atag gas control block type VK8115V	8135130 Mfr. no. S4304700	€193.95	In stock	View & order
Atag venturi SHR 35 for OSS2	8136305 Mfr. no. S4318920	€117.95	Made-to-order item	View & order

Burner control units for the Atag Perfect Intelligence PF-SHR 24/32Ti (1) all Atag burner control units →

Part	Item no. / mfr. no.	Price	Stock
Atag burner control unit MCBA 1417 H1.1	8139158 Mfr. no. S4736200	€508.95	In stock	View & order

Ignition and ionisation for the Atag Perfect Intelligence PF-SHR 24/32Ti (1) all Atag ignition and ionisation →

Part	Item no. / mfr. no.	Price	Stock
Atag electrode ionisation/ignition SHR	8135120 Mfr. no. S4311600	€77.95	In stock	View & order

Siphons and condensate drains for the Atag Perfect Intelligence PF-SHR 24/32Ti (2) all Atag siphons and condensate drains →

Part	Item no. / mfr. no.	Price	Stock
Atag siphon SHR	8139064 Mfr. no. S4421200	€53.95	In stock	View & order
Atag condensate tray SHR-35	8130384 Mfr. no. S4407020	€161.95	In stock	View & order

Burners for the Atag Perfect Intelligence PF-SHR 24/32Ti (1) all Atag burners →

Part	Item no. / mfr. no.	Price	Stock
Atag burner bed ASSY SHR35 A25	8139061 Mfr. no. S4523920	€138.95	In stock	View & order

Displays and controls for the Atag Perfect Intelligence PF-SHR 24/32Ti (2) all Atag displays and controls →

Part	Item no. / mfr. no.	Price	Stock
Atag control unit housing rear	8139015 Mfr. no. S4417100	€45.95	Made-to-order item	View & order
Atag control unit front PF/ESHR	8136503 Mfr. no. S4417000	€49.95	Made-to-order item	View & order

Filters for the Atag Perfect Intelligence PF-SHR 24/32Ti (1)

Part	Item no. / mfr. no.	Price	Stock
Atag water filter	8136265 Mfr. no. S4317500	€48.95	Made-to-order item	View & order

Maintenance and service kits for the Atag Perfect Intelligence PF-SHR 24/32Ti (5) all Atag maintenance and service kits →

Part	Item no. / mfr. no.	Price	Stock
Atag maintenance set for OSS2	8139216 Mfr. no. S4784800	€76.95	In stock	View & order
Atag maintenance set OSS2 with ignition electrode	8139603 Mfr. no. S4785600	€160.95	In stock	View & order
Atag overhaul kit insulation plates without adhesive SHR	8139107 Mfr. no. S4500010	€39.95	In stock	View & order
Atag maintenance set PF/SHR35 without burner	8136502 Mfr. no. S4677400	€56.95	In stock	View & order
Atag maintenance set SHR 35 with electrode	8139613 Mfr. no. S4665300	€247.95	In stock	View & order

Valves for the Atag Perfect Intelligence PF-SHR 24/32Ti (4) all Atag valves →

Part	Item no. / mfr. no.	Price	Stock
Atag safety relief valve Duco 3 bar	8135200 Mfr. no. S4344630	€42.45	In stock	View & order
Atag automatic air vent chrome SHR for OSS1/2/3/4	8135041 Mfr. no. S4419110	€64.95	In stock	View & order
Atag inlet combination PF/E SHR	8139063 Mfr. no. S4537400	€118.95	In stock	View & order
Atag dosing valve 8 l/min white	8133282 Mfr. no. S4262700	€55.95	Made-to-order item	View & order

Electrical parts for the Atag Perfect Intelligence PF-SHR 24/32Ti (1) all Atag electrical parts →

Part	Item no. / mfr. no.	Price	Stock
Atag transformer for MCBA 1415D	8135421 Mfr. no. S4324900	€114.95	In stock	View & order

Tap parts for the Atag Perfect Intelligence PF-SHR 24/32Ti (1)

Part	Item no. / mfr. no.	Price	Stock
Atag cartridge for three-way valve	8130385 Mfr. no. S4268400	€101.95	In stock	View & order

Cables and wiring harnesses for the Atag Perfect Intelligence PF-SHR 24/32Ti (1) all Atag cables and wiring harnesses →

Part	Item no. / mfr. no.	Price	Stock
Atag wiring harness E-SHR complete	8138027 Mfr. no. S4467210	€211.95	Made-to-order item	View & order

Gasket sets for the Atag Perfect Intelligence PF-SHR 24/32Ti (1)

Part	Item no. / mfr. no.	Price	Stock
Atag seal set three-way valve	8130885 Mfr. no. S4161300	€66.95	Made-to-order item	View & order

Gaskets and seals for the Atag Perfect Intelligence PF-SHR 24/32Ti (21) all Atag gaskets and seals →

Part	Item no. / mfr. no.	Price	Stock
Atag O-ring siphon R 46 x 3 mm	8135190 Mfr. no. S4309900	€30.95	Made-to-order item	View & order
Atag sealing ring gas valve/venturi for OSS1/2/3/4	8139033 Mfr. no. S4337610	€24.95	In stock	View & order
Atag sealing ring venturi/fan for OSS1/2/3/4	8139034 Mfr. no. S4325610	€24.95	In stock	View & order
Atag lip ring outlet stub	8139019 Mfr. no. S4472600	€24.95	In stock	View & order
Atag O-ring 2 pcs	8131119 Mfr. no. S4312300	€26.95	In stock	View & order
Atag O-ring 26.7 x 1.78 mm 3 pcs	8136435 Mfr. no. S4259800	€24.95	In stock	View & order
Atag lip seal 80mm for OSS1/2/3/4	8135123 Mfr. no. S4304200	€31.95	In stock	View & order
Atag gasket for burner stones SHR35	8135020 Mfr. no. S4306000	€66.95	In stock	View & order
Atag gasket condensate tray SHR35	8135220 Mfr. no. S4306400	€35.95	In stock	View & order
Atag pump gasket 3/4" DN20 R38x25x2 mm 2 pcs	8130150 Mfr. no. S1003810	€21.95	In stock	View & order
Atag gasket	8135156 Mfr. no. S4323710	€23.95	In stock	View & order
Atag sealing ring intake fan SHR for OSS1/2/3/4	8135246 Mfr. no. S4309500	€22.95	In stock	View & order
Atag gasket fan mouth SHR for OSS1/2/3/4	8135270 Mfr. no. S4305700	€24.95	In stock	View & order
Atag seal gas valve 3/4"	8131295 Mfr. no. S4340830	€21.95	In stock	View & order
Atag O-ring 13.94 x 2.62 mm air vent/plate heat exchanger for OSS1/2/3/4	8131325 Mfr. no. S4342300	€23.95	In stock	View & order
Atag O-ring siphon/condensate tray 18.72 x 2.62 mm	8138012 Mfr. no. S4443200	€24.95	In stock	View & order
Atag O-ring set 4.8 x 1.8 mm heat exchanger connection	8137056 Mfr. no. S4322320	€22.95	In stock	View & order
Atag seal casing SHR	8139058 Mfr. no. S4479500	€57.95	Made-to-order item	View & order
Atag O-ring 5 x 2 mm flow sensor/flow/return 5 pcs	8137066 Mfr. no. S4329400	€31.95	Made-to-order item	View & order
Atag gasket electrode ionisation ignition	8135260 Mfr. no. S4397100	€35.95	In stock	View & order
Atag silicone gasket 25cm	8137080 Mfr. no. S4440300	€32.95	Made-to-order item	View & order

Pipes, tubes and hoses for the Atag Perfect Intelligence PF-SHR 24/32Ti (11) all Atag pipes, tubes and hoses →

Part	Item no. / mfr. no.	Price	Stock
Atag swivel nut for filter M35	8136445 Mfr. no. S4259500	€33.95	In stock	View & order
Atag overflow pipe SHR for OSS1/2/3/4	8136272 Mfr. no. S4421400	€45.95	In stock	View & order
Atag return pipe plate heat exchanger/three-way valve SHR	8139074 Mfr. no. S4401401	€57.95	In stock	View & order
Atag safety relief pipe for inlet combination	8136271 Mfr. no. S4421510	€34.95	In stock	View & order
Atag flue gas adapter	8139023 Mfr. no. S4500500	€60.95	In stock	View & order
Atag gas pipe OSS1 PF/E-SHR 15/24	8139188 Mfr. no. S4321900	€65.95	Made-to-order item	View & order
Atag coupling set gas valve 3/4 SHR	8131321 Mfr. no. S4340900	€57.95	Made-to-order item	View & order
Atag bypass pipe complete ESHR	8131812 Mfr. no. S4489800	€112.95	Made-to-order item	View & order
Atag flow pipe PF/ESHR15	8139554 Mfr. no. S4451800	€132.95	Made-to-order item	View & order
Atag return pipe filter/three-way valve Ø22mm	8139073 Mfr. no. S4402301	€99.95	Made-to-order item	View & order
Atag T-piece NTC3	8139006 Mfr. no. S4402400	€44.95	Made-to-order item	View & order

Casing and panels for the Atag Perfect Intelligence PF-SHR 24/32Ti (5) all Atag casing and panels →

Part	Item no. / mfr. no.	Price	Stock
Atag top section VC 2010-10	8135170 Mfr. no. S4334910	€142.45	In stock	View & order
Atag closing plate PF ESHR	8131813 Mfr. no. S4454900	€61.95	Made-to-order item	View & order
Atag cover air supply 80mm SHR	8139210 Mfr. no. S4323310	€29.95	Made-to-order item	View & order
Atag cover air supply 120/80mm	8138013 Mfr. no. S4323410	€44.95	Made-to-order item	View & order
Atag flange plate three-way valve	8139538 Mfr. no. S4371700	€43.95	Made-to-order item	View & order

Fixing material for the Atag Perfect Intelligence PF-SHR 24/32Ti (10) all Atag fixing material →

Part	Item no. / mfr. no.	Price	Stock
Atag sealing cap exhaust pipe Ø13mm for flue gas measurement	8136420 Mfr. no. S4521600	€22.95	In stock	View & order
Atag locking ring small	8139997 Mfr. no. S4415220	€34.95	In stock	View & order
Atag Enigma closure large	8139160 Mfr. no. S4415120	€25.95	In stock	View & order
Atag screw M5 x 12 mm hex socket countersunk (3 pcs) for OSS1/2/3/4	8139217 Mfr. no. S4440000	€22.95	In stock	View & order
Atag screw M6 x 3 mm	8139025 Mfr. no. S4356300	€27.95	Made-to-order item	View & order
Atag screw M5 x 12 mm 5 pcs	8139035 Mfr. no. S4345800	€28.95	Made-to-order item	View & order
Atag bracket upper tray	8137111 Mfr. no. S4308500	€28.95	Made-to-order item	View & order
Atag bolt M3 x 30 (3 pcs)	8139534 Mfr. no. S4345900	€27.95	Made-to-order item	View & order
Atag cap air vent SHR 3 pcs for OSS1/2/3/4	8139162 Mfr. no. S4380600	€41.95	Made-to-order item	View & order
Atag screw taptite M5 x 8 mm ck-pd (3 x )	8139214 Mfr. no. S4167500	€21.95	In stock	View & order

Other parts for the Atag Perfect Intelligence PF-SHR 24/32Ti (13)

Part	Item no. / mfr. no.	Price	Stock
Atag three-way valve body VC8010 (O-R)	8135110 Mfr. no. S4308200	€136.95	In stock	View & order
Atag clamping rod condensate tray for OSS1/2/3/4	8139052 Mfr. no. S4310700	€31.95	In stock	View & order
Atag burner toggle rod for OSS1/2/3/4	8139057 Mfr. no. S4310800	€32.95	In stock	View & order
Atag pipe nipple 1/2"x15 mm coupling gas pipe	8136392 Mfr. no. S4493300	€45.95	In stock	View & order
Atag condensate collector PF/ESHR	8136277 Mfr. no. S4421300	€44.95	In stock	View & order
Atag control panel seal ESHR	8139234 Mfr. no. S4479100	€35.95	In stock	View & order
Atag water trap pressure sensor	8137098 Mfr. no. S4325900	€34.95	In stock	View & order
Atag pipe three-way valve/pump connection elbow PF/E SHR	8137075 Mfr. no. S4436700	€70.95	Made-to-order item	View & order
Atag intake piece SHR15/24 for OSS1	8137114 Mfr. no. S4347510	€59.95	Made-to-order item	View & order
Atag upper tray assy SHR35	8139078 Mfr. no. S4371110	€209.95	Made-to-order item	View & order
Atag air box thermal protection with cover (LTB)	8139090 Mfr. no. S4552800	€104.95	Made-to-order item	View & order
Atag burner retaining strip SHR35	8139148 Mfr. no. S4304410	€65.95	Made-to-order item	View & order
Atag hose clamp stainless steel 20-32mm for OSS1/2/3/4	8139224 Mfr. no. S4395600	€31.95	Made-to-order item	View & order

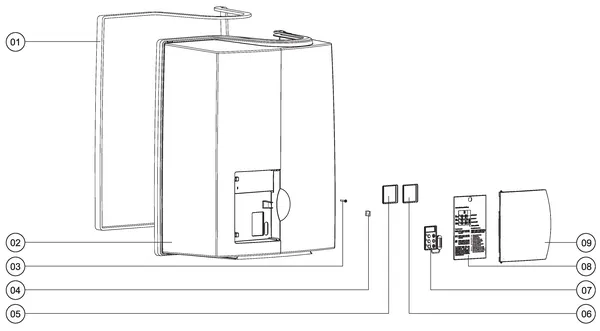

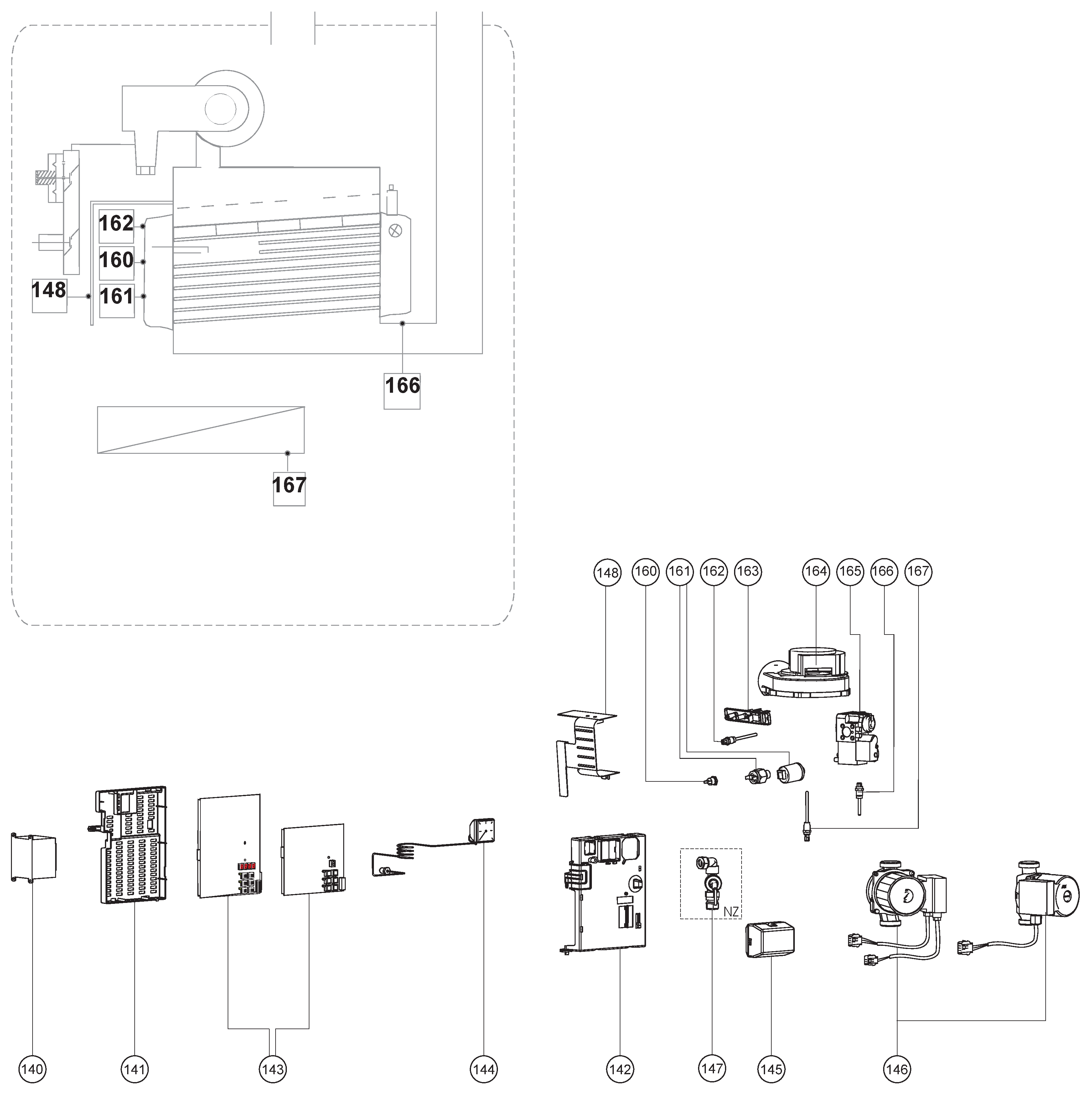

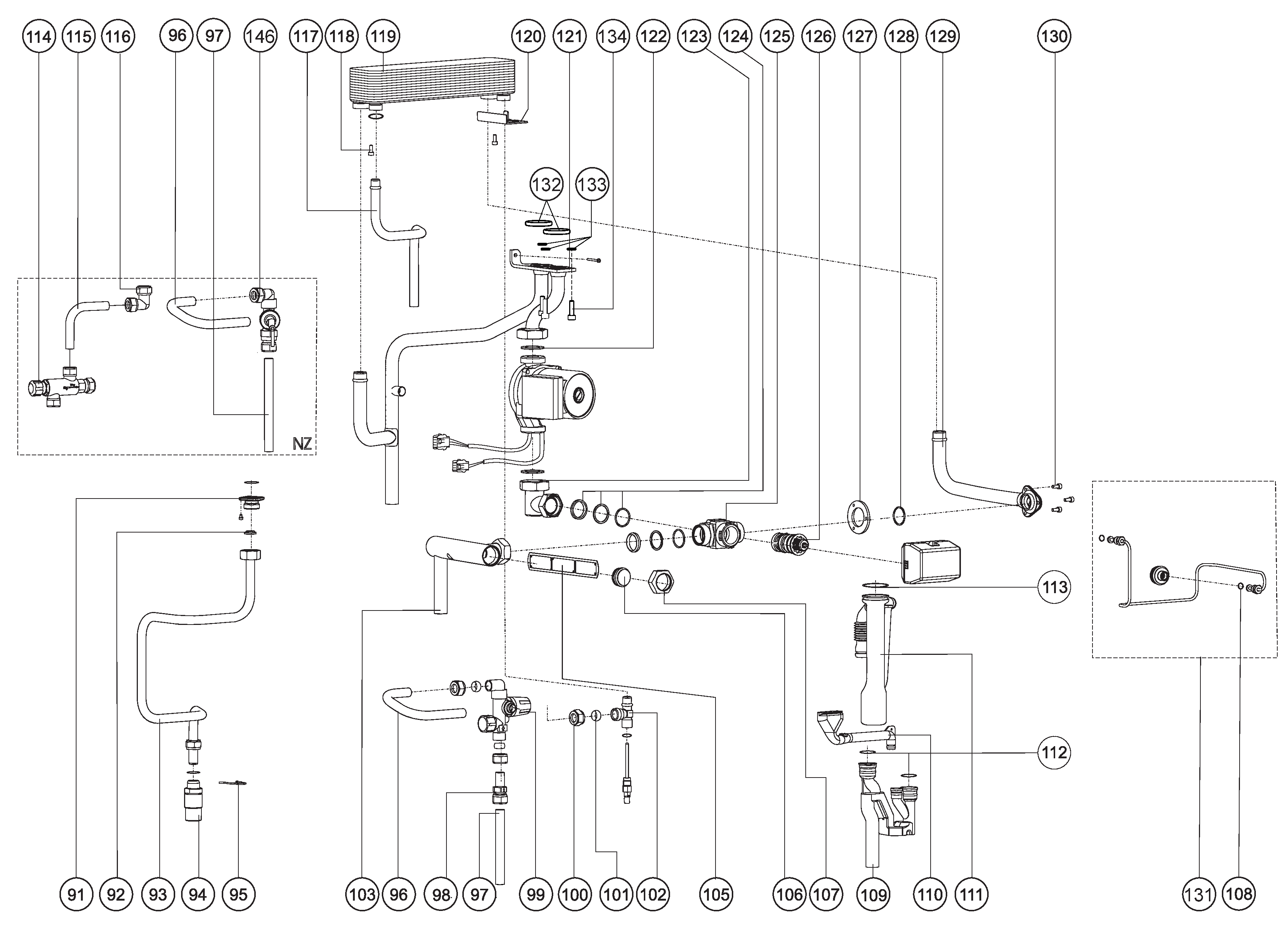

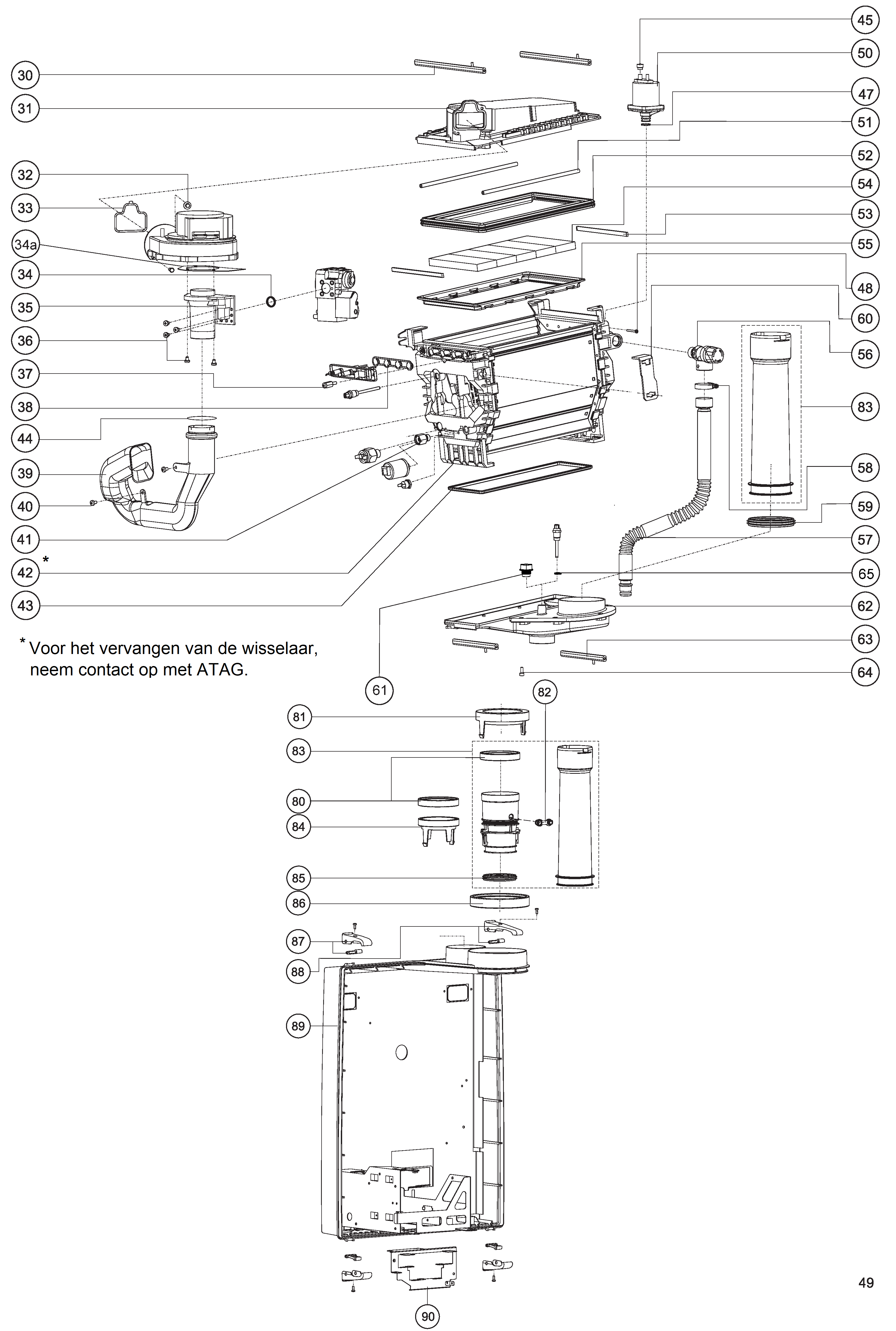

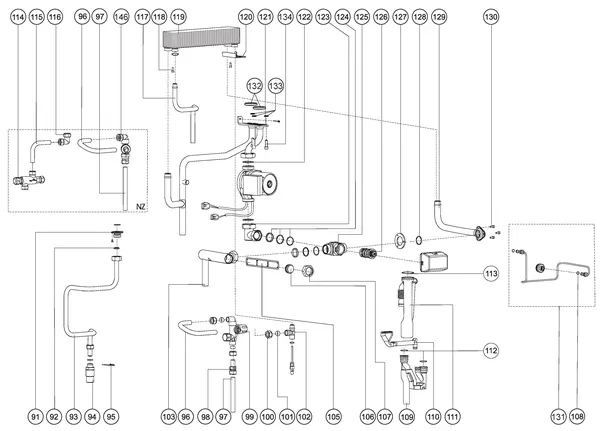

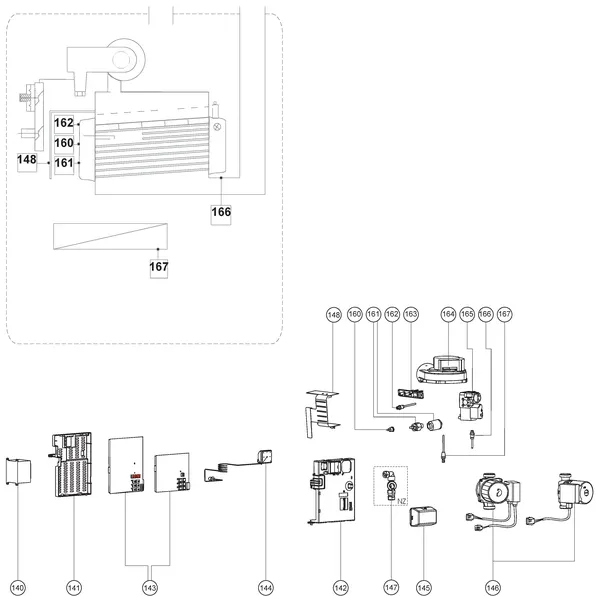

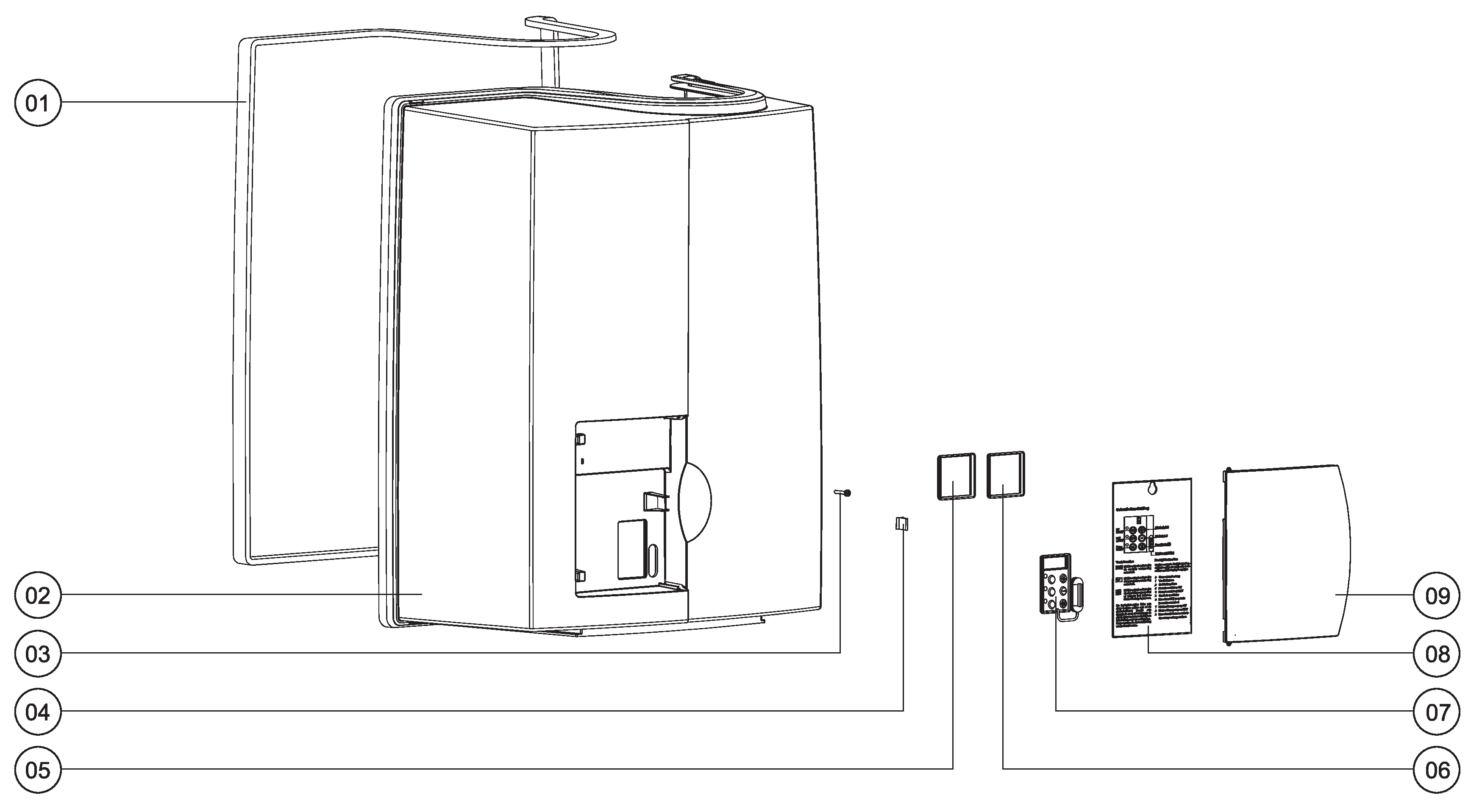

Exploded views of the Atag Perfect Intelligence PF-SHR 24/32Ti

Click an exploded view to enlarge it. The position numbers are shown next to each part.

Fault code on your Atag Perfect Intelligence PF-SHR 24/32Ti? This is the part type involved

Common Atag fault codes and the part type that is usually the cause; the parts for this model are listed above. All codes explained: Atag fault codes.

Code	What is going on	Part type
1	TD sensor error	Sensors
10	Outdoor sensor fault (e.g. open, short-circuited, out of range)	Sensors
20	Flow temperature sensor defective	Sensors
40	Temperature exceeded at the burner flow temperature sensor.	Burners
78	Water pressure sensor out of range or not connected or, if water pressure is OK: pump defective.	Pumps
102	Pressure sensor defective	Sensors

For guidance only: the same code can have a different cause depending on the situation.

Other Atag boilers

← All Atag parts

Frequently asked questions

Which parts are available for the Atag Perfect Intelligence PF-SHR 24/32Ti?

The catalogue lists 91 original parts for the Atag Perfect Intelligence PF-SHR 24/32Ti, including fans, sensors, pressure sensors, pumps. All parts are listed above, grouped by type, with part number and price.

How much does a fan for the Atag Perfect Intelligence PF-SHR 24/32Ti cost?

The fans for this model cost €372.44 incl. VAT. Check the table "Fans" above for the right part number.

Are the parts for the Atag Perfect Intelligence PF-SHR 24/32Ti in stock?

58 of the 91 parts are in stock; shipping to EU countries from €12.95 (€16.95 for more distant countries), usually 3–5 working days. Parts marked "Made-to-order item" are ordered specially for you; the delivery time is shown on the product page.

How do I know which part I need for the Atag Perfect Intelligence PF-SHR 24/32Ti?

Search for the part by part number or use the exploded view of the Atag Perfect Intelligence PF-SHR 24/32Ti.

Are these original Atag parts?

Yes. All 91 parts in this list are original manufacturer parts for the Atag Perfect Intelligence PF-SHR 24/32Ti, supplied through the official technical wholesale channel and with the correct part number.

How much do parts for the Atag Perfect Intelligence PF-SHR 24/32Ti cost?

Parts for the Atag Perfect Intelligence PF-SHR 24/32Ti range from €18.95 to €682.15 incl. VAT. The exact price of each part is shown in the tables above.

Can I return a part?

As a consumer you have a 14-day right of withdrawal. You may unpack and inspect the part; do not install or connect it. For a part that has been installed, connected or damaged we deduct the diminished value, up to the full price for circuit boards.
