Bosch Compress 3000 AWP (CS3000AWP 24 PC) spare parts

In brief

Instalpunt supplies 53 original parts for the Bosch Compress 3000 AWP (CS3000AWP 24 PC). Order online.

53Spare parts
0In stock
€4.90From
0Types
availableExploded view

Looking for parts for the Bosch Compress 3000 AWP (CS3000AWP 24 PC) (heat pump)? Below are all 53 original parts, grouped by part type, with the matching exploded view. Choose a type to jump straight to the right table.

View the interactive exploded view →

Other parts 53

Other parts for the Bosch Compress 3000 AWP (CS3000AWP 24 PC) (53)

Part	Item no. / mfr. no.	Price	Stock
Bosch pipe connection 337 mm 8738214404	10741294 Mfr. no. 8738214404	€55.95	Made-to-order item	View & order
Bosch pipe connection 424 mm 8738214405	10741295 Mfr. no. 8738214405	€55.95	Made-to-order item	View & order
Bosch pump cme5-2 8738214406 8738214406	10741296 Mfr. no. 8738214406	€3,452.95	Made-to-order item	View & order
Bosch connection plug 8738214410	10741298 Mfr. no. 8738214410	€55.95	Made-to-order item	View & order
Bosch PCB 8738214412 8738214412	10741300 Mfr. no. 8738214412	€1,328.95	Made-to-order item	View & order
Bosch PCB (EMC filter) 8738214413	10741301 Mfr. no. 8738214413	€415.95	Made-to-order item	View & order
Bosch PCB 8738214414 8738214414	10741302 Mfr. no. 8738214414	€269.95	Made-to-order item	View & order
Bosch heat sink 8738214415 8738214415	10741303 Mfr. no. 8738214415	€86.95	Made-to-order item	View & order
Bosch heat sink 8738214416 8738214416	10741304 Mfr. no. 8738214416	€328.95	Made-to-order item	View & order
Bosch plate b8738214427 8738214427	10741306 Mfr. no. 8738214427	€1,447.95	Made-to-order item	View & order
Bosch housing (control) 8738214428	10741307 Mfr. no. 8738214428	€521.95	Made-to-order item	View & order
Bosch mounting plate 8738214429 8738214429	10741308 Mfr. no. 8738214429	€148.95	Made-to-order item	View & order
Bosch heat exchanger coated right for e.g. Compress 3000 AWP (CS3000AWP 19 PC) 8738214442	10741317 Mfr. no. 8738214442	€4,887.95	Made-to-order item	View & order
Bosch heat exchanger coated left for e.g. Compress 3000 AWP (CS3000AWP 19 PC) 8738214443	10741318 Mfr. no. 8738214443	€4,887.95	Made-to-order item	View & order
Bosch fan motor 8738214279	10741181 Mfr. no. 8738214279	€761.95	Made-to-order item	View & order
Bosch fan 8738214280 8738214280	10741182 Mfr. no. 8738214280	€328.95	Made-to-order item	View & order
Bosch fan guard grille	10741184 Mfr. no. 8738214282	€521.95	Made-to-order item	View & order
Bosch holder (temperature sensor)	10741185 Mfr. no. 8738214283	€8.95	Made-to-order item	View & order
Bosch outdoor temperature sensor (t4)	10741186 Mfr. no. 8738214284	€43.95	Made-to-order item	View & order
Bosch solenoid valve 8738214298	10741200 Mfr. no. 8738214298	€98.95	Made-to-order item	View & order
Bosch pressure switch 8738214300	10741202 Mfr. no. 8738214300	€216.95	Made-to-order item	View & order
Bosch solenoid valve fdf2a-21 7-pk	10741207 Mfr. no. 8738214305	€52.95	Made-to-order item	View & order
Bosch water switch 8738214306	10741208 Mfr. no. 8738214306	€639.95	Made-to-order item	View & order
Bosch temperature sensor (tw/t 5)	10741212 Mfr. no. 8738214310	€60.95	Made-to-order item	View & order
Bosch pressure switch 8738214313	10741215 Mfr. no. 8738214313	€123.95	Made-to-order item	View & order
Bosch safety relief valve 8738214315	10741217 Mfr. no. 8738214315	€55.95	Made-to-order item	View & order
Bosch mounting set 8738214339	10741240 Mfr. no. 8738214339	€233.95	Made-to-order item	View & order
Bosch compressor 8738214350	10741251 Mfr. no. 8738214350	€2,018.95	Made-to-order item	View & order
Bosch low pressure switch (l- pro)	10741261 Mfr. no. 8738214361	€52.95	Made-to-order item	View & order
Bosch filter glq-46a 8738214362	10741262 Mfr. no. 8738214362	€11.95	Made-to-order item	View & order
Bosch filter glq-03v 8738214365	10741264 Mfr. no. 8738214365	€28.95	Made-to-order item	View & order
Bosch temperature sensor (t3a/t3b/tz/th)	10741265 Mfr. no. 8738214367	€43.95	Made-to-order item	View & order
Bosch temperature sensor (taf1 /taf2/two/twi)	10741266 Mfr. no. 8738214369	€32.95	Made-to-order item	View & order
Bosch automatic air vent 3/8 ps: 10 bar	10741268 Mfr. no. 8738214372	€55.95	Made-to-order item	View & order
Bosch heating cable 35w/23 0v	10741269 Mfr. no. 8738214373	€69.95	Made-to-order item	View & order
Bosch pipe connection 483 mm 8738214374	10741270 Mfr. no. 8738214374	€52.95	Made-to-order item	View & order
Bosch front wall 8738214383 8738214383	10741275 Mfr. no. 8738214383	€131.95	Made-to-order item	View & order
Bosch side panel left 8738214384	10741276 Mfr. no. 8738214384	€559.95	Made-to-order item	View & order
Bosch side panel right 8738214385	10741277 Mfr. no. 8738214385	€761.95	Made-to-order item	View & order
Bosch cable entry right 8738214386	10741278 Mfr. no. 8738214386	€288.95	Made-to-order item	View & order
Bosch rear wall 8738214387	10741279 Mfr. no. 8738214387	€963.95	Made-to-order item	View & order
Bosch support 8738214388 8738214388	10741280 Mfr. no. 8738214388	€415.95	Made-to-order item	View & order
Bosch protective grille 129 5 mm x 970 mm	10741281 Mfr. no. 8738214389	€1,175.95	Made-to-order item	View & order
Bosch fan housing 8738214393	10741285 Mfr. no. 8738214393	€2,323.95	Made-to-order item	View & order
Bosch plate heat exchanger 5 2 ah-f	10741286 Mfr. no. 8738214394	€1,268.95	Made-to-order item	View & order
Bosch filter glq-39a-kt 8738214396	10741288 Mfr. no. 8738214396	€32.95	Made-to-order item	View & order
Bosch expansion valve 8738214397	10741289 Mfr. no. 8738214397	€184.95	Made-to-order item	View & order
Bosch service valve (refrigerant circuit)	10741290 Mfr. no. 8738214398	€49.95	Made-to-order item	View & order
Bosch temperature sensor (tp1/tp2)	10741291 Mfr. no. 8738214399	€32.95	Made-to-order item	View & order
Bosch cable entry left 8738214275	10741177 Mfr. no. 8738214275	€225.95	Made-to-order item	View & order
Bosch choke coil 8738214381	10741273 Mfr. no. 8738214381	€143.95	Made-to-order item	View & order
Bosch heating cable 1175 x 85 230v-130w	10741284 Mfr. no. 8738214392	€208.95	Made-to-order item	View & order
Bosch pressure sensor (h-yl) 8738214395	10741287 Mfr. no. 8738214395	€316.95	Made-to-order item	View & order

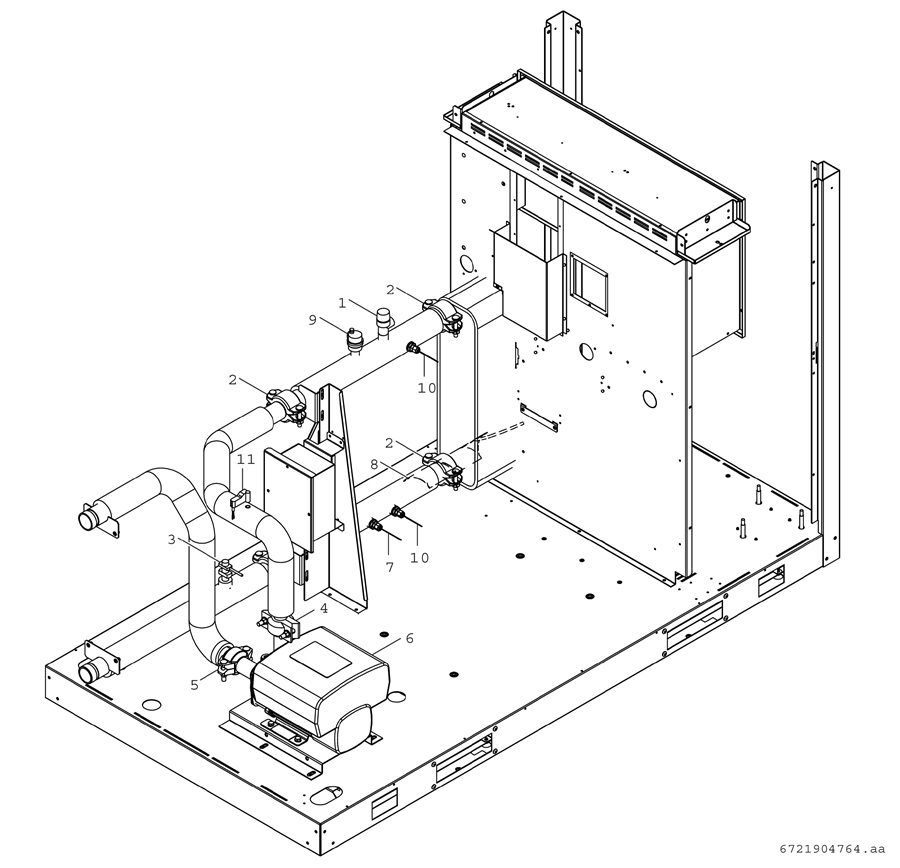

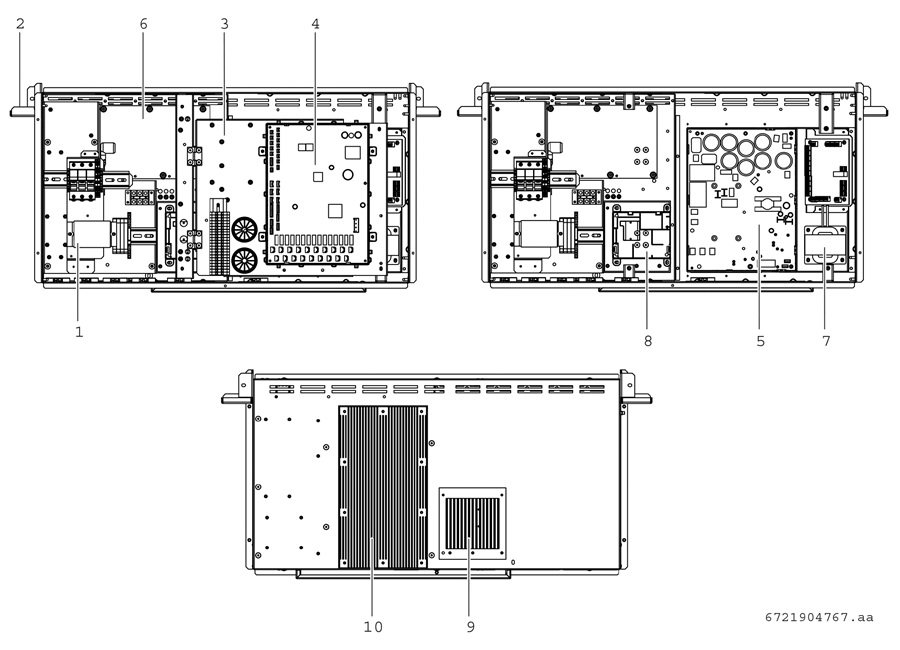

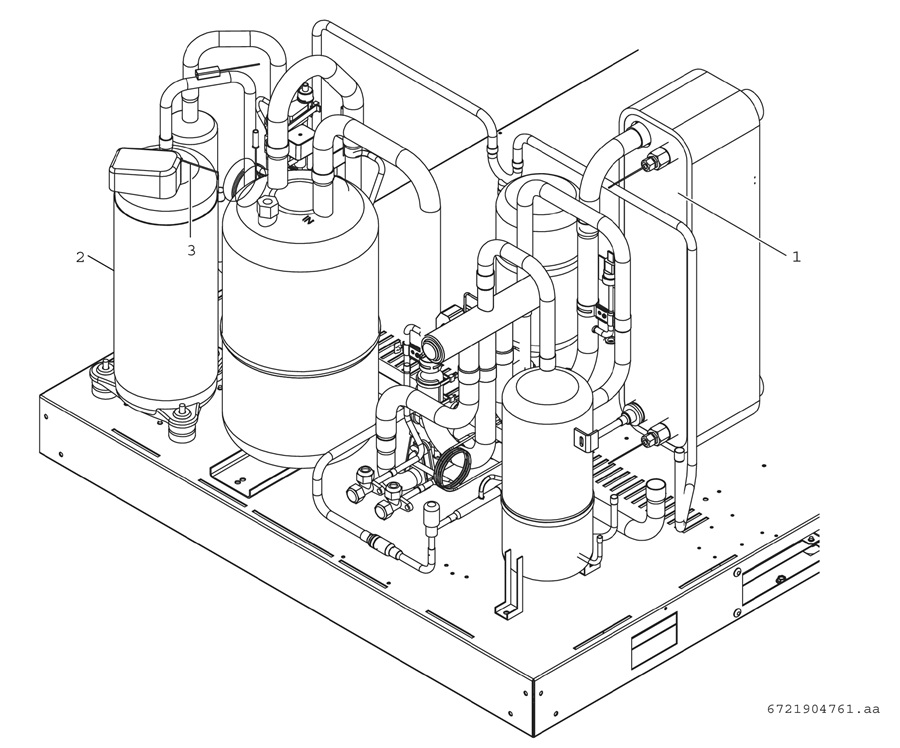

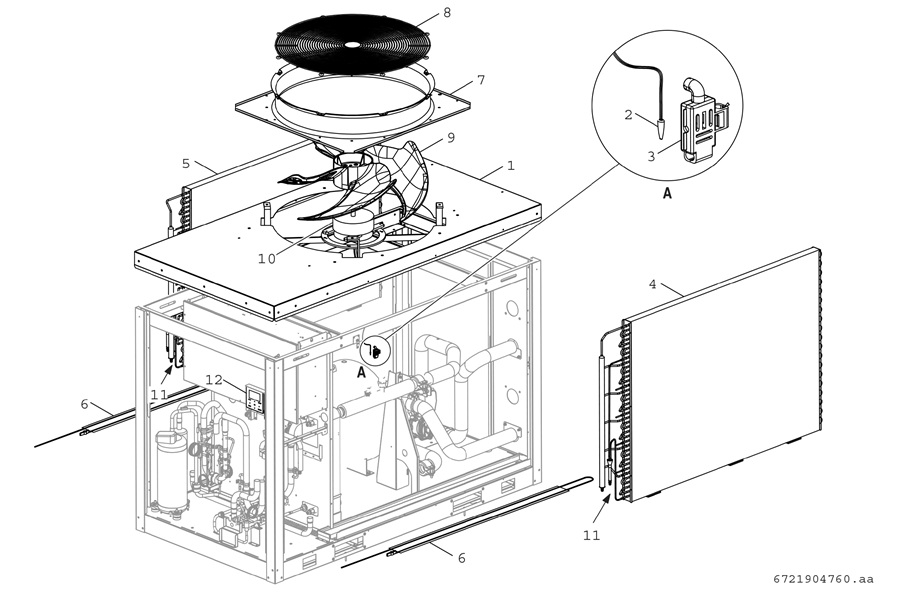

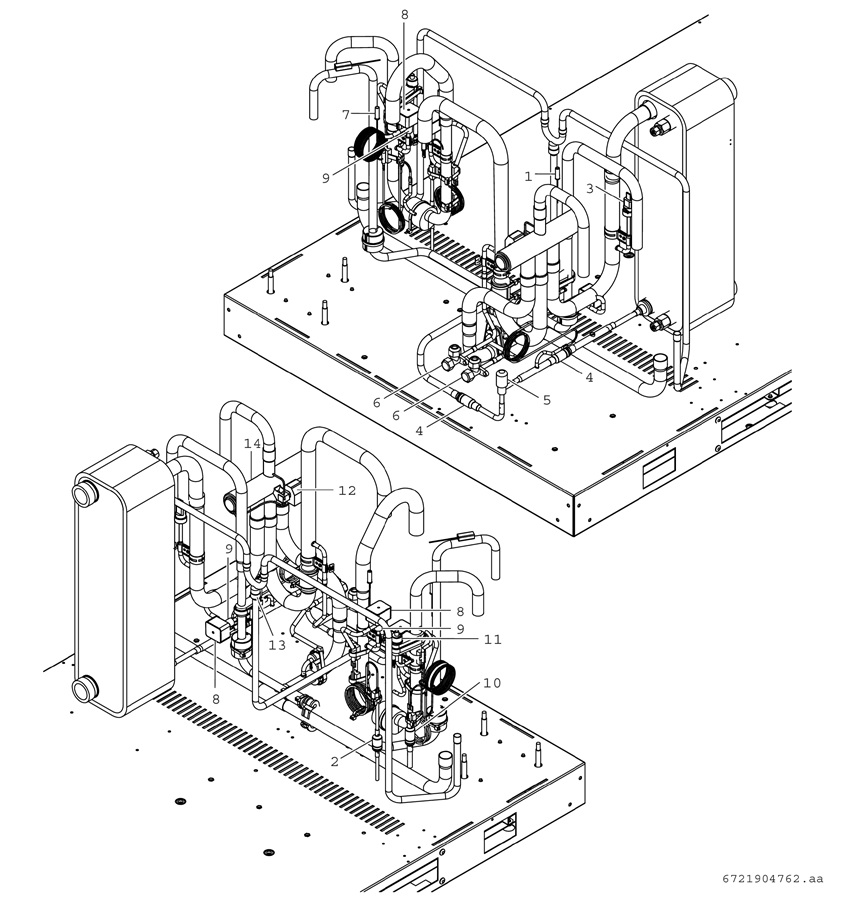

Exploded views of the Bosch Compress 3000 AWP (CS3000AWP 24 PC)

Click an exploded view to enlarge it. The position numbers are shown next to each part.

Other Bosch heat pumps

← All Bosch parts

Frequently asked questions

Which parts are available for the Bosch Compress 3000 AWP (CS3000AWP 24 PC)?

The catalogue lists 53 original parts for the Bosch Compress 3000 AWP (CS3000AWP 24 PC). All parts are listed above, grouped by type, with part number and price.

Are the parts for the Bosch Compress 3000 AWP (CS3000AWP 24 PC) in stock?

Parts marked "Made-to-order item" are ordered specially for you; the delivery time is shown on the product page.

How do I know which part I need for the Bosch Compress 3000 AWP (CS3000AWP 24 PC)?

Search for the part by part number or use the exploded view of the Bosch Compress 3000 AWP (CS3000AWP 24 PC). Is your appliance showing a fault code? The fault code table shows the matching part type.

Are these original Bosch parts?

Yes. All 53 parts in this list are original manufacturer parts for the Bosch Compress 3000 AWP (CS3000AWP 24 PC), supplied through the official technical wholesale channel and with the correct part number.

How much do parts for the Bosch Compress 3000 AWP (CS3000AWP 24 PC) cost?

Parts for the Bosch Compress 3000 AWP (CS3000AWP 24 PC) range from €4.90 to €6,608.49 incl. VAT. The exact price of each part is shown in the tables above.

Can I return a part?

As a consumer you have a 14-day right of withdrawal. You may unpack and inspect the part; do not install or connect it. For a part that has been installed, connected or damaged we deduct the diminished value, up to the full price for circuit boards.
