Bosch Compress 3000 AWP (CS3000AWP 41 PC) spare parts
In brief
Instalpunt supplies 59 original parts for the Bosch Compress 3000 AWP (CS3000AWP 41 PC). Order online.
- 59Spare parts
- 0In stock
- €4.90From
- 0Types
- availableExploded view
Looking for parts for the Bosch Compress 3000 AWP (CS3000AWP 41 PC) (heat pump)? Below are all 59 original parts, grouped by part type, with the matching exploded view. Choose a type to jump straight to the right table.
View the interactive exploded view →Other parts for the Bosch Compress 3000 AWP (CS3000AWP 41 PC) (59)
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Bosch heat exchanger coated left for e.g. Compress 3000 AWP (CS3000AWP 41 MBC) 8738214444 | 10741319 Mfr. no. 8738214444 | €1,271.95 | Made-to-order item | View & order |
| Bosch heat exchanger coated right for e.g. Compress 3000 AWP (CS3000AWP 41 MBC) 8738214445 | 10741320 Mfr. no. 8738214445 | €1,271.95 | Made-to-order item | View & order |
| Bosch support 8738214446 8738214446 | 10741321 Mfr. no. 8738214446 | €721.95 | Made-to-order item | View & order |
| Bosch support 8738214447 8738214447 | 10741322 Mfr. no. 8738214447 | €761.95 | Made-to-order item | View & order |
| Bosch cover b8738214448 | 10741323 Mfr. no. 8738214448 | €1,660.95 | Made-to-order item | View & order |
| Bosch 4-way valve shf(l) 70-810 | 10741324 Mfr. no. 8738214449 | €680.95 | Made-to-order item | View & order |
| Bosch hmi cover | 10741175 Mfr. no. 8738214272 | €184.95 | Made-to-order item | View & order |
| Bosch fan motor 8738214279 | 10741181 Mfr. no. 8738214279 | €761.95 | Made-to-order item | View & order |
| Bosch fan 8738214280 8738214280 | 10741182 Mfr. no. 8738214280 | €328.95 | Made-to-order item | View & order |
| Bosch fan housing 8738214281 | 10741183 Mfr. no. 8738214281 | €1,009.95 | Made-to-order item | View & order |
| Bosch fan guard grille | 10741184 Mfr. no. 8738214282 | €521.95 | Made-to-order item | View & order |
| Bosch holder (temperature sensor) | 10741185 Mfr. no. 8738214283 | €8.95 | Made-to-order item | View & order |
| Bosch outdoor temperature sensor (t4) | 10741186 Mfr. no. 8738214284 | €43.95 | Made-to-order item | View & order |
| Bosch liquid receiver 45 bar | 10741192 Mfr. no. 8738214290 | €233.95 | Made-to-order item | View & order |
| Bosch expansion valve 8738214292 | 10741194 Mfr. no. 8738214292 | €288.95 | Made-to-order item | View & order |
| Bosch non-return valve 8738214294 | 10741196 Mfr. no. 8738214294 | €93.95 | Made-to-order item | View & order |
| Bosch pressure sensor 8738214296 | 10741198 Mfr. no. 8738214296 | €347.95 | Made-to-order item | View & order |
| Bosch solenoid valve 8738214298 | 10741200 Mfr. no. 8738214298 | €98.95 | Made-to-order item | View & order |
| Bosch pressure switch 8738214300 | 10741202 Mfr. no. 8738214300 | €216.95 | Made-to-order item | View & order |
| Bosch solenoid valve fdf2a-21 7-pk | 10741207 Mfr. no. 8738214305 | €52.95 | Made-to-order item | View & order |
| Bosch water switch 8738214306 | 10741208 Mfr. no. 8738214306 | €639.95 | Made-to-order item | View & order |
| Bosch temperature controller (tp 1-pro/tp2-pro) | 10741209 Mfr. no. 8738214307 | €86.95 | Made-to-order item | View & order |
| Bosch temperature sensor (tw/t 5) | 10741212 Mfr. no. 8738214310 | €60.95 | Made-to-order item | View & order |
| Bosch reducing coupling 603 x 483 | 10741214 Mfr. no. 8738214312 | €93.95 | Made-to-order item | View & order |
| Bosch pressure switch 8738214313 | 10741215 Mfr. no. 8738214313 | €123.95 | Made-to-order item | View & order |
| Bosch safety relief valve 8738214315 | 10741217 Mfr. no. 8738214315 | €55.95 | Made-to-order item | View & order |
| Bosch shut-off valve 8738214316 | 10741218 Mfr. no. 8738214316 | €60.95 | Made-to-order item | View & order |
| Bosch PCB (EMC filter) 8738214320 | 10741222 Mfr. no. 8738214320 | €269.95 | Made-to-order item | View & order |
| Bosch relay 8738214333 | 10741234 Mfr. no. 8738214333 | €140.95 | Made-to-order item | View & order |
| Bosch PCB (fan) 8738214336 | 10741237 Mfr. no. 8738214336 | €388.95 | Made-to-order item | View & order |
| Bosch mounting set 8738214339 | 10741240 Mfr. no. 8738214339 | €233.95 | Made-to-order item | View & order |
| Bosch side panel left 8738214340 | 10741241 Mfr. no. 8738214340 | €599.95 | Made-to-order item | View & order |
| Bosch protective grille 120 3 mm x 1585 mm | 10741242 Mfr. no. 8738214341 | €1,380.95 | Made-to-order item | View & order |
| Bosch rear wall 8738214342 | 10741243 Mfr. no. 8738214342 | €721.95 | Made-to-order item | View & order |
| Bosch side panel right 8738214343 | 10741244 Mfr. no. 8738214343 | €862.95 | Made-to-order item | View & order |
| Bosch cable entry 8738214344 8738214344 | 10741245 Mfr. no. 8738214344 | €388.95 | Made-to-order item | View & order |
| Bosch front wall 8738214345 8738214345 | 10741246 Mfr. no. 8738214345 | €148.95 | Made-to-order item | View & order |
| Bosch hmi holder 8738214346 8738214346 | 10741247 Mfr. no. 8738214346 | €250.95 | Made-to-order item | View & order |
| Bosch heating cable 150w/2 30v | 10741250 Mfr. no. 8738214349 | €487.95 | Made-to-order item | View & order |
| Bosch compressor 8738214350 | 10741251 Mfr. no. 8738214350 | €2,018.95 | Made-to-order item | View & order |
| Bosch oil separator 8738214352 | 10741252 Mfr. no. 8738214352 | €140.95 | Made-to-order item | View & order |
| Bosch plate heat exchanger 1 12 ah-f | 10741253 Mfr. no. 8738214353 | €2,230.95 | Made-to-order item | View & order |
| Bosch heating cable 8738214354 | 10741254 Mfr. no. 8738214354 | €86.95 | Made-to-order item | View & order |
| Bosch liquid separator 49 bar | 10741255 Mfr. no. 8738214355 | €639.95 | Made-to-order item | View & order |
| Bosch safety relief valve 8738214356 | 10741256 Mfr. no. 8738214356 | €197.95 | Made-to-order item | View & order |
| Bosch solenoid coil 8738214358 | 10741258 Mfr. no. 8738214358 | €233.95 | Made-to-order item | View & order |
| Bosch filter 8738214360 | 10741260 Mfr. no. 8738214360 | €55.95 | Made-to-order item | View & order |
| Bosch low pressure switch (l- pro) | 10741261 Mfr. no. 8738214361 | €52.95 | Made-to-order item | View & order |
| Bosch filter glq-46a 8738214362 | 10741262 Mfr. no. 8738214362 | €11.95 | Made-to-order item | View & order |
| Bosch filter glq-03v 8738214365 | 10741264 Mfr. no. 8738214365 | €28.95 | Made-to-order item | View & order |
| Bosch temperature sensor (t3a/t3b/tz/th) | 10741265 Mfr. no. 8738214367 | €43.95 | Made-to-order item | View & order |
| Bosch temperature sensor (taf1 /taf2/two/twi) | 10741266 Mfr. no. 8738214369 | €32.95 | Made-to-order item | View & order |
| Bosch pump cme10-1 8738214371 | 10741267 Mfr. no. 8738214371 | €3,652.95 | Made-to-order item | View & order |
| Bosch automatic air vent 3/8 ps: 10 bar | 10741268 Mfr. no. 8738214372 | €55.95 | Made-to-order item | View & order |
| Bosch heating cable 35w/23 0v | 10741269 Mfr. no. 8738214373 | €69.95 | Made-to-order item | View & order |
| Bosch pipe connection 483 mm 8738214374 | 10741270 Mfr. no. 8738214374 | €52.95 | Made-to-order item | View & order |
| Bosch insulation 8738214382 | 10741274 Mfr. no. 8738214382 | €269.95 | Made-to-order item | View & order |
| Bosch temperature sensor (tp1/tp2) | 10741291 Mfr. no. 8738214399 | €32.95 | Made-to-order item | View & order |
| Bosch choke coil 8738214381 | 10741273 Mfr. no. 8738214381 | €143.95 | Made-to-order item | View & order |

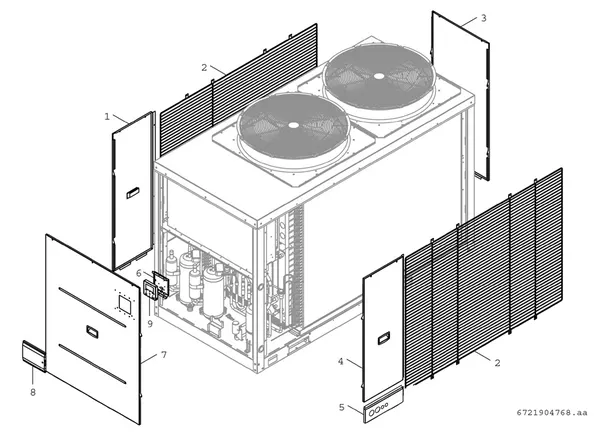

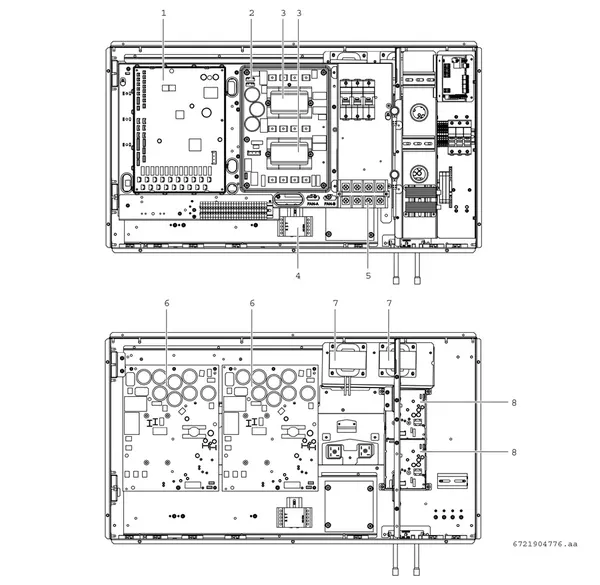

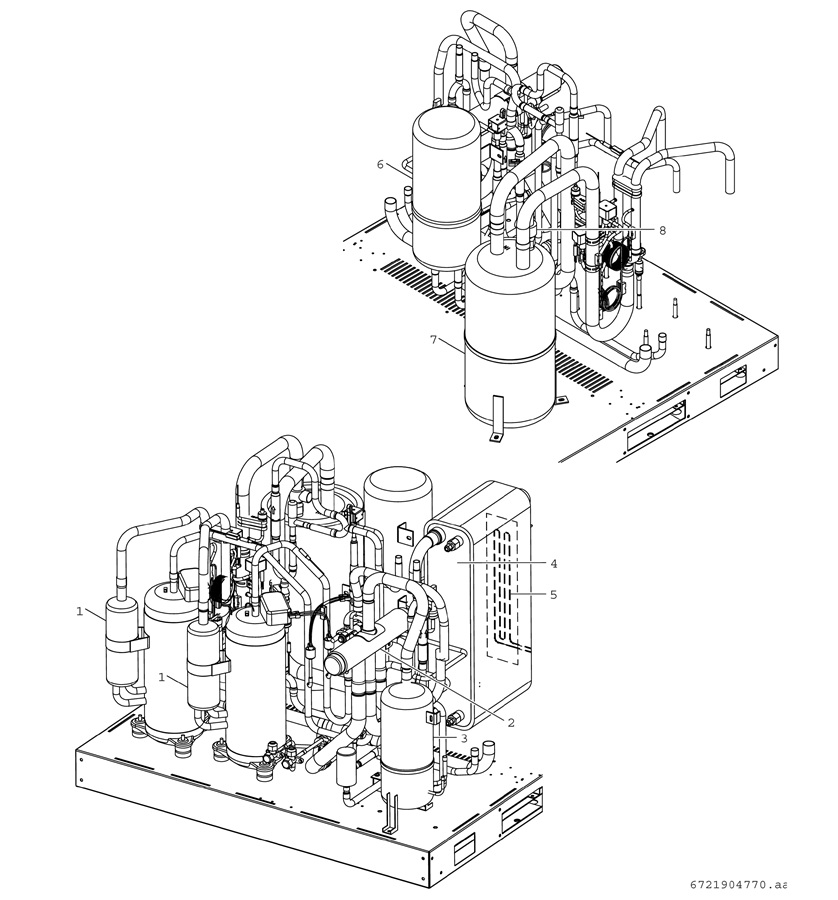

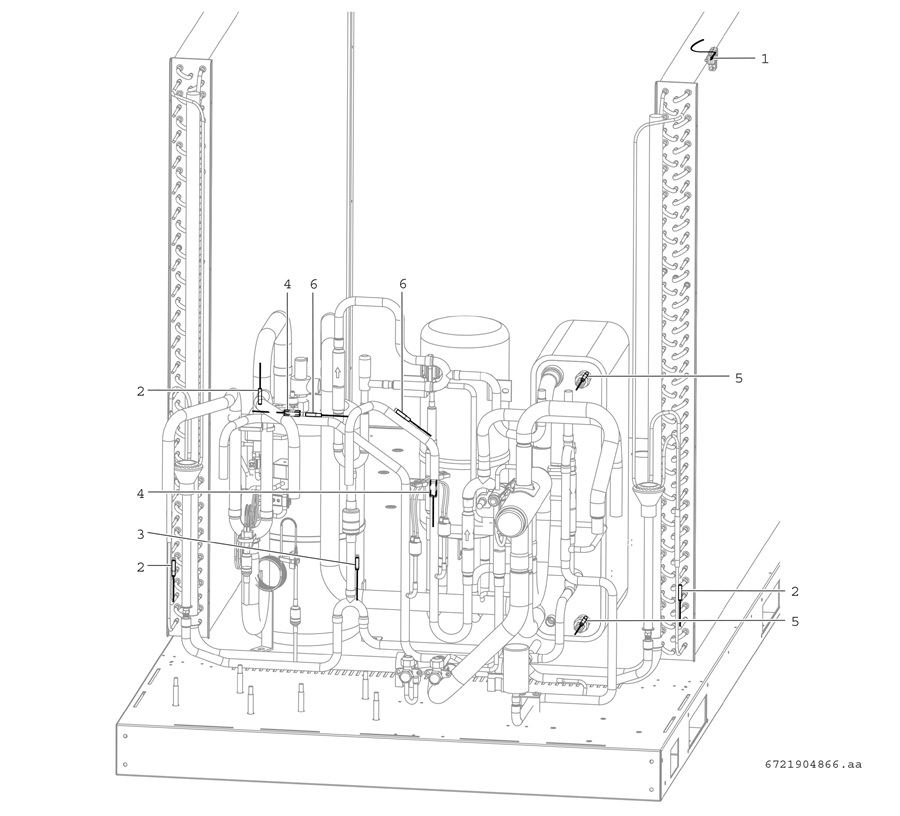

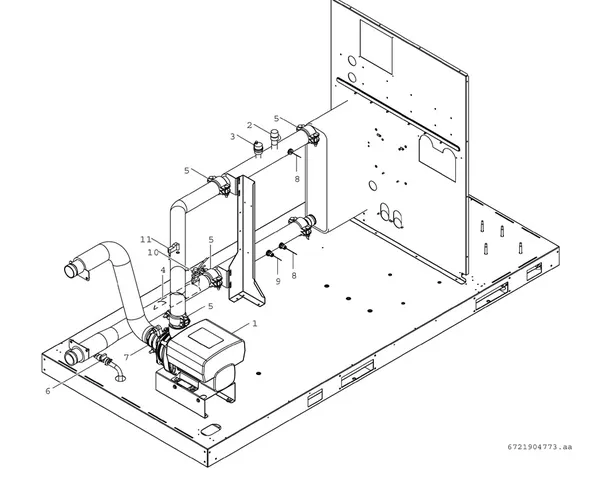

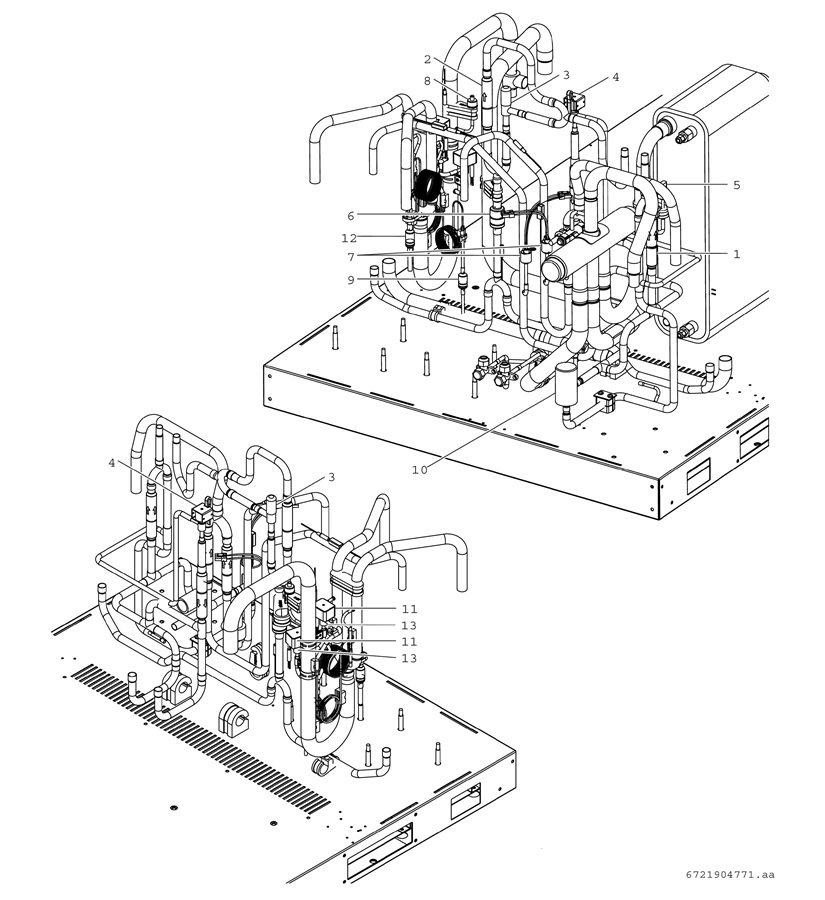

Exploded views of the Bosch Compress 3000 AWP (CS3000AWP 41 PC)
Click an exploded view to enlarge it. The position numbers are shown next to each part.
Other Bosch heat pumps
- Bosch Compress 3400i AWS (CS3400iAWS 10E) 64
- Bosch Compress 3400i AWS (CS3400iAWS 10M) 67
- Bosch Compress 3400i AWS (CS3400iAWS 14E) 64
- Bosch Compress 3400i AWS (CS3400iAWS 14M) 68
- Bosch Compress 3800i EW (CS3800IEW 9) 93
- Bosch Compress 5800i AW (CS5800iAW 12 E) 40
- Bosch Compress 5800i AW (CS5800iAW 12 M) 61
- Bosch Compress 6000 LWM 10kW 64
- Bosch Compress 6000 LWM 4,5kW 63
- Bosch Compress 7000 LW EHP 22-2 LW 66
- Bosch Compress 7000 LW EHP 28-2 LW 66
- Bosch Compress 7000 LW EHP 38-2 LW 59
Frequently asked questions
Which parts are available for the Bosch Compress 3000 AWP (CS3000AWP 41 PC)?
The catalogue lists 59 original parts for the Bosch Compress 3000 AWP (CS3000AWP 41 PC). All parts are listed above, grouped by type, with part number and price.
Are the parts for the Bosch Compress 3000 AWP (CS3000AWP 41 PC) in stock?
Parts marked "Made-to-order item" are ordered specially for you; the delivery time is shown on the product page.
How do I know which part I need for the Bosch Compress 3000 AWP (CS3000AWP 41 PC)?
Search for the part by part number or use the exploded view of the Bosch Compress 3000 AWP (CS3000AWP 41 PC). Is your appliance showing a fault code? The fault code table shows the matching part type.
Are these original Bosch parts?
Yes. All 59 parts in this list are original manufacturer parts for the Bosch Compress 3000 AWP (CS3000AWP 41 PC), supplied through the official technical wholesale channel and with the correct part number.
How much do parts for the Bosch Compress 3000 AWP (CS3000AWP 41 PC) cost?
Parts for the Bosch Compress 3000 AWP (CS3000AWP 41 PC) range from €4.90 to €4,938.40 incl. VAT. The exact price of each part is shown in the tables above.
Can I return a part?
As a consumer you have a 14-day right of withdrawal. You may unpack and inspect the part; do not install or connect it. For a part that has been installed, connected or damaged we deduct the diminished value, up to the full price for circuit boards.
