Bosch Compress 7000 LW EHP 54-2 LW spare parts
In brief
Instalpunt supplies 60 original parts for the Bosch Compress 7000 LW EHP 54-2 LW, including sensors, temperature sensors and NTC sensors, heat exchangers. Order online.
- 60Spare parts
- 1In stock
- €24.83From
- 13Types
- availableExploded view
Looking for parts for the Bosch Compress 7000 LW EHP 54-2 LW (heat pump)? Below are all 60 original parts, grouped by part type, with the matching exploded view. Choose a type to jump straight to the right table.
View the interactive exploded view →- Sensors 6
- Temperature sensors and NTC sensors 1
- Heat exchangers 3
- PCBs and controls 1
- Expansion valves 2
- Compressors 1
- Displays and controls 1
- Valves 4
- Electrical parts 10
- Cables and wiring harnesses 4
- Casing and panels 10
- Insulation 3
- Fixing material 2
- Other parts 12
Sensors for the Bosch Compress 7000 LW EHP 54-2 LW (6) all Bosch sensors →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Nefit temperature sensor 200mm 10 kohm | 8020309 Mfr. no. 8733703181 | €48.95 | In stock | View & order |
| Bosch temperature sensor PT1000 8738206743 | 8179560 Mfr. no. 8738206743 | €63.95 | Made-to-order item | View & order |
| Bosch pressure sensor 0-15 bar 8738206740 | 8179563 Mfr. no. 8738206740 | €303.95 | Made-to-order item | View & order |
| Bosch pressure sensor 0-46 bar 8738206739 | 8179564 Mfr. no. 8738206739 | €303.95 | Made-to-order item | View & order |
| Bosch PT1000 contact sensor with cable set | 10740163 Mfr. no. 8738206904 | €93.95 | Made-to-order item | View & order |
| Nefit temperature sensor 200mm 4,7 kohm | 8020307 Mfr. no. 8733703183 | €58.95 | Made-to-order item | View & order |
Temperature sensors and NTC sensors for the Bosch Compress 7000 LW EHP 54-2 LW (1) all Bosch temperature sensors and NTC sensors →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Bosch outdoor temperature sensor PT1000 | 10550827 Mfr. no. 8750736242 | €65.95 | Made-to-order item | View & order |
Heat exchangers for the Bosch Compress 7000 LW EHP 54-2 LW (3) all Bosch heat exchangers →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Bosch heat exchanger ACH18-41 8738206736 | 8179567 Mfr. no. 8738206736 | €589.95 | Made-to-order item | View & order |
| Bosch evaporator ACH112AM-076 Alfa Laval 8738206733 | 8179570 Mfr. no. 8738206733 | €3,883.95 | Made-to-order item | View & order |
| Bosch condenser CBH112AH-086 Alfa Laval 8738206729 | 8179574 Mfr. no. 8738206729 | €4,093.95 | Made-to-order item | View & order |
PCBs and controls for the Bosch Compress 7000 LW EHP 54-2 LW (1) all Bosch PCBs and controls →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Bosch PCB I/O board V1.7.0 | 80200414 Mfr. no. 8738212917 | €223.95 | Made-to-order item | View & order |
Expansion valves for the Bosch Compress 7000 LW EHP 54-2 LW (2) all Bosch expansion valves →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Bosch expansion valve Carel EV3 35 8738206738 | 8179565 Mfr. no. 8738206738 | €549.95 | Made-to-order item | View & order |
| Nefit expansion valve UKV 18d259 | 8021043 Mfr. no. 8733703212 | €134.95 | Made-to-order item | View & order |
Compressors for the Bosch Compress 7000 LW EHP 54-2 LW (1) all Bosch compressors →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Bosch compressor ZHIT 27 K1P Copeland 8738206723 | 8179580 Mfr. no. 8738206723 | €7,856.95 | Made-to-order item | View & order |
Displays and controls for the Bosch Compress 7000 LW EHP 54-2 LW (1) all Bosch displays and controls →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Bosch display | 8179460 Mfr. no. 8738209574 | €497.95 | Made-to-order item | View & order |
Valves for the Bosch Compress 7000 LW EHP 54-2 LW (4) all Bosch valves →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Bosch solenoid valve 8738206742 | 8179561 Mfr. no. 8738206742 | €365.95 | Made-to-order item | View & order |
| Bosch valve 410A 5/16inch 8738207586 | 8179517 Mfr. no. 8738207586 | €63.95 | Made-to-order item | View & order |
| Bosch valve 5/16 87337006510 | 8179697 Mfr. no. 87337006510 | €44.95 | Made-to-order item | View & order |
| Bosch schrader valve | 80200233 Mfr. no. 8738210421 | €70.95 | Made-to-order item | View & order |
Electrical parts for the Bosch Compress 7000 LW EHP 54-2 LW (10) all Bosch electrical parts →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Bosch solenoid coil 8738208509 | 8179469 Mfr. no. 8738208509 | €109.95 | Made-to-order item | View & order |
| Bosch mains cable 5G16 8738206792 | 8179524 Mfr. no. 8738206792 | €479.95 | Made-to-order item | View & order |
| Bosch converter DC-DC 24-5 VDC 8738206771 | 8179540 Mfr. no. 8738206771 | €102.95 | Made-to-order item | View & order |
| Bosch relay MDR-60-24 8738206761 | 8179547 Mfr. no. 8738206761 | €129.95 | Made-to-order item | View & order |
| Bosch relay MDR-20-12 8738206760 | 8179548 Mfr. no. 8738206760 | €102.95 | Made-to-order item | View & order |
| Bosch electrical fuse 8738206756 | 8179552 Mfr. no. 8738206756 | €84.95 | Made-to-order item | View & order |
| Bosch electrical fuse C10 8738206755 | 8179553 Mfr. no. 8738206755 | €57.95 | Made-to-order item | View & order |
| Bosch cable grommet 8738206752 | 8179556 Mfr. no. 8738206752 | €96.95 | Made-to-order item | View & order |
| Bosch relay G2R-1-SNI 230C 87183111970 | 8179788 Mfr. no. 87183111970 | €63.95 | Made-to-order item | View & order |
| Nefit coil expansion valve ukv-a300 mm | 8020351 Mfr. no. 8733703216 | €68.95 | Made-to-order item | View & order |
Cables and wiring harnesses for the Bosch Compress 7000 LW EHP 54-2 LW (4) all Bosch cables and wiring harnesses →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Bosch wiring harness 56-80kW 8738206770 | 8179541 Mfr. no. 8738206770 | €225.95 | Made-to-order item | View & order |
| Bosch display cable R101/5200 8738206768 | 8179542 Mfr. no. 8738206768 | €102.95 | Made-to-order item | View & order |
| Bosch compressor cable 8738206765 | 8179543 Mfr. no. 8738206765 | €156.95 | Made-to-order item | View & order |
| Bosch wiring harness 56-80 kW 8738206764 | 8179544 Mfr. no. 8738206764 | €974.95 | Made-to-order item | View & order |
Casing and panels for the Bosch Compress 7000 LW EHP 54-2 LW (10) all Bosch casing and panels →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Bosch cover 410A 5/16inch 8738207560 | 8179519 Mfr. no. 8738207560 | €31.95 | Made-to-order item | View & order |
| Bosch top cover right 8738206785 | 8179526 Mfr. no. 8738206785 | €283.95 | Made-to-order item | View & order |
| Bosch top cover small 8738206784 | 8179527 Mfr. no. 8738206784 | €225.95 | Made-to-order item | View & order |
| Bosch top cover middle 8738206783 | 8179528 Mfr. no. 8738206783 | €303.95 | Made-to-order item | View & order |
| Bosch top cover left 8738206782 | 8179529 Mfr. no. 8738206782 | €156.95 | Made-to-order item | View & order |
| Bosch rear wall left 8738206781 | 8179530 Mfr. no. 8738206781 | €325.95 | Made-to-order item | View & order |
| Bosch rear wall right 8738206780 | 8179531 Mfr. no. 8738206780 | €346.95 | Made-to-order item | View & order |
| Bosch side panel 8738206779 | 8179532 Mfr. no. 8738206779 | €346.95 | Made-to-order item | View & order |
| Bosch front wall left/right 8738206777 | 8179534 Mfr. no. 8738206777 | €325.95 | Made-to-order item | View & order |
| Bosch foot m12x60 8738206776 | 8179535 Mfr. no. 8738206776 | €283.95 | Made-to-order item | View & order |
Insulation for the Bosch Compress 7000 LW EHP 54-2 LW (3) all Bosch insulation →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Bosch insulation heat exchanger 8738206774 | 8179537 Mfr. no. 8738206774 | €96.95 | Made-to-order item | View & order |
| Bosch insulation heat exchanger 8738206773 | 8179538 Mfr. no. 8738206773 | €89.95 | Made-to-order item | View & order |
| Bosch insulation heat exchanger 8738206772 | 8179539 Mfr. no. 8738206772 | €89.95 | Made-to-order item | View & order |
Fixing material for the Bosch Compress 7000 LW EHP 54-2 LW (2) all Bosch fixing material →
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Bosch vibration damper M8 Sh50 8738206744 | 8179559 Mfr. no. 8738206744 | €94.95 | Made-to-order item | View & order |
| Bosch clamp 8738206759 | 8179549 Mfr. no. 8738206759 | €57.95 | Made-to-order item | View & order |
Other parts for the Bosch Compress 7000 LW EHP 54-2 LW (12)
| Part | Item no. / mfr. no. | Price | Stock | |
|---|---|---|---|---|
| Bosch electrical box cover 8738206751 | 8179557 Mfr. no. 8738206751 | €137.95 | Made-to-order item | View & order |
| Bosch differential pressure switch 46.3bar 8738206741 | 8179562 Mfr. no. 8738206741 | €207.95 | Made-to-order item | View & order |
| Bosch rail 24-40kW 8738206728 | 8179575 Mfr. no. 8738206728 | €68.95 | Made-to-order item | View & order |
| Bosch rail 27-40kW 8738206727 | 8179576 Mfr. no. 8738206727 | €68.95 | Made-to-order item | View & order |
| Bosch temperature sensor 8738209617 | 8179459 Mfr. no. 8738209617 | €303.95 | Made-to-order item | View & order |
| Bosch rear wall/front wall 8738206778 | 8179533 Mfr. no. 8738206778 | €346.95 | Made-to-order item | View & order |
| Bosch immersion sleeve 8738206775 | 8179536 Mfr. no. 8738206775 | €63.95 | Made-to-order item | View & order |
| Bosch soft starter IC 35A 8738206763 | 8179545 Mfr. no. 8738206763 | €862.95 | Made-to-order item | View & order |
| Bosch soft starter IC 25A 8738206762 | 8179546 Mfr. no. 8738206762 | €1,252.95 | Made-to-order item | View & order |
| Bosch connector P2RF-05S 8738206758 | 8179550 Mfr. no. 8738206758 | €53.95 | Made-to-order item | View & order |
| Bosch holder 8738213944 8738213944 | 10741153 Mfr. no. 8738213944 | €123.95 | Made-to-order item | View & order |
| Bosch bracket set filter drier 8738213945 | 10741154 Mfr. no. 8738213945 | €86.95 | Made-to-order item | View & order |

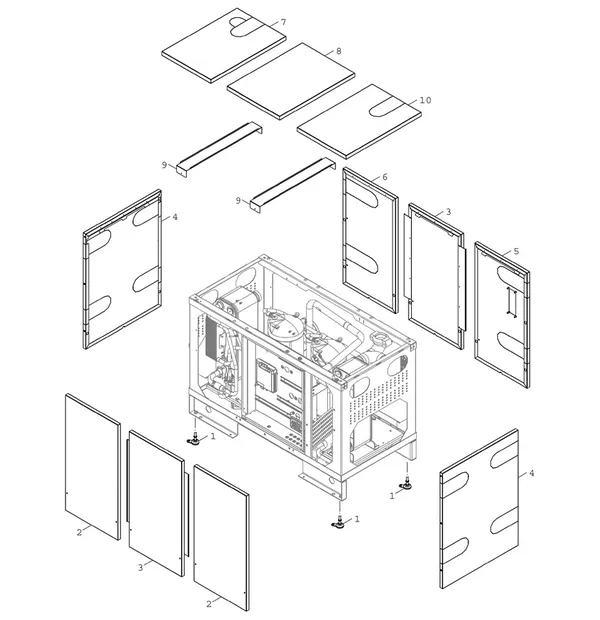

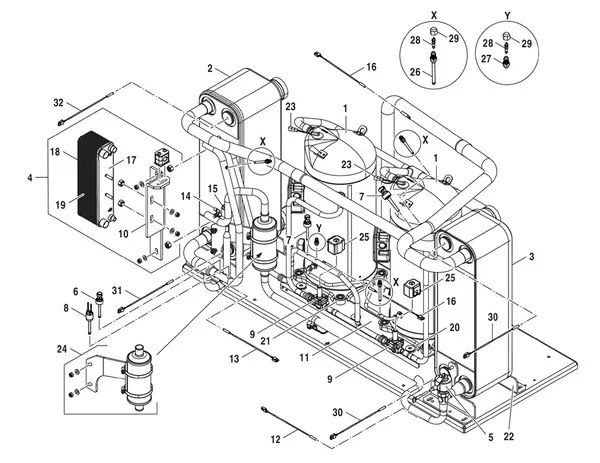

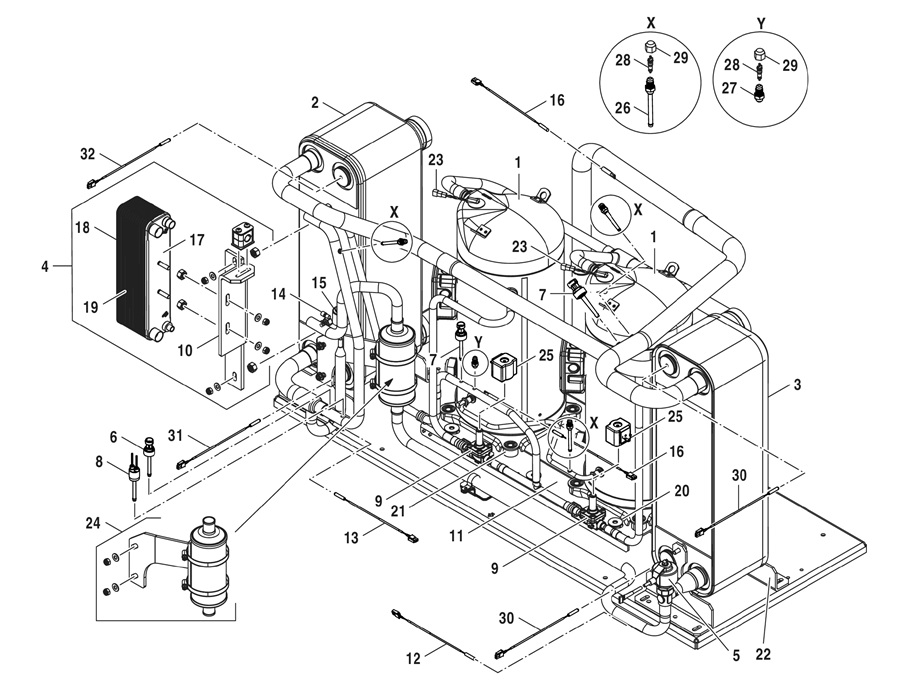

Exploded views of the Bosch Compress 7000 LW EHP 54-2 LW
Click an exploded view to enlarge it. The position numbers are shown next to each part.
Fault code on your Bosch Compress 7000 LW EHP 54-2 LW? This is the part type involved
Common Bosch fault codes and the part type that is usually the cause; the parts for this model are listed above.
| Code | What is going on | Part type |
|---|---|---|
| 2P564 | Temperature sensor temperature rising too fast (> 70 K/min). | Sensors |
| 317 V | Flue gas temperature sensor short circuit | Sensors |
| 318 V | Flue gas temperature sensor open circuit | Sensors |
| 815 W | Open manifold temperature sensor defective | Sensors |
| 1022 W | Cylinder temperature sensor defective or contact problems | Sensors |
| 1025 W | Return temperature sensor defective | Sensors |
For guidance only: the same code can have a different cause depending on the situation.
