Panasonic WH-MXC09H3E8 spare parts

In brief

Instalpunt supplies 9 original parts for the Panasonic WH-MXC09H3E8, including fans, sensors, pressure switches and differential pressure switches. Order online.

9Spare parts
8In stock
€37.90From
8Types
availableExploded view

Looking for parts for the Panasonic WH-MXC09H3E8 (heat pump)? Below are all 9 original parts, grouped by part type, with the matching exploded view. Choose a type to jump straight to the right table.

View the interactive exploded view →

Quick left to the right part for the Panasonic WH-MXC09H3E8

Part	From	Delivery
Fan Panasonic fan blade for e.g. WH-MDC09J3E5 CWH00K1006	€99.95	In stock
Display Panasonic remote control wired	€548.95	In stock

Prices incl. VAT, taken directly from our checkout. Below is the complete parts list for this model.

Installer or self-employed engineer? Create a business account: prices excl. VAT and invoices in your company name.

Fans 1
Sensors 1
Pressure switches and differential pressure switches 1
Thermostats and controls 1
Displays and controls 1
Filters 1
Valves 2
Pressure gauges 1

Fans for the Panasonic WH-MXC09H3E8 (1)

Part	Item no. / mfr. no.	Price	Stock
Panasonic fan blade for e.g. WH-MDC09J3E5 CWH00K1006	9950046 Mfr. no. CWH00K1006	€99.95	In stock	View & order

Sensors for the Panasonic WH-MXC09H3E8 (1) all Panasonic sensors →

Part	Item no. / mfr. no.	Price	Stock
Panasonic sensor for e.g. WH-UD05JE5 CWA501463	9950045 Mfr. no. CWA501463	€196.95	In stock	View & order

Pressure switches and differential pressure switches for the Panasonic WH-MXC09H3E8 (1)

Part	Item no. / mfr. no.	Price	Stock
Panasonic pressure switch	9950048 Mfr. no. CWA101013	€95.95	In stock	View & order

Thermostats and controls for the Panasonic WH-MXC09H3E8 (1)

Part	Item no. / mfr. no.	Price	Stock
Panasonic thermostat	9950057 Mfr. no. A151074	€49.95	Made-to-order item	View & order

Displays and controls for the Panasonic WH-MXC09H3E8 (1)

Part	Item no. / mfr. no.	Price	Stock
Panasonic remote control wired	9950050 Mfr. no. ACXA75C15753	€548.95	In stock	View & order

Filters for the Panasonic WH-MXC09H3E8 (1)

Part	Item no. / mfr. no.	Price	Stock
Panasonic filter complete for e.g. WH-ADC0309H3E5 CWB51C1021	9950041 Mfr. no. CWB51C1021	€527.95	In stock	View & order

Valves for the Panasonic WH-MXC09H3E8 (2) all Panasonic valves →

Part	Item no. / mfr. no.	Price	Stock
Panasonic pressure relief valve	9950016 Mfr. no. ACXB62-00740	€118.95	In stock	View & order
Panasonic automatic air vent	9950028 Mfr. no. ACXB62-00130	€99.95	In stock	View & order

Pressure gauges for the Panasonic WH-MXC09H3E8 (1)

Part	Item no. / mfr. no.	Price	Stock
Panasonic pressure gauge for e.g. WH-ADC0309H3E5 B070003	9950066 Mfr. no. B070003	€102.95	In stock	View & order

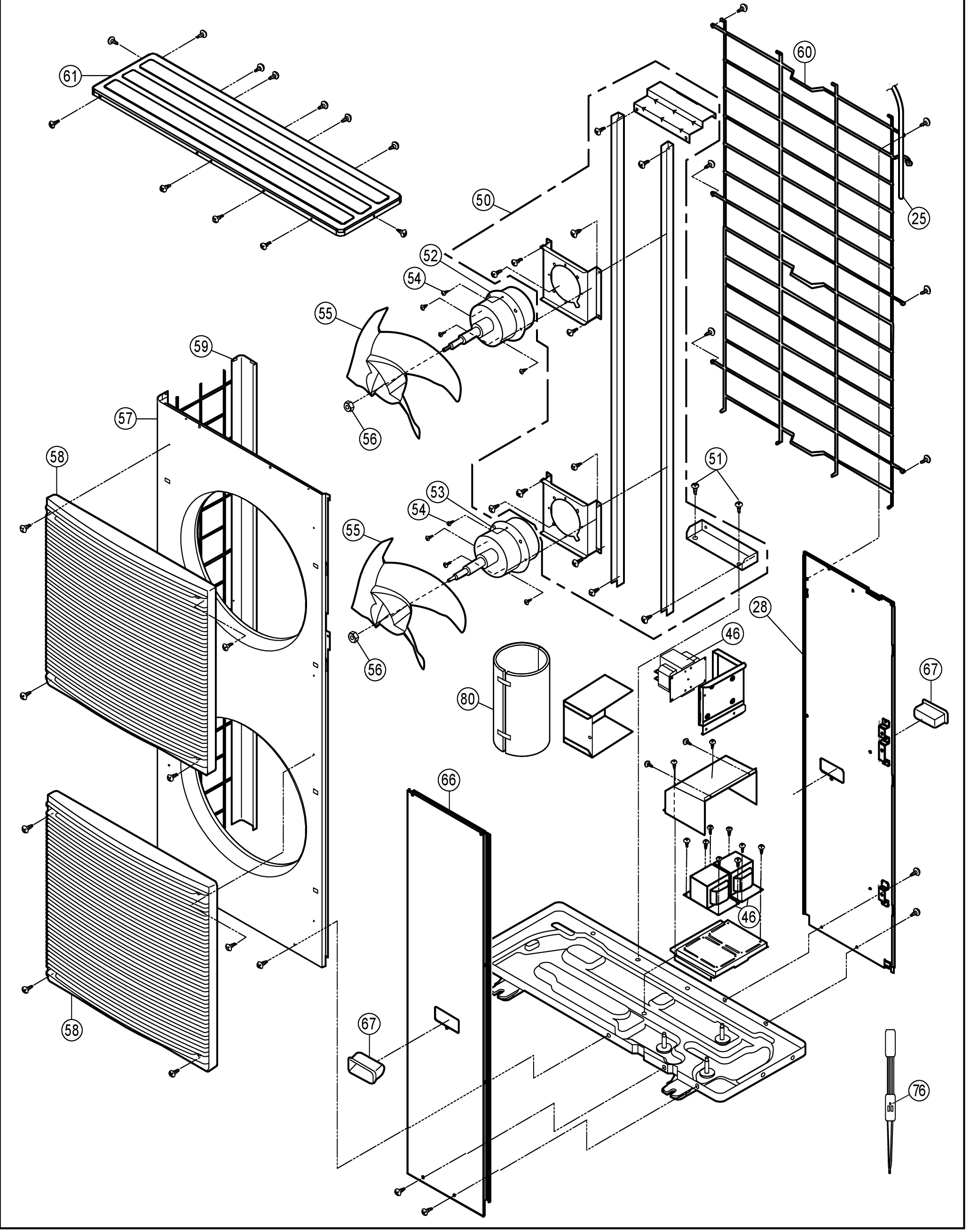

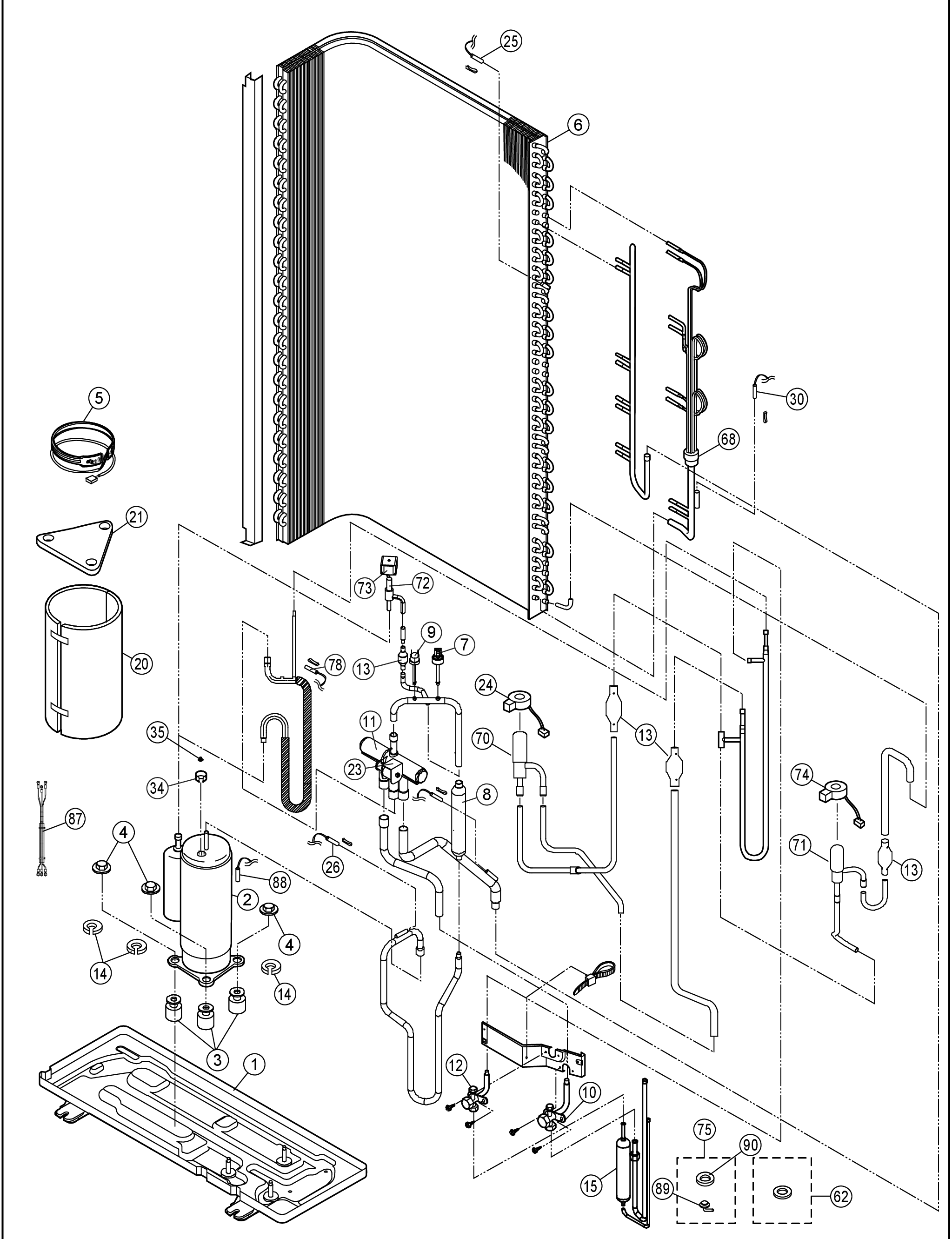

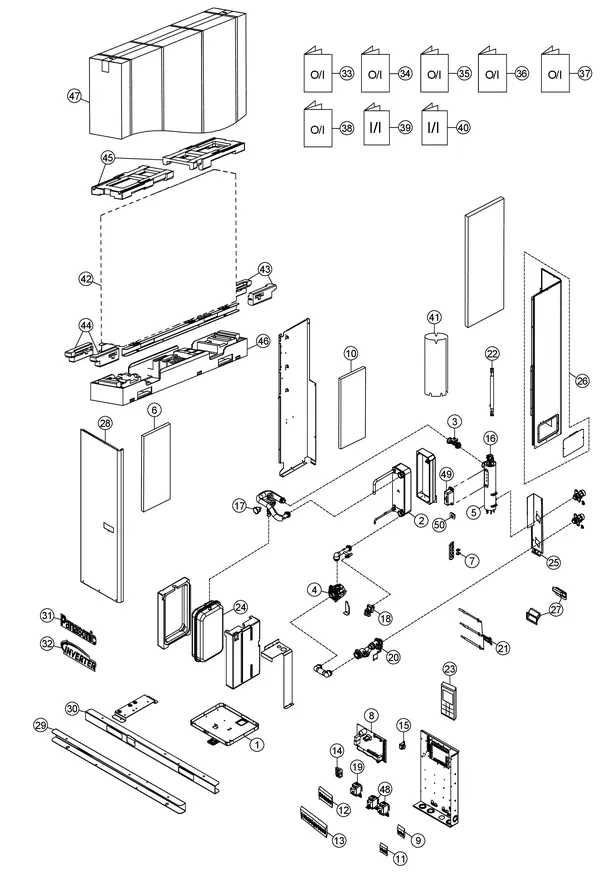

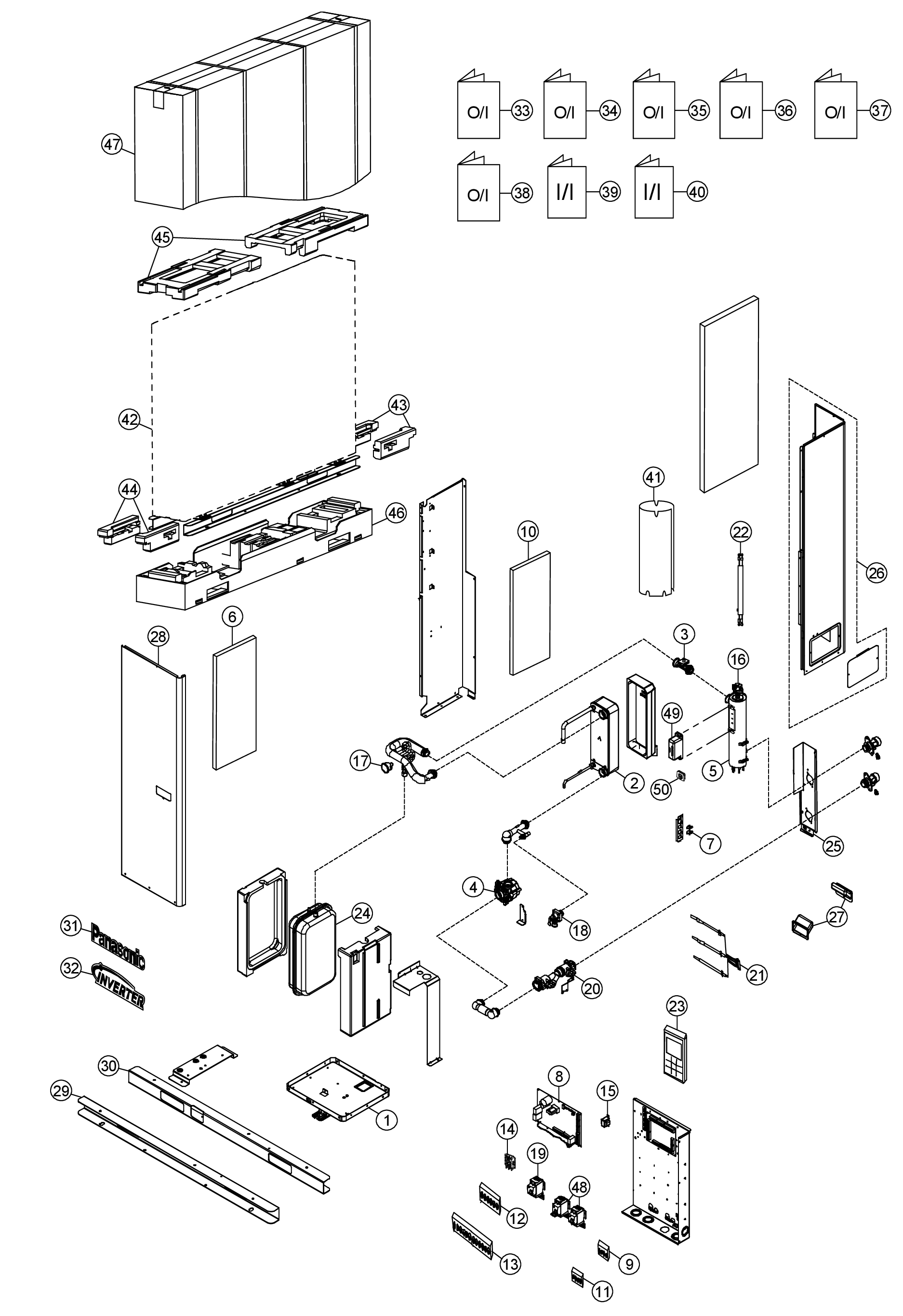

Exploded views of the Panasonic WH-MXC09H3E8

Click an exploded view to enlarge it. The position numbers are shown next to each part.

Other Panasonic heat pumps

← All Panasonic parts

Frequently asked questions

Which parts are available for the Panasonic WH-MXC09H3E8?

The catalogue lists 9 original parts for the Panasonic WH-MXC09H3E8, including fans, sensors, pressure switches and differential pressure switches, thermostats and controls. All parts are listed above, grouped by type, with part number and price.

How much does a fan for the Panasonic WH-MXC09H3E8 cost?

The fans for this model cost €113.69 incl. VAT. Check the table "Fans" above for the right part number.

Are the parts for the Panasonic WH-MXC09H3E8 in stock?

8 of the 9 parts are in stock; shipping to EU countries from €12.95 (€16.95 for more distant countries), usually 3–5 working days. Parts marked "Made-to-order item" are ordered specially for you; the delivery time is shown on the product page.

How do I know which part I need for the Panasonic WH-MXC09H3E8?

Search for the part by part number or use the exploded view of the Panasonic WH-MXC09H3E8. Is your appliance showing a fault code? The fault code table shows the matching part type.

Are these original Panasonic parts?

Yes. All 9 parts in this list are original manufacturer parts for the Panasonic WH-MXC09H3E8, supplied through the official technical wholesale channel and with the correct part number.

How much do parts for the Panasonic WH-MXC09H3E8 cost?

Parts for the Panasonic WH-MXC09H3E8 range from €37.90 to €706.98 incl. VAT. The exact price of each part is shown in the tables above.
